Top Reasons To Choose A 5-Flute Solid Carbide End Mill: Pro Tips And Resources

In the precision machining sector, performing the operations efficiently is, to a considerable extent, a function of the appropriate selection of the tooling. From the range of end mills, the 5-flute solid carbide end mills are arguably some of the most efficient in beating the other cutting tools in terms of the rate of material removal, speed, and surface finish. This paper covers some of the reasons why machining professionals use 5-flute solid carbide end mills and offers expert advice to assist in developing the necessary skills. In short, if your goal is to allow a better tool life, tool surfaces, or tool functionality, to put it mildly, the ability of these cutters and their possible advantages will prepare you well for tool selection.

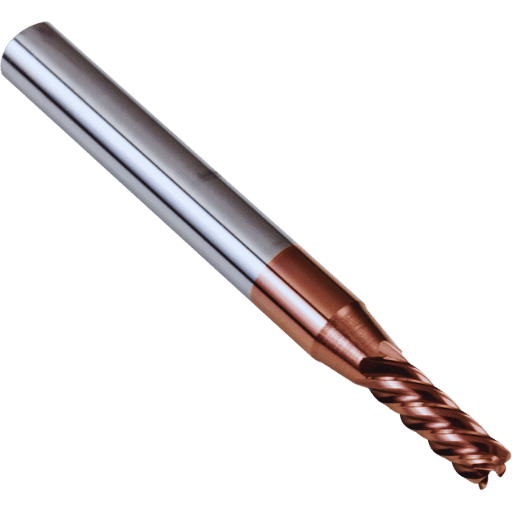

What is a 5-Flute End Mill, and How Does it Work?

The 5-flute end mill is a cutting tool employed in milling operations with five cutting edges or flutes provided in it. These flutes help provide a healthy compromise between the need for chip room and the tool strength thus making the end mill applicable for various machining operations. It works by spinning at high speeds with the flutes on the tool cutting into the workpiece thus providing accurate cuts and smooth surfaces. Because of its design, it is further suitable for high-performance machining because of high feed rates and low tool deflection.

Understanding the Basics of a 5-Flute End Mill

How it Works: A 5-flute end mill removes material by means of its 5 working edges rotating at a rapid speed, which performs the cutting action quite effectively. The flutes embedded within the rotating shaft will engage the workpiece to create cuts to the desired depth and depth of cut to the surface level.

Performance Factors: One of the key performance factors is the increase in feed rates, decreased deflection of the cutting tool and improved chip flow, all of which enhance the efficiency of the machining process.

Tool Strength and Balance: In situations where there are higher cutting loads, five flutes provide a strong structure that evenly distributes blade surface engagement and tool rigidity that is preferable for both roughing and finishing operations.

Material Compatibility: It works efficiently in machining operations involving different materials such as steel, aluminum, and titanium hence diverse application in such times.

How Does the Geometry of a 5-Flute End Mill Affect Cutting?

The internal and external shaping of 5-flute end mills affects their cutting performance. Since the number of flutes has been increased, more cutting edges can cut into the material at once, thereby spreading the load and lowering the stress and wear on each cutting edge separately. Increases the strength and stability of the tool interface to help reduce both deflection and vibration at high speeds. The particular helical angle and flute shape reduce heat accumulation and clogging ‘tooth’ and thus improves chip hauling when cutting difficult materials. Furthermore, the improved geometry helps to produce better surfaces and tighter tolerances, thus a 5-flute end mill can be used for both roughing and finishing processes.

Key Differences Between 5-Flute and Other End Mills

The main distinction between 5 flute endmills and those with more or less than 5 flutes is the working efficiency and quality of surface finishing of the cut material. For a greater number of flutes, for example, a 2-flute or 3-flute end mill, such tools provide for effective chip removal and, as such, are used in softer materials like aluminum which pays machining but not chip removal. But, they can’t achieve as high surface finishing or work as efficiently in high-speed cutting tasks.

On the contrary, endmills with rather higher flutes like 6 flutes or 7 flutes tools enable one to achieve very good surface polishing and stability in terms of operating at much higher feed rates. They are used effectively on harder materials as cutting forces are more evenly distributed but greater chip removal efficiency is lost during chattering which increases piling and heat.

End mills with five flutes are reasonably effective in providing better surface finish and less deflection than tools with two or three flutes and, at the same time, are able to clear chips and manage heat better than tools with six or more flutes. This, in turn, explains why these tools are termed 5 flute end mills. Due to their ability to work on both sides of the jaw, 5 flutes end mills perform both roughing and finishing works on a large array of materials.

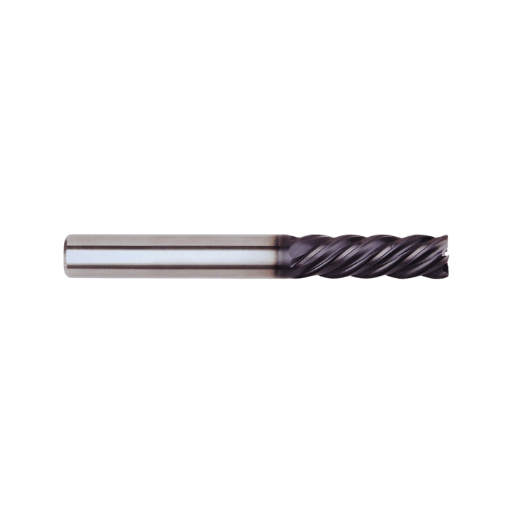

Why Choose a Solid Carbide End Mill for Your Projects?

Advantages of Solid Carbide End Mills

1. Hardness and Wear Resistance: When it comes to resilience and retention of edges, solid carbide end mills lead, thus making them suitable for machineries that are very demanding.
2. Heat Resistance: Carbide end mills are able to tolerate more heat than HSS tools, and as a result, faster cutting speeds and longer tool life are possible.
3. Enhanced Cutting Performance: Solid carbide is u0285 rigid and precise, which means better cuts can be made due to the tools’ better performance.
4. Versatility: These end mills are effective on a wide range of materials, including soft metals like aluminum and hard metals like stainless steel and even titanium.

Applications: What Materials Can You Cut with Solid Carbide?

Solid carbide end mills are easily the most useful tools for composite cutting. They serve well on soft materials like aluminum, brass, plumbers’, also, other metals, and tougher ones such as stainless steel, cast iron, titanium. Moreover, their hardness and wear resistance allow them to be used for cutting hard materials such as hardened steel and superalloys. This versatility is the reason solid carbide end mills are the most preferred in high precision and high rate machining jobs in all branches of industry.

Durability and Performance: Solid Carbide vs. Other Materials

In comparison with high-speed steel (HSS) or cobalt tools, there are numerous distinctions in performance when using solid carbide end mills. Solid carbide end mills exhibit much higher values of hardness and wear resistance, which leads to enhanced tool life and cutting edges that remain sharp under heavy usage. This means less frequent changes in tools and also a reduction in wastage of time rather than an increase in productivity.

Also, solid carbide tools can be used at much greater speeds and also can endure higher temperatures with out suffering structural failure. This makes it possible to execute machining operations faster and yields a better surface finish on the workpiece. On the other hand, high-speed steels and cobalt tools, even if they are not costly, have a higher rate of wear and tear and are more prone to heat damage, which does not suit higher speed or precision machining operations.

In conclusion, solid carbide end mills are effective even in the most aggressive and precision machining operations, making them cheaper in the long term despite the high upfront costs.

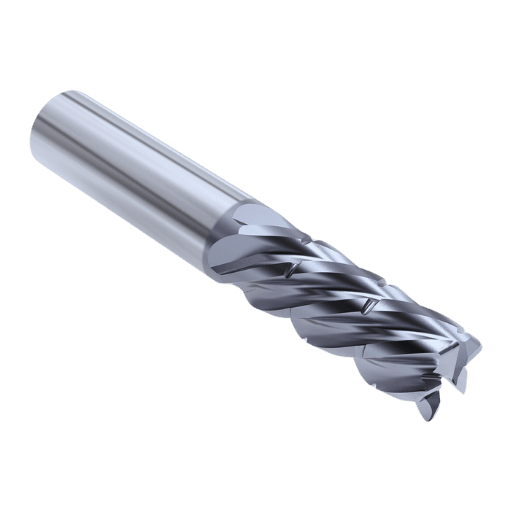

How to Select the Right 5-Flute Square End Mill for Your Needs

Factors to Consider: Diameter, Shank, and Length

If we are to choose for a 5-flute square end mill, it is important to pay attention to some aspects such as diameter, shank, and length. These parameters concern the quality of the tool, accuracy, and application advantages in various milling operations.

• Diameter: The diameter of a given end mill determines how big the cut that can be made flows and also defines the rate of material being removed. The larger the diameter of the exercise, the fewer passes will be made, which will, in most cases, enhance productivity. Nevertheless, it can also be more machine-demanding and may not do very fine or detailed tasks. The diameter range for those 5-flute square end mills is between 1/8 inch (3.175 mm) up to 1 inch (25.4 mm), with some applications dictating which diameter is the most suitable.
• Shank: The shank diameter should match the tool holder’s capacity to enhance the stability of the cutter, that is, to avoid runout during operation. There is always a risk of shank misfitting the collet which leads to vibrations, poor tool durability, and poor quality of the workpiece produced. In standard configuration, the shank diameter is typically the same where the cutting diameter of the end mill is integrated to avoid slippage, except for reduced shank where a longer depth of cut and clearance is needed.
• Length: The overall length and cutting length or flute length are crucial to be considered as they determine the extent of the tool and its rigidity. In cases of deep cavities or intricate configurations, a longer end mill may be called for. Unfortunately, increasing length may also lead to deflection and lower accuracy in cutting. It is crucial to maintain a trade-off between length and rigidity, this is why most end mills come in standard, long, extended and extra-long.

The end mill attributes data of these features need to be sighted with the end user for no given task would require these attributes more than the machines have. In precision applications, shorter and rigid tools are favorable, on the other hand, longer tools are advantageous in operations that need extended reach. By and large, the choice of diameter, shank and length is very important to the operators so as to ensure the relevant 5-flute square recipes for effective machining are availed.

Coated vs. Uncoated: Pros and Cons

Coated End Mills: Coatings include a thin layer of materials such as titanium nitride (TiN), titanium carbonitride (TiCN), or aluminum titanium nitride (AlTiN) which add functionality to coated end mills. Coatings offer excellent abrasion resistance, decrease friction, and are capable of coping with hotter cutting conditions, which extend the life of the tool and improve surface quality. Such end mills are best suited for high rates of revolutions and when dealing with hard materials. The drawback is that coated end mills are usually costly as compared to uncoated ones, which can be a drawback in some projects where cost is an important factor.

Uncoated End Mills: Uncoated end mills lack the advantages of a coating, however, these tools are still quite effective especially on soft materials or where low cutting speeds are allowed. These tools are said to have good edge-holding ability and alleviation of chipping because of relatively high rake angles. Uncoated alternatives are often cheaper and are therefore appropriate for light duties where the maximum life of a tool or its resistance to high heat is not of much importance. In addition, these materials do not present a coating delamination problem which is observed in some situations.

In conclusion, the decision on which type of end mills to select, whether coated or uncoated, should be based on the nature of the machining work, cost and material type. While coated tools work best in adverse conditions, non-coated tools are economical for average tasks.

Best Practices for Different Cutting Applications

1. Material-Specific Tool Selection: It is necessary to select an appropriate tool material and geometry if one is to get the best performance output. Let’s take, for example, a carbide end mill to perform a machining operation on a hard stainless steel or a cast iron that is known to be tough; it is better suited than high-speed steel. There are some tool coatings that can be used as well to augment performance depending on the type of machined material.
2. Optimal Cutting Speeds and Feeds: Aside from establishing cutting parameters, a correct speed and feed for each operation is very critical in determining the life span of cutting tools and the surface finish required. Using the help of a rotary cutter is best when machining a soft material; however, with hard materials, a rotary cutter may be turned at a lower speed to help reduce the excessive wear rate of the tool. Always start with the manufacturer’s recommendation and change the speeds and feeds according to the material being cut.
3. Appropriate Coolant Usage: The efficiency of a machining operation is highly dependent on the effective use of coolant whenever required. For example, when machining titanium which is a heat generating metal, the coolant will help in cooling down the tool and prolonging its life. This is unlike the case of aluminum where as little lubrication as possible or only specific coolants with rewritten properties of the aluminum may be required to avoid chip welding.

Following these recommendations, where possible, in your machining processes will help improve the performance, increase the durability and increase the quality of the surface for TOOLS 2 nd layer of cutting.

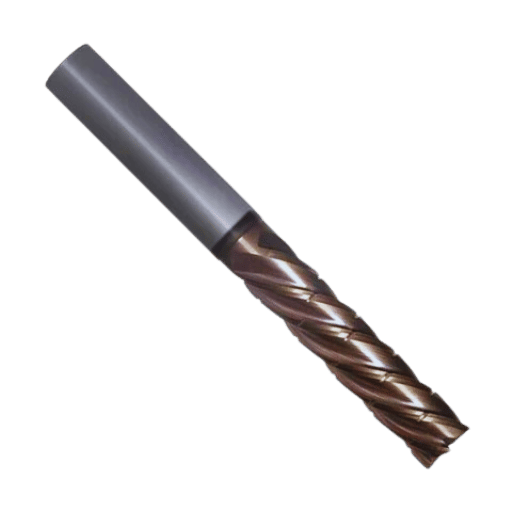

Where to Buy High-Quality 5-Flute End Mills

Top Product Providers in the United States

1. Harvey Tool: Deals in the manufacture of high precision cutting tools and makes available quality 5-flute end mills for different uses.
2. Kennametal: Charges it self with the fabrication of strong cutting tools aimed for any purpose, Precisely 5-flute end mills which cater for high speed machine services.
3. Niagara Cutter: This company has a broad range of end mills including 5-flute end mills designed for soft and hard material applications.
4. MSC Industrial Supply Co.: Has diverse stock of 5-flute end mills by numerous brand names with quick availability and reasonable prices.
5. Guhrig: This company is well known for making high quality cutting tools and mass produces a number of 5 flute end mill improving cutter life and cutting efficiency.

Checking Stock and Ready-to-Ship Options

Securing timely delivery of top-quality 5-flute end mills will require keen attention to both the levels of stock on hand and the stock status. Most of the top providers, such as Harvey Tool, Kennametal, Niagara Cutter, MSC Industrial Supply Co., and Guhring, provide you with the facility to instantly check stock on hand through their websites. Such sites usually have features that allow them to see their ready-to-ship items as the inventory updates in real-time. Further, there are a number of suppliers who offer fast delivery services to their clients in order to meet their fast requirements so that their machining processes would not be interrupted due to material unavailability.

Guidelines for Placing an Order and Shipping Details

Physical touch in the form of structures and blocks using the computer mouse or other accessories, which have a mechanical repetitive nature and are used during the manufacture of things.

There are a number of factors to consider when ordering 5-flute end mills:

1. Identify Your Requirements: Clarify the needed size, shape, and material composition of the 5-flute end mills for the purpose of your application. This information helps a lot in narrowing down to those things that are relevant, making sure that all the right tools are picked.
2. Choose a Reputable Supplier: It is advisable to employ top providers, for instance, Harvey Tool, Kennametal, or Niagara Cutter. Their websites provide stunning reviews of 5-flute end mills, let alone the quality and efficiency of their products. Product and capacities of the products must be extensively checked out.
3. Check Real-Time Stock Availability: Use these suppliers’ online platforms to check how effective their inventory is at that particular moment. This minimizes the risk of undesirable delays due to out-of-stock items that need to be shipped.
4. Add to Cart and Review: Once satisfied, Add to cart the 5-flute end mills you wish to purchase. Take your time to go through the cart to confirm that the items added are okay with the technical specifications of the project.
5. Checkout Process: To make the purchase, go to checkout by filling in the essential information that is such as billing address, shipping address, etc. Filling in the account set up is also suggested if you wish future orders to be easier.
6. Choose Shipping Options: Choose the shipping option based on your urgency and cost. There are many suppliers that provide fast shipping, for example, Harvey Tool or Kennametal or Niagara Cutter.
7. Payment and Confirmation: Make the purchase by selecting a suitable payment mechanism. Once you have placed the order, you will receive a confirmation email containing the tracking information with order details.

Once you take care of this and utilize the online resources available with the best providers, you can make an order as well as get the 5-flute end mills of your choice delivered to you with ease.

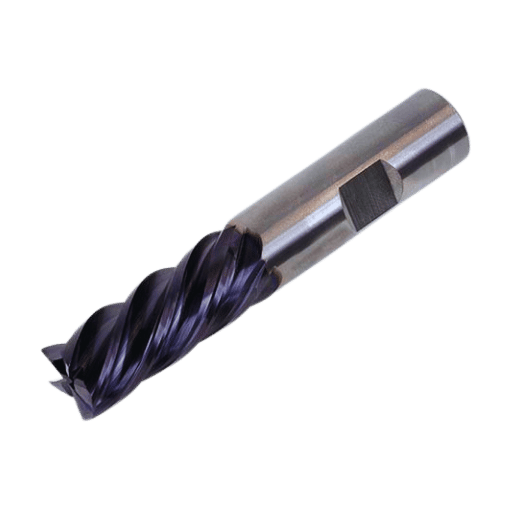

How to Maintain and Care for Your 5-Flute End Mill

Maintenance Tips for Prolonged Tool Life

1. Regular Checks: Do a walk through the equipment and take on visual inspection for any signs of wear and tear before each time usage.
2. Effective Cleaning: Clean both the surfaces with any accumulated debris and operating fluids that are afforded to be utilized after every cycle.
3. Safe Keeping: A clean, safe, and dry place will be maintained to avoid water and physical damage to the contents of it.
4. Applying Oil: Employ selective cutting oil/ fluids and lubricants so as to prevent excessive friction and heating.
5. Cycle Tracking: The machine usage aspect gets in to play in this by tracking the possible cupe time the tools are engaged and performance expected to help plan for changes in time.
6. Restoration: When a need arises for retaining the cutting effectiveness of the tools, resharpening and reconditioning ought to be carried out by sending the tools to an appropriate place.

Common Issues and How to Troubleshoot Them

Chipping or Breakage:

• Cause: Workers burnish fine cuts or else cut at an improper rate or due to poor grade material.
• Solution: Change the origin of cutting intervention and make sure appropriate qualifying tools are used.

Excessive Wear:

• Cause: Use of the wrong tool materials for the purpose, inadequate cutting fluids, Overheated conditions.
• Solution: Use the right cuttng blades, use sufficient amounts of lubricating fluids and control the temperature during the cutting phase.

Built-Up Edge (BUE):

• Cause: And over mean that sounds realistic because of inadequate speed applied, under-usage of cutting fluid, and work material stickiness.
• Solution: Lessen working speed, adjust the cooling efficiency, and prove adhesion lowering coatings.

Poor Surface Finish:

• Cause: Worn cutters, shock, and errors in orientation of cuts.
• Solution: Worn tools must be changed or recut, reducing vibration levels of machines, and its proper cutting angles must be checked.

Tool Deflection:

• Cause: Length of the tools used, high circumferential forces, and low tool stiffness.
• Solution: Shorter tools must be used, the radial load must be lessened, and clamps must be correctly positioned to hold tools.

You can do many things to ensure that your 5-flute end mills operate better and last longer, including assessing these common issues and utilizing the recommended troubleshooting remedies.

Resources for Professional Support and Help

If you do encounter any problems when operating your 5-flute end mills, looking for help and other resources will solve the problems and enhance the functioning of the tool. As mentioned earlier, some of the best solutions pertaining to your machining requirements can be resorted as follows:

1. MachiningCloud: It helps to select 5-flute end mills with an highly integrated comprehensive digital tool information system, supporting product specification, usage, selection and additional optimization opportunities. The user is provided real time data access and also an expert so that the user’s tool is used in the correct manner.
2. CNC Cookbook: This resource offers well researched documents, guides, and how-to’s for a variety of machining processes. It comes across a specific focus on how to deal with the most common concerns, from tool wear and breakages to poor surface finishes and simple strategies for tool maintenance.
3. Harvey Tool: The website of Harvey Tool offers large amount of technical content resources including videos, white papers and case studies. The support section offers pundits on the technology with sways of how to use it and for what and as well strategies of overcoming conundrums in CLS.

Thus through these resources, you will be able to follow expert recommendations and effective solutions on ways of enhancing the machining processes and the effective management of the 5-flute end mills.
