Understanding The Versatility Of The End Mill: Essential Knowledge For Machinists

The end mill is among the most valuable and multipurpose tools in precision machining. This blog aims to educate machinists regarding end mills, covering their construction details and purposes, including the areas where end mills are employed. Materials to be selected and cutting strategies shall be looked into in the technical part concerning aspects that affect the end milling processes. Suppose you are a professional or a beginner who engages in this profession. In that case, the information in this guide is informative and will enable you to use the end mill in several machining activities.

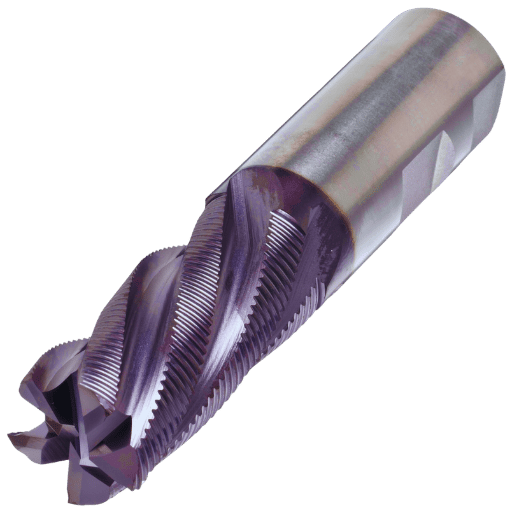

What is an end mill, and how does it work?

An end mill is a specialized milling cutter that finds its applications in industrial milling. End mills differ from regular drill bits in that the latter use only axial motion to cut holes in a vertical direction. At the same time, end mills do not just cut axially but also laterally and obliquely. To achieve this, the tool combines cutting edges on the end and the sides. Most end mills are manufactured in different shapes, sizes, and materials for a particular machining operation, such as profiling, slotting, or contouring. The process is done by rotating the tool towards a workpiece to cut the material, aided by flutes, which also assist in removing the chips after cutting and cooling.

Critical components of an end mill

Drilling is a process that requires the utmost understanding of the critical components of an end mill to achieve all machining tasks accurately. Specifically this…

1. Shank: In an end mill, the shank is one of the cylindrical components, which normally does not contain any cutting edges. It has an important role since it helps stabilize and support the device during work.
2. Flutes are one of the most apparent features of end mills, with helical grooves spiraling on the body of the cutters. Flutes have two functions: They create cutting edges that engage the workpiece and remove the waste material, and they allow chip removal so that the end mill does not become too hot or blocked.
3. Cutting Edge: The area providing a disturbance to the work material with reference to its cutter tip and the length of the cylinder is termed the cutting edge. Nevertheless, the shape and sharpness of the cutting edge are the most important factors that enhance the efficiency of a tool and the quality of the product therein.
4. An understanding of the different variables concerning a flute end mill can be employed to cut provision machined with better precision.: This is the angle that determines how deep the spiral of the flutes is turned. Additionally, it affects how much of the chip is removed, the power used when cutting it, and how smooth or rough the job is after machining. Some materials and modes of cuts require a low helix, while others require a high helix angle cutting tool.
5. Coating: Many end mills are plated or coated with materials like TiN or TiAlN to improve the life, friction, and efficiency of certain tools.
6. Core diameter: Core diameter refers to the thickness of the material left between the flutes. It affects the strength and rigidity of the tool, particularly in situations involving severe cutting.

Therefore, machinists must appreciate these parts of milling tools to select the correct tools. By improving the complete machining process, better results will be realized.

How does an end mill function in a machining process?

In the machining process, the end mill has the role of advancing the material, disengaging it using the cutting tool, and removing its mass. The tool is rotated and plunged into the material to shape it into a desired form. Very fine end mill cutters take depths of cut of the material with the help of their rotating movements, having the flutes in contact with the material all the while. This was done to improve chip removal and prevent blockages in the system. Performance enhancement using different coatings on the end mill comes in handy by prolonging and reducing the friction on the cutting tool. All these aspects bring about the end of efficient and accurate parts machining, including the machined components’ surfaces.

Different applications of an end mill

End mills are high-performance tools that serve a broad spectrum of machining capabilities. They can carry out a range of activities such as –

1. Profiling: this is the construction of several complicated shapes on a workpiece.
2. Slotting: which consists of cut scantings or slots in the material.
3. Plunging: Make a hole through this cutting tool straight down inside the material.
4. Face Milling: This is defined as machining a workpiece flat over its surface.
5. Chamfering: which produces angles on corners or designated edges cut off.
6. Engraving: marking any material by covering it up easily with inscribing or complicated patterns or writings.
7. During routine operations, it is common practice to use large and heavy solid end mills for quick and effective material removal before the end stages of machining. The process is carried out quickly by using a lot of material to form the approximate shape.

Each application has a number of properties that should be purchased with the end mill, such as flute and helix angle or coating, to achieve high performance and precision.

How do you choose a suitable end mill for your machine?

Factors to consider when selecting an end mill

When picking an end mill, the following core factors must be taken into consideration to achieve the desired end results:

1. Material of the Workpiece: The end mill’s material and coating should favor the workpiece material. Harder workpieces like stainless steel require more durable and wear-resistant end mills.
2. Tooling: The features of the end mill, such as its flute count, helix angle, and cutting-edge style, influence the chip formation and the surface finish. Increasing the flute number ensures a smooth finish on the cast, but it is lethal for chip removal.
3. Coating: Durable coatings, such as titanium-based nitrides of aluminum (TiAlN) coatings and diamond-like carbon coatings (DLC), help prevent overheating and cut friction.
4. Cutting Parameters: The end mill needs to be compatible with the feed rate, cutting speed, and depth of cut to avoid tool wear and damage to the workpiece.
5. Machine Capabilities: In other words, the cutting tool’s power, rigidity, precision, etc., should correspond to the end mill to expect the best results.

Taking all of this into account, a machinist can pick the appropriate end mill to provide high efficiency, precision, and surface quality in the work carried out.

Comparing carbide and high-speed steel end mills

It is important to note the differences between carbide and high-speed steel (HSS) end mills when selecting one:

Carbide End Mills:

1. Material Composition: Tungsten carbide end mills are more potent than HSS Mills due to their composition.
2. Durability: High-Speed End Mills—Carbide end mills have the biggest advantage of being more resistant to wear and holding sharp edges for longer, making them appropriate for high cutting speeds and tough sweating materials.
3. Heat Resistance: Pervasive heat resistance allows for quick speeds without the tool being worn out too soon, translating to durability.
4. Applications: These tools are suited for abrasive work, mass production, and processes requiring a high-quality surface finish.
5. Cost is one of the parameters one considers when shopping for milling tools for various purposes. Although fairly high investments, the tools can be used for longer, so they will ultimately be economical in the case of bulk operations.

High-Speed Steel (HSS) End Mills:

1. Material Composition: These are made from a kind of tool steel with tungsten, chromium, and molybdenum blended together to allow for toughness.
2. Durability: HSS cuts are not as hard as carbide cuts. Carbide HSS end mills are relatively less brittle and, hence, not easily damaged by chips and cracks in a normal working environment.
3. Heat Resistance: The resistance to heat is subpar compared to that of carbide, which is why equipment wear is likely to be accelerated when in high-speed operation mode.
4. Applications: These are ideal for general machining operations, especially those with lower volumes, where tools with better toughness are required.

Cost: It is cheaper in the initial purchase price than carbide, which makes it useful for small or budget projects.

In conclusion, the decision on whether to use a carbide or high-speed cutting tool for production processes will depend on the characteristics of the material to be machined, the volume of the production run, and the amount of funds available to purchase the milling tools. If the work is done at a high speed on hard materials with precision and good edge retention, carbide would be most suitable, but slower speeds in versatile work on less hard materials can be achieved with the HSS.

Understanding the Importance of Flute Count and Geometry

Understanding the flute count and the geometry of end mills is very important in determining the performance and efficiency during milling operations. The higher the flutes, the more chips and curls of material could be removed and expelled from the work piece while machining, the higher the geometry the more surface improvement and cutting will impact performance.

Flute count

1. Two-Flute End Mill: This tool is mostly used on softer materials such as aluminum. It enables faster chip removal due to greater chip room and decreases the tool’s likelihood of clogging.
2. Four-Flute End Mill: Suitable for cutting more complex materials, this end mill compromises the amounts of material removed and the surface finish. It utilizes square-end mills, which are more efficient in removing materials, effectively combining all surgery elements. The higher number of flutes enhances rigidity.
3. High-Flute End Mills: Designed for finishing operations with an improved or finer surface finish on high productivity and a wide range of difficult-to-machine materials, required particularly while working with square-end mills.

Flute geometry

1. Helix Angle: Related to the direction of the cutting force and the movement or flow of cut chips. Less than 30 degrees provides high rigidity during aggressive cuts, while above 40 degrees reduces vibration and enhances the quality of surfaces.
2. Flute shape: Geometry feature fluctuations help increase the chip ejector’s efficiency and prevent heat concentration. For example, cutting with hurdlers rather than pouch tools may help mitigate working vibrations, leading to enhanced tool lifetime.

Proper attention to flute count and geometrical features depending on the used material and targeted requirement guarantees sufficient machining performance, improving productivity and tool life.

What are the different types of end mills?

Overview of square-end mills

End mills are general-purpose cutting tools used in various milling operations. They have squared ends, which means they can produce sharp corners at a rigid angle of 90 degrees and are typically utilized in milling slots or grooves or making side cuts. These mills are used for metals, plastic materials, wood, etc. Owing to their capability of making one sharp edge blade, square-end mills are essential in any cutting process requiring clean, precise edges. The design produces a high degree of strength and prevents flexing when cutting, which leads to better aesthetic appearances after handling the surface.

Characteristics of ball nose end mills

Ball nose end mills cut with a rounded tip, making it easy to form complex three-dimensional shapes and surfaces in objects. Thus, these mills are quite effective in performing complex surface machining of molds and dies, which must have many concave features. The tip contour minimizes the chances of chipping and increases the life span of a tool shaft, thus making them perfect for high-speed precision CNC milling. Not only that, but these types of end mills are also very good at reducing vibration and producing very smooth surfaces, especially for cutting softer materials such as aluminum and plastic coatings. The shape is the most suitable for forming complex contours in a very accurate and economical tool wear regime.

Introduction to tapered end mills and their uses

The tapered end mills are specialized cutting tools with a tapered shank whose diameter reduces as it approaches the tool’s tip. This feature provides more support and structural integrity, making the tools very efficient for machining slanted walls and complicated features in inserts and die molds. Because of their effectiveness, tapered end mills have very wide applications in industries that require accuracy, such as aerospace and automotive, as well as medical device manufacturing. They can be especially effective at making deep recesses, complex geometry, and tapered shapes without compromising surface finish and reducing the bending of the tool. Given their adaptability and ability to retain consistent accuracy on different materials, tapered end mills are critical components during advanced machining operations.

How are end mills milling?

Best practices for using end mills in CNC machines

When operating end mills using CNC machines to cope with given periods, it is essential to adhere to several best practices:

1. Appropriate Tooling: Appropriate tooling for suitable end mills is determined by the workpiece material and finish required. For instance, more rigid materials are cut using carbide end mills, while high-speed steel end mills are used for softer materials.
2. Correct Speeds and Feeds: Follow the manufacturer’s directions regarding the spindle speed (RPM) and possible feed rate (IPM) for every machine component. This helps reduce the chances of tool breakage and ensures clean surfaces with the appropriate end mill.
3. Proper Workholding: Clamping the workpiece and ensuring it does not move during machining is fundamental to reducing inaccuracy and tool damage.
4. Machine Planning: To extend the life of the tool in use, unnecessary tool movements and the amount of time the tool is in contact with the work piece must be curbed. Tools designs like adaptive clearing can be helpful.
5. Liquid Cooling: To minimize the heat that could be harmful to both the tool and the work piece, thermal fluids or lubricants should be utilized. The cooled effluents also assist in evacuating chips and increasing the life of the tool.
6. Frequent Upkeep: It is also apparent that preventive actions, such as proper upkeep of the CNC machine, such as cleaning the collets and holders, must be performed regularly to ensure accuracy and efficiency.
7. Tool Inspection: End mills must be routinely checked for wear and damage. If any of the tools are damaged due to wear, it’s critical to change them as it may affect machining accuracy and surface quality.

Complying with these best practices would considerably improve end mills’ efficiency, precision, and longevity while performing CNC machining processes.

Common mistakes to avoid when working with milling cutters

1. Selecting the Wrong ToolsOne of the simplest mistakes is choosing and employing the curtailing tools with the wrong features, slanted end flutes, to the material at hand, and required work. For example, people apply high-speed cutters intended for soft materials such as aluminum and hard materials such as stainless steel, and the result is that the cutter has a bad flash.
2. Improper Menu Settings: If the spindle speed and feed rate are too low or too high, problems will arise, such as tool breakage, bad surface finish quality, and tool and work part wear. We must stick to the manufacturer’s recommendation, and these parameters should be altered about the material and the cutter material employed.
3. Insufficient Clamping of WorkpieceIf: If the workpiece is not properly clamped, it will vibrate or wobble when machined, which will cause inaccuracy and damage to the workpiece and the milling tools. It is essential to ensure the workpiece is tightly secured to prevent such an occurrence.

Maintenance tips to extend tool life and performance

1. Maintenance Proper lubrication is crucial in the operational efficiency of solid end mills in machining processes. It is essential to ensure all the moving parts are well lubricated to bear any friction or wear. This also involves correctly applying cutting fluids to enhance the tool life and reduce heat.
2. Regular Calibration: Periodic calibration of tools or machines is performed, and a standard operational delay is reached to enhance the expected high levels of precision and accuracy. Calibration assists in the determination and rectification of performance glitches caused by variations in the mechanics’ structure.
3. Environment Control: Operate in a clean and constant workshop environment. Temperature changes, dust, and related particulate matter are detrimental to the machine and its tools, especially when used.

Adhere to these suggested maintenance practices to minimize milling cutter failure and achieve maximum tool efficiency.

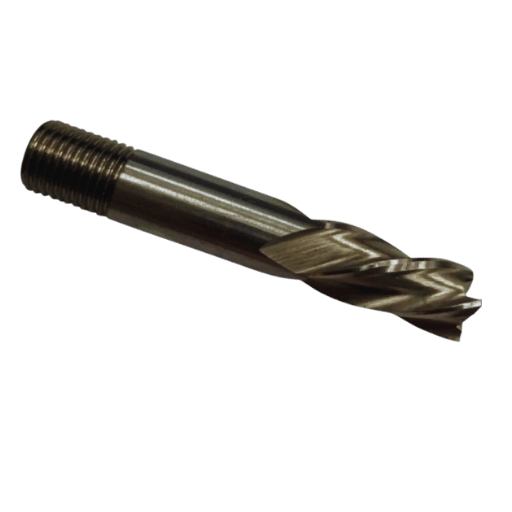

What is the end milling process?

Step-by-step guide to the end milling process

1. Material Selection: When carrying out end milling, use workpiece materials that can be cut, such as metals, plastics, or composites, although they are less common.
2. Tool Selection: Depending on the work materials, surface finishes required, and cutting conditions, choose from various types of end mill cutters.
3. Setup and Clamping: The workpiece should be firmly clamped so it doesn’t move during machining.
4. Machine Calibration: Machine the parts by first ensuring that the CNC machine being used has been calibrated.
5. Cutting Parameters: Choose the cut velocities, feed rates, and cutting depth from the tools and materials.
6. Lubrication: Apply all the necessary cutting fluids that help reduce heat and friction during the material removal.
7. Performing the Cut: Carry out the milling process specifically programmed in the CNC and avoid any erratic movements.
8. Inspection: Mill the workpiece and then check its dimensions, surface finishing, and conformity to the design.
9. Tool maintenance is crucial for extending the life of high-speed steel milling tools: Remove the end mill cutter from the holder and visually inspect it for damage. Bring it back to shape if it is buzzing, which would be critical for the next operation.

The role of milling machines in end milling

The machines that shape the workpieces are the milling machines, which are of great importance in the end milling parts since they are the only way to ensure accuracy and control during complex cutting procedures. These machines have spindles that move peripheral hand-end mill cutters relative to the workpiece in a specified coordinate system. Such control ensures that all cutting parameters, including feed rate, speed, and depth, are followed and the end products are of good quality. However, in addition to these, milling machines can machine different materials and workpiece shapes, which are essential in today’s fabrication processes.

Innovations and advancements in end milling technology

In the same context, several developments have sparked changes to the end milling technology in the last decades. First, the usage of improved coatings in end mill cutters, like titanium aluminum nitride (TiAlN) and diamond-like carbon (DLC), have contributed enormously to tool life and performance, particularly for high-speed machining and durability. Such coatings minimize friction and heat build-up and, therefore, lead to better cutting speeds and surface finish of machined workpieces.

Second, the necessity of performance patience has led to the emergence of such units coupled with smart sensors and ICE devices, advanced concrete workings operated within smart machining systems. Such systems allow online performance control of cutting conditions, tool wear, and machine wear, thus enhancing the milling process while reducing idle times.

Finally, the development of new-generation additive manufacturing methods has led to the emergence of machines with hybrid functional capabilities combining milling and 3D printing. This technology allows performing two functions in one case: applying the technology of subtractive manufacturing and synchronous technology of additive manufacturing, which reduces the time to manufacture complex parts.

All these tendencies are further raising the end milling of machined components to become more homogeneous, precise, and complex.

Reference Sources

End mill

Milling (machining)

Drill

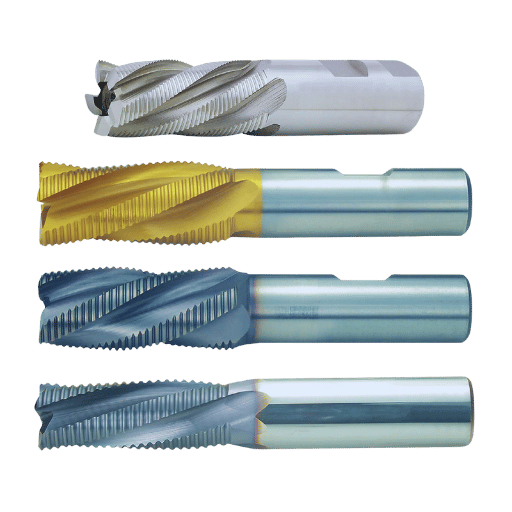

Frequently Asked Questions (FAQs)

Q: What does an end mill mean, and how does it act as a cutter?

A: It is a type of milling cutter, also known as a chamfered cutting tool, employed for industrial milling processes. It cuts by rotating about itself and moving in all planes. End mills are designed with flat and side edges. They can be used for end-cutting in multiple directions, making them suitable for multipurpose operations such as slotting, profiling, and plunging.

Q: What are the benefits of using a carbide end mill?

A: Carbide end mills, and in particular, solid carbide end mills, offer many benefits. They offer high resistance to wear, which translates to using higher cutting speeds for longer tool life. Compared to high-speed steel cutting methods, carbide end mills’ cutting methods yield longer tool life and retain their cutting edge longer, leading to shorter cycle times and better surface finishes on milling operations.

Q: How does the number of flutes change the performance of an end mill?

A: The number of flutes in an end mill impacts both cutting performance and chip removal. A 2-flute end mill is mostly accepted on aluminum and other nonferrous materials as it allows good chip clearance. 4-flute end mills are used on steel materials due to very good chip removal and cutting-edge strength. More than four flutes, i.e., six or 8-flute end mills, are used in finishing and on harder metals.

Q: What is the difference between a ball and a standard end mill?

A: A ball end mill has a dome-shaped cutting edge to perform cutting, whereas end mills, in most cases, have a flat-end cutting surface. Ball end mills are specifically used to obtain rotational geometry in shapes such as arcs and 3D patterns, including fillets in a task. They find their application in the injection and press tool industry. Flat-ended standard-end mills are used to cut planes, cylindrical slots, or recessed areas.

Q: What is the criterion for choosing the appropriate cutting diameter for milling work?

A: The choice of cutting diameter depends on various factors, such as the type of material being cut, the quality of finish required, and the machine’s limitations. Generally, roughing practices require larger diameters since they involve removing more material within the shortest time possible, and smaller diameters are preferred for finishing processes and detailed work. Think about the geometry of the features that you are cutting and whether they have such a radius before you really pick one.

Q: What are the benefits of using an end mill set?

A: An end mill set allows the opportunity to work in different milling operations. It usually comes with differing diameters, flute styles, and end styles (flat, ball, corner radius). Such dimensions let every machinist address numerous jobs without spending extra costs on buying separate tools. End mill sets are also conveniently stored in a vex so that no disorganization occurs.

Q: In what way does Harvey Tool End Mill vary from the other brands?

A: Harvey Tool is a renowned manufacturer of high-performance end mills with precise geometrical shapes and special coatings. They also provide a complete range of end mills for several specific materials and applications, including but not limited to micro-end and nonstandard tools. Harvey Tool end mills typically incorporate unique cutting-edge designs and advanced coatings, including aluminum titanium nitride, that enhance the sustainability and efficacy of the tools while carving tough substances.

Q: What considerations should I consider when choosing an end mill for aluminum?

A: When cutting aluminum, use end mills with 2 or 3 flutes to help evacuate chips formed during the machining. Be sure to consider using end mills with a high helix angle and polished flutes to prevent chip welding. ZrN (zirconium nitride) or AlTiN (aluminum titanium nitride) coatings can also be quite beneficial. In addition, one can thoroughly apply an end mill made of aluminum, as they are designed with better shapes for this soft, ugly material.

Q: How do solid carbide end mills compare to indexable end mills?

A: End mills made of solid carbide are 100% carbide, offering maximum rigidity and wear resistance. They are very suitable for highly precise work and can attain higher surface finishes. Indexable end mills comprise a main steel body with replaceable carbide tips. These are cheaper for large-diameter tools and enable easy change-over of worn tips. On the other hand, solid carbide tools are more efficient on small-diameter tools, while indexable ones are more effective on bigger milling jobs.

Q: What end mill types can be expected, and what is their purpose?

A: The flat-end mill is made with a flat end and is used for normal milling operations. The ball end mill is used for making three-dimensional contours. The corner radius end mill is used for merging projection comprises. The roughing end mill is suitable for easy and quick removals of material. The finishing end mill leads to the smoothening of surfaces. The chamfer end mill is employed to remove the sharp edges of the machined components. Drill mills, which can be used both for drilling and milling operations, are another type of specialized tooling. Corner round end mills are the end mills that create a safe, rounded edge. It is important to note that within each type of knee-type milling machine, there are different end bearing systems as well, which are installed to fulfill particular tasks in carrying out milling operation – augmentation relatively speed and the quality level of machining processes.
