Mastering The Art Of Using End Mills For Titanium: Techniques And Tools

Because of factors such as increased yield strength, very low thermal conductivity, and reactivity with cutting tools, titanium machining is not without challenges. Given their versatility, end mills are instrumental in precisely machining titanium, and advanced flute tools are utilized to form detailed shapes and features. This article aims to develop the necessary endurance and knowledge for adequately working titanium alloys with end mills by addressing the available end mill techniques and tools for titanium alloys. Providing a detailed breakdown of the right tools, cutting parameters, and best working practices will be useful in accumulating knowledge that is key to enhancing readers’ speed and accuracy in machining.

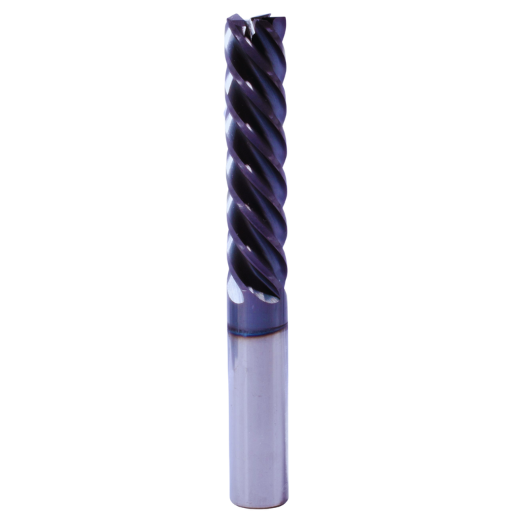

What is Titanium Milling?

Understanding the Properties of Titanium Alloys

Titanium metal has several key attributes, including a high strength-to-volume ratio, good resistance to corrosion, and high-temperature endurance. Such attributes enable titanium to be used more, specifically in aerospace, medical, and marine industries. Due to the low thermal conductivity of titanium, the heat produced while machining is concentrated and carries the risk of quickly dulling the tools employed in such procedures. Furthermore, its propensity to bond with cutting tool materials – often requiring excessive heat – makes it necessary to implement special coatings and cooling techniques. It is also important to pay attention to these material characteristics to properly select cutting conditions – e.g., tools like 6 flute end mills – to ensure proper interaction between the workpiece and cutting tool.

Why Use End Mills for Titanium?

The end mills should be the first option for titanium machining because of their effective performance, high accuracy, and capacity to transform over the troubles that titanium alloys offer. End mills, with their sharp cutting edges, do not produce much heat and also experience low tool wear because of special coatings like titanium aluminum nitride. End milling utilizes end mills whose design is sufficiently helical, which promotes effective chip removal, avoids damage to the workpiece, and ensures a good surface finish. It is for these reasons that end mills have become increasingly important in effective milling of titanium with precision.

Common Challenges in Titanium Milling

The first obstacle and probably the primary reason for titanium milling is the material’s high strength and low thermal conductivity, thus the possibility of working tools failures and workpiece chipping. This neglects titanium’s property, making it hard at a high temperature due to a tendency to react with cutting tools, thus rendering the use of cutting tools coated with titanium aluminum nitride (TiAlN). Furthermore, it adds that the spring-back effect due to the elastic nature of the titanium leads to poor dimensional accuracy and surface finish. Removal of chips is important to prevent work hardening and material recession, all of which are factors that slow down the machining operation and lower surface finish. To efficiently resolve these challenges regarding titanium milling, a proper choice of cutting parameters, cooling methods, and tool geometry is indispensable.

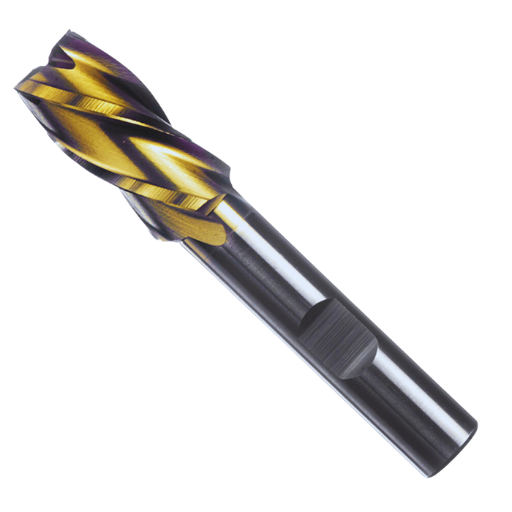

How to Select the Best End Mill for Titanium?

Choosing the Right Flute Design

Choosing a flute suitable for titanium milling involves an understanding of the characteristics of the material in question. Generally, the more flutes on an end mill, the smoother the finish, with less vibrations or chatter because of better light structures. However, in the case of titanium milling, most flute counts are also limited to 3 or 4. This is because many flutes make evacuating chips generated in the cutting process rather tricky, leading to the material being overheated. It also enables the removal of chips produced by cutting titanium, which would otherwise cause material and tool damage. Also, variable helix flutes make it easy to prevent harmonics from propagating, reducing chattering to a great extent, thus enhancing the stability and effectiveness of the machining operations.

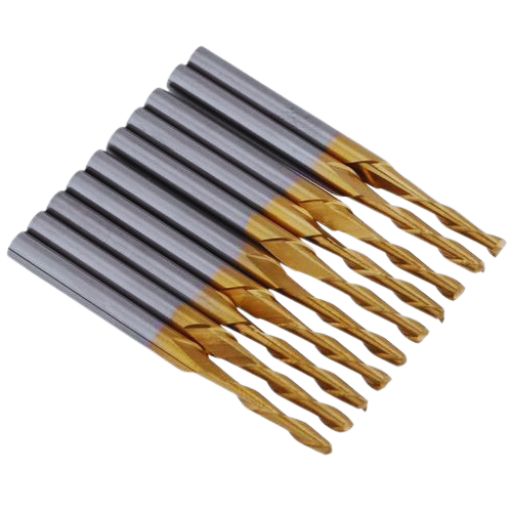

Comparing Solid Carbide vs. Coated End Mills

When considering the possibility of using solid carbide and coated end mill materials for Titanium milling, it is necessary to look at some aspects. Solid carbide end mills are recognized because of their toughness and ability to endure the severe conditions that are related to machining titanium. They are very rigid and do not get deformed easily, even at high speeds; hence, they are suitable for providing dimensional stability and better surface quality.

Coated end mills also offer cutting-edge benefits as TiAlN or TiCN coatings are employed. These significantly improve the end mills’ operating characteristics, particularly when cutting it, due to increased resistance to wear, better thermal characteristics, and enhanced lubricity properties. Consequently, coated end mills provide longer life and operate on higher cutting speeds and feeds than their uncoated solid carbide counterpart. It is desirable to consider both solid carbide and coated end mills since they serve the same purpose but are suitable for different milling operations depending on the expected surface finish, tool life and machining efficiency.

Benefits of Variable Pitch End Mills

End mills with a variable pitch have several notable advantages that improve machining performance. First, the pitches reduce chatter and vibration. The variable pitch configuration breaks the cutting harmonic patterns and gives better surface finish during the work. Consequently, this helps improve machining conditions, which is very useful when machining other difficult materials such as titanium.

Material removal rates remain high as well. The asymmetric flute patterns provide rather aggressive cutting parameters while limiting the chances of the tool breaking. This improves work productivity and efficiency in the seams, which can see lower cycle temperatures with a higher throughput.

The use of wear end mills also extends tool life. The asymmetry of the cutting edge results in better load distribution on the cutter’s edge and extended service life. This means that less tools will be used, resulting in lower costs.

The main characteristics of the variable pitch end mills, including chatter, the material removal rate, and the cutter’s wear resistance, appear significantly beneficial to high-speed milling operations.

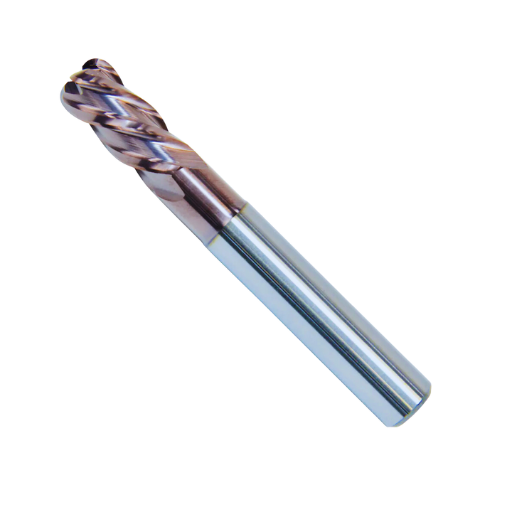

What are the Best Practices for High-Efficiency Milling of Titanium?

Optimal Speeds and Feeds for Titanium

The selection of optimal cutting speeds and feeds for titanium demands a trade-off between tool life and the efficiency of material removal operations. Titanium manipulations are also difficult because of their strength coupled with low thermal conductance, which calls for an appropriate selection of the cutting conditions.

1. Cutting Speed: The cutting speed of titanium alloys, on the other hand, varies from 60 m/min to 120 m/min (200 ft/min to 400ft/min) since it cuts ripping-grade titanium. Lower speeds are recommended for higher hardness grades of titanium.
2. Feed Rate: For the roughing process, it is recommended to have a feed rate of 0.15 to 0.25 mm/tooth (0.006 to 0.010 in/tooth). Post-machining operations should have a lesser feed during finishing of 0.05 to 0.15 mm/tooth (0.002 to 0.006 in/tooth) employing high feed techniques.
3. Depth of Cut: Knowing the depth of cut is an important consideration when cutting titanium, especially while employing flute tools. Relatively, Serrated tools or chucks allow cutting in roughing operations to a depth of up to 6 mm (0.24 inch). Lesser depths of cut are recommended for finishing processes with 0.5 to 3 mm (0.02 to 0.12 inch) depths cut.
4. Coolant Use: Effective coolant application in operations is important to abate heat generated by machining titanium and reduce tool wear. The use of pressure coolants or tool coolant systems is highly advocated.
5. Tool Material: When milling titanium, using good quality coated carbide tools such as TiAlN coated tools will give great results.

By following these recommendations, it is possible to maximize the efficiency and quality of titanium milling and create a proper balance between the throughput and the lifetime of the tools.

Using Coolant to Improve Tool Life

In titanium milling, with the optimal use of coolant, it is possible to extend the service accidents of the tool, provided that one considers:

1. High-Pressure Coolant Systems: High-pressure coolant systems can also discharge the heat formed in the cutting zone, relieving the tool from excessive thermal stress, which can lead to thermal distortion.
2. Through-Tool Coolant Delivery: This system promotes accurate coolant application where it is needed on the cutting tip of the flute tools up to the very edge of the tool, improving cooling and promoting chip expulsion.
3. Coolant Composition: Select a reactive coolant designed for titanium machining operations, especially those containing enhanced cooling agents.
4. Coolant Flow Rate: Chip evocation seems to be the primary reason for the alternative cooling, which provides an even more thorough cooling process within the slot gage as well.
5. Regular Monitoring: The tool’s utmost cooling performance must be achieved by quick action to change or recover the coolant if dirty coolant is used, which can be detrimental to the tool’s life.

Following these techniques, machinists can optimize the utilization of the cutting tools to the maximum in the process of titanium milling.

Achieving Higher Metal Removal Rates

To increase metal removal rates in titanium rough milling, please consider the following:

1. Optimized Cutting Speeds and Feeds: Maximize the speed/feed amplitude through speed and feed cutting adjustments and minimize the tool wear/speed loss ratio. It was determined that high feed rates coupled with low cutting speeds improve the rate of material removal action and cut out wear of the tool at easier cutting.
2. The application of Advanced Tool Materials significantly enhances the performance of milling cutters used for machining titanium.: Use materials that will most likely withstand the adverse conditions of moving during machining, like carbide or ceramic composites, in cutting tools.
3. Aggressive Depth of Cut: The growth depth of cut within the possibilities of the machine and cutter allows more of the material to be removed without damaging the cutter.
4. Dynamic Milling Techniques: Use dynamic milling or high-efficiency milling h e m that utilizes constant cutter engagement and adaptive wear infeed to achieve better cutting conditions and better metal removal.
5. Rigidity and Stability are important aspects to consider in relation to the performance of end mills for titanium alloys. Make sure the machining setup is stable and rigid to minimize the effects mixtures and deflections have on the performance interruption of machining and cutter life.

Through the integration of these methods, machinists can attain better metal removal rates while safely and efficiently performing titanium milling operations.

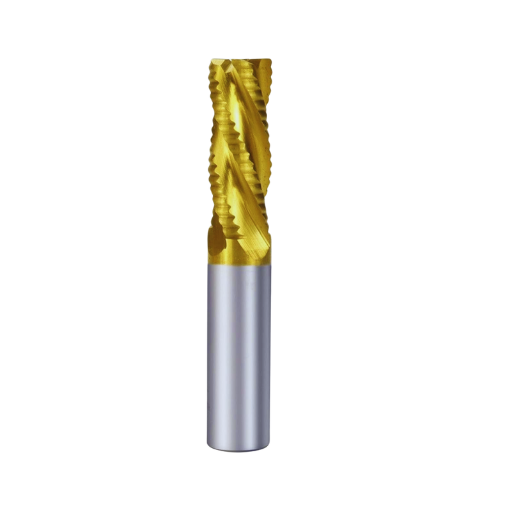

How to Tackle Titanium 6Al4V with End Mills?

Special Considerations for Titanium 6Al4V

Milling Titanium 6Al4V suffers distinctive difficulties presented by the impact of its physical and chemical characteristics. To cope with these peculiar properties note further the following:

1. Cooling: Titanium 6Al4V’s low thermal conductivity has led to high temperatures in the cutting region. Plan for good coolant systems to carry the heat away and safeguard the tool and workpiece from thermal damage.
2. Tool Failure: The high strength of the alloy and the softness of the cutting tool material can lead to quick tool failure. Cutters with hard coatings such as TiAlN or AlTiN can forestall tool wear and extend their life.
3. Chip Management: It is known that Titanium 6Al4V forms long and continuous chips, which could hamper working processes and even grinding. Use chip breakers and chip removal systems appropriately to allow efficient working environments.
4. Cutting Forces: Given its high strength characteristics, significant cutting forces are required to machine this alloy. Make sure that the machining arrangement is very stable to resist these forces rigidly without movement or vibration, which can spoil the surface finish or the tool as well.
5. Machining Parameters: To obtain the best for the three aspects of productivity, tool life, and productivity again, speed, feed, and depth of cut should be carefully managed, especially cutting parameters. Modified feed rates and low speeds are usually safer as they reduce the chances of work hardening and tool wear.

Taking these points into account makes it possible to machine titanium 6Al4V end mills effectively, efficiently, and, most importantly, safely.

Recommended Cutting Tools for Titanium 6Al4V

Picking the right cutting tools for machining Titanium 6Al4V requires precision when selecting tools since this is an alloy with particular characteristics. The following recommendations as per the present standards in the industry and expert recommendations are:

1. Carbide End Mills: These are meant to cope with elevated cutting forces and extreme heat, a typical problem in machining titanium. Coated carbide end mills with TiAlN or AlTiN are more durable and can withstand more operations due to better wear and heat resistance performance.
2. High-Speed Steel (HSS) Tools: HSS cutting mills offer advantages over carbide mills, such as cost. They can effectively be used to cut at low speeds instead of high-feed cutting. HSS tools also come with coatings drilled on them due to the cutting of titanium, which generates a lot of heat and rapid tool wear.
3. Ceramic Cutting Tools: These tools are suited for titanium machining under high-speed conditions due to their high-temperature resistance and high hardness. Ceramic end mills work very well in high-rigidity structural assemblies and in critical dimensional accuracy and surface finish requirements.

In other words, the appropriate combination of cutting tool type and coating will help you mill titanium 6Al4V most effectively, limiting the tool’s abrasion and improving overall performance.

Techniques for Improved Surface Finish

Attaining a high-end finish while processing Titanium 6Al4V requires using an additional tool or some set of techniques. Most notable include:

1. Cutting Parameters Optimization: In addition to high ae and limited war, try lowering cutting speeds along with increased feeds. This helps keep the surface smooth.
2. Coolant Description: High-pressure, high-flow coolant is applied to ensure heat is removed and chips are cleared from the cutting area, minimizing surface damage.
3. Tool Path Description: Consider turning the tool in the same direction every time to avoid sharp turns that will tear the material. When using 5-flute end mills, for instance, climb milling should be done to achieve better finishes.
4. Tool Wear Monitoring: Always change dull tools with fresh ones to allow the cutter to perform its functions and thereby reduce the chances of surface roughness from worn-out blades.
5. Fixturing: Use firm and proper fixturing to eliminate machined surface vibrations usually experienced during cutting. These vibrations tend to have adverse effects on the surface finish.

Once these techniques are applied, the surface finish of Titanium 6Al4V components can be improved while attaining a dimensional and visually pleasing quality.

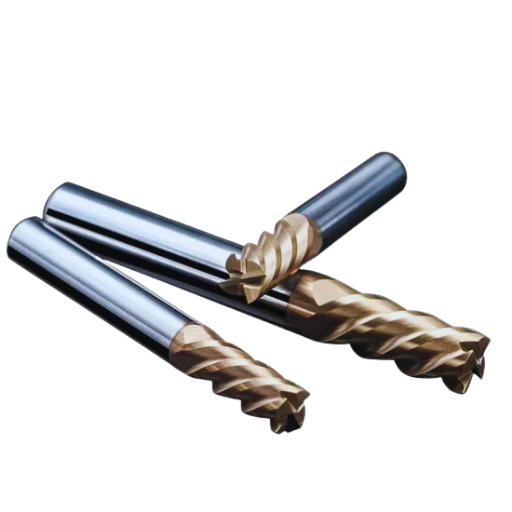

What are the Advantages of Using Helical End Mills for Titanium?

Benefits of Helical Design in Titanium Milling

The helical configuration of end mills provides some remarkable advantages, particularly in the milling of Titanium 6Al4V. To begin with, the helical flute angles have the benefit of improving the evacuation of all chips, thereby decreasing the chances of chip overload, which could cause heating and wearing out of the tools. This design also helps in the distribution of cutting forces in such a way that there is no excessive vibration during cutting, and stability improves. Moreover, spiral-end mills cut at lower torque than straight-flute tools, which allows for cutting with better precision and quality. All these factors increase the efficiency of machining Titanium 6Al4V, tool life, and improved surface finishes.

Helical Solutions for Better Chip Evacuation

Because of their spirally-shaped flutes, helical end mills are regarded as highly efficient in the removal of chips. The risk of chip re-cutting, which can also lead to increased tool wear because of the excessive heat generated, is lessened through this design in that the tools… while cutting through metals. The helical flutes of flute end mills also smooth out the cutting action and help impose uniform cutting, which is very important in prolonging tool life and enhancing part quality. When machining Titanium 6Al4V, using helical end mills helps increase chip control and improves the machining conditions.

Enhancing Tool Life with Helical End Mills

Improving tool life with helical end mills requires careful consideration of material, cutting tool geometry, and machining conditions. The helical flute profile assists in distributing cutting forces as equally as possible, which in turn helps reduce stress concentration and, therefore, reduces the wear of the cutting tool. Coatings like TiAlN or AlTiN can also improve the performance of the end mills by adding a hard and heat-av resistant layer, which is quite ideal for cutting tools. Moreover, appropriate cutting parameters such as feed rate and spindle speed optimized to the characteristics of Titanium 6Al4V would facilitate cutting and minimize thermal stress on the tool. Aurora’s inspection is an additional measure that enhances the ability to extend the life expectancy of the given end mills.
