Mastering Slot End Mill Techniques For Optimal Milling Performance

Every machining professional intends to realize the most efficient milling performance for the task at hand, and the techniques related to slot end mills are central to this goal. This article summarises the information this group should know regarding slot end mill usage’s best practices and techniques. We will cover aspects like selecting tools and materials, cutting conditions, chip removal methods, and other essential details that correlate with enhancing the milling operations and processes. This guide is for you; whether you have years of experience working as a machinist or are a novice prepared to learn new skills, utilizing slot end mills in multiple techniques will not be a problem after this.

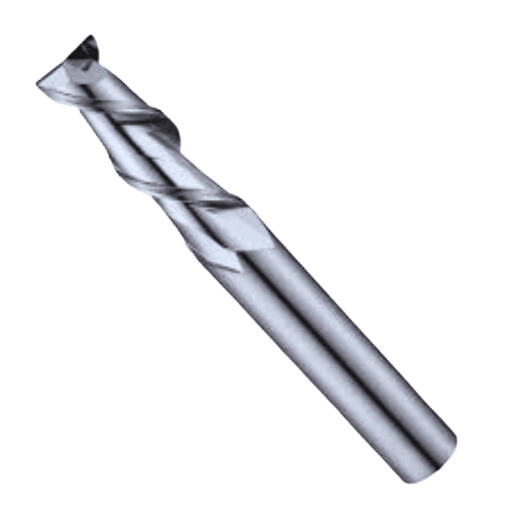

What Is a Slot End Mill and How Does It Work?

The slot end mill is one type of milling cutter tool mainly used for creating slots or grooves in the workpiece. It consists of a cylindrical body with cutting edges on its outer periphery and on the bottom, containing one or more cutters. It also uses an axial rotation, which enables the movement of the cutting edges into the workpiece during feeding so that the material works out of the workpiece. The geometry, material properties, cutting parameters such as speed, feed, and depth, as well as the design, affect the cutting instrument’s functional effectiveness. This tool is employed in situations where utmost accuracy, surface finish, and different slot dimensions are created quickly within very tight tolerances.

Understanding the Functionality of an End Mill

A slot end mill (commonly known as an end mill) is a trans-shaft and end-face cutting tool incorporated into a milling machine to perform tasks like slotting, cutting out, or plunging operations. The cutting tool has the primary purpose of cutting out a portion of the workpiece through the peripheral and axial cutting edges of the tool or cutter. The end mill is unique in that it can rotate in different orientations and cut freely, unlike a drill bit, which can only axis cut. This characteristic of the end mill makes it imperative to fabricate complex shapes and surfaces using precision machining.

The Role of a Slot Cutter in Milling Machines

As the name suggests, a slot cutter is used to make slots or grooves in the workpiece. This type of cutter contains cutting edges along the peripheral and face sides of the tool, enabling efficient removal of material in both horizontal (side) and vertical (end milling) directions, optimizing it for groove cutting. Slot cutters can be employed on a wide range of materials, including metals, plastics, and composites, making such cutting tools useful in machining operations. They are especially useful wherever cutting to a certain width and depth is required, such as making keyways, channels, or other such fitted features within a component. Being able to cut in single or multipoint centers gives easy, clean edges and precise sizes, improving the functioning of the machining tools and the final workpiece, especially while using milling cutting tools.

Carbide vs. Solid Carbide: Which to Choose?

When choosing between carbide and solid carbide cutting tools, it comes down to the nature of the machining work at hand. Carbide-tipped tools comprise a steel shank and include carbide inserts on the cutting end. Most general tungsten carbide tools are economic. They combine the advantages of steel and hard, wear-resistant cobalt, therefore acceptable for a wide range of uses, including turning and facing under light intermittent cuts or varied conditions.

In comparison, solid carbide tools are generally referred to as solid carbide insert tools, where the structure or body of the tool is made out of carbide only. These are the most rigid, hardest, and heat-resistant tools available. It is used in high-speed machines requiring great accuracy and wear resistance. Solid carbide tools are recommended for the machining of harsh substances as that results in reduced tool deflection and increased shape accuracy. These are, however, less for the most part relative to carbide-tipped tools and more brittle. Based on the foregoing facts, high-performance and accurate tasks are more suited for solid carbide tools. In contrast, general-purpose tasks, convenient in nature, are better suited for tungsten carbide-tipped tools.

Types of Slot Milling: Which One is Right for Your Project?

Exploring Different Types of Slot Milling

Slot milling includes specific methods that differ with the scope, the workpiece materials, and the desired results. Slot milling includes end, face, form, and side milling.

End Milling is the manufacturing process where the shape of the surface is obtained or carved out with special rotating devices called axis mills, wherein the slot is cut out. Employs end mills created for cutting pockets and grooves with the motion of a cutting tool. Straight or complicated forms can be made by using the flutes and cutting edges of the tool – material can be removed. The approach is generally broad-minded, where slots and profiles of designs can be created on various materials.

Side-and-Face Milling: In this method of milling, an end-cutting instrument with teeth on both the circumferential and end faces is used. Thus, cutting action can be carried out on both the horizontal and vertical cheeks of the slot. This method is excellent for deep, thin sub-grooves and very accurate channels, even with a good finishing surface.

Form Milling: This technique uses specific-shaped cutters to make corresponding slots, such as T-slots or dovetail slots. It allows complex shapes to be formed quickly and provides high consistency of the reproduced forms.

Choice of a particular slot milling method is determinable by material properties, slot depth and width, accuracy required and surface finish in an order of importance or vice versa. In addition, each type is unique in its strength so there is a need for change over in order to guarantee a quicker and more precise milling.

Choosing the Right Slot Cutter for Your Needs

When embarking on a slot milling project, it is important to consider the appropriate slot cutter to ensure the best possible outcome. The major ones include the material of preference, the size of the slot being cut, and the level of accuracy and surface treatment needed.

1. Material Compatibility: Each type of material warrants using a specific cutter. Materials such as aluminum, which are relatively soft, would use HSS cutters with sharp edges. When dealing with tougher materials like stainless steel, especially Titanium, the use of carbide cutters is preferable.
2. Slot Dimensions: The width and thickness of the slot inform the cutter type. A narrow and long slot can be made with a side and face cutter to give the cutter more reach and accuracy. Body-type cutters, generally known as end mills, have several cutting teeth and can clear materials from wide slots without leaving excessively burned ones.
3. Precision and Surface Finish: Factors like accuracy and the quality of surface finish also determine the type of cutter used. Where accuracy is put first and the end product shape is critical, cutting using a form cutter of that specific shape can be used. Moreover, the use of special coatings such as TiN and TiAlN further enables wear resistance and less friction of the cutters operated.

Having assessed these elements, you can choose the appropriate slot cutter for your particular purpose, guaranteeing proper and accurate milling.

Comparing T-Slot Cutters and Slot Drills

Before weighing the merits of T-slot cutters and slot drills, it is preferable to explore their uses and features in slot milling to make better decisions.

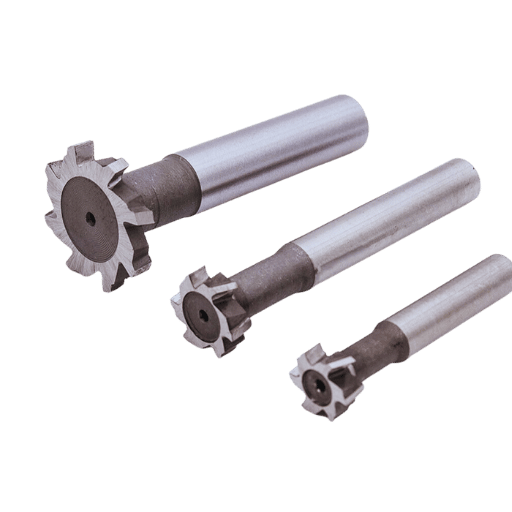

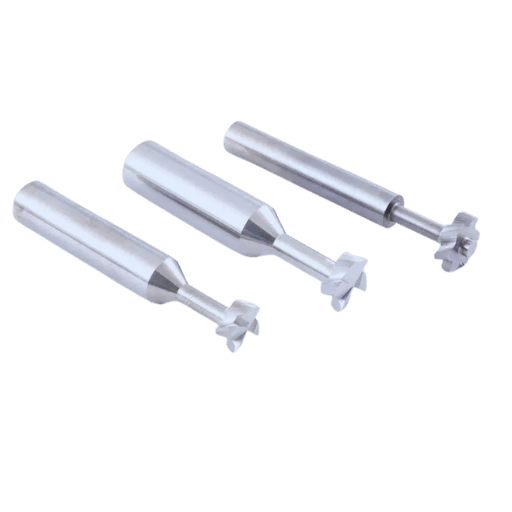

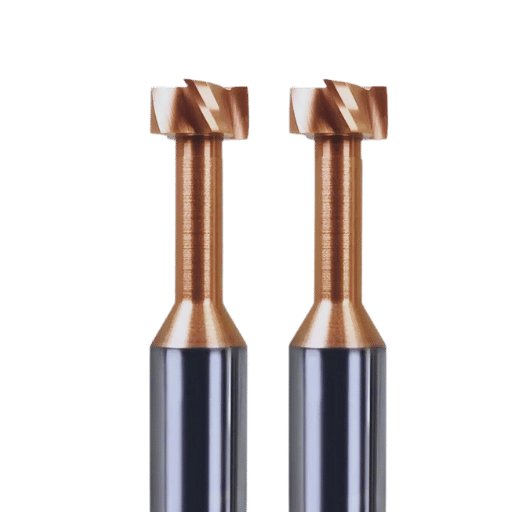

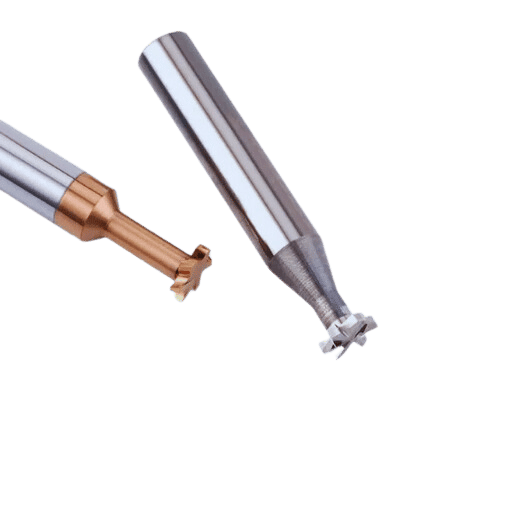

T-Slot Cutters

The T-slot cutter in use is built to cut T slots in a single pass. It is also provided with side and end cutting teeth to quickly cut out both T slot portions in a T shape. The cutter’s shape makes it effective for tasks like locating workpieces on the table of a milling machine. A T-shaped slot is ideally suited at the inner periphery and secures other tools used to hold workpieces or fixtures on the machine tables.

Slot Drills

Also, gambling, known as slotting end mill’s cut performing slot drills, are thin but tough milling slots that incorporate smitten narrow slots. T-slot cutters cut vents and spokes, while slot drill winders cut only spokes, although such drills can sometimes come in handy when groove milling. They are good for deep cutting and keying grooves and similar straight profiles. Slot drills are primarily of two-flute and four-flute types with a high rate of material removal and surface finish attainable on metals and plastics.

Key Comparisons

1. Design and Geometry: There is a considerable difference between the design of a T-slot cutter and a slot drill. The former has a T-shaped profile for cutting T slots in one operation, while the latter has a simple circular cross-section, also known as a straight slot drill.
2. Applications: Specialized engineering uses T-slot cutters, which include unique T-slot milling cutters, to create T-slots, such as clamps or fixtures. Slot drills can do a wider construction job than T-slot cutters in general slotting work.
3. Efficiency: T-slot cutters increase efficiency while performing specialized functions due to the absence of several passes, while slot drills bring about efficiency and accuracy in performing manifold operations.

In conclusion, the choice between a T-slot cutter and a slot drill is mainly defined by the parameters of the milling operation, whether it involves cutting a slot or cutting a groove. For clamping systems and fixtures which use T-slots, T-slot cutters are essential. On the other hand, for slot drills, the most critical factor remains that of accuracy when machining straight and narrow slots which are very common in many general machining activities.

Optimal Slot Milling Techniques: Best Practices

Toolpath Techniques in Slot Milling

The effectiveness of slot milling is highly dependent on the toolpath approach used. Straight-line, Zigzag, and Circular toolpaths all have their own benefits with respect to the material and expected result.

Straight-Line Toolpath:

This straightforward technique involves moving the cutting tool in a linear motion over the length of the slot. It suits short slots and easily machinable materials. This technique achieves a repetitive finish, making the operation simple.

Zigzag Toolpath:

Zigzag toolpath (also known as serpentine milling) involves tool movement in both directions across the slot alternately. This technique increases the efficiency of the material removal process and decreases the load on the tool; therefore, it is effective for long slots with stiff materials. Nonetheless, more than one finishing pass may be needed to achieve the required surface roughness.

Circular Toolpath:

This method is applicable only for the machining of round or elliptical slots. The tool can adopt either a helical or rotary motion, which helps reduce the wear rate of the tools while also improving the surface finishes. Circular toolpaths are especially useful for shapes and slots that require complicated geometric shapes.

Right toolpath techniques can enhance the milling, improve the surface of the machined part, and extend the durability of the cutting tools. Proper techniques relate to operational efficiency inside the slot milling processes without compromising the accuracy and quality of the workpieces.

How to Achieve Optimal Slot Milling

Estimating the various values necessary for the optimum slot milling of workpieces is a multitask that encompasses issues such as material, tool, and operation. The following steps give the summary of the simple procedures:

1. Material Analysis: To analyze the hardness of the materials, the tensile properties as well as machinability of the material to determine the suitable operational parameters and the cutting tools.
2. Tool Selection: It is important to adopt high-quality cutting tools made from carbide or high speed steel and appropriate coatings to minimize wear.
3. Machining Parameters: Define cutting speed, feed and depth of cut depending on the material parameters and tool characteristics. Control these parameters to achieve a good surface finish while optimizing the material removal rate.
4. Toolpath Strategy: Depending on the geometry of the slot and the type of material being machined, the toolpath technique can be effective by using either straight line or zigzag or circular methods in order to limit wastage of tools due to wear and tear.
5. Coolant and Lubrication: The heat generated by these processes is controlled by using suitable coolants and lubricants, guaranteeing the tools’ operating life and finishing surface levels.

By assessing these factors and adopting strategies that are suited to particular details, such as the type of slot milling and tools that make the work efficient, machinists can achieve good outcomes.

Enhancing Tool Life and Performance

A combination of some tactical approaches and high tech can help increase tool life and performance in slot milling operations.

1. Tool Material and Coatings: When manufacturing the cutting tools, we recommend utilizing composite materials such as carbide or high speed steel and enhancing it with coatings (e.g. AlTiN, TiAlN) to decrease friction and increase tool life.
2. Proper Tool Maintenance: Periodic inspection and proper level of care for the tools can help in the detection of wear and damage at an early stage preventing sudden tool failure.
3. Optimal Cutting Conditions: The cutting speed or the feed rate, or the two understood in every operation, must be optimized for each material to remove as much as possible while minimizing wear on the tool being used.
4. Effective Coolant Application: Appropriate types of coolants are selected and certain measures are taken to ensure the coolants are delivered on time in order to control heat and torsion (rapid rate of heat increase) which improves tool life.
5. Vibration Control: The machine’s stability, stiffness of the tool holder, and balance of cutting forces heavily impair the extent to which these vibrations are kept low. These factors aid the tool’s maintenance and boost performance.

Incorporating such techniques allows machinists to extend tool life and improve overall performance in slot milling operations.

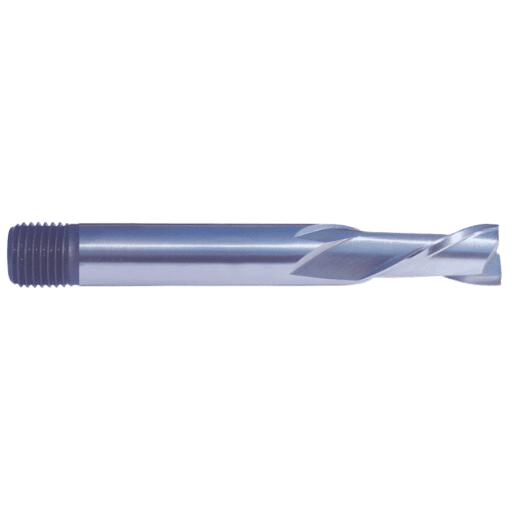

Common Slot Milling Problems and How to Solve Them

Dealing with Cutting Forces

The forces acting on a cutting tool during slot milling may cause undesirable outcomes such as tool deflection, a coarse finish, n, and tool wear. To ensure that these forces are well controlled and reduced, look at the following tips:

1. Optimized Tool Geometry: Adopt tools with such geometries such as variable helix angles and positive rake angles which are effective in enhancing chip removal and also minimizing cutting forces.
2. Reduced Axial Depth of Cut: An axial depth of cut decrease can help decrease radial forces, resulting in reduced deflections, which improves the accuracy of machined profiles
3. Feed Rate Adjustment: The feed rate should also be adjusted so that it is not too minimal. Too neutral feed rates would result in rubbing and heat-inhibition effects on the tool.
4. Stable Clamping: The workpiece should be properly clamped so that it does not move and vibrate when being milled, allowing the material to be removed efficiently and accurately.
5. Tool Path Strategy: Proper tool orientations and different forms of milling, such as climb milling, can produce a better and more stable cutting action.

Employing these techniques improves the management of cutting force when machining, thereby increasing the life and quality of the tools machining during the slot milling processes.

Addressing Issues in Closed Slot and Open Slot Milling

Closed slot milling is usually difficult because of chip removal and heat generation, which pose problems for the tool and surface completion. To overcome this:

1. Coolant Supply: Use a high-pressure pour to remove chips and control temperature.
2. Tooling: Use tools with better flute geometry and coating to dissipate heat and remove chips more efficiently.

Open slot milling, although not as restricted in operations as closed slot milling, is also likely to face challenges such as tool breakage and inconsistent finish positions. The way forward includes:

1. Stabilised Tools: To dampen rotational and bending forces, use tools with inserts having strong cores and asymmetric helix angles.
2. Incremental Turning: Lower the incremental height or depth of cut to minimize excess material removal.

As evidenced in the discussion above, machinists can use these specific measures to tackle some of the most apparent problems that arise from both closed and open slot milling, which also enhances machining processes and part quality.

Preventing Tool Wear and Damage

It is essential to prevent any tool damage or wear to maximize the efficiency of machining processes as well as the resultant products. For this purpose, consider the following concepts:

1. Correct Tool Choice: Consider utilizing wear-resistant cutting tools with appropriate coatings for the specific substrate being machined, such as TiAlN or diamond coatings for abrasive materials.
2. Proper Cutting Conditions: Control the cutting speed, feed rate, and depth of cut to the more prudent degree to prevent unnecessary heat and wear on the tool bit.
3. Planned Tool Servicing: Develop and adhere to a regular schedule of tool service, including maintenance and repair, to prevent advanced normal usage wear and repair.
4. Recommended Uses of Mineral Oil: Extensively use good coolants and mineral oils to prevent the tool from overloading conditions, leading to premature wear.
5. Utilization of Monitoring Systems: Employ real-time tool condition monitoring systems to watch effective tools are being used on the leads so that interruptions and tool breakage risks are limited.

Following these general recommendations will allow the reduction of the tool deterioration threshold, providing efficiency of machining processes and their stability.

Advanced Slot Milling Methods for CNC Machines

Implementing Trochoidal Milling for Efficiency

Trochoidal milling is a modern machining method that increases the tool’s efficiency and lifespan in the operation of CNC machines. It is a process that uses a non-radial toolpath-cutting strategy. The following are the advantages of the trochoidal milling technique:

1. Decreased Heat Accumulation: Tools are remembered to be engaged cuts only intermittently, which helps reduce the overall heat generation.
2. Better tool life: Tool wear is significantly reduced due to low cutting forces and improved chip removal.
3. Greater Material Removal Rates: The method allows for higher feed rates and speeds, which translates to a quicker pace of material removal without compromising surface finish.
4. Enhanced Surface Finish: Even tool use and low deflection produce a good surface finish for the workpieces.

Hence, employing trochoidal milling will undoubtedly increase the efficiency and tool life in CNC machining, which makes this technique worthy of improving business productivity in general.

The Benefits of Using Gang Milling in Slot Operations

Whenever more than one cutting tool is placed in a single arbor, depending on the various operations that are to be performed, the process is called gang milling, and it is mostly used for slotting. This approach has several advantages, including:

1. Increased Output: For one, if they decide to gang mill several surfaces at the same time, the machining time will be shorter than if this were done the ordinary way.
2. Descriptor: Reduce gauge variations on the critical machined surfaces. Like any other person, a number of workers is associated with gang milling.
3. Economical: It eliminates the need to change tools and setups, thus reducing total production cost and machine idle time.
4. Adaptive: Permit a complex single setup to accomplish a target number of operations, thus increasing the degree of operational adaptability as already discussed.

In the final analysis, gang milling improves the rate of production and effectiveness in slotting, which is why it is considered a modern approach in CNC machining.

Optimizing Your CNC Machine for Slot Milling Operations

If you would like to enhance your CNC machine for slot milling operations, some measures you may want to employ include:

1. Tool Selection: Pay attention to the fact bed cleaners have been created by tool manufacturers specifically for these operations. Sharpened tools are two times more effective and last longer in use without undue wear.
2. Proper Calibration: Different CNC machines possess various degrees of calibration to their precision. Dependency on certain calibrations may deteriorate through time unless periodic maintenance is done.
3. Optimal Speeds and Feeds: Slicing and feeding angles should be revised based on the material requirements and the specified tooling. This will help achieve the desired surface finish and avoid premature tool wear.
4. Coolant Usage: Proper application of the coolants if any gets rid of high temperatures, prolongs the life of the tools used and improves the quality of the machined article.
5. Stable Workholding: Achieving high accuracy during milling operations requires the use of strong and rigid workholding to reduce the cutter’s vibration and deflection.

Incorporating these practices, which include back milling techniques, will improve the efficiency, accuracy, and even the surface finish of the work, hence increasing productivity.

Reference Sources

Milling (machining)

HTTP cookie

Steel

Frequently Asked Questions (FAQs)

Q: What is a slot end mill, and how does it compare to other similar tools?

A: A slot end mill is a milling cutter with a shoulder for slot machining and side milling operations. The Face milling cutters are generally employed to carry out surface finishing only, while slot endmills have cutting teeth at the end and sides of the cutter, which makes it possible to create very accurate slots and grooves. These are crucial slot milling tools due to their application in many slot milling technologies, as some are used using CNC milling m/cs while others are used manually.

Q: Why is it better to use solid carbide end mills for slot milling?

A: There are several reasons why solid carbide end mills can be used more efficiently in slot milling operations. Their major advantages are good wear resistance, which translates to longer tool life and cutting durability. It is also worth noting that these cutting tools retain their sharpness for relatively low wear, leading to increased surface finish and dimensional stability. Moreover, solid carbide end mills can stand stiffer cutting forces and higher rotational speeds, giving them a better application in intensive slot machining operations for most materials.

Q: What are the discrepancies between face milling and slot milling?

A: The face milling and the slot milling are not the same milling processes. Face milling works to produce a flat surface by cutting downwards into the top surface of the workpiece as opposed to machining sideways. This process often employs face milling cutters that are multi-tooth in design. On the other hand, slot milling is one of the specialized techniques of cutting slots, grooves, or channels in a workpiece. In slot milling, end mills or t-slot milling cutters are used, and most of the cutting takes place on the periphery and the base of the recess being created.

Q: In using slot end mills, how do opposed directions of rotary motion concerning the work lead to used end mill distortions?

A: Conventional milling and climb milling are two different approaches to the milling process. In the case of the conventional milling method, when the cutter rotates against the feed of the workpiece, it has a thinner chip at the beginning of the cut. In such cases, a stepper motor with backlash may be used. Sectioning in the climb milling mode is characterized by the fact that the cutter is rotated in the same direction as the feed of the workpiece; because of this, many machine operators go for down milling (climb milling) while operating slot end mills since it is, however more common and expected to yield a better surface finish and tool life than non-climb milling.

Q: How do you determine the cutting parameters of slot milling?

A: Some factors must be considered when defining the right cutting parameters for slot milling. Such parameters consist of the workpiece material, the specifications of the slot end mill, the surface finish needed, and the type of machine. This is where one has to find such variables as cutting speed, feed rate, and depth of cut. It is essential to consider all these parameters to optimize the milling process, reduce any tool wear, and obtain the targeted quality of the slot. What may be the best for most cases may help is to contact the cutting tool manufacturers as well as experience similar operations.

Q: Full slot milling is rapid and efficient, but what are its associated problems, and how can they be tackled?

A: Many problems are associated with full slot milling because practically all the end mill’s diameter is used to cut. Such issues include high cutting forces, high cutting temperatures, and the possibility of chip evacuation problems. To address these issues, it is advisable to use end mills with geometries that are ideal for full slotting and appropriate cutting fluids. If this is the case, there is no problem when a plunge cut approach is taken in the first instance or when the slot is milled out in several passes.

Q: What distinguishes the design of a t-slot end mill from that of a regular slot milling cutter?

A: A t-slot end mill is one form of end mill that makes T-slots for outings, work holding, or key and slot joint applications. It should be understood that T-slot end mills differ from standard slot milling cutters because they have T-shaped heads with vertical and horizontal cutting edges. Because of this structure, jigs can easily cut both vertical walls and undercut horizontal walls of the slot in one operation, which is an advantage in the manufacture of jig t-slots in workpieces of any material.

Q: What should one consider when deciding which option is most optimal for slot milling, between vertical and horizontal milling?

A: There are numerous considerations when deciding between horizontal versus vertical milling machines for slot machining. Vertical milling machines will likely give a better surface view of the cutting area and be used for other general purposes. These are made for non-long rotary machining. On the other hand, horizontal milling machines cut slots with the spindle positioned horizontally, which are more prolonged and more profound than the vertical type, and in most cases, the rate of metal cutting volume is higher. It depends on the dimensions of the slot, accuracy required, size of the workpiece, and possibilities of the equipment employed. If, for example, slot milling is extensive, then it may be quicker to use a horizontal milling machine with the cutters on an arbor rather than conventional tools.
