Views: 0 Author: Technical Case Study|SUPSTEED Precision Tools|October 2026 Publish Time: 2026-10-29 Origin: Site
HTS Ø10 mm End Mill Tool Life Test on S316 Stainless Steel for AI Server Liquid Cold Plates
AI server liquid cooling has turned the stainless steel cold plate into a high-volume, high-value machined part. Most of these cold plates are milled from 316 / S316 stainless steel, and the blanks arrive as-forged — covered in a hard, abrasive oxide scale that destroys ordinary end mills before they ever reach clean metal.
SUPSTEED ran a continuous tool life test to answer one question: how long can a Ø10 mm end mill survive in this condition? A HTS series Ø10 mm stainless-steel-specific carbide end mill machined an as-forged S316 block with full oxide scale for 13 hours of continuous cutting at 2,250 rpm and 1,000 mm/min. At the end of the test, the machine spindle load was still reading 1%, the cutting edges showed only light, uniform flank wear, and the tool remained fully serviceable.
Key result | Value |
Continuous machining time | 13 hours on a single edge, no tool change |
Spindle load at end of test | 1% |
Cutting speed (Vc) | ≈ 70 m/min |
Feed per tooth (fz) | ≈ 0.11 mm/z |
Edge condition | Light uniform flank wear, no chipping, no built-up edge |
Tool status | Still serviceable |
Liquid cooling is now standard for high-density AI compute racks. The cold plate — the metal block that sits directly on the processor and carries coolant through internal channels — is the component that determines whether the whole loop works.
Cold plate manufacturing has three characteristics that make tool life the dominant cost driver:
l Material. 316 stainless steel is chosen for corrosion resistance and compatibility with treated coolants. It is also one of the least machinable common stainless grades.
l Geometry. Deep pockets, thin walls, and long, uninterrupted tool paths. A single pocket can run for a long time on one tool.
l Consequence of failure. Every tool change stops the spindle. An unexpected edge failure mid-pocket can scrap a part that already carries hours of machining time.
In this environment, a tool that is merely "sharp" is not enough. What matters is how long it stays predictable.
Three material properties work against the cutting edge:
1. Work hardening. 316 hardens rapidly under the cut. If the edge cannot bite cleanly — because it has dulled on scale, or because the geometry rubs instead of shears — the next pass cuts a harder surface, and wear accelerates.
2. Low thermal conductivity. Heat generated at the edge does not escape into the chip or the workpiece. It accumulates in the coating and substrate, which is why stainless steel tools fail by coating breakdown and cratering rather than by simple abrasion.
3. Tough, gummy chips. 316 produces continuous chips that weld to the edge under pressure, forming a built-up edge that alters the effective geometry and eventually tears away carbide.
On top of this, as-forged stock adds a hard oxide scale layer. Scale behaves like an abrasive film over the workpiece: the first passes effectively mill a surface of oxides and burnt-in sand before reaching base metal. Many tools are lost in this first contact — the edge micro-chips on scale, then dulls progressively through the rest of the part.
This test deliberately reproduced that worst case. The block was not cleaned, not pre-machined, and not descaled.
The test was built to be directly transferable to a production cold plate process: production-representative blank stock, a standard tooling setup, and parameters a shop would actually run rather than a laboratory-optimized single pass.

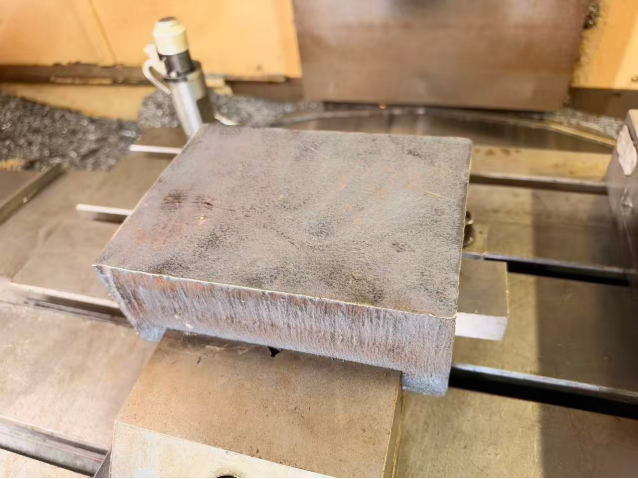

A raw as-forged S316 stainless steel block, clamped directly on the machine table with full oxide scale intact on every surface. This mirrors the condition of cold plate blank stock as it arrives at the machine, before any preparation.
A SUPSTEED HTS series Ø10 mm carbide end mill. The HTS series is engineered specifically for stainless steel: a tough fine-grain carbide substrate, a heat-resistant PVD coating, and edge geometry designed to suppress work hardening and built-up edge formation.

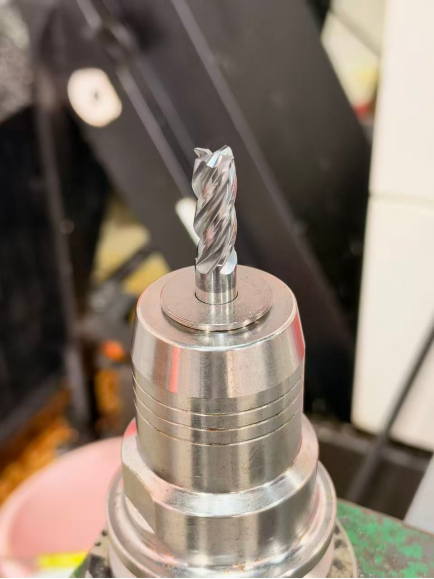

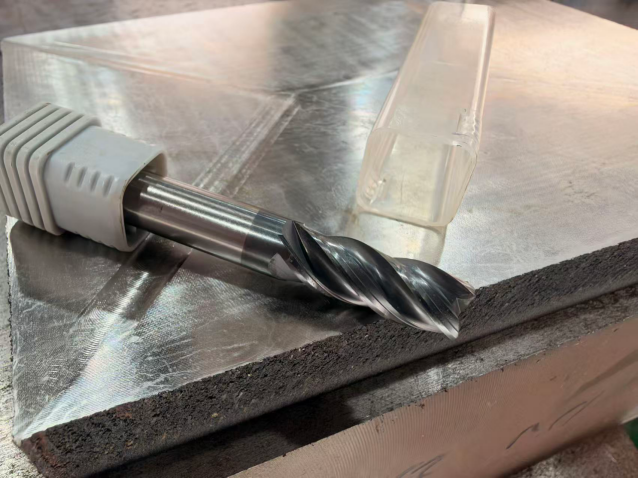

Figure 2. The HTS Ø10 mm end mill, prepared and measured before the test.
Machine and parameters
The test ran on a vertical machining center with flood emulsion coolant. Parameters were selected to match realistic cold plate roughing and semi-finishing practice rather than to produce a laboratory-optimal single pass.
Parameter | Value | Note |
Spindle speed (n) | 2,250 rpm | — |
Cutting speed (Vc) | ≈ 70 m/min | Calculated on Ø10 mm |
Feed rate (vf) | 1,000 mm/min | — |
Feed per tooth (fz) | ≈ 0.11 mm/z | 4-flute tool |
Axial depth of cut (ap) | 10 mm | 1 × D, full flute depth |
Radial width of cut (ae) | 2.5 mm | 0.25 × D, side milling |
Coolant | Flood emulsion | — |
Material removal rate | ≈ 25 cm³/min | ap × ae × vf |

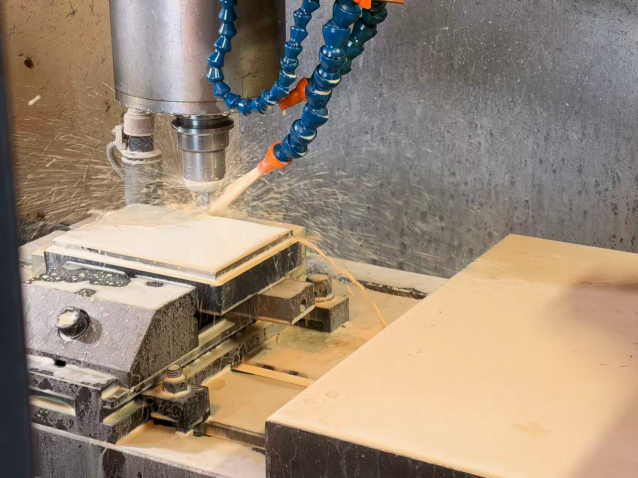

Cutting started on the first layer, straight into the scale, under flood coolant.

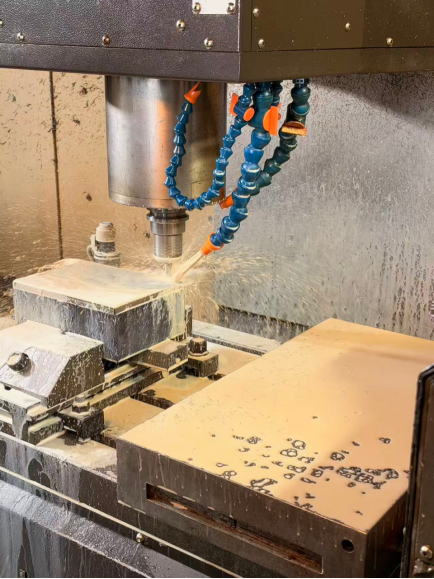

Figure 3. First layer: the cutter breaks through the abrasive oxide scale. This is the pass where most stainless end mills begin to fail.
The first layer is the most demanding part of the cycle. Scale is hard and discontinuous, so the edge takes repeated impact loads while cutting a surface that is far harder than the base metal beneath it. In this test the first layer produced no chatter, no load spike, and no audible change in cutting sound.
Cutting then continued layer after layer with the same tool and the same parameters — no re-sharpening, no tool change, no parameter adjustment.
Figure 4. Fifth layer: chip formation, chip color, and machine load all identical to the first layer — the signature of a stable stainless steel process.
The test accumulated 13 hours of in-cut time on a single edge.

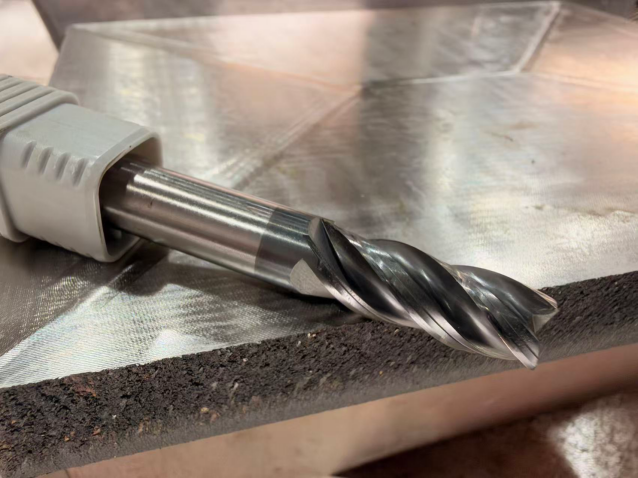

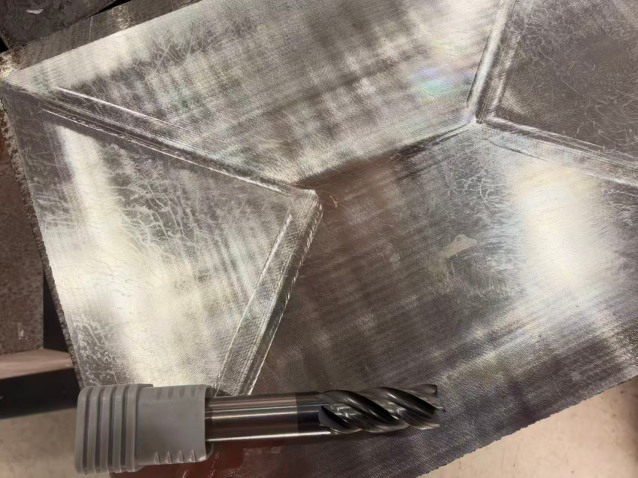

Figure 5. Tool and workpiece at the end of the test. The machined surface is bright and even; the end mill shows no chipping.
Figure 6. Flute close-up after 13 hours: coating intact, edges continuous, no built-up edge, no micro-chipping along the peripheral margin.
Figure 7. The machined surfaces stayed consistent from the first layer to the last — surface finish did not degrade as wear progressed.
Machine load. The spindle load meter was still reading 1% at the end of the test. A blunt or chipping edge in stainless steel shows up immediately as rising load, because the tool rubs instead of cutting. A stable 1% reading after 13 hours means the edge was still shearing metal cleanly, not burnishing it.
Surface finish. No visible deterioration between the first and last layer. This matters more than absolute surface roughness in cold plate work: a stable finish means the semi-finishing pass can be trusted without intermediate inspection.
Tool condition. No chipping, no coating flaking, no built-up edge, and no crack initiation at the corner radius. The tool was returned to the rack as serviceable stock.

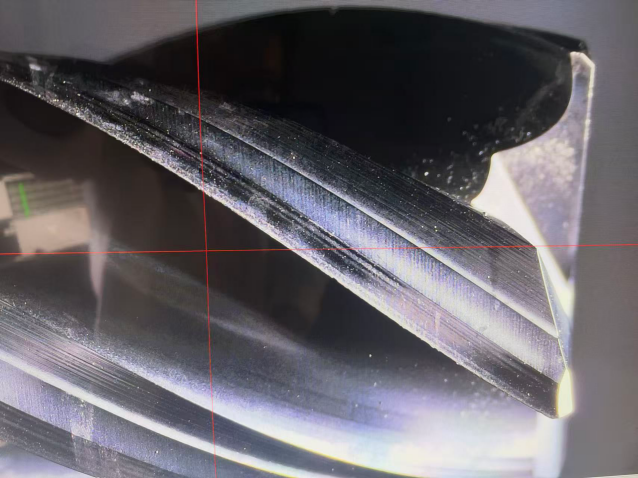

Figure 8. Peripheral (side) edge under the tool microscope: a light, uniform wear land along the full engagement depth.

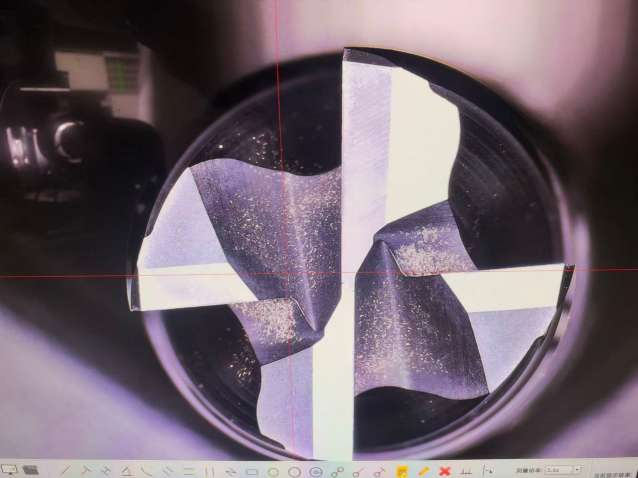

Figure 9. Bottom edges under the tool microscope: edges remain sharp and continuous, with only light abrasive polishing from the scale layer.
The wear pattern is the most informative result of the whole test. Scale-induced failure normally appears as notching at the depth-of-cut line and micro-chipping on the corner, because the edge is being impacted rather than sheared. Neither appeared here. The wear land is even across the flute, which indicates that the coating survived the thermal load and the geometry kept the cutting force distributed along the edge instead of concentrated at the scale interface.
Tool life becomes a planning input, not a surprise. Thirteen hours of stable cutting on scale-covered S316 is enough to cover long deep-pocket programs or a full shift on one edge. Tool changes can be scheduled instead of reactive.
Unattended machining becomes realistic. A tool that ends the shift at 1% spindle load is a tool that can be left running. For cold plate shops running lights-out or lightly staffed night shifts, this is the difference between a process you can automate and one you have to watch.
Scale no longer requires a separate operation. Because the tool survived direct entry into as-forged stock, descaling or pre-machining can be eliminated from the routing — one less setup, one less handling step, one less chance of a locating error.
Cost per part drops on all three fronts. Fewer tools consumed, fewer spindle stoppages, and a lower risk of scrapping a part late in its cycle. In stainless cold plate work, the third item usually dominates.
Tool | Cutting speed (Vc) | Feed per tooth (fz) | Axial depth (ap) | Radial width (ae) |
HTS series Ø10 mm, 4-flute | 60–80 m/min | 0.10–0.12 mm/z | up to 1 × D | 0.2–0.3 × D |
These are starting values validated by this test, not limits. For deep pockets, thin walls, long overhangs, or interrupted cuts, reduce ae first and keep fz stable — in stainless steel, feed per tooth below roughly 0.08 mm/z is what triggers work hardening.
Rule of thumb from this test: in 316 with scale, protect the feed per tooth before you protect the radial width. Lowering fz below 0.08 mm/z to "go easy" is the most common cause of rapid edge wear in stainless steel. |
Which end mill is best for machining 316 / S316 stainless steel?
A fine-grain carbide 4-flute end mill with a heat-resistant PVD coating, and edge geometry designed to resist work hardening and built-up edge. In this test the SUPSTEED HTS series Ø10 mm end mill machined scale-covered S316 at approximately 70 m/min with only light uniform flank wear and no chipping.
What cutting speed should be used for carbide end milling of 316 stainless steel?
A practical window is 60–80 m/min. This test ran Vc ≈ 70 m/min (2,250 rpm on Ø10 mm) at 1,000 mm/min feed, with 10 mm axial depth and 0.25 × D radial width, and the spindle load was still 1% after 13 hours.
How do you machine stainless steel that has a forged oxide scale layer?
Use a tough carbide substrate with a heat-resistant coating, keep a consistent full-depth strategy, apply generous flood coolant, and choose geometry that keeps cutting forces low and distributed. This test reproduced the exact condition — a raw as-forged S316 block with heavy scale — and the tool ran 13 hours without failure.
Why is tool life critical in AI server liquid cold plate machining?
Cold plates are machined from stainless steel with deep pockets, thin walls, and long cycle times. Every tool change stops the spindle, and an unexpected edge failure can scrap a high-value part. A Ø10 mm end mill that stays stable for 13+ hours makes unattended production and predictable cost per part possible.
SUPSTEED designs and manufactures solid carbide cutting tools for stainless steel, heat-resistant alloys, and other difficult-to-machine materials. The HTS series is our stainless-steel-specific line, built for applications where tool life — not initial cutting speed — determines the cost per part.
For application support, send us your part drawing, material grade, and current parameters. We will recommend a tool and starting cycle, and where appropriate run a test cut on your material.
