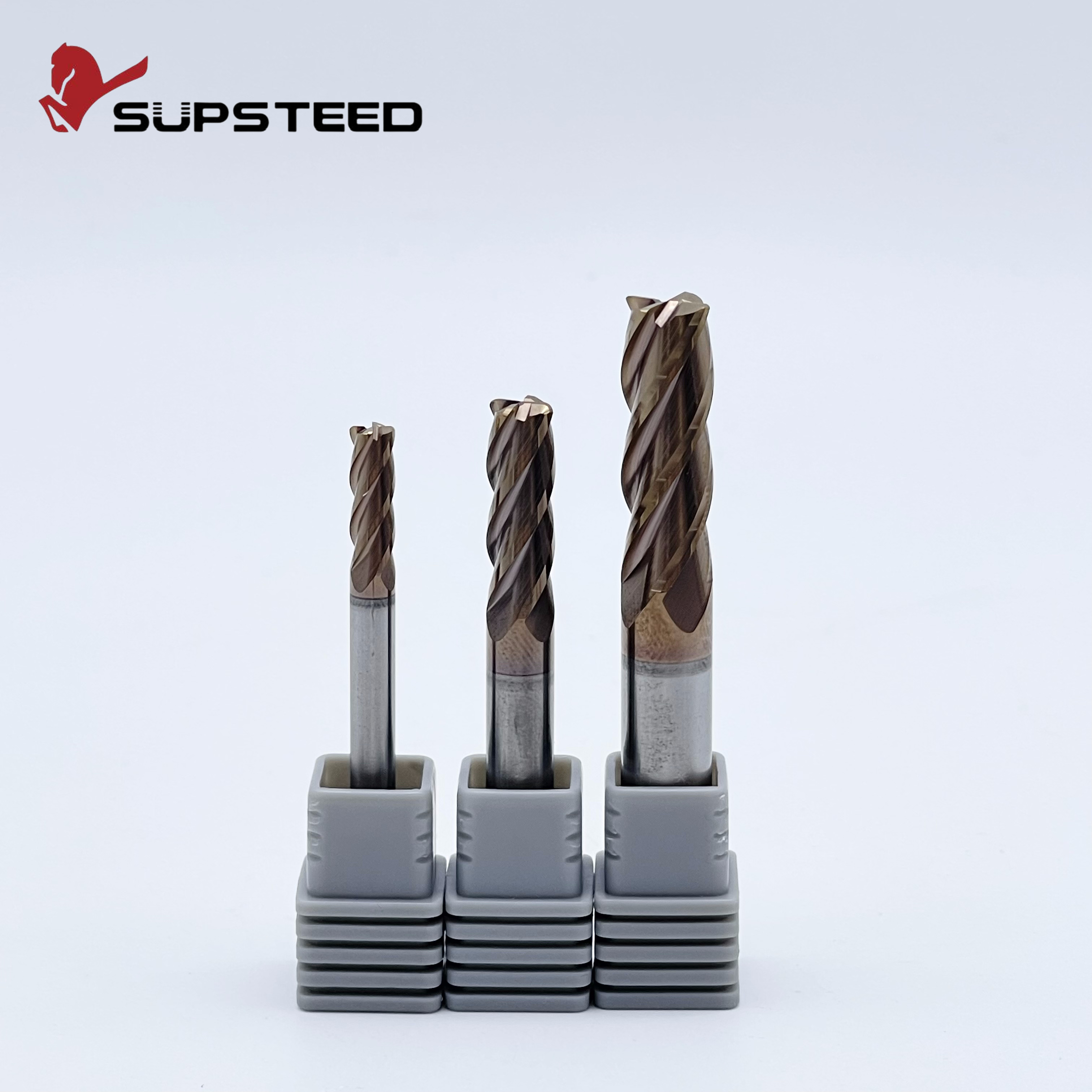

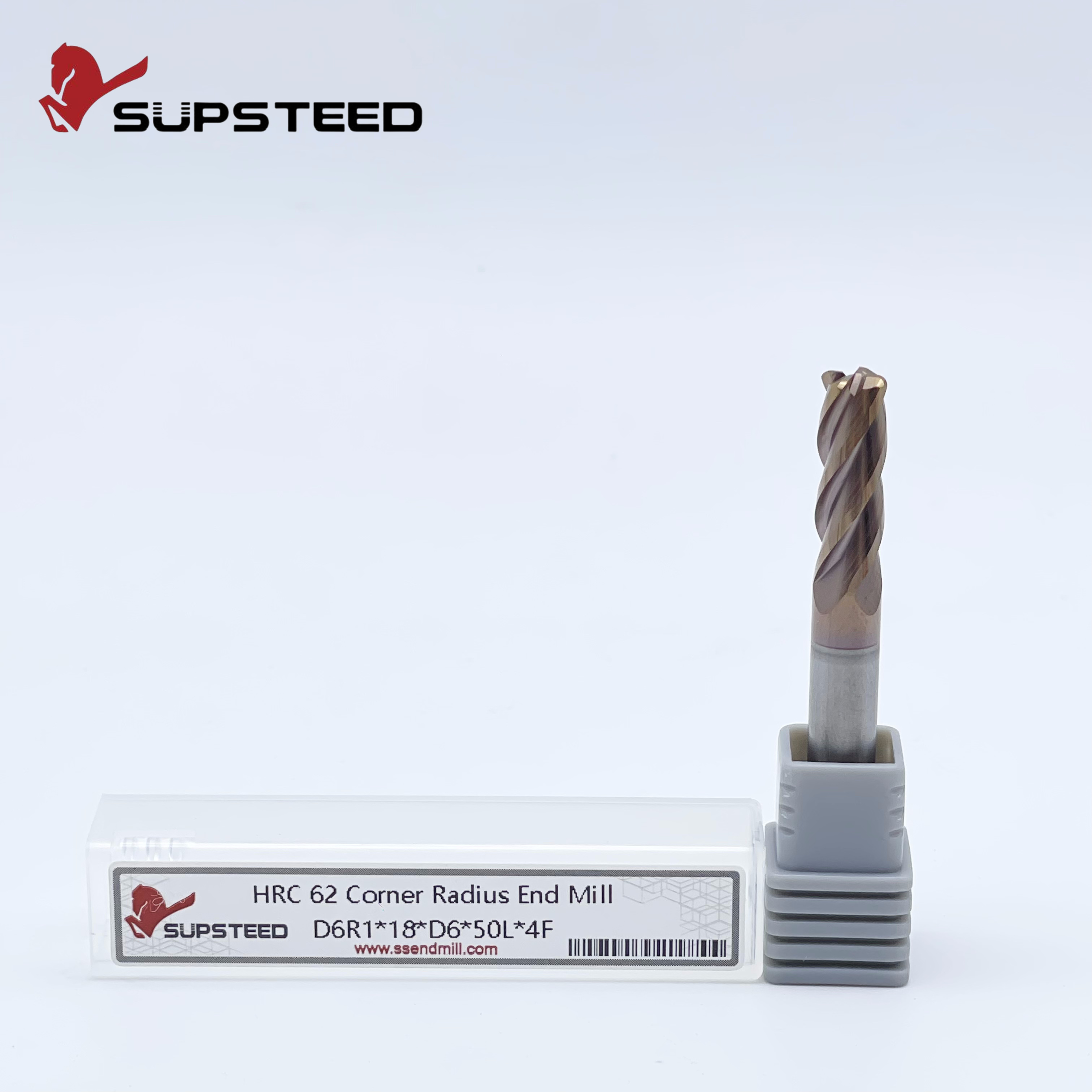

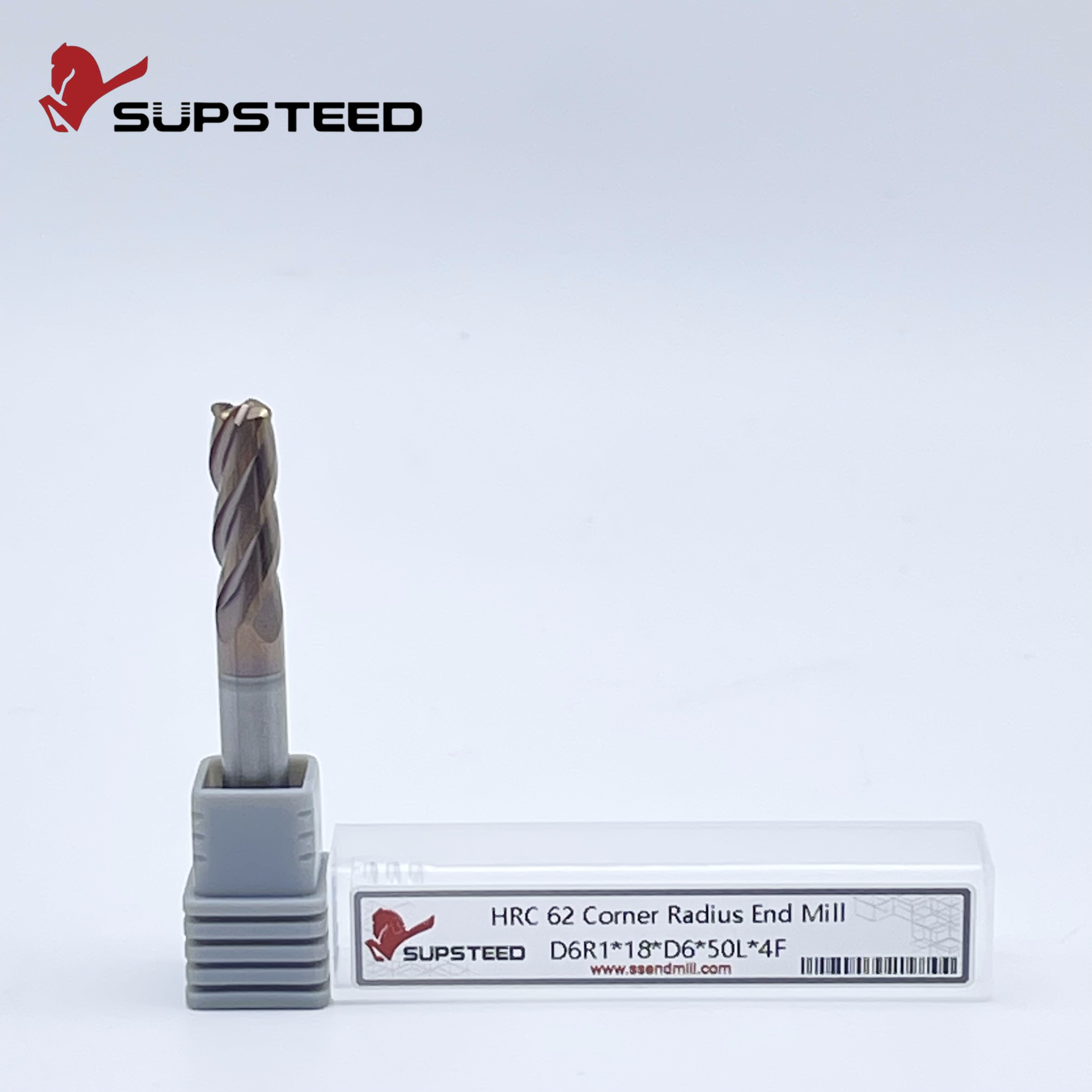

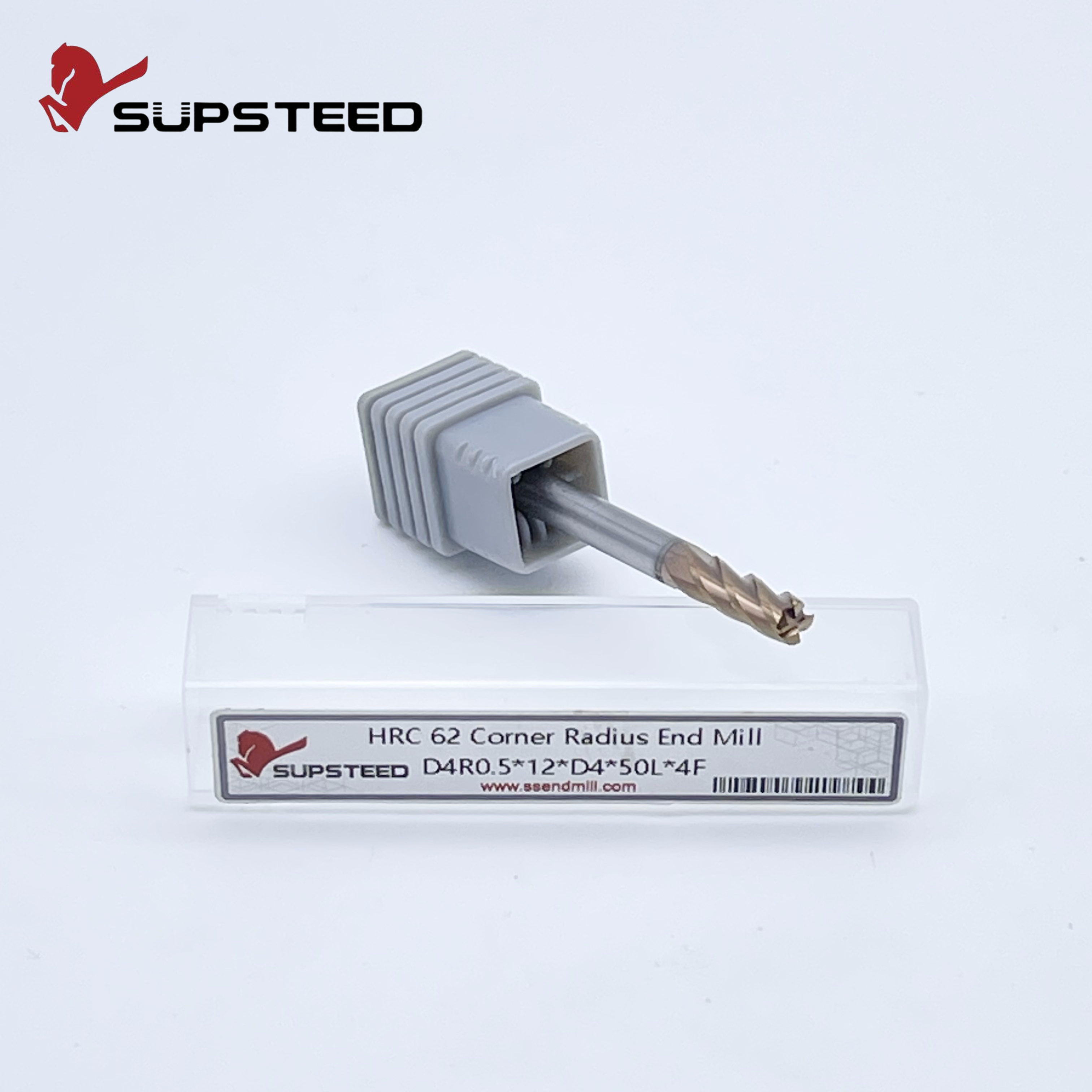

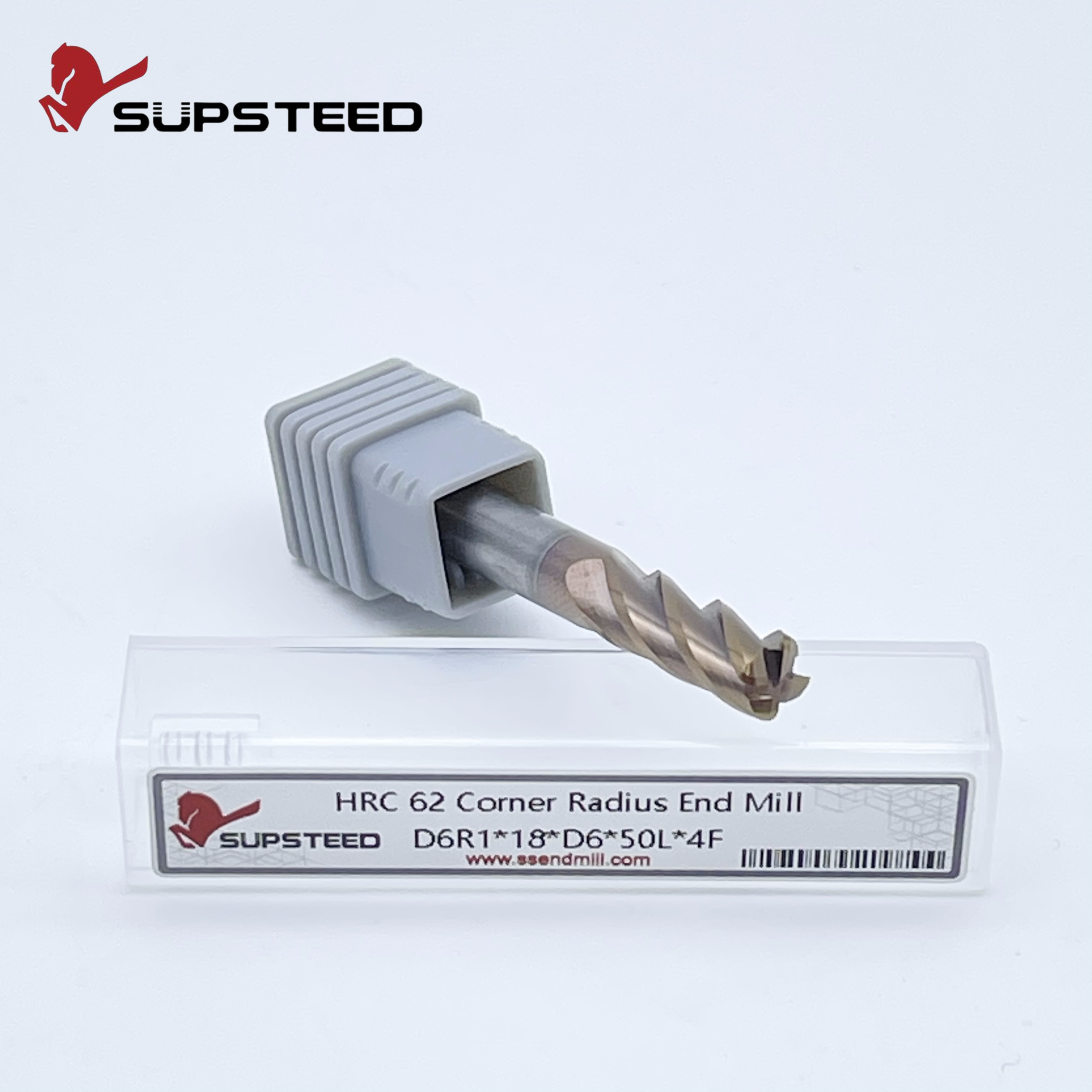

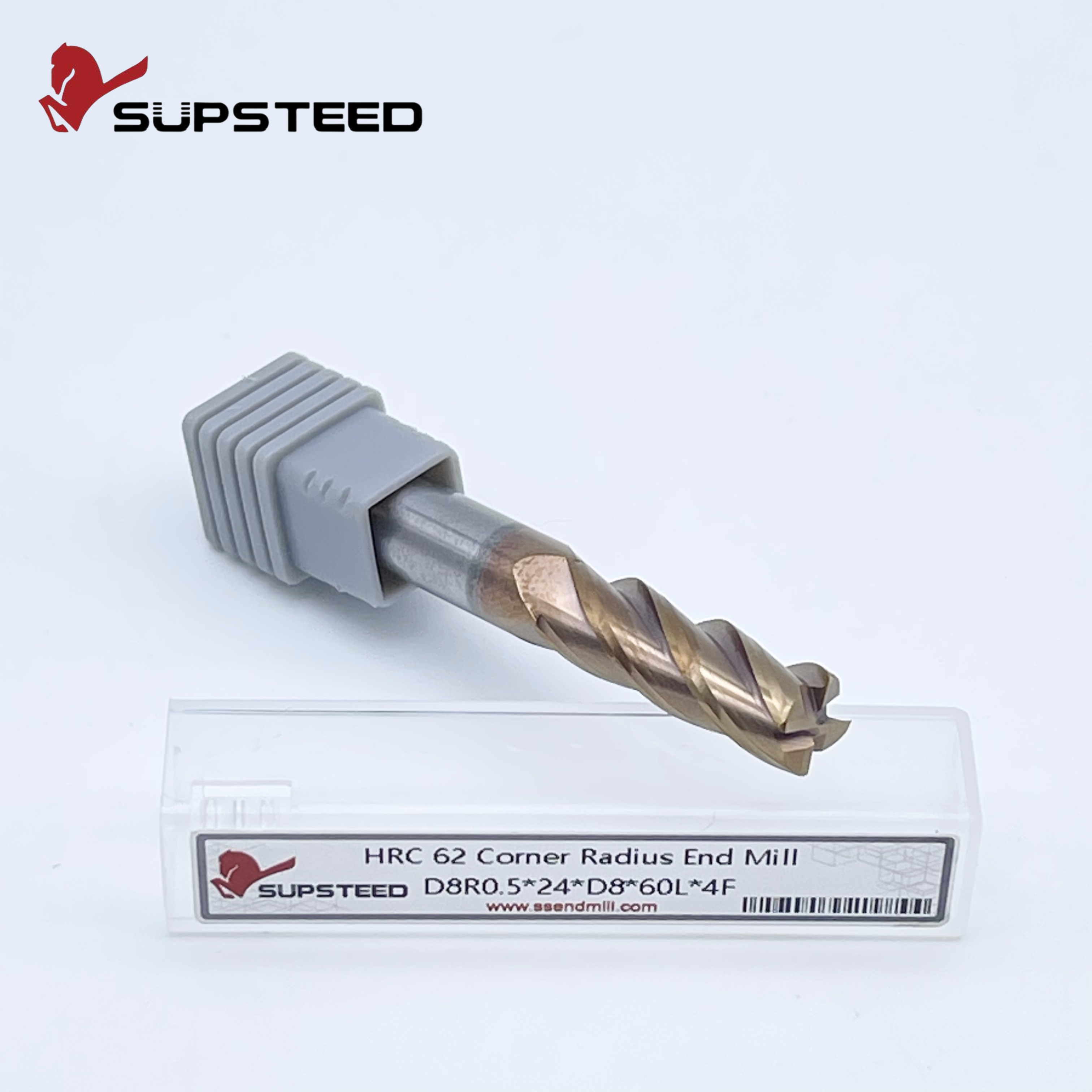

HRC62 Corner End Mills
HRC62 Corner End Mills: Master Hardened Steel Machining
Engineered for extreme performance in hardened materials up to 62 HRC. These premium carbide end mills feature a robust corner radius design, significantly enhancing edge strength and preventing chipping for exceptional durability and tool life.
Key Applications:
Precision machining of hardened tool & die steels (molds, punches, dies).
High-performance milling in demanding aerospace components.
Automotive part production (transmissions, hardened shafts).
General machining of difficult-to-cut alloys requiring superior wear resistance.
Benefits:
Unmatched stability and reduced vibration in hard milling.
Optimized geometries & advanced coatings for maximum heat resistance.
Deliver superior surface finishes and dimensional accuracy.
Increased productivity through extended tool life in aggressive operations.
Show Details
Specitications
| SIZES(D*fL*sD*L) | |
| D1*3*D4*50L | D5*(13/20/25)*D5*(50/75/100)L |
| D1.5*4.5*D4*50L | D6*(15/24/30*D6*(50/75/100)L |
| D2*6*D4*50L | D8*(20/30/35)*D8*(50/75/100)L |
| D2.5*7.5*D4*50L | D10*(25/40)*D10*(75/100)L |
| D3*9*D4*50L | D12*(30/45)*D12*(75/100)L |
| D3*(9/12/15)*D3*(50/75/100)L | D14/D16/D18/D20/D25*100L |
| D4*(10/16/20)*D4*(50/75/100)L | D6/D8/D10/D12/D14/D16/D18/D20*150L |
Clients Good Feedback
Factory
Service Introduction
Logistics Package
FAQ
Q: What are HRC62 corner end mills designed for?
A: Machining precise inside corners and profiles in hardened steels up to 62 Rockwell C hardness.
Q: Why use a corner end mill on HRC62 steel?
A: They feature specialized coatings and geometries to cut hard materials effectively without chipping.
Q: What are critical settings for HRC62 corner end mills?
A: Use conservative speeds/feeds, rigid setups, and appropriate coolant/lubrication as recommended by the tool supplier.
Q: How do I prevent breaking these end mills?
A: Avoid excessive radial depth of cut (use light radial cuts), ensure minimal runout, and always use climb milling.
Q: What tool life can I expect with HRC62 corner end mills?
A: Tool life is shorter than in softer materials; monitor wear closely and replace tools based on performance or supplier guidelines.
