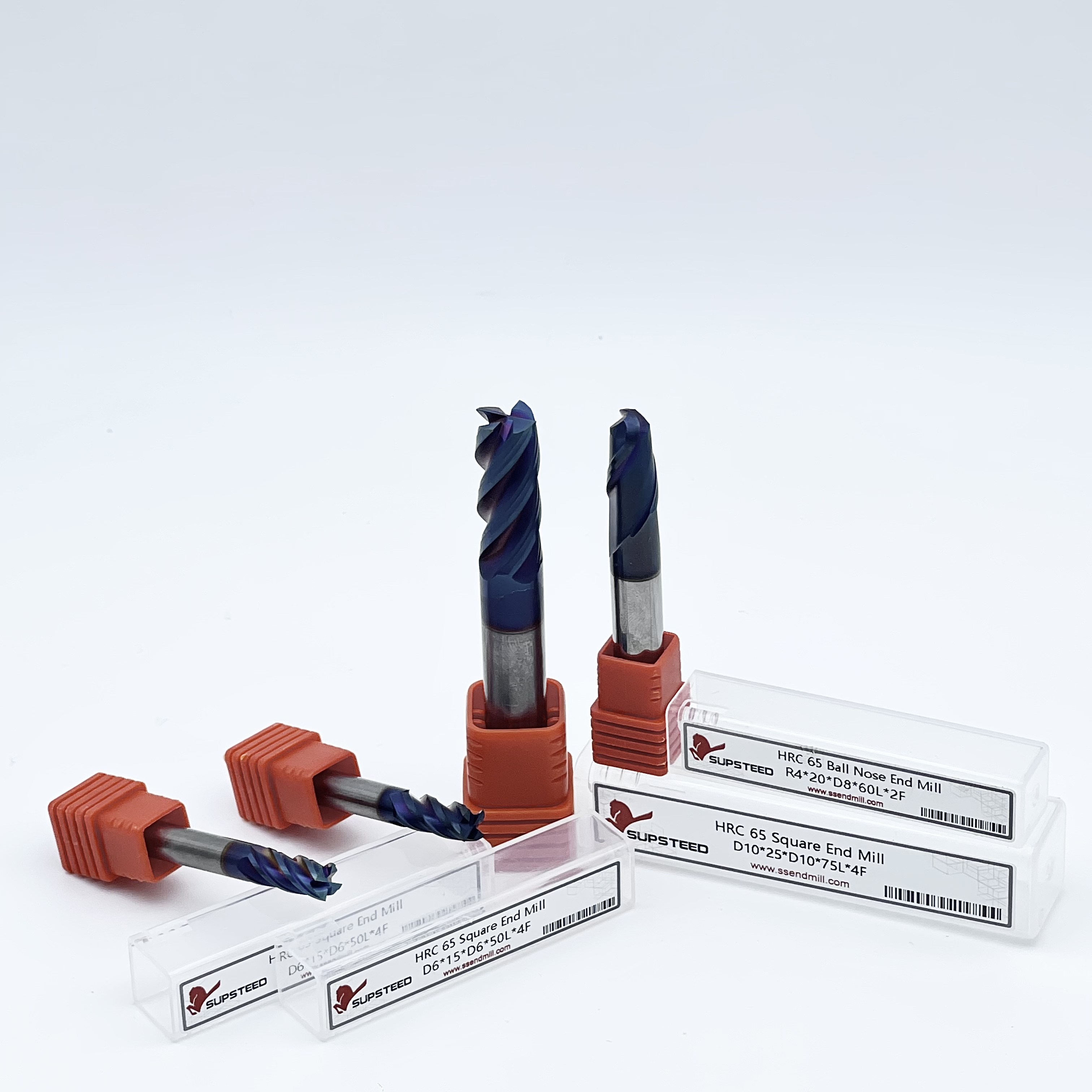

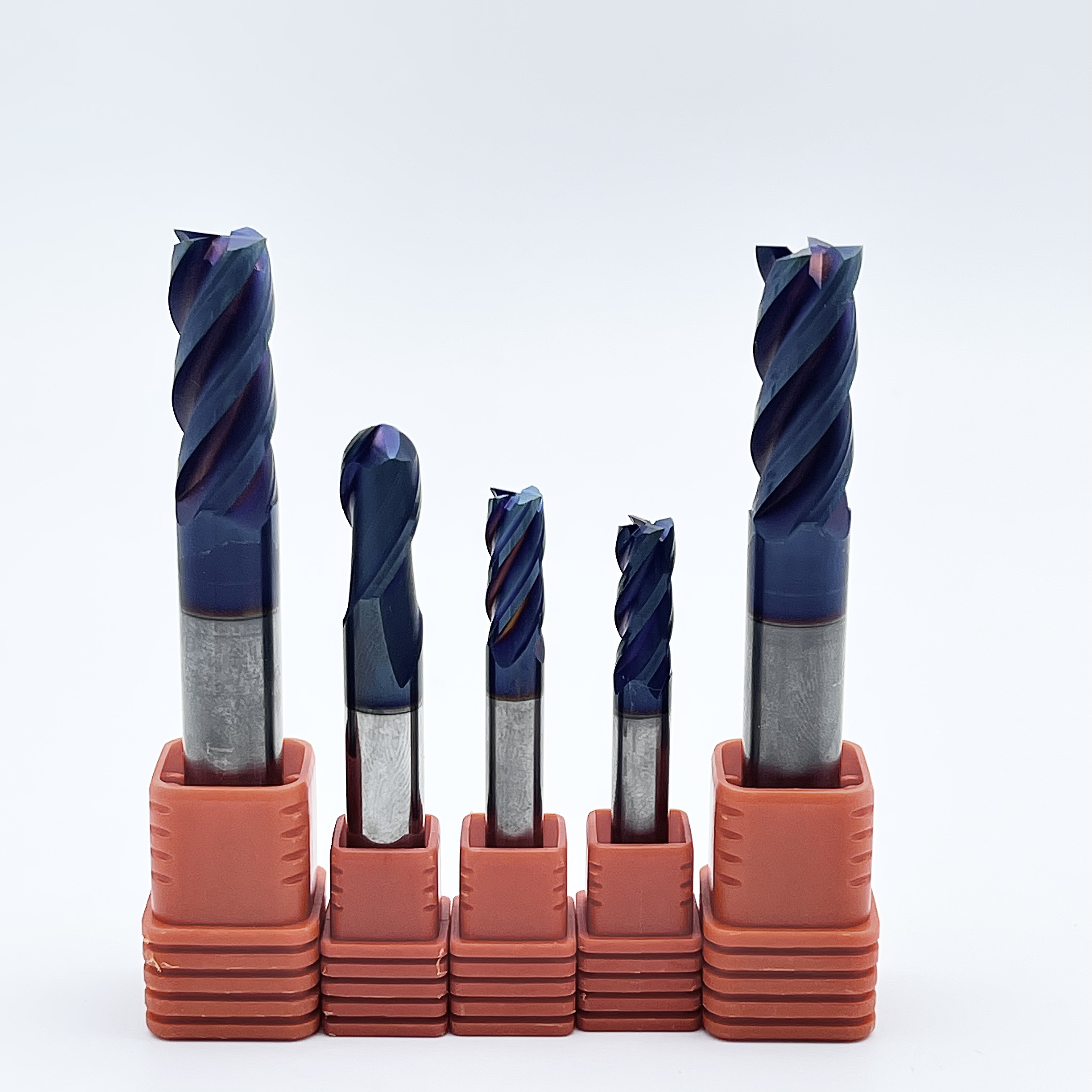

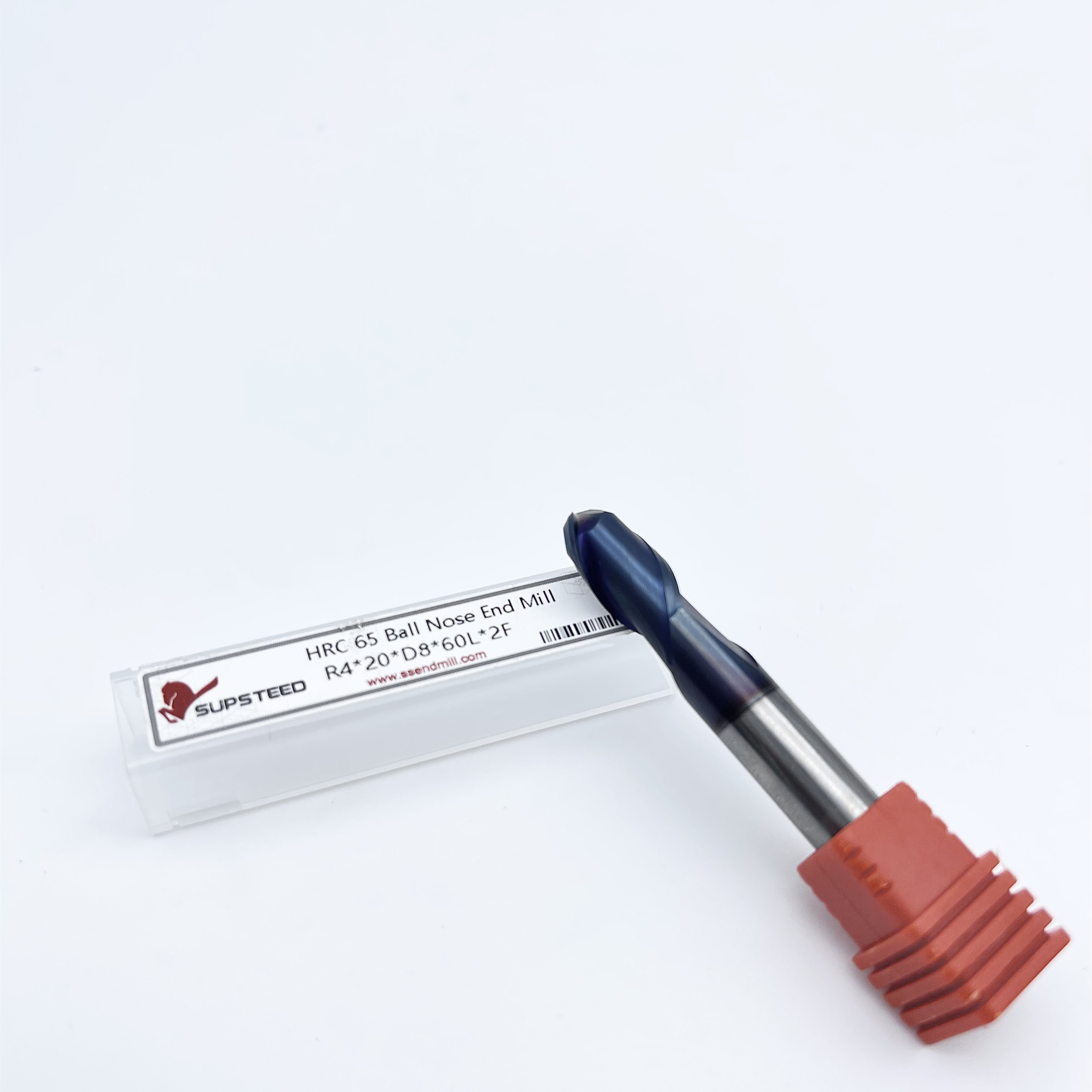

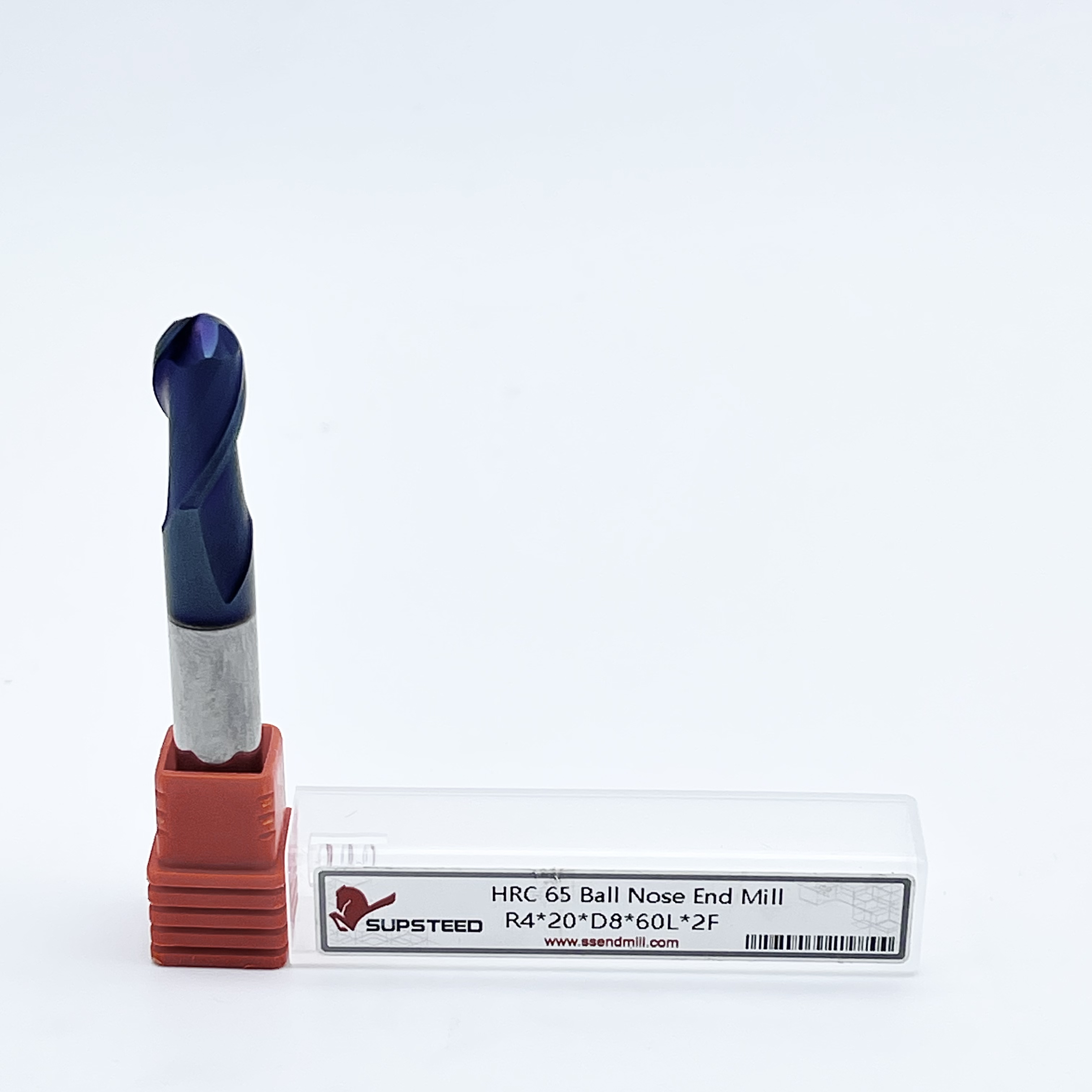

HRC65 Ultra-Hard Carbide Ball Nose End Mills: Precision Machining for Extreme Materials

Conquer the Toughest Materials with Unmatched Wear Resistance

Engineered for professionals demanding peak performance in high-hardness machining, our HRC65 Carbide Ball Nose End Mills are the ultimate solution for intricate 3D contouring, profiling, and finishing operations on hardened steels, superalloys, and exotic materials. Built with premium micro-grain carbide substrates and advanced coatings, these end mills deliver exceptional tool life and precision where others fail.

Key Features & Benefits:

• HRC65+ Hardness Capability: Specifically formulated substrate and geometry excel in machining hardened tool steels (D2, H13, A2, etc.), stainless steels, high-temp alloys (Inconel, Waspaloy), titanium alloys, and other challenging materials up to 65 HRC and beyond.

• Premium Micro-Grain Carbide: Maximizes rigidity, edge strength, and thermal shock resistance for superior performance under high-stress conditions.

• Advanced Nano/Multi-Layer Coating (e.g., TiAlN, AlTiN, or proprietary):

• Extreme hardness & oxidation resistance (up to 900°C / 1650°F).

• Dramatically reduced friction and built-up edge (BUE).

• Significantly extended tool life – up to 3-5X longer than standard carbide end mills in hard materials.

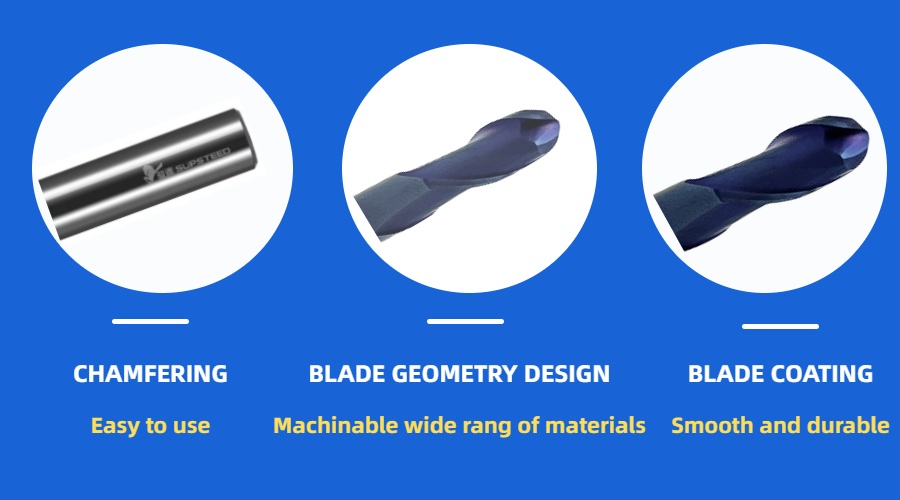

• Optimized Ball Nose Geometry:

• Precision-ground cutting edges for exceptional surface finishes and dimensional accuracy.

• Variable helix/pitch design minimizes vibration, harmonics, and chatter for smooth, quiet operation.

• Enhanced core strength prevents breakage in demanding applications.

• Efficient Chip Evacuation: Optimized flute design (2, 3, or 4 flutes available) ensures effective chip removal, preventing re-cutting and protecting the tool and workpiece.

• Rigorous Quality Control: Each end mill undergoes stringent inspection to guarantee concentricity, dimensional accuracy, and consistent performance.

Ideal Applications:

• Mold & Die Making: Precision finishing and semi-finishing of complex cores, cavities, and inserts in hardened tool steels. Achieve mirror-like surface finishes.

• Aerospace Components: Machining intricate contours, airfoils, and structural parts from tough titanium alloys (Ti-6Al-4V), Inconel, and high-strength steels.

• Medical Device Manufacturing: Creating complex, high-tolerance geometries in stainless steels (e.g., 17-4PH, 316L) and cobalt-chrome alloys for implants and instruments.

• Energy Sector (Oil & Gas): Machining hardened components for valves, downhole tools, and turbine parts exposed to extreme wear and corrosion.

• Automotive Performance Parts: Finishing high-strength transmission components, racing engine parts, and hardened molds.

• General Precision Machining: Any application requiring high accuracy, fine finishes, or contouring on difficult-to-machine materials.




Technical Specifications (Typical Range - Specifics vary by size & series):

• Shank: Straight or Weldon

• Flutes: 2, 3, or 4 (Optimized for material and operation - e.g., 2 for Aluminum/Finishing, 3-4 for Steel/Alloys)

• Cutting Diameter Range: 0.1mm - 20.0mm (0.004" - 0.787") or larger

• Overall Length (OAL): Standard, Long, Extra Long reach options

• Helix Angle: Optimized (e.g., 35°-45° for steel/alloys)

• Coating: High-Performance TiAlN, AlTiN, AlCrN, or proprietary Nano-coating (Specify if known)

• Tolerance: High Precision (±0.005mm or better on diameter typical)

• Recommended Machining:

• Operation: Primarily Finishing & Semi-Finishing (Light roughing possible with robust geometries).

• Cutting Strategy: High-Efficiency Machining (HEM), Trochoidal Milling, Contouring, Profiling.

• Machine: Requires rigid CNC milling centers (3-axis, 5-axis), preferably with high-speed spindles (10,000+ RPM).

Why Choose Our HRC65 Ball Nose End Mills?

• Maximize Productivity: Longer tool life means fewer tool changes and reduced downtime.

• Reduce Cost Per Part: Superior wear resistance translates to lower tooling costs over time.

• Achieve Superior Quality: Consistent precision and exceptional surface finishes reduce or eliminate secondary operations.

• Push Machining Limits: Confidently tackle hardened materials and complex geometries previously considered uneconomical.

• Engineered Reliability: Proven performance backed by rigorous testing and manufacturing expertise.

Clients Good Feedback

Factory

Service Introduction

Logistics Package

FAQ

1. Q: What materials are these end mills for?
   A: Ideal for hardened steels (HRC45-70), tool steels, stainless steel, titanium, and other tough alloys.

2. Q: Why use a ball nose shape?
   A: The ball nose design excels at machining complex 3D contours, molds, dies, and smooth curved surfaces.

3. Q: Why carbide?
   A: Tungsten carbide provides extreme hardness, wear resistance, and heat tolerance needed for machining hard materials at high speeds.

4. Q: What flute counts are common?
   A: Typically 2-flute (best for softer materials/slotting) or 3-flute & 4-flute (better for harder materials/finishing, offering more strength and stability).

5. Q: Important safety tip?
   A: Always use appropriate safety gear (goggles/shield) and secure workpieces firmly. These tools operate at high speeds and generate significant forces.
