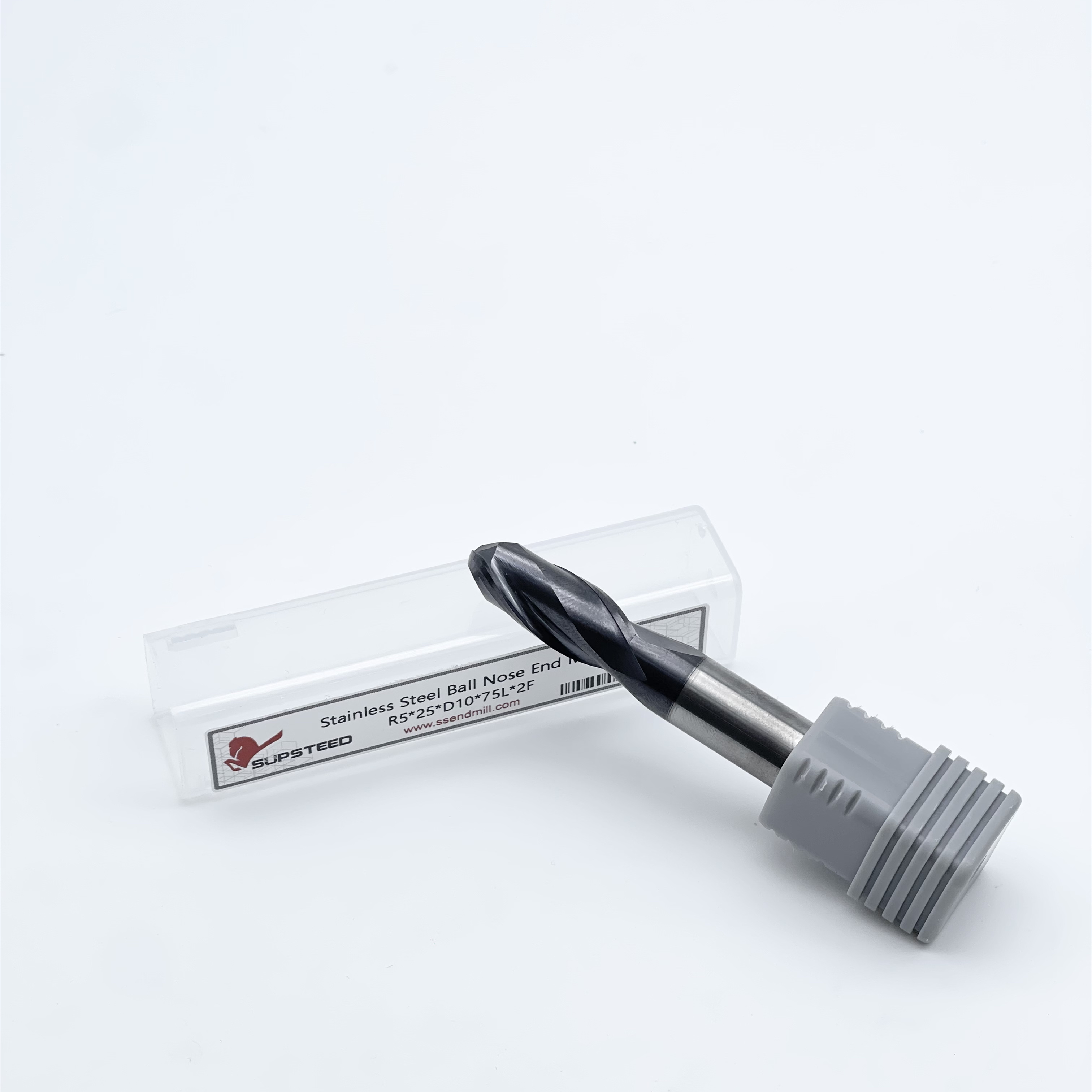

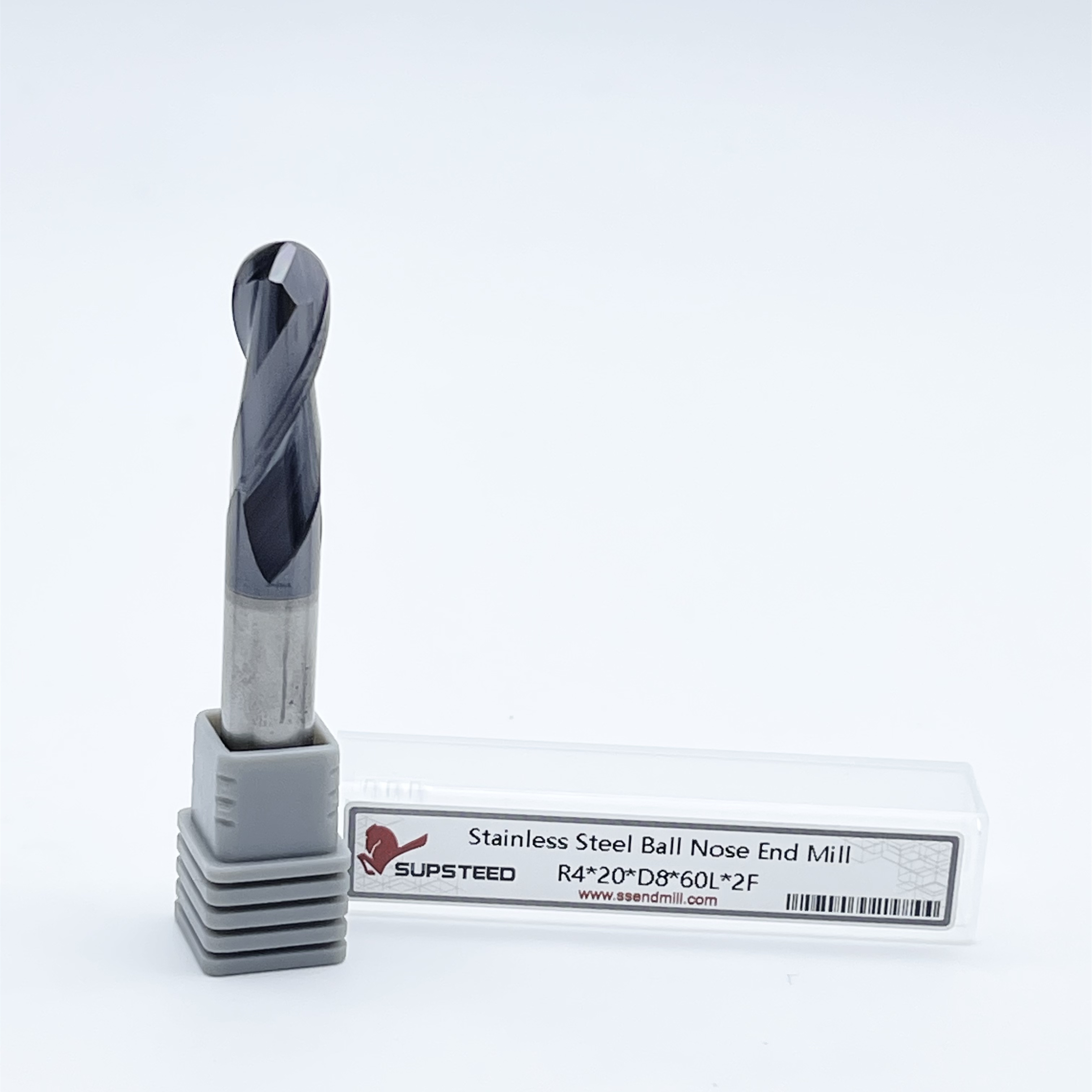

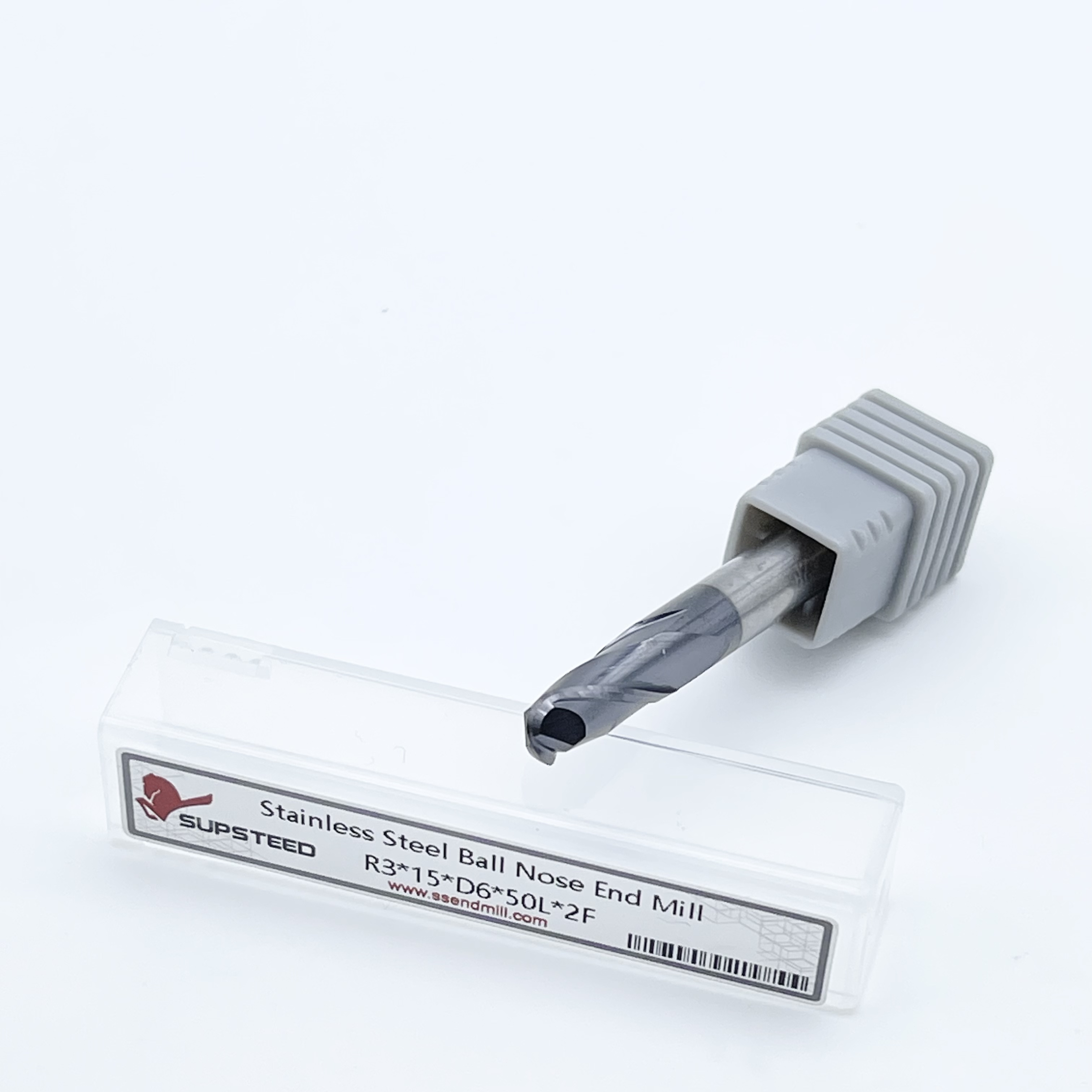

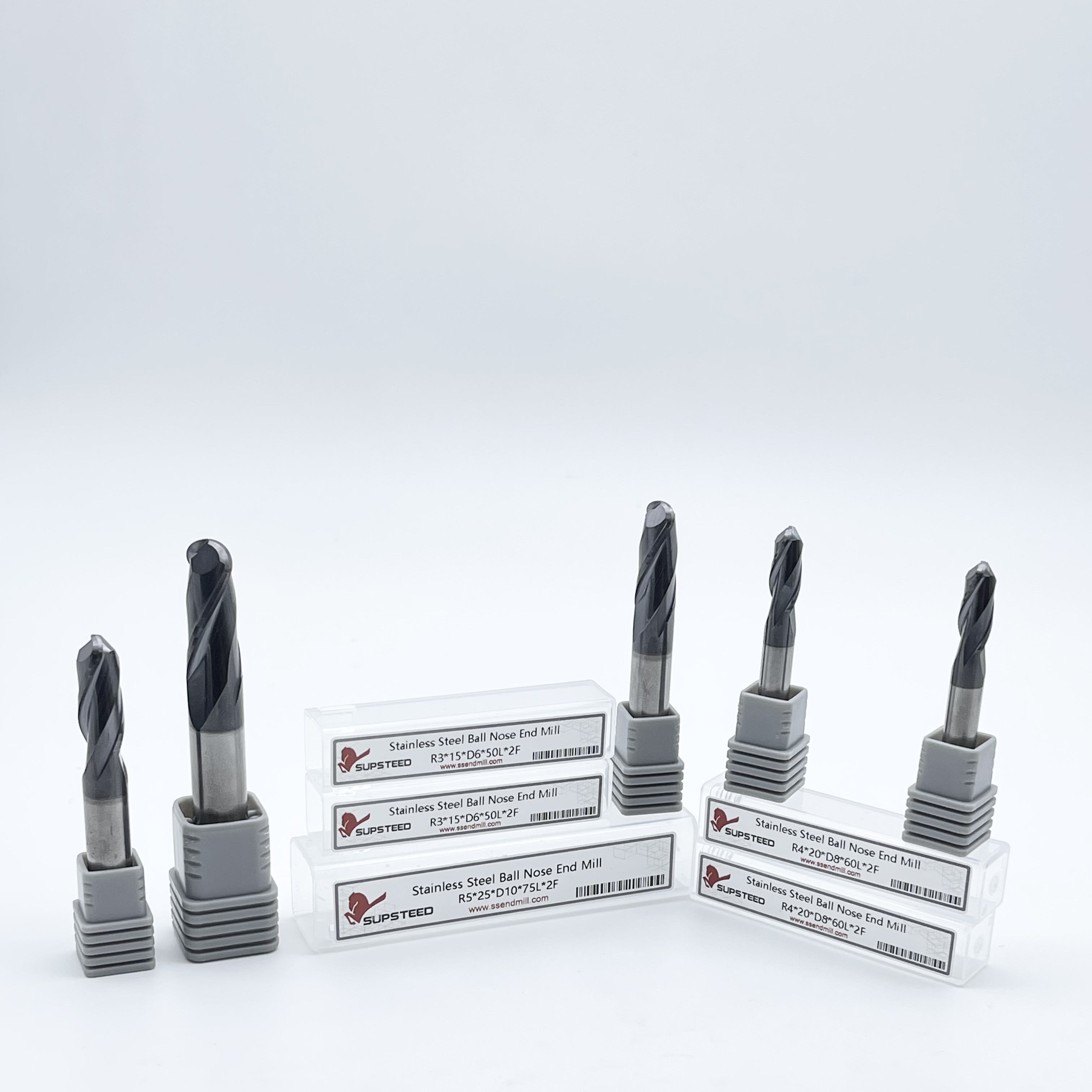

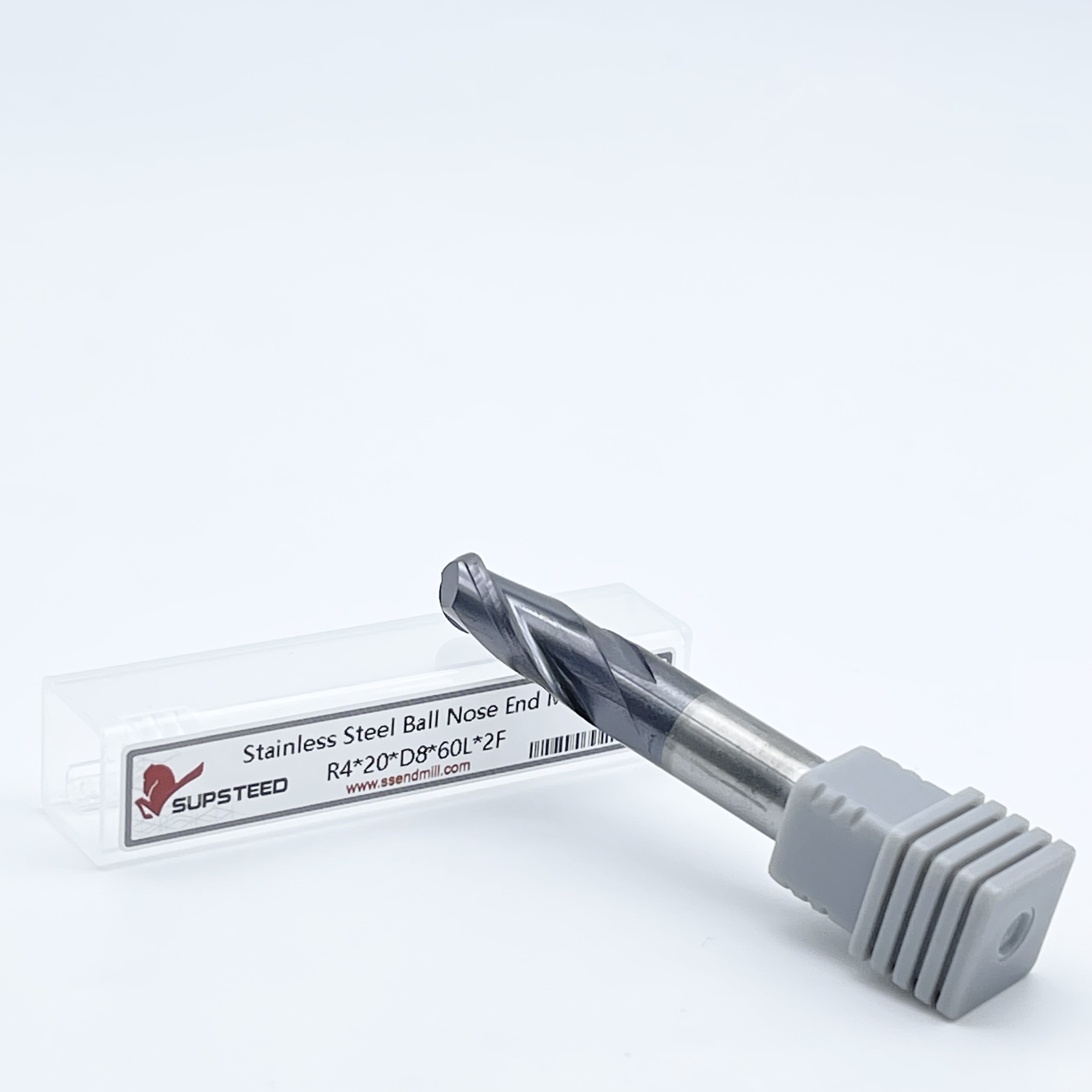

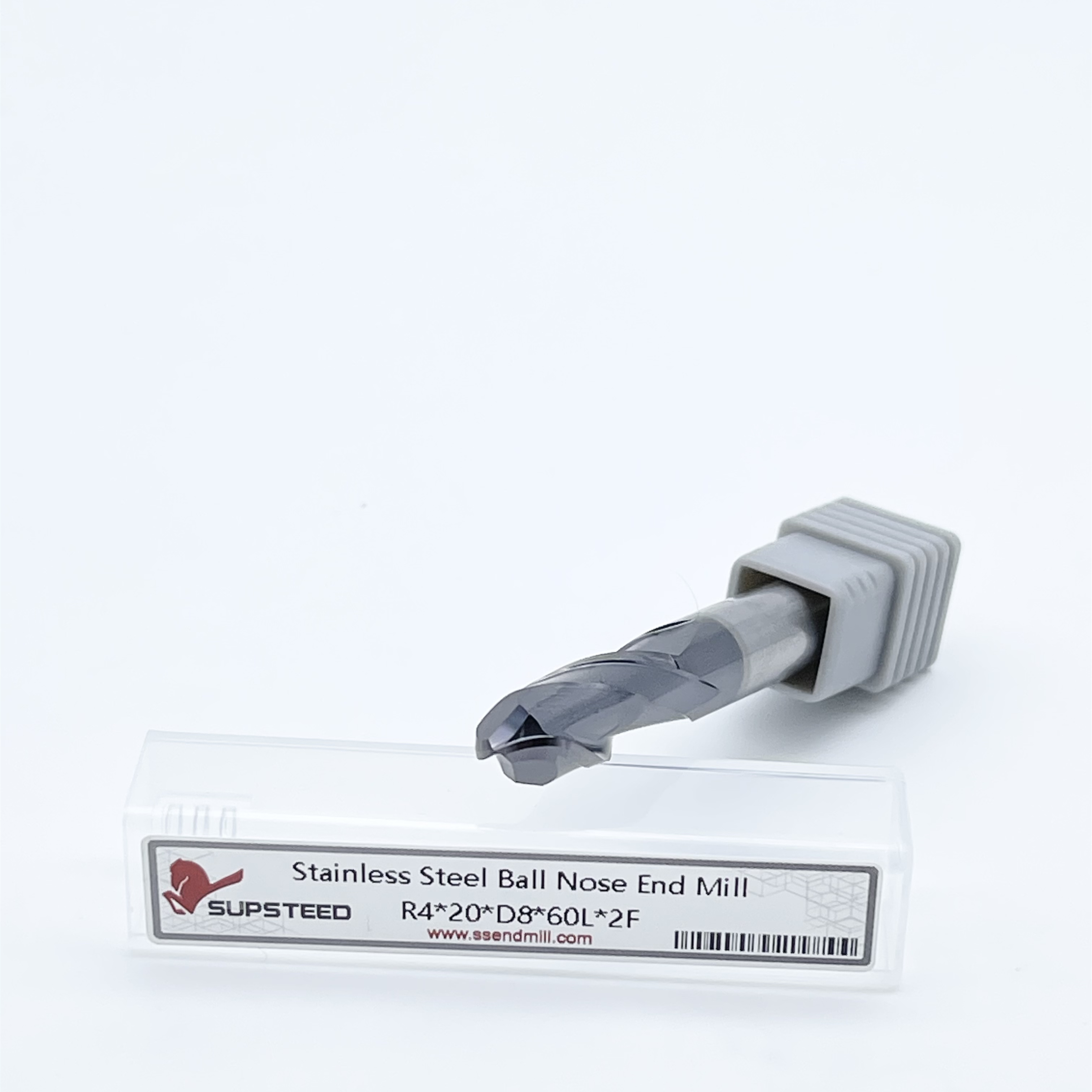

Sus Machining Ball Nose End Mills
Show Details
Specitications
| SIZES(D*fL*sD*L) | |
| D1*3*D4*50L | D5*(13/20/25)*D5*(50/75/100)L |
| D1.5*4.5*D4*50L | D6*(15/24/30)*D6*(50/75/100)L |
| D2*6*D4*50L | D8*(20/30/35*D8*(50/75/100)L |
| D2.5*7.5*D4*50L | D10*(25/40)*D10*(75/100)L |
| D3*9*D4*50L | D12*(30/45)*D12*(75/100)L |
| D3*(9/12/15)*D3*(50/75/100)L | D14/D16/D18/D20/D25*100L |
| D4*(10/16/20)*D4*(50/75/100)L | D6/D8/D10/D12/D14/D16/D18/D20*150L |
Expertly engineered for superior performance in stainless steel (SUS) and other tough alloys.
Our ball nose end mills are the ultimate solution for high-precision 3D contouring, profiling, and mold machining. Designed to excel with challenging materials like 304, 316, and 17-4PH stainless steel, they deliver exceptional results in aerospace, medical, and automotive manufacturing.
Key Features:
Premium Micro-Grain Substrate: Maximizes toughness and resists chipping and deformation.
Advanced Thermal Barrier Coating (TiAlN): Reduces heat buildup and significantly extends tool life.
Optimized Helix & Flute Design: Ensures efficient chip evacuation, preventing recutting and protecting your workpiece.
Precision Ground Cutting Edges: Guarantees exceptional surface finish and tight tolerance machining.
Applications: Ideal for complex dies, molds, aerospace components, and detailed sculpting on CNC milling centers.
Clients Good Feedback
Factory
Service Introduction
Logistics Package
FAQ
1. What is the best coating for machining SUS (Stainless Steel) with ball nose end mills?
For superior heat and wear resistance, an AlTiN (Aluminum Titanium Nitride) coating is highly recommended for SUS machining.
2. Why is my ball nose end mill wearing out quickly?
Rapid wear is often caused by excessive heat. Ensure you are using correct feeds/speeds, a high-performance coating, and ample coolant or air blast.
3. Should I use coolant when machining SUS?
Yes. Effective cooling is critical. Use a high-quality coolant to control heat, extend tool life, and improve surface finish on your stainless steel parts.
4. What are the advantages of a ball nose end mill for SUS?
They are ideal for machining 3D contours, complex molds, and fillets in SUS, providing excellent surface finish and precise geometry on intricate parts.
5. How do I choose the right ball nose end mill for SUS?
Select a micro-grain carbide tool with a sharp cutting edge, a strong core for rigidity, and a specialized coating like AlTiN for machining stainless steel.
