Milling is one of the most widely used machining operations in manufacturing industries. It involves the removal of material from a workpiece using rotating cutting tools. These tools come in a variety of shapes and sizes, designed for specific tasks in the milling process. Milling tools can be used to cut, shape, or finish materials ranging from soft metals like aluminum to tough alloys like titanium.
Milling tools are specifically designed to cut and shape a wide variety of materials, including metals, plastics, and wood. These tools are crucial in both roughing and finishing operations and can be used for various applications, such as slotting, face milling, and profile milling. Different types of milling tools serve different purposes, depending on the material to be cut and the complexity of the desired shape.
The quality and performance of milling tools are determined by factors such as the material composition, tool geometry, and coating used. Understanding the types of milling tools available and their specific functions is essential for optimizing machining operations and achieving high-quality finishes.
Milling tools come in several varieties, each designed for different types of cutting operations. Here are the most commonly used types:

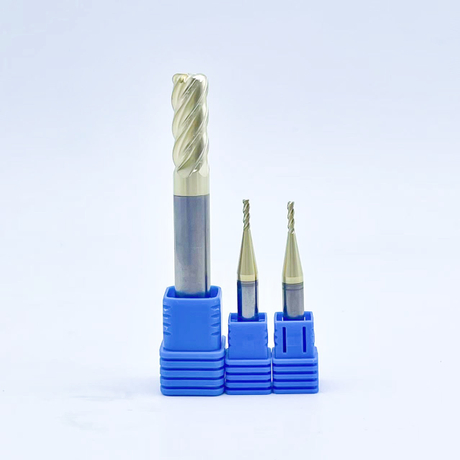

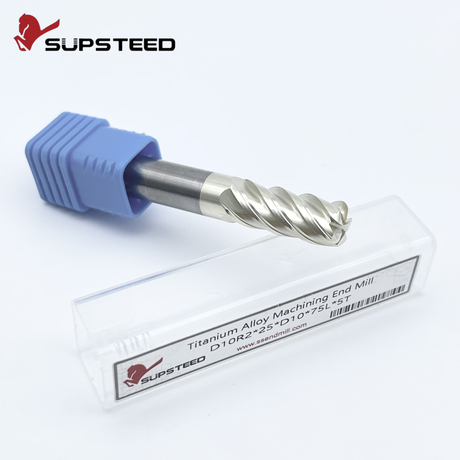

End mills are one of the most versatile and commonly used milling tools. They are designed to cut on both the sides and the end of the tool. These tools are available in various shapes, including square, ball nose, and corner radius, and are used for tasks such as slotting, contouring, and profiling. The geometry of end mills is optimized for both rough and fine milling applications.
Key Features:
Cutting on both ends and sides.
Available in a range of geometries.
Used for a variety of operations, from rough cutting to finishing.
Face mills are used primarily for cutting flat surfaces. Unlike end mills, face mills only cut with the face of the tool. They are ideal for applications that require the removal of a large amount of material. The insert design and number of cutting edges can vary to optimize the performance depending on the task.
Key Features:
Designed for milling flat surfaces.
Can handle heavy cuts.
Typically used for larger-scale machining operations.

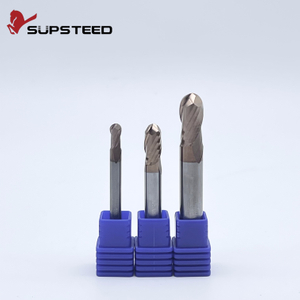

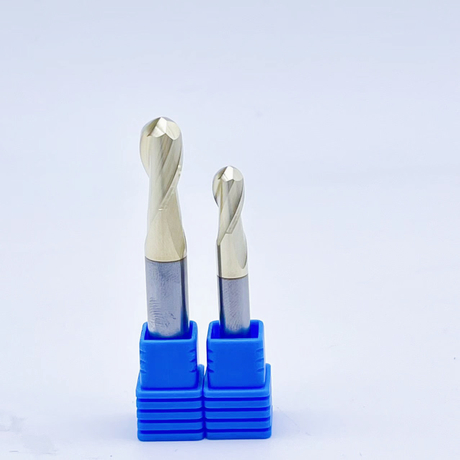

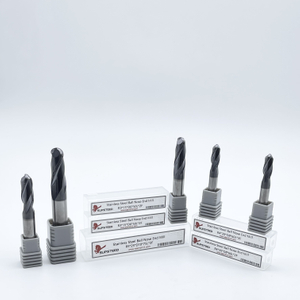

Ball nose mills are used for 3D contouring applications, where a smooth surface finish is required. These tools have a rounded end, which allows them to cut curves and complex shapes with precision. Ball nose mills are commonly used in industries like aerospace and automotive for producing intricate details.
Key Features:
Rounded end design for smooth, complex curves.
Ideal for fine contouring and sculpting.
Suitable for materials like stainless steel and titanium alloys.
Slotting cutters are used to cut narrow grooves or slots in a workpiece. They are often used in applications like keyway cutting, spline cutting, and other applications requiring a narrow, consistent groove.
Key Features:
Designed for creating narrow slots or grooves.
Used in keyway and spline cutting.
Available in a variety of widths to match specific slot sizes.
Tapered end mills feature a cutting edge that tapers to a point. These tools are useful for cutting complex shapes, creating drafts, and achieving specific angles in a workpiece. They are often used in mold-making operations where precision is critical.
Key Features:
Tapered design for cutting angles.
Ideal for mold-making and draft cuts.
Suitable for both roughing and finishing.
The functionality and effectiveness of milling tools depend on several key features. These features include the material of the tool, its geometry, coating, and overall design. Let’s examine each of these important factors in detail:
Milling tools are commonly made from high-speed steel (HSS), carbide, or cobalt alloys. Carbide tools are especially useful for high-speed machining due to their hardness and wear resistance. The choice of material affects the cutting performance, tool life, and cost of the tool.
Common Materials:
Carbide: Hard, wear-resistant, and suitable for high-speed cutting.
High-Speed Steel (HSS): Good for general-purpose milling applications but wears out faster than carbide.
Cobalt Alloys: Known for their heat resistance and strength.
Coatings applied to milling tools can improve their performance by reducing friction, enhancing wear resistance, and extending tool life. Common coatings include titanium nitride (TiN), titanium aluminum nitride (TiAlN), and diamond coatings.
Common Coatings:
TiN (Titanium Nitride): Reduces friction and increases wear resistance.
TiAlN (Titanium Aluminum Nitride): Offers enhanced heat resistance, ideal for machining high-temperature materials.
Diamond Coating: Provides exceptional hardness for cutting abrasive materials.
The geometry of a milling tool defines its cutting efficiency. This includes factors like the number of cutting flutes, the rake angle, and the helix angle. For example, tools with multiple cutting edges are ideal for heavy material removal, while tools with finer geometries are used for finishing and detail work.
Key Geometry Factors:
Flute Design: Affects chip evacuation and cutting efficiency.
Helix Angle: Determines the cutting force and finish quality.
Rake Angle: Affects the cutting edge's ability to shear the material.
The cutting speed and feed rate are crucial in determining the overall performance of milling operations. Milling tools should be matched with appropriate cutting speeds and feed rates for the material being machined to prevent tool wear and achieve optimal results.
Important Parameters:
Cutting Speed: The speed at which the tool engages the material.
Feed Rate: The rate at which the tool moves relative to the workpiece.
Milling tools are used in a wide variety of industries for different machining operations. Below are some of the primary industries that rely heavily on milling tools:
Milling tools are extensively used in the aerospace industry for machining critical components such as engine parts, turbine blades, and structural components. The ability to machine tough materials like titanium and Inconel makes milling tools indispensable in this sector.
In the automotive industry, milling tools are used to manufacture engine components, gearboxes, and body parts. Milling is also used for prototyping and mass production of automotive parts, especially when complex shapes and tight tolerances are required.
Milling tools are used to produce high-precision components for medical devices, including implants, surgical tools, and prosthetics. The tools must maintain strict tolerances and surface finishes to ensure the reliability and safety of medical products.
Milling tools are essential for the creation of molds and dies used in injection molding, casting, and stamping processes. These tools help create precise cavities and intricate features needed for mass-producing parts in various materials.
Milling tools are used for cutting, shaping, and finishing materials such as metals, plastics, and composites. They can perform tasks like slotting, drilling, and contouring, among others.
The choice of milling tool depends on the material being machined, the complexity of the shape, and the type of operation. Factors like tool geometry, coating, and material composition should be considered to ensure optimal performance.
Yes, milling tools are designed to perform both roughing and finishing operations. Roughing tools typically have more aggressive geometries for material removal, while finishing tools provide finer cuts and smoother finishes.
To extend the life of milling tools, it is important to use the correct cutting speeds, feed rates, and cutting fluids. Regular maintenance and proper tool selection based on the material being cut also contribute to longer tool life.
Milling tools are typically made from materials like high-speed steel (HSS), carbide, and cobalt alloys. Carbide tools are known for their hardness and wear resistance, while HSS tools are suitable for general-purpose milling.
Milling tools play a crucial role in the machining industry, offering versatility, precision, and durability across a wide range of applications. Whether you are machining metals, plastics, or wood, choosing the right milling tool for the job is essential to achieving the desired results. From end mills to ball nose mills, the wide variety of milling tools available allows manufacturers to tackle complex and diverse machining challenges with ease. By understanding the key features and applications of these tools, operators can optimize their machining processes for efficiency, precision, and cost-effectiveness.
With advances in technology, milling tools continue to evolve, offering higher performance, longer tool life, and better surface finishes. As the demand for precision machining grows across various industries, the role of milling tools in the manufacturing sector will only become more significant.
