The Ultimate Guide To Choosing A Perfect Counterbore End Mill

Targeting results in precision machining calls for an adequate choice of tooling. It is worthwhile noting that counterbore end mills are instrumental in the making of holes with flat bottoms of different diameters, which are specifically designed for fastening devices or other parts where a specific depth is needed. In this keen analysis, we shall overview some of the characteristics that one should look for in a counterbore end mill, including but not limited to cutting material, geometry, coating features, and compatibility of machining processes in a number of aspects. In understanding these factors, the manufacturers and the machinists are able to make choices that boost efficiency, accuracy, and optimal use of time in the operations of the machining sector. This article is targeted at practitioners, whether experienced or novices, in the domain of metal cutting, and it intends to help in determining the most suitable counterbore end mill for particular tasks.

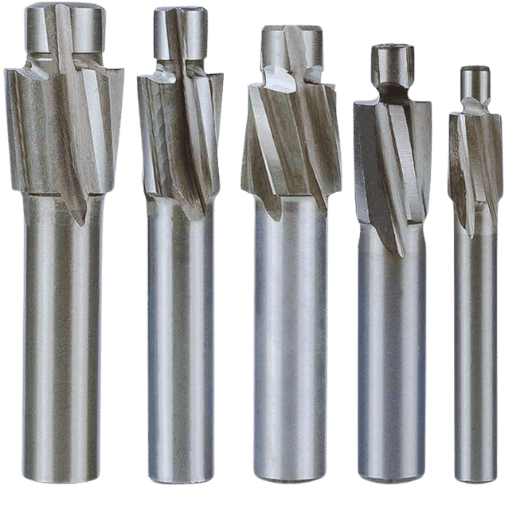

What is a Counterbore End Mill?

Understanding the Tool Functionalities

A counterbore end mill is manufactured to produce a hole whose bottom surface is flat and which can fit the head of the fastener and allow it to be flush with the surfaces. The fact includes a cylindrical body with flat ends, which index usually has a pilot to orientate the cutter relative to the existing hole. This feature also helps keep the tool and its cutting edges from misaligning and chattering during the operations because their design allows quick flushing of the chips out of the chamber. Placement of the cutter with a counterbore design done properly enables precise control of the depth as well as the diameter of the end mill, which is critical when working on parts with tight tolerances.

How a Pilot Enhances Performance

The addition of a pilot on a counterbore end mill profiles definitely improves its efficiency by helping maintain proper bearing during its use. The tool is positioned using the pilot so that it fits into the hole thereby preventing any mismatch. Consequently, this additional stability improves the efficiency of the cutting process since machining parameters can be maintained with improved accuracy. Also, the pilot helps reduce chatter and vibrations that interfere with the finish quality and the tool life. Pilots allow tools to engage with the workpiece continuously; hence, tool effectiveness and efficiency are improved, and the surface finish and tool life are better.

Differences Between Counterbores and Other Milling Tools

In contrast to other milling tools like end mills and drills, counterbores have a different design and function. End mills possess flutes for lateral material removal for generating a complicated form, whereas the counterboring tools have the aim of producing flat bottom holes for fasteners. Drills only help create straight holes and cannot produce a flat seat for the fasteners. Therefore, counterbores usually have a pilot for better alignment which is hardly found in standard drilling and end milling tools. This difference contributes to the degree of accuracy counterbores can attain in terms of depth and diameter, making them important for working whose specifications are particularly tight and require fasteners to be properly seated.

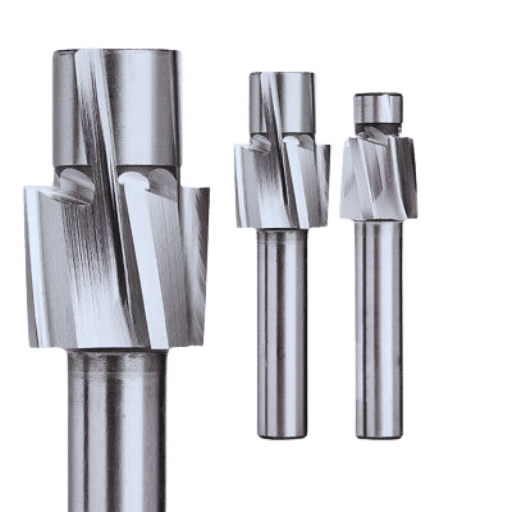

How to Choose the Right Specification for Your Job?

Key diameter and flute Considerations

In this case, it is important to select the right diameter of the counterbore and attach it to the fastener, making sure there is no play and the fastener is seated easily. In addition, the type of flute should be selected depending upon the material that is to be machined; when machining softer materials fewer flutes may assist in promoting better chip clearance, conversely, when machining harder materials tools with more flutes may be more suited. Also, the length of the flute should be taken into account to allow the cutting tool to have adequate extension for the depth of cut needed as well as possessing enough rigidity in order to limit deflection during the machining work.

Types of Shank Variations

Counterboring tools and other cutting tools may accept different types of shanks, which all have different functions and applications. The main types are as follows:

1. Straight Shank: This is an intermediate type of shank tool in which there is no taper from the cutting edge to the tool holder. Such straight, cylindrical shank tools can be used with a range of tool holders and are suitable for most machining operations that demand rigidity and stability.
2. Taper Tapered Shank: Tapered shanks have an angle from the shaft to the tool head and can fit tightly where there is a matching conical socket. This type of extension shank will be most useful when a maximum torque transfer is required when doing heavy duty tasks. The tapered configuration also helps in fast mounting and dismounting of the tools.
3. Reduced Shank: This is achevived using a reduced shank form which incorporates a smaller diameter barely at the shank end so as to fit smaller collet chucks while still having a more wider cutting diameter. This shape is very effective when performing drilling and counterboring work where the interor space is limited.
4. Hex Shank: Made with a hexagonal profile, hex shanks can be clamped unto by the chucks of power tools without risk of slippage. This type is very useful in applications where a horseshoe rut votary is to be fitted, since it multiplets its grasping strength, together with hex shank counterbores creatively used with power tools very fast motion as operators also.
5. Sleeved Shank: Some tools have a sleeve which can accept a variety of shapes and sizes of hanks thus making some tools multi-purpose. Sleeved shanks enable rapid changes and substitutions of many components without changing all the tools employed in the set up.

Data on Shank Selection

Keep in mind the following chronological order of what should be considered when deciding on a shank type:

• Torque Capacity: Tapered and hex shanks usually deliver more torque than straight shanks, while those straight ones are least likely to break.
• Interchangeability: It has a reduced and sleeved shaving mechanism to allow for easy tools to be changed.
• Application Suitability: Analyze the time of the process, vibration level, speed of cutting, and material to be used etc.

It is apparent that the selection of the appropriate shank variation Acts both on the effectiveness of and uses of how productive the machining processes Can Enhance the performance and, indeed, the accuracy of processes.

Best Practices for Metric Measurements

1. Write Measurements in Standard Units: Whenever a measurement has to be made, it should comply with SI. The standard units of length, mass, and time are meters (m), kilograms (kg), and seconds (s), in that order. The use of common units is important.
2. Measurement System: Professional instruments must be able to measure parameters of interest with the required degree of accuracy. For example, digital calipers or micrometers should prove to be serviced on a routine basis.
3. Data Conversion: Use prescribed conversion rates in cases when one is switching from one unit system to the other such as in converting imperial to metric and vice versa. Further analyze once converted figures to prevent errors or mistakes which could impact a project.
4. Record Keeping: Keep all measurements and computations meticulously. Good reporting practices improve traceability but also prove useful when problem solving or undertaking quality processes.
5. Training and Familiarization: All the workers should therefore be trained on metric measurement techniques. It is important since it can lead to wrong operational habits and reduce efficiency in total.

By adhering to these guidelines, organizations can. expertise to work towards measurement enhancement with regard to accuracy and efficiency which works as the basis.

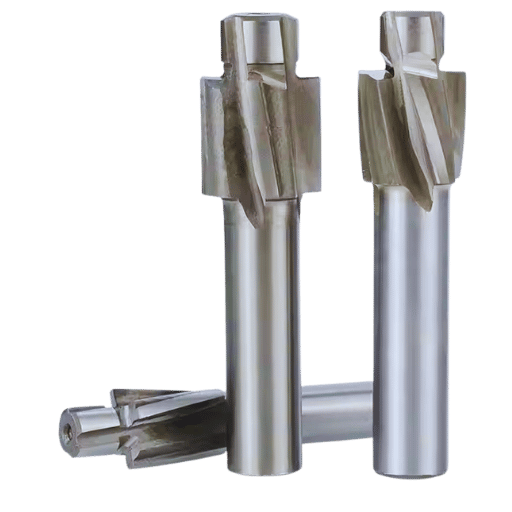

What are the Benefits of Using a Pilot in Counterboring?

Enhanced Precision with a pilot slotting

The introduction of a pilot slot for the entrance of the tool considerably enhances the accuracy of counterboring by establishing an orientation of the tool. This technique reduces the likelihood of errors due to the tool coming off center, making sure the counterbore is positioned directly over the hole. In addition, the pilot hole calms the tool and reduces its vibrations and deformation during the cutting process. For this reason, it allows precise fitting and finer surface finish, which are important for fulfilling any high engineering requirements.

Comparing Pilot and Non-Pilot counterbore end mills

There are many characteristics that influence performance and usage when assessing the two types of counterbore end mills, i.e. pilot and non-pilot. Counterbore end millennials include pilot at the bottom. Restricting and turning on the counterbore end mill pilot concentrate coordinates the counterbore end mill with the existing hole profile thus the chances of misalignment in the cutting process minimizes. This is highly preferred in situations where close tolerance is required and also a better surface finish.

Non-pilot countersinks end mills, however, depend on the skill of the operator as the only means of achieving alignment. They can, however, achieve reasonable results even if the application is not strict. Hence, while it is mainly non-pilot solutions are adopted for simple jobs with low requirement of precision, it is the pilot end mills that allow rapid completion of tasks with consistent accuracy, making these tools indispensable in precise engineering works and production.

When to Use a Countersink End Mill

A countersink end mill is used for making the conical seating of the screw or the fasteners so that they are flush with or below the workpiece surface. This tool is very helpful in assembly processes where smooth surfaces prevent assembly parts from being caught or interfering with others. Countersink end mills are also useful in making smooth edges about the drilled holes, which also helps in better finishing of the products. Also, they are helpful in the installation of counter-bored or counter-sunk screws and other related applications that require proper alignment in a mechanical assembly. The use of a countersink end mill eliminates the feedback mechanism and devices thus speeding up the machining process.

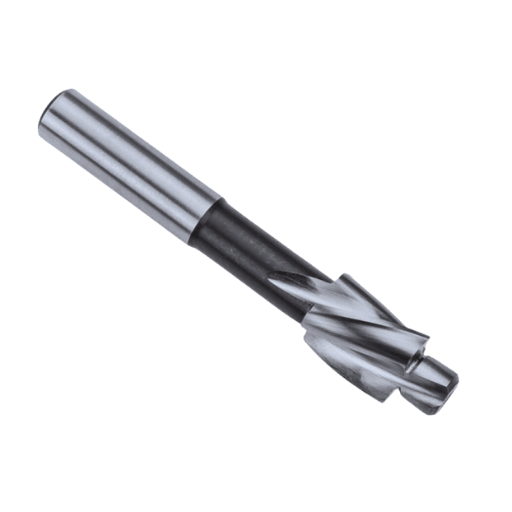

How to Maintain Your Counterbore End Mill?

Proper tool Maintenance Techniques

These are the methods that can be used when dealing with a countersink end mill:

1. Regular Cleaning: Tools and heads should be cleaned out of chips and debris after use in order to avoid tool cracking and rusting. A soft brush or catalyzed air can be used for cleaning as well.
2. Inspection: Due to the tendency of the cutting edges of tools to wear out, wear inspection of the cutting edges should be frequently done. Rough shapes would require either the shape or edge of the tools to come out rather than just making them round fast.
3. Proper Storage: End mills should always be housed in a case or toolholder to avoid bunk and storage corrosion. They should also be stored in a dry place.
4. Lubrication: It is best to apply some cutting oil on the tool during the course of work in order to reduce heat and friction.
5. Correct Usage: Avoid over feeding or excessive speeds as this would put some unwanted stress and cause efficiency loss.

Hence when these maintenance methods are for the correct and countersink end mill usage, than the life span as well as accuracy of countersink can be increased by a large factor thus giving better results in machining.

Cleaning and Storing end mills

To properly use end mills and avoid them wearing out too fast, good cleaning and storage of the tools must be practiced. Making cleaning station after the use of the tools will involve getting rid of all chips, debris, or cutting fluid residues Leftover. A soft bristle brush and compressed air are extremely helpful for reaching these areas, particularly for the removal of contamination to ensure clean cutting edges. Also try soaking the end mills in metal working solvent to get rid of tough residues.

There is an equal level of importance in the proper storage of end mills. Always keep cutting tools in a storage unit that is specifically designed for them so that there is no chance of contact with other tools that can cause the edges gets blunted or damaged. Store the end mills either in a vertical or horizontal position in a dry storage place with control of the temperature and humidity to avoid moisture which is damaging because it causes corrosion. Following these recommendations will extend the possible lifespan of the endmills and their sharpening guarantees implemented.

Indicators for Tool Replacement

It is quite imperative to know when to change end mills so as to enhance machining performance and productivity. The following can help make this decision:

1. Visual Inspection: Check the cutting edges thoroughly after some time for any defects such as chipping, dulling, and other irregularities. If the cutting edges show any signs of rounding off or wear, purchase a new end mill.
2. Performance Degradation: Increase in cutting forces, poor surface finish, excessive tool wear, and long processing time These are clear signs that the tool has outlived its effectiveness, replace it.
3. Tool Life Tracking: Establishing a systematic practice of documenting the number of times a tool has been used and on what materials will concern better understand how the performance of the tool is deteriorating. Assume the tool has been used on its designed materials for as long as it was expected to be used and there are no obvious signs of wear or tear, throw it away.

Users will be able to track and manage by way of always performing changes through these indicators leaving the machining performance at an enhanced level thus cutting down the chances of machining errors.
