Everything You Need To Know About The 5/16 Coated Carbide End Mill

Welcome to our detailed tutorial and review on the 5/16 coated carbide end mill. The target of this article is to showcase the in-depth knowledge of one of the most used tools in the field of precision cutting and manufacturing. If you are a professional or just someone new to this field, acquire the 5/16 coated carbide end mill specifications, applications, and benefits. We will look into how it is built, the different types of coatings, what it can cut, and the maintenance of the same so that you make the best decisions for all your machining endeavors. In this intuitive article, you shall have gained the necessary insights on why this particular end mill is simply a must-have for all kinds of machinists in the industry and how it can enable further enhancement of your machining techniques.

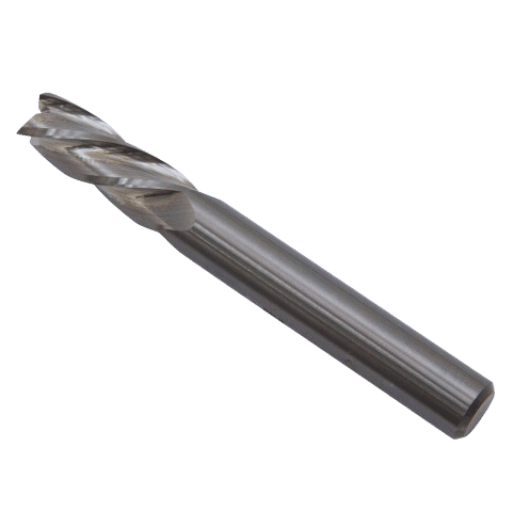

What is a 5/16 End Mill, and How is It Used?

A 5/16 end mill is classified as a precision cutting tool owing to its characteristics and purpose and is mainly used in CNC milling applications. It is used to cut the surface of the workpiece due to its high-speed turning and the movement of the machine tool into the workpiece. This type of end mill is widely used for slotting, profiling, and contouring where accuracy and effective metal, plastic, or composite material removal is required. Its design is so flexible that it is useful for both roughing out and smoothing, which makes it a valuable machine tool for all sorts of machining jobs.

Understanding the Basic Anatomy of an End Mill

The anatomy of an end mill precisely comprises of the following parts:

• Shank: This is cylindrical in shape, and it is the part which is held by the tool holder of the milling machine.
• Flutes: These are helical grooves made to enhance chip removal and provide cutting edges.
• Cutting Edge: This is the marginal edge of the flutes where material removal takes place.
• End Cutting Edge: This is the edge positioned on the forehead of the tool and is employed for linear operating moves.
• Helix Angle: This is an angle formed by a helix section of the flute with the tool’s longitudinal axis and this reduces the efficiency for chip disposal and cutting.
• Tool Material: Its main material is the carbide, which has the highest hardness and resistance to abrasives.
• Coating: It is defined as any slim surface covered over with titanium nitride (TiN) among other materials; this is done to aid in performance and durability of the tool.

These components collaborate in the machine for the proper and quick removal of materials through great analytical purposes.

Common Applications of a 5/16 End Mill

The 5/16 end mill finds its application in multitude of engineering and manufacturing processes because of its universal nature and accuracy. Its notable uses include:

• Slotting: Forming precise slots and keyways in diverse materials.
• Profiling: Carving out various shapes and curves on the surface of a workpiece.
• Contouring: Moving along intricate lines to make three-dimensional features.
• Plunge Cutting: Creating holes or clearance by cutting directly into the material.
• Finishing Operations: Elemental treatment to obtain a desired smoothness on the final output.
• Roughing Operations: Procedures aimed at producing very few accurate features, and in most cases, too bulks of the workpiece are removed, in preparation for the finishing procedures.

The above applications further exemplify how critical the 5/16 end mill is in enabling precision and efficiency in machining operations on metals, plastics and composites.

Key Features of a 5/16 Coated Carbide End Mill

It has been established that the 5/16 coated carbide end mill is an effective cutting tool because of the following appropriate features as given below:

• High Wear Resistance: Carbide substrates reinforced by the use of modern cutting tools such as titanium aluminum nitride (TiAlN) coatings, or even diamond like carbon (DLC) coating enhance tool life by preventing erosion or even abrasion.
• Superior Hardness: End mills produced from carbide material offers resistance to extreme temperatures and cutting efficiency even in abrasion resistant materials.
• Enhanced Lubricity: Coatings of the tool such when it is armed corded promis or AlTiN gives a reduction in the coefficient of friction hence less string cut is generated and consequently there is less thermal damage on the work piece.
• Excellent Heat Dissipation: Due to the hardness and thermal properties of advanced coatings and carbide, the management of heat is much better thereby preventing overheating and compromising the tool.
• Optimal Chip Evacuation: The helix angle and flute design are aptly designed for removing chips and thus there is less material left behind ensuring precision in cutting.

The above features assist the 5/16 coated carbide end mill in taking on tough machining operations and still remaining.

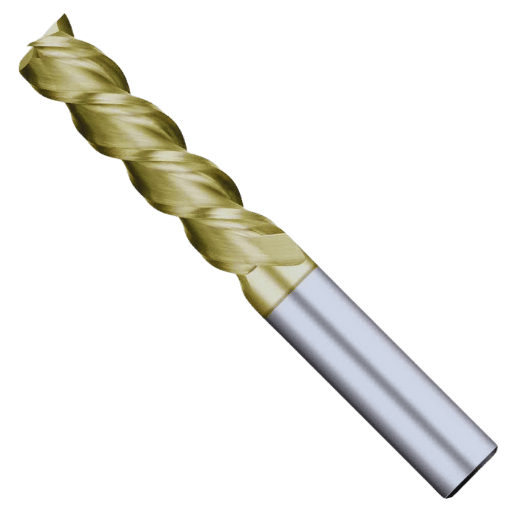

How to Choose the Right 5/16 End Mill for Your Needs?

Comparing 2 Flute, 4 Flute, and 3 Flute End Mills

2- Fletch End Mills

• Material Removal: This type of cutting tool is great for carrying out slotting and peripheral milling operations.
• Chip Evacuation: They have improved chip removal performance since the spacing between the cutting edges has been increased thus the chances of clogging are highly decreased.
• Surface Finish: They are not as effective as 4 flute end mills when it comes to surface finishing tasks.

4 -Fletch Cutters

• Material Removal: This is perfect for final finishing, as it gives finer finishing.
• Chip Evacuation: Small chip space may cause problems such as clogging, especially in the case of deep cuts.
• Surface Finish: It yields better surface quality and accuracy in fabrication.

3- Fletch Cutters

• Material Removal: Average outcome for most operations. Appropriate for all applications.
• Chip Evacuation: Better than 4 flute design structures. Clogging problems were eliminated.
• Surface Finish: Helps to achieve average finishing, efficient for multiple uses.

Choosing the right flute configuration will depend on the specific machining operations to be performed, the type of material, and the quality of the surface finish that is to be achieved.

Determining the Suitable Coating (TiCN, AlTiN, ZrN)

TiCN (Titanium Carbonitride)

• Hardness:The material offers relatively higher hardness, as compared to TiN, suitable for use on abrasive materials.
• Wear Resistance: The depletion caused is also very good, prolongs the tool life especially in high speed operations.
• Applications: Used for cutting non-ferrous metals, cast iron, and stainless steel.

AlTiN (Aluminum Titanium Nitride)

• Thermal Stability: Good heat resistance and is able to retain hardness even at elevated temperatures.
• Oxidation Resistance: Good, decreases the thermal effects which mostly occur under brutal cutting conditions.
• Applications: Suitable for the machining of both cuttable ferrous and non-ferrous metals, including hardened steel, at high speed.

ZrN (Zirconium Nitride)

• Surface Lubricity: Lower coefficient of friction which results in better references and improved cuts.
• Adhesion Resistance: High – did not get clogged with materials undermining the shield’s cutting edge.
• Applications: These are useful in machining of aluminium, copper, and other non-irons and improve surfaces finish and increase tools life.

The selection of the beneficial coating is conditioned by individual cutting parameters, the material of the work piece and required duration of the tool as well as its operation. TiCN is appropriate for general applications, AlTiN is used where application temperature is very high, while ZrN is as good as best in machining of non-ferrous metals.

Matching End Mills to Cutting Materials like Aluminum and Steel

For machining, it is always prudent to utilize end mills that are appropriate for the material that is being cut. Particularly for aluminum, an end mill made of high-speed steel, carbide, or a polished high helix angle end mill will find a high level of application. These alloys must feature sufficiently sharp cutting edges and must be configured in a way to reduce the formation of built-up edges. Other coatings such as TiN, besides cutting down friction while cutting aluminum material, also enhance the tool life and the performance of the accessories.

On the other hand, it is common practice to use carbide endmills when cutting steel since the hardness and quantity of wear is always higher. Steel end mills will be required, which will have a lower helix angle, in order to afford the increased rigidity and strength required to cut hard materials. Cooling liquids and insulators are both useful and necessary, especially in machining steel, which induces a great amount of heat generated by the tool. Coatings of AlTiN or TiAlN in steel machining are very useful since they have great heat tolerance and oxidation resistance, thus tool performance is not compromised under high cutting temperatures.

When selecting an end mill, one has to take into account properties of the material and also have the shape and the coating of the tool corresponding to the cutting conditions. Regarding aluminium, the main emphasis should be put on sharp and high helix polished flute end mills, while in a case of steel the shape of the flute end mills should be robust with a low ratio of a helix angle.

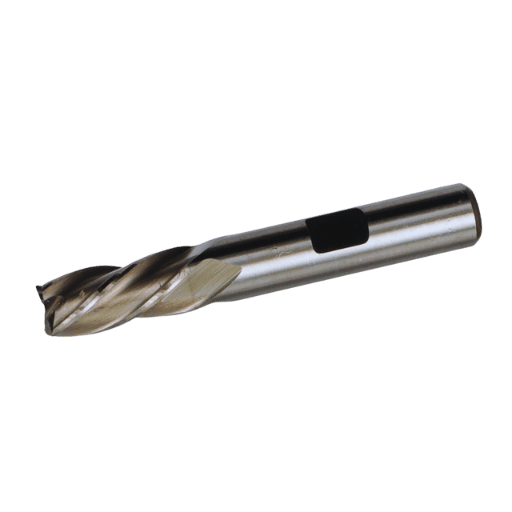

What are the Advantages of Using a Solid Carbide End Mill?

Durability and Performance of Solid Carbide vs. HSS

Solid carbide end mills, compared to HSS end mills, provide better endurance and better performance as well. They have better hardness, corrosion resistance, and retention of the cut edge for more time in intensive operational conditions. Moreover, solid carbide withstands higher temperatures, allowing for less tool deformation and better overall geometrical accuracy during the operations. On the other hand, HSS end mills are cheaper and tougher than solid carbide end mills and, hence, best when the parameters are not very demanding. However, in those situations in which high performance and exquisite finishing are required, solid carbide end mills will always be used for their durability and consistency of performance traits.

The Benefit of High-Speed Operation in CNC Machining

There are several factors that positively influence outcomes from the high-speed operation of CNC machining. Foremost, it means high productivity by lowering the operational time since components will be machined with a rapid rate of turnaround. Roughing can be performed with high cutting speeds, which leads to better surfaces and better parts feature fidelity. Moreover, the increased feed in high-speed machining means less chip load and lesser tool wear which enhances durability. This also enables the quick alleviation of heat generated in the cutting region, which helps reduce the thermal distortion of the machined parts. In a nutshell, integration of high-speed operation in CNC machining effectively maximizes productivity in outcomes, accurateness and cost efficiency during manufactured operations.

Why Grain Carbide Makes a Difference

Grain carbide is an important factor for the overall cutting tool performance and durability. The grain mean of refractory carbide influences the hardness, toughness, and wear resistance of the material. Fine-grained carbide leads to a more homogeneous and thus abrasive resistant material, required at high-precise and high-speed machining. Moreover, a reduction in the grain size increases the capability of the tool to retain sharpness for better cutting efficiency and longer tool life. On the other hand, thicker grain carbides would be more impact-resistant and would be used where more toughness is required. In the end, grain carbide selection influences the compromise between tool lifespan and cutting efficiency and is, therefore, an important factor in machining process optimization.

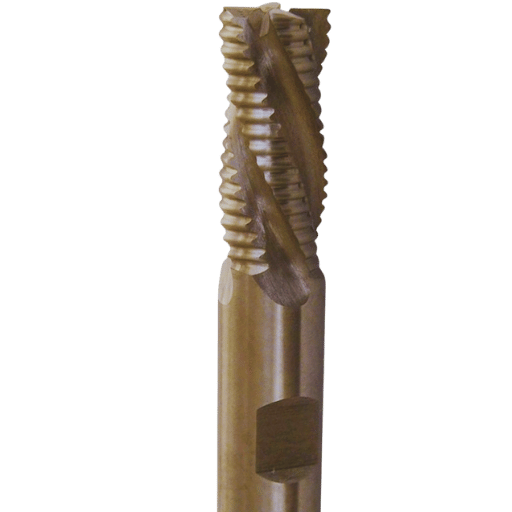

How to Maintain and Store Your 5/16 End Mill?

Proper Cleaning and Lubrication Techniques

For cleaning and care procedures of your 5/16 end mill, use clean, compressed air or a soft brush to remove dirt, chips, or any other substance that has been collected on the tool. Afterwards, you should apply a thin even layer of the suitable cutting oil or grease to the tool after cleaning in order to avoid any rust. Even though all dirty end mills were stored properly, in hope of not getting dirty, they should be packed after usage in special containers. However, apart from the storage of the dirty end mills, which all got stored properly all old meals, and quiet usage meals, were improperly packed after usage, and all such trapped, trapped crud clogged the gap deprives or none tubular designs.

Effective Storage Solutions for Extended Tool Life

There are a few useful strategies for effective storage of your 5/16 end mill. To begin with, always put the tool in a specific container in order to avoid sagging or exposure to dirt. Prevent other tools from touching them by using tool racks or cabinets built for them so as to avoid minor nicks and chips. Maintain a clean and dry condition within the area for storage to prevent rust and corrosion. Furthermore, this can also be achieved by use of desiccant packs or other moisture-controlled storage conditions and materials. Use labels and group similar tools together by their size, which should ease their retrieval process and help in the proper arrangement of all tools for reporting those that will be needed for use afterward. Adopting these strategies will enhance the durability of the tool and the effectiveness of its performance.

Common Mistakes to Avoid During Maintenance

Proper maintenance of your 5/16 end mill is important if you want to enhance its life and performance, however many routine activities may compromise this goal. For starters, failure to clean the instrument regularly can result to the clogging of nuts and chips, thus earning out and cutting accurately. Secondly, too little oil is another common mistake; if a tool is not properly oiled by way of cutting fluid or ironing oil, then that tool is subject to rotting and friction rusting. Thirdly, careless handling and storing conditions like keeping the end mill in the open moist air or touching it with different implements can lead to erosion and reduction in, the integrity of the tool. Further, not performing routine maintenance makes it impossible to recognize and repair wear and tear in a timely manner. Adhering to these maintenance practices will prevent such mistakes that may compromise the working efficiency and life of the equipment.

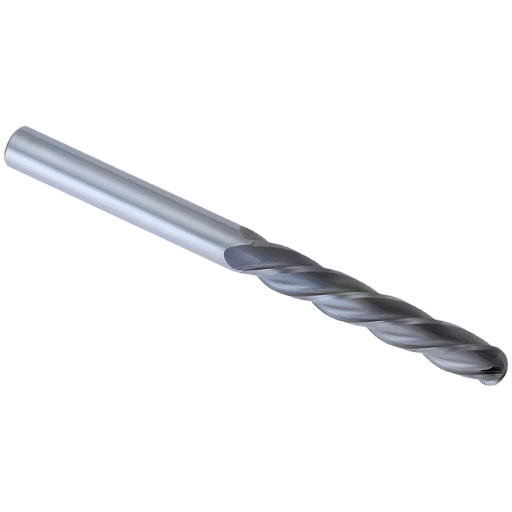

Where Can I Purchase High-Quality 5/16 End Mills?

Recommended Suppliers and Manufacturers

To buy quality 5/16 end mills, the following manufacturers and suppliers would be of help:

1. MSC Industrial Supply Co. – Renowned in the area of cutting tools supplies and quick services.
2. Grainger deals with trustworthy end mills with good product specifications from leading manufacturers.
3. Kennametal – Offers end mills and other cutting tools that are strong and effective for different fields.
4. Harvey Tool – Has tools that are small and special, the miniature cutting tools which are accurately made.
5. McMaster-Carr – They also offer a wide range of end mills and place emphasis on end-user comprehension.
6. Dormer Pramet – Supplies high quality and cutting edge solutions for end milling machines that are known for their effectiveness.

Understanding End Mill Catalogs and Filters

Sifting through the dimensions of end mill catalogs and/or the filters available on the software is important when searching for a fitting tool for ones use. Catalogs usually contain detailed charts for nearly every dossier where, besides the characteristics, one can find dimensions, material, type (coating), application fields, etc. Filters may also be used in order to make it simpler for the selection by allowing users to indicate the shank diameter, flute number, length, and material. If you proceed in a logical way and use all these various selected filters, you will be able to reach the most optimal available option for particular definition of machining needs and probably obtain the most appropriate end mill for your operation.

Online vs. In-Store Purchasing: Pros and Cons

When making a decision to either shop through the Internet or offline, there are many things that one has to consider. Let us examine the key positive and negative aspects related to each method stating current market situation.

Online Purchasing:

Pros:

• Convenience: People can look for and buy all kinds of tools on their computer or other gadgets any time; they will not have to go anywhere.
• Variety: There is no doubt that a wider variety of products and brands are available through these as compared to the physical outlets.
• Price Comparison: Different suppliers’ prices are easy to compare, and the best one can be chosen.
• Reviews and Ratings: Some websites provide product ratings and reviews written by buyers, which help one decides what to buy and avoid buying low quality or unfitting products.

Cons:

• Shipping Time: Shipping such goods may be time consuming as it may take days to arrive at a specified location depending on the method used.
• No Instantly Such Fast Satisfaction: Shoppers cannot see or try on and therefore cannot purchase a product and it is likely to be disappointing if that product cannot meet one’s needs.
• No Access to a Network: That implies that to buy you have to be connected to the Internet.

In-Store Purchasing:

Pros:

• Powerful satisfaction of forlorn expectations: Customers will be able to carry the purchased goods home after payment. No waiting time required.
• Ability to Touch/Inspect: By being able to see and thus interact with the tools before purchasing them, potential users can be sure that they will get the best products and services.
• Personal Assistance: reaching out to store staff and tools’ in-site personnel can be advantageous in making correct decisions especially in the case of specialized tools like end mills.

Cons:

• Limited Stock: compared to online stores, physical stores may have a range of goods available only in limited quantities.
• Travel Time: customers need to spend time and effort going to a given store which may not be comfortable for certain purchasers.
• Potential Higher Prices: a person may buy the goods from a physical shop but the price structures are usually more expensive due to operational costs.

To wrap up, it is conspicuous that either of the two purchasing strategies will have its relative odds and risks. It stands to reason that, the decision with regards to whether to make the purchase online or at a retail outlet will depend upon the needs of the purchaser in specific.

Reference Sources

End mill

Aluminium

Steel

Frequently Asked Questions (FAQs)

Q: What is a 5/16 coated carbide end mill?

A: A 5/16 coated carbide end mill is a cutting tool used preferably in some milling processes. It has a size or diameter of five- sixteenth inches and it is also coated owing to its performance and durability.

Q: What are the benefits of the high-speed 5/16 coated carbide end mill?

A: High speed 5/16 coated carbide end Mills makes such operations easier by providing higher durability against cutting speeds, longer standing time of cutting tools and finer finished surfaces owing to use of inferior materials and coatings.

Q: Is a 5/16 coated carbide end mill suitable for center cutting?

A: Yes, however, some 5/16 coated carbide end mills are non center cutting with parting tool shapes where vertical cutting can be employed.

Q: What is the length of cut LOC for a 5/16 coated carbide end mill?

A: The length of cut (LOC) for a 5/16 carbide end mill located in cemented tungsten or other materials comparable to cutting tools varies; however, specific carbide shape bits may offer it about 1 inch in size rounded off to its nose.

Q: Is there a 5/16 coated carbide end mill with a radius end?

A: Yes, there are 5/16 coated carbide end mills that come with a radiused end, which helps to minimize tool destruction and still enhance the finish on the workpiece.

Q: Which applications does a single end 4 flute center cutting 5/16 coated carbide end mill find a place?

A: Single end 4 flute center cutting 5/16 coated carbide end mill is used for precision work in a wide range of machining including metal cutting, drilling, and feed of 4 flute end mills in alloy steel, aluminum alloy, and other materials.

Q: Which covering is typical for a 5/16 coated carbide end mill?

A: The usual coatings that are applied on 5/16 coated carbide end mill include Titanium Aluminum Nitride AlTiN, Zirconium nitride ZrN among others in order to maintain high performance and wear resistance as well as longevity.

Q: How does the performance of a 5/16 coated carbide end mill change when considering the shank diameter?

A: The shank diameter should correspond with the tool holder through which the tools are used to carry out work operations, and it should be mounted for stability during use. Proper dimensions help improve precision. Disturbing factors such as vibration are at a minimum, thereby improving the efficiency of the cutting tool.

Q: Do router bits and end-mills perform the same functions?

A: Although router bits are mainly meant for use when working with wood materials and end holes are mostly utilized when working with metals, some router bits can be used even on softer metals. Nevertheless, one must use a specific tool for a given material and a specified application.

Q: What is the difference between a square end and a ball nose end mill’s 5/16 Carbide coated end?

A: A square end mill is an industrial tool that features a flat cutting edge which is meant for use where there is a need to form a sharp edge or corner. A ball nose end mill comes with a half rounded rod, which cuts contours and machines 3D shapes out of a material.
