Selecting the wrong tooling for a specific substrate results in catastrophic tool failure. You risk scrapped high-value parts and prolonged machine downtime. It creates a devastating ripple effect throughout your entire production schedule. We must look beyond vendor promises to verifiable machining realities. Many shops still operate under the dangerous assumption of a universal cutting solution. True efficiency demands a technical evaluation framework. You must match tool geometry, substrate, and coating to exact workpiece classifications. This article breaks down material-tool compatibility across standard ISO groups. You will learn how to evaluate substrate characteristics accurately. We will help you identify and mitigate common machining risks before they ruin a part. Finally, we provide actionable strategies to optimize your next drilling application from start to finish.
Material Classification Drives Selection: Tooling must be evaluated against the ISO material groups (P, M, K, N, S, H) to predict wear patterns and thermal loads.
Carbide is King for Hardness, but Requires Rigidity: Solid carbide drill bits dominate high-temp alloys and hardened steels but will shatter under poor setup rigidity.
Coatings Dictate Heat Management: Processing abrasive or gummy materials requires specific tool coatings (e.g., TiAlN, DLC) rather than just raw tool hardness.
Evaluate on Cost-Per-Hole: Decision-makers should prioritize predictable tool life and cycle time reductions over the initial purchase price of the tool.
Manufacturing profitability relies heavily on predictable machining processes. You must frame your tooling evaluation around three primary success criteria. First, consider the cost-per-hole. This metric accounts for tool life, cycle times, and the purchase price. Second, evaluate scrap rate reduction. A reliable process eliminates unexpected tool breakage inside expensive parts. Third, measure adherence to tight tolerances. Your chosen tool must maintain true position and deliver exceptional surface finish consistently.
Poor tool matching carries severe financial consequences. We often see built-up edge (BUE) when operators use incorrect tools on aluminum. This material melts and welds to the cutting edge. In stainless steel, improper feed rates cause severe work hardening. The material surface becomes too hard to cut, destroying the tool instantly. When processing composites, using standard geometry causes rapid abrasive wear. These misapplications inflate tooling budgets and destroy production timelines.

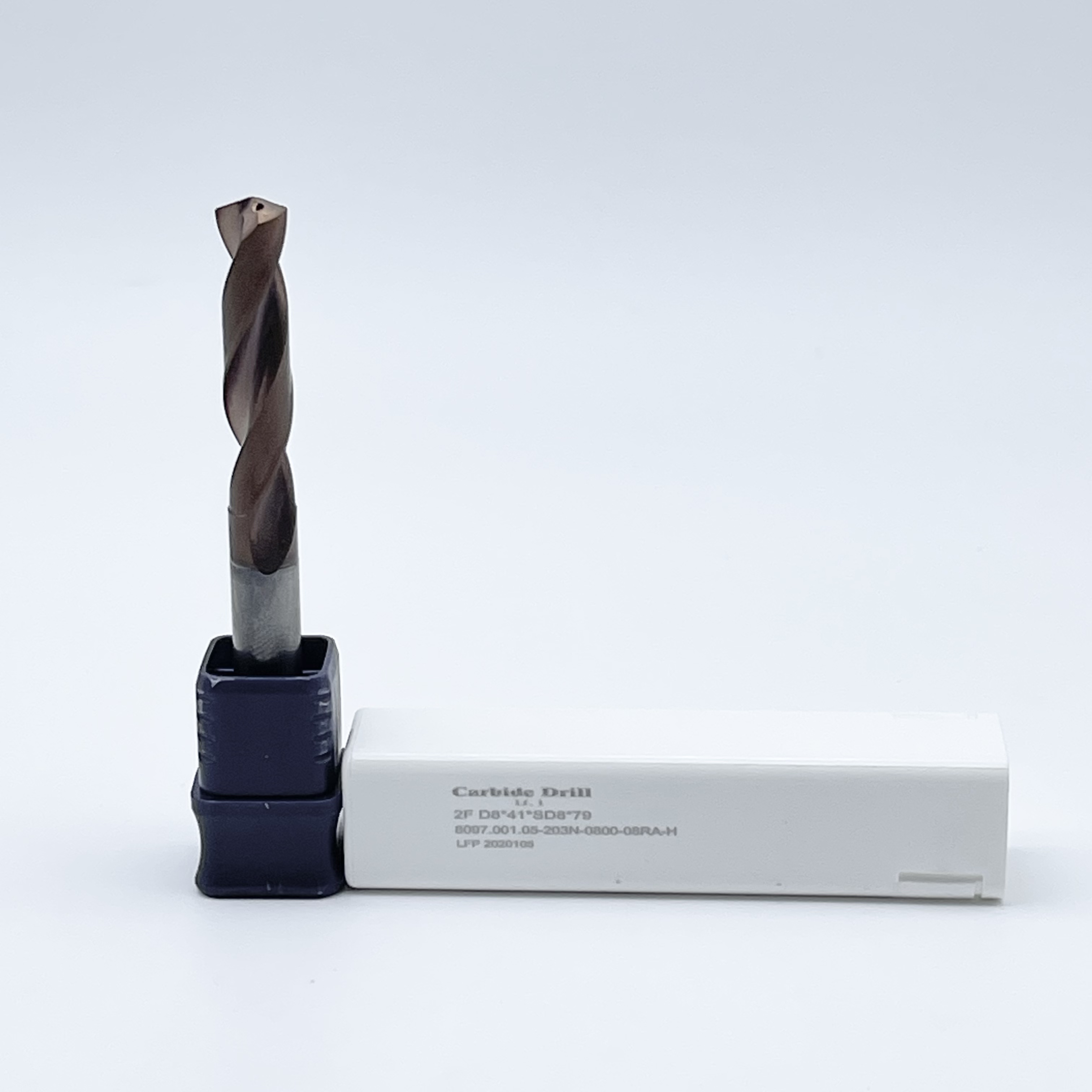

You must balance tool life against cycle time. Running tools conservatively will save tooling costs initially. However, slow cycle times restrict machine throughput. Pushing cutting parameters maximizes your machine output but accelerates tool wear. True optimization requires finding the sweet spot. You need reliable Holemaking Tools designed specifically for the substrate. This allows you to push speeds and feeds without sacrificing predictability.
Ferrous metals represent the most common materials in industrial machining. They fall into three distinct ISO classifications. Each group demands a specific tooling approach to manage chip formation and tool wear.
ISO P materials are generally manageable, but they produce long, stringy chips. For low-volume production, standard High-Speed Steel (HSS) tools perform adequately. However, high-volume production requires indexable insert drills or solid carbide tools. These options withstand higher cutting speeds and feed rates.
Chip evacuation represents your biggest risk factor here. You need tools featuring optimized flute geometries. The tool must break chips efficiently rather than creating long stringers. Long chips wrap around the spindle, scoring the hole walls and forcing you to halt production. Specialized chip breakers built into the tool design solve this problem.
Stainless steel generates high mechanical loads and excessive heat. We recommend high-cobalt HSS or solid carbide tools for these applications. The tools must feature sharp cutting edges and positive rake angles. This geometry shears the material cleanly, reducing the cutting forces required.
Severe work-hardening and thermal damage represent major risk factors in ISO M materials. The tool must cut the material before it has a chance to harden. This requires through-tool coolant and advanced coatings. You need coatings capable of resisting heat without relying on exceptionally high cutting speeds. Consistent feed rates are mandatory to prevent the tool from rubbing and hardening the surface.
Cast iron produces short, powdery chips. Standard approaches utilize coated carbide or silicon nitride inserts. These materials handle the compressive forces well.
The primary risk factor is highly abrasive wear. Cast iron contains sand inclusions and free graphite. These elements act like sandpaper against your cutting edge. Tool edge preparation is critical. Manufacturers apply a slight hone to the cutting edge. This honing prevents micro-chipping and drastically extends the life of your Carbide Drill Bits.
| ISO Group | Material Type | Common Tooling Substrate | Primary Risk Factor | Critical Tool Feature |
|---|---|---|---|---|
| P | Carbon & Alloy Steels | Carbide / HSS | Long, stringy chips | Optimized chip breakers |
| M | Stainless Steels | Solid Carbide / Coated | Work-hardening | Sharp cutting edges |
| K | Cast Iron | Coated Carbide / SiN | Abrasive wear | Honed edge preparation |
Aerospace and medical industries rely heavily on extreme materials. These substrates punish cutting tools. Success requires uncompromising tool quality and optimal machine conditions.
Superalloys possess terrible thermal conductivity. They do not absorb heat well, pushing all thermal energy directly into the cutting tool. You must use premium solid carbide tools featuring highly specific geometries. A 140-degree point angle is standard. Titanium Aluminum Nitride (TiAlN) coatings are essential. They create an aluminum oxide layer under heat, protecting the carbide substrate.
The implementation reality is harsh. Extreme heat generation causes plastic deformation of the tool edge. To combat this, high-pressure through-coolant is mandatory. We consider 1,000+ PSI the baseline. The coolant must blast directly into the cutting zone. It breaks the thermal barrier and flushes chips out instantly. Without extreme coolant pressure, even premium tools will fail rapidly.
Machining hardened steels (above 45 HRC) demands extreme tool hardness. Your best options are sub-micron grain solid carbide or Cubic Boron Nitride (CBN) tipped tools. Sub-micron carbide provides the dense structure necessary to withstand massive cutting forces.
The implementation reality revolves entirely around stability. High-rigidity setups are non-negotiable. Hardened tools are incredibly brittle. Follow these setup rules to prevent catastrophic failure:
Minimize Spindle Runout: Total Indicator Reading (TIR) must remain under 0.0002 inches.
Maximize Workholding: Clamp the workpiece as close to the machine table as possible.
Reduce Tool Overhang: Chuck the tool as short as the application allows.
Eliminate Vibration: Any chatter will instantly fracture the carbide or CBN edge.
Non-ferrous materials require entirely different tool geometries. Hardness is rarely the issue here. Instead, you face challenges related to material adhesion and structural integrity.
Aluminum is soft but extremely gummy. Standard tooling approaches utilize uncoated solid carbide or highly polished HSS tools. Alternatively, tools featuring Diamond-Like Carbon (DLC) coatings perform exceptionally well. These coatings provide an incredibly slick surface.
Material melting represents your primary risk factor. Aluminum loves to stick to the tool, causing built-up edge (BUE). Once BUE forms, the tool stops cutting and starts tearing the material. You require high spindle speeds and polished flutes for rapid chip evacuation. The chips must exit the hole before they have a chance to weld to the cutting face.
Carbon Fiber Reinforced Polymers (CFRP) and glass-filled composites are highly abrasive. You must use Polycrystalline Diamond (PCD) tooling or diamond-coated carbide. Standard carbide loses its edge in minutes when cutting carbon fiber.
The main risk factors are delamination at the hole exit and uncut fibers. The layers of the composite separate if the tool pushes rather than cuts. This demands specialized brad-point or dagger-style geometries. These shapes shear the fibers cleanly from the outside in. Using standard point angles on composites will inevitably push the fibers, destroying the structural integrity of expensive parts.
Selecting the correct tool goes beyond material charts. You must align the tooling specifications with your actual shop floor realities. Following a structured shortlisting process prevents costly mistakes.
Never invest in premium carbide tools before evaluating your equipment. You must verify three critical machine conditions:
Spindle Runout: High-performance tools shatter if the spindle wobbles.
Available Horsepower: Large diameter tools require massive torque to push through tough materials.
Coolant Pressure: Through-tool systems fail if the pump cannot deliver adequate PSI.
Older or less rigid machines often perform better with forgiving HSS-Cobalt. Cobalt flexes slightly under pressure. Carbide does not flex; it snaps. Match the tool's rigidity requirements to your machine's actual condition.
Hole depth dictates your tooling strategy heavily. We express this ratio as a multiple of the tool diameter (e.g., 3xD, 5xD, 8xD). Deep holes exceeding 5xD severely restrict material and tool choices. Evacuating chips from a deep cavity becomes the primary challenge.
For these applications, you need tools engineered with specialized parabolic flutes. Parabolic designs widen the flute space, allowing chips to lift out without packing. For extremely large deep holes, deep-hole indexable systems become the most viable option. Do not attempt deep holes using standard jobber length geometries.
Never accept marketing claims at face value. You must require tooling suppliers to provide documented test cuts. Demand guaranteed cost-per-hole metrics for your specific material lot. Material properties vary widely between suppliers. A tool performing well on one batch of titanium might fail on another. Validate the tool's performance locally before standardizing it across your facility.
Mastering material-tool compatibility is the foundation of profitable manufacturing. You must match the tool substrate, geometry, and coating strictly to the material’s ISO group. Acknowledge your machine’s physical limitations regarding rigidity and coolant delivery. Do not force premium tools into sub-optimal setups.
As a next step, we recommend conducting a controlled, localized runoff. Select a non-critical part batch and test two to three shortlisted tools side-by-side. Gather empirical wear data, measure cycle times, and calculate your true cost-per-hole. Let the data drive your final procurement decisions.
A: No. High-Speed Steel lacks the necessary hardness and heat resistance to cut hardened steels (above 45 HRC). Attempting to use HSS will result in immediate thermal failure and edge collapse. You must use solid carbide or Cubic Boron Nitride (CBN) tools, which maintain their structural integrity under the extreme compressive forces required to shear hardened materials.
A: Chipping in titanium typically results from three factors. First, poor setup rigidity allows vibration, which shatters the brittle carbide edge. Second, inconsistent coolant application causes thermal shock; the tool heats up rapidly and cools instantly, creating micro-cracks. Third, incorrect feed rates cause the tool to rub rather than cut, generating chatter that fractures the cutting face.
A: Yes. Cast aluminum contains high levels of silicon, making it highly abrasive. It requires highly wear-resistant tools, often with diamond coatings. Forged aluminum contains very little silicon but is extremely gummy. It requires highly polished, uncoated tools or DLC coatings to prevent material from welding to the cutting edge.
A: The safest choices are diamond-coated routers or solid carbide tools featuring specialized dagger or brad-point geometries. Standard point angles push the composite layers, causing costly delamination at the hole exit. Dagger geometries shear the carbon fibers cleanly from the outside diameter inward, preserving the part's structural integrity.
