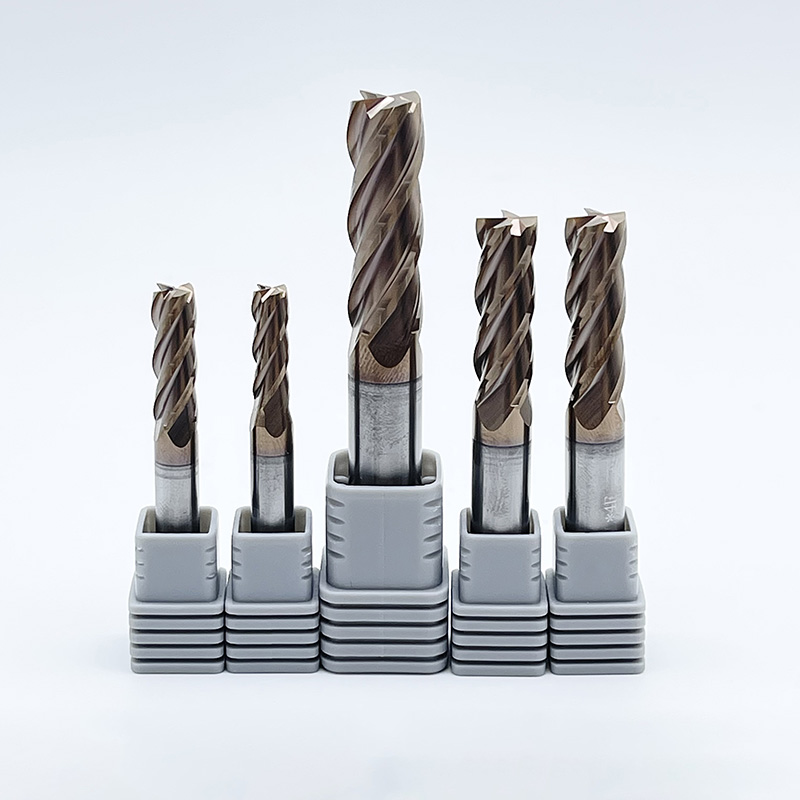

High-performance CNC machining relies entirely on the predictability of the cutting tool at the spindle interface. Premature tool failure or poor surface finish directly impacts production margins, machine uptime, and overall part quality. Procurement and shop floor managers often struggle to differentiate between premium and commodity cutting tools. This lack of clarity leads to purchasing decisions based solely on initial purchase price rather than tool life, runout accuracy, or material removal rates. Understanding exactly how are carbide end mills made—from the metallurgical composition of the blank to the final CNC grinding and coating—provides a technical framework for evaluating tool quality. It justifies tooling investments and helps production teams select the right manufacturer for high-stakes metalworking applications.
A finished end mill can only perform as well as its raw material. Inferior blanks lead to micro-chipping, catastrophic breakage, and unpredictable tool life regardless of the grinding quality. The manufacturing journey begins long before the tool reaches a CNC grinder.
Tooling performance starts at the powder level. Manufacturers mix raw tungsten powder with carbon and heat the mixture in a hydrogen atmosphere at temperatures exceeding 1400 degrees Celsius. This carburization process creates highly durable tungsten carbide grains. In this matrix, tungsten carbide acts as the primary hard phase, providing the necessary wear resistance to shear through hardened steels and superalloys. Cobalt serves as the metallic binder. It acts like the mortar between bricks, holding the rigid carbide grains together and providing shock resistance.
Grain size heavily impacts the structural integrity of the final tool. Standard grain sizes range from 1 to 3 microns. Micro-grain structures measure between 0.5 and 0.8 microns, while ultra-fine sub-micro grain structures fall below 0.5 microns. Smaller grains pack more densely. This density allows the tool to hold a highly sharp cutting edge without crumbling under heavy chip loads. When machining abrasive materials like high-silicon aluminum or cast iron, a sub-micro grain structure prevents rapid edge degradation. Manufacturers add grain growth inhibitors like vanadium carbide or chromium carbide to maintain this fine structure during high-temperature sintering.
Varying the cobalt percentage alters the balance between hardness and transverse rupture strength. Tools designed for machining highly abrasive materials require higher hardness, dictating a lower cobalt content around 8 to 10 percent. Conversely, tools designed for interrupted cuts or heavy roughing require higher toughness to absorb shock. Increasing the cobalt content to 12 percent or more provides this necessary elasticity, preventing catastrophic tool breakage during aggressive milling operations.
The powder metallurgy process begins with mixing, milling, and spray drying. Heavy ball mills crush the tungsten carbide and cobalt powders together in a solvent, ensuring a perfectly homogeneous mixture. Spray drying removes the solvent, creating flowable, spherical granules ready for pressing. Manufacturers then extrude or axially press this powder into cylindrical green blanks. Extrusion forces the powder through a die to create long rods, while axial pressing compacts the powder into individual molds for specific tool lengths.
These fragile green blanks then enter a vacuum furnace for sintering. The furnace heats the blanks to temperatures near the melting point of cobalt. The cobalt becomes liquid and pulls the tungsten carbide grains tightly together through capillary action. The blank shrinks by approximately 18 to 20 percent and densifies completely. It transforms from a fragile powder compact into an incredibly dense, hard solid carbide rod. This sintered rod forms the absolute foundation for the entire end mill manufacturing process. If porosity or carbon voids exist inside this blank, the tool will inevitably snap during heavy roughing passes.
Transforming the sintered blank into a cutting tool requires highly controlled subtractive manufacturing. Solid carbide possesses extreme hardness, making conventional turning or milling impossible. Toolmakers rely entirely on specialized abrasive grinding techniques using diamond wheels.
The sintered rod undergoes centerless grinding to reach its precise outer diameter. The machine utilizes a regulating wheel, a grinding wheel, and a work blade. The regulating wheel spins the carbide rod and feeds it past the diamond grinding wheel. This step establishes absolute concentricity along the entire length of the blank.
Establishing a perfect outer diameter ensures the tool shank sits perfectly in a collet, hydraulic chuck, or shrink-fit holder. Minimizing runout starts right here. If the shank lacks concentricity, the cutting edges will not share the chip load equally during machining. One flute will take a massive bite of material while the opposite flute rubs, leading to rapid edge failure. Tolerance standards required at this stage reach sub-micron levels, typically adhering to strict h6 shank tolerance standards. This tight tolerance guarantees maximum gripping force in high-performance tool holders.
Production then transitions to 5-axis or 6-axis CNC tool and cutter grinders. Synchronized kinematics drive the operation. The grinder's rotating diamond wheel works in conjunction with the rotating carbide blank. High-pressure grinding oil floods the cutting zone at over 300 PSI to flush away carbide swarf and prevent thermal damage to the matrix.
This synchronized action carves the flutes and grinds the tool down to its exact cutting diameter. Grinding kinematics dictate the helix angle, core diameter, and flute depth. A larger core diameter increases tool rigidity, preventing deflection during heavy side milling. However, a thick core reduces the flute valley space available for chip evacuation. A deeper flute valley improves chip removal but weakens the tool core. Tool engineers balance these variables based on the intended application.
Modern CNC grinders also implement variable helix and variable pitch geometries. By slightly altering the helix angle and the spacing between cutting edges, the tool breaks up harmonic frequencies during machining. This suppresses chatter, allowing machinists to push heavier cuts and achieve superior surface finishes without leaving vibration marks on the part.
Grinding the primary and secondary relief angles behind the cutting edge prevents the tool heel from rubbing against the workpiece. The primary relief provides immediate clearance right behind the cutting edge, dictating the tool's cutting action. The secondary relief drops away at a steeper angle to maximize clearance while maintaining core strength behind the edge.
This step generates specific end geometries like square, ball nose, or corner radius profiles. Gashing operations create the space at the tip of the tool, allowing the end mill to plunge directly into the material. Generating a highly sharp cutting edge with a precisely controlled tiny radius makes the tool excellent for demanding metalworking operations. Knowing how are end mills made highlights the extreme precision required at the cutting edge to ensure predictable performance across different material groups.
Toolmakers add value beyond the raw geometry to extend tool life and improve performance in specific materials. A freshly ground carbide edge is microscopically fragile and requires stabilization before it ever touches a workpiece.
Edge honing removes microscopic grinding burrs left behind by the diamond wheels. Manufacturers use nylon brushes impregnated with diamond paste, drag finishing machines, or wet abrasive blasting to treat the cutting edges. This process applies a controlled micro-radius to the sharp edge, typically measuring between 5 and 15 microns.
A controlled micro-radius prevents premature chipping during the initial cut. Without edge preparation, the microscopic peaks of the freshly ground edge would fracture immediately upon contacting the workpiece. This fracture exposes the underlying carbide substrate to rapid abrasive wear. Proper edge preparation stabilizes the cutting edge for heavy material removal and provides a uniform, clean surface for subsequent coatings to adhere to.
Physical Vapor Deposition applies thin, hard layers to most solid carbide end mills. This process occurs in a vacuum chamber. Manufacturers use arc evaporation or magnetron sputtering to vaporize solid target materials like titanium or aluminum. The vaporized metal reacts with introduced gases like nitrogen to form a ceramic film on the tool surface.
Common coatings include Titanium Aluminum Nitride (TiAlN), Aluminum Titanium Nitride (AlTiN), and Diamond-like Carbon. TiAlN offers excellent thermal stability, forming a protective aluminum oxide layer when exposed to high machining temperatures. This makes it ideal for dry machining steel and cast iron. AlTiN contains a higher aluminum content, providing even greater heat resistance for machining superalloys like Inconel or Hastelloy. Diamond-like Carbon provides exceptional lubricity and prevents material adhesion, making it the standard choice for machining sticky materials like aluminum and copper.
Understanding the manufacturing process helps evaluate suppliers and justify tooling investments. Visual inspection alone cannot differentiate a high-performance tool from a mediocre one. You must look at the metrology and the specific manufacturing inputs.
Optical comparators and laser measurement systems play a vital role in quality control. Advanced inspection machines measure the tool's geometry without physical contact. They verify the core diameter, rake angle, relief angles, and overall runout. Verified tight tolerances translate directly to even chip loads per tooth.
When a tool runs true, every cutting edge removes the exact same amount of material. This extends spindle life, reduces vibration, and improves surface finish. Microscopic deviations compound rapidly at high spindle speeds. A runout of just 0.0005 inches can reduce tool life by up to 50 percent in hard milling applications.
Commodity tools often utilize recycled carbide powders or older grinding technology with looser tolerances. Premium tools feature virgin sub-micro grain carbide, advanced variable geometries, and application-specific coatings. Calculating Cost Per Part justifies higher upfront investments in precision-manufactured end mills.
A premium tool that machines five times as many parts ultimately reduces the manufacturing cost per component. Premium tools allow for higher feed rates and faster spindle speeds, reducing the overall cycle time per part. Tool life and material removal rates quickly offset the initial tooling expenditure.
End Mill Quality Indicators
| Feature | Commodity Tools | Premium Tools |
|---|---|---|
| Carbide Source | Recycled or mixed grain | Virgin sub-micro grain |
| Grinding Tolerance | Standard commercial limits | Sub-micron precision |
| Edge Preparation | Minimal or inconsistent | Controlled micro-radius honing |
| Coating Technology | Generic single-layer | Application-specific PVD/CVD |
Follow these steps when evaluating a new tooling supplier:
Applying the wrong manufactured geometry to a specific machining task causes common failures. Even the highest quality end mill will fail if misapplied on the shop floor.
Defaulting to the most common up-cut end mill geometry creates risks when plunging or drilling into finished surfaces. The up-cut action pulls chips upward and out of the cut. However, this upward force can cause top-edge tear-out on delicate materials or lift thin workpieces off the fixture. Selecting down-cut or compression geometries mitigates this when top-surface finish is critical. Down-cut tools push the chips downward, leaving a clean top edge and holding the part securely down against the table.
Machinists must match the flute count, helix angle, and coating lubricity to the specific material group. Using a 4-flute AlTiN coated end mill on aluminum will result in immediate chip packing and tool breakage. Aluminum requires 2 or 3 flutes for massive chip clearance, a high helix angle for shearing action, and an uncoated or polished finish to prevent the aluminum from welding to the carbide.
Pairing a high-quality, precision-ground end mill with a degraded collet or cheap tool holder negates the manufacturer's concentricity efforts. Excessive runout causes uneven wear, chatter, and premature tool failure. If one flute takes a heavier cut than the others, that specific edge will dull rapidly, eventually causing the entire tool to fail.
Implementing strict tool holding standards maximizes the manufactured precision of the carbide tool. Hydraulic chucks or shrink-fit holders provide superior gripping force and concentricity compared to standard ER collets. Maintaining clean spindle tapers and replacing worn collets regularly ensures the end mill performs exactly as the manufacturer intended.
A: Manufacturers achieve near-zero runout through precision centerless grinding of the sintered carbide rod. This establishes a perfectly concentric outer diameter before flute grinding begins. Maintaining sub-micron tolerances on the shank ensures the tool seats perfectly in precision holders, preventing uneven chip loads.
A: Micro-grain carbide uses much smaller tungsten carbide particles compared to standard grades. This finer structure increases the material's density and strength. It allows the end mill to hold a sharper cutting edge without micro-chipping under high cutting forces and heavy feed rates.
A: Tungsten carbide is exceptionally hard and abrasive. Standard abrasive wheels degrade too quickly to maintain tight tolerances. Diamond grinding wheels provide the necessary extreme hardness to carve precise flutes, rake angles, and relief angles into the solid carbide blank accurately.
A: Tools for aluminum feature higher rake angles, fewer flutes for massive chip clearance, and polished flutes to prevent material adhesion. Steel cutting tools require stronger core diameters, specialized edge honing to withstand high impact, and heat-resistant coatings like TiAlN.
A: Edge preparation removes microscopic burrs left from the grinding process. It applies a controlled micro-radius to the cutting edge. This strengthens the edge, preventing premature micro-chipping during the initial cut and stabilizing the tool for heavy roughing operations.
A: Most carbide end mills receive coatings through Physical Vapor Deposition. The tools are placed in a vacuum chamber where vaporized metals react with introduced gases to form a thin, extremely hard, and heat-resistant ceramic layer on the tool's surface.
A: Choose a down-cut end mill when top-surface finish is critical or when machining thin materials that might lift. Down-cut geometries push chips and cutting forces downward, preventing top-edge tear-out and holding the workpiece securely against the machining fixture.
