Micromachining operates on a scale where standard machining tolerances become massive margins of error. At sub-1/8-inch diameters, the physics of cutting change completely. Minor variables that go unnoticed in macro-machining quickly lead to catastrophic tool failure at the micro level.
Selecting the wrong micro tool directly results in snapped end mills and scrapped high-value parts. This includes micro-injection molds, medical implants, and aerospace components. Poor surface finishes and severe production bottlenecks follow closely behind. Guesswork in tool selection destroys profit margins in micro-manufacturing. You cannot rely on intuition when chip loads are measured in tenths of a thousandth of an inch.
Moving from trial-and-error to a predictable micromachining process requires a systematic evaluation of tool geometry, substrate material, machine capabilities, specific machining operations, and workpiece demands. Understanding these variables ensures consistent performance and protects your critical components from costly rework.

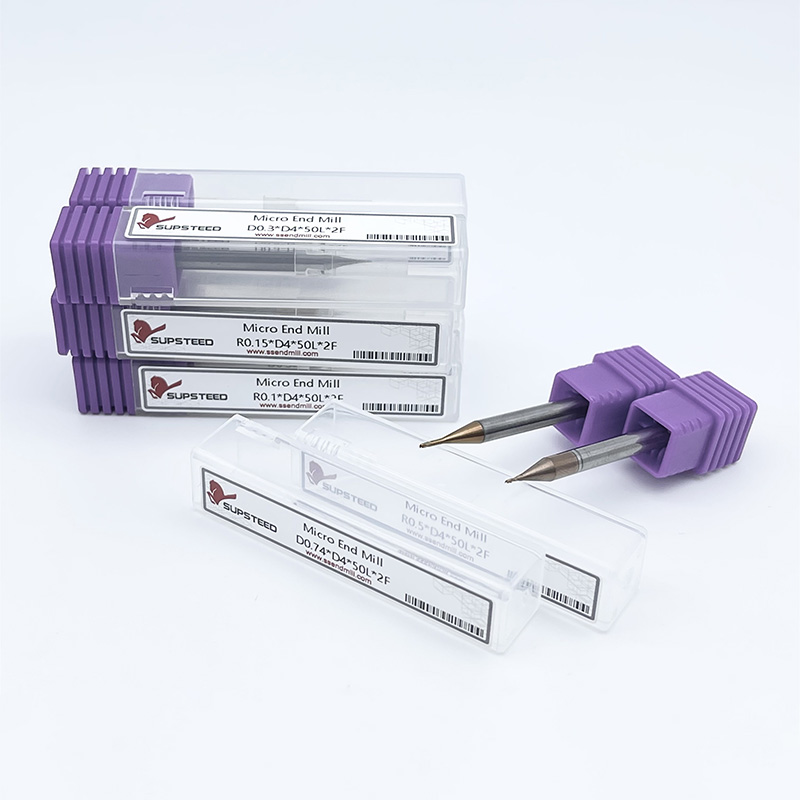

Industry consensus defines miniature end mills as tools with a cutting diameter of 1/8" (3.175mm) or smaller. These tools scale down to incredibly fine diameters, often reaching 0.001" (0.025mm) for highly specialized applications. Standard small-part machining differs greatly from true micromachining. In standard machining, the cutting edge easily shears the material. In micromachining, the chip thickness approaches the actual radius of the cutting edge. This creates a plowing effect rather than a clean shearing action. The tool pushes material before cutting it, which increases cutting forces and generates excess heat. You must account for this phenomenon by selecting tools with specific edge preparations and maintaining aggressive feed rates relative to the tool diameter.
To determine if your operation falls into the true micromachining category, look for these specific indicators on the shop floor:
Identifying the end-use case drives your entire tooling strategy. Common applications include micro-fluidic channels in medical testing devices, small injection molds for electronics, watchmaking components, and aerospace sensors. Each application presents unique geometric challenges that dictate tool selection. Machining a 0.020-inch wide micro-slot in an aluminum mold requires different tool geometries than excavating a deep pocket in a titanium medical implant. Tight radii demand specific corner profiles to prevent stress fractures in the tool, while fine grooves rely heavily on optimal chip evacuation to prevent packing.
You must recognize that feature-driven selection dictates the exact tool profile you implement. A tool designed for shallow profiling will fail instantly if used for deep slotting. Operators must evaluate the part print and break down every feature into specific machining operations before pulling a tool from the crib.
The "size effect" dominates micromachining physics. Specific cutting energy increases non-linearly as chip thickness decreases. This means it takes proportionally more energy to remove a tiny volume of material than a large one. The machine works harder to remove less material, transferring massive stress to the fragile tool neck.
Heat generation also behaves differently at this scale. In macro-machining, the chip carries away the majority of the heat. In micromachining, heat does not dissipate into micro-chips effectively. Instead, the thermal load transfers directly into the tool substrate and the workpiece. Managing this concentrated heat is essential to prevent premature tool wear, edge flaking, and material deformation. If the heat builds up in a micro-pocket, the material can work-harden, making subsequent passes impossible and guaranteeing tool failure.
Substrate selection dictates tool survival. Micro-grain and nano-grain solid carbide substrates dominate this space. High transverse rupture strength and extreme rigidity make miniature carbide end mills the only viable choice for sub-1/8" diameters. High-speed steel (HSS) and cobalt flex too much at these sizes. Carbide resists deflection and maintains a sharp edge under high thermal stress.
The grain size of the carbide directly impacts the sharpness of the cutting edge. Nano-grain carbide allows manufacturers to grind incredibly sharp edges without the risk of the edge crumbling under cutting pressure. You need this stiffness and edge integrity to hold tight tolerances, achieve mirror surface finishes, and prevent the tool from snapping upon initial material engagement.
Flute count directly impacts core strength and chip clearance. You must balance these two factors based on your workpiece material and the specific operation.
The physical shape of the cutting end determines its application suitability. Selecting the wrong profile guarantees poor part quality.

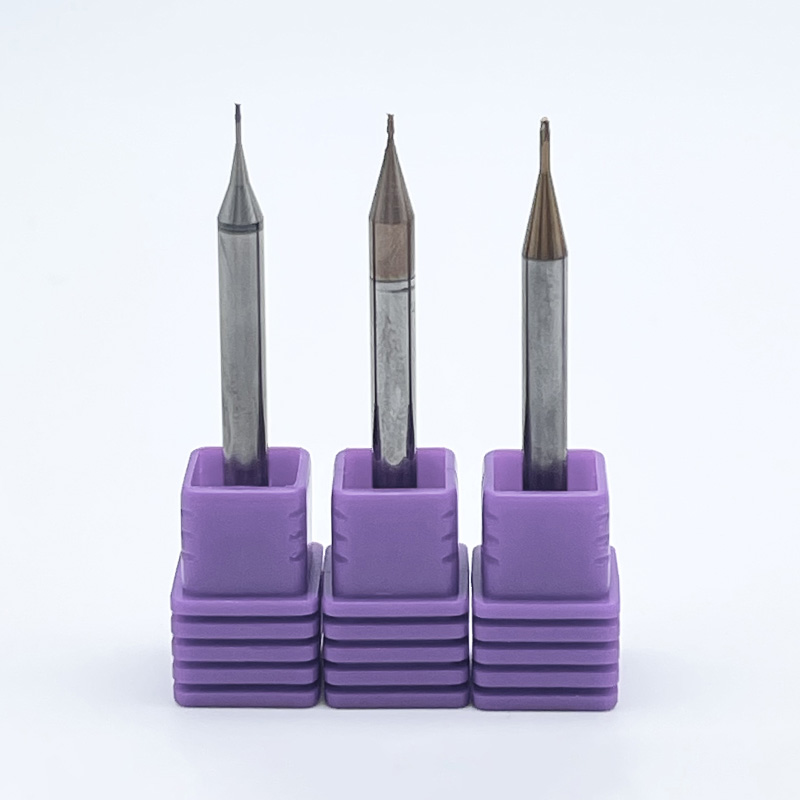

Follow the "Shortest Possible" rule. Deflection increases to the third power of length. A tool twice as long deflects eight times as much under the same load. Evaluate stub-length flutes with relieved necks to achieve required reach. A necked tool allows you to machine deep cavities without sacrificing the overall rigidity of the tool shank. Keep the fluted section strictly limited to the depth of your maximum axial pass.
Tool Deflection Multipliers Based on Length to Diameter Ratio
| Length to Diameter Ratio (L:D) | Deflection Multiplier | Recommended Machining Operation |
|---|---|---|
| 1.5x to 2x | Baseline (1x) | Aggressive roughing, heavy slotting in hard metals. |
| 3x to 4x | 8x Deflection | Standard profiling, light roughing, finishing passes. |
| 5x to 7x | 27x Deflection | Light finishing only, requires spring passes. |
| 8x to 10x+ | 64x+ Deflection | Micro-boring, extreme reach finishing, requires reduced feed rates. |
General-purpose micro tools work well for prototyping or mixed-material job shops. They offer flexibility when cutting various materials in small batches, reducing the need for massive tool crib inventories. However, high-volume production runs demand specialized geometries. Investing in highly specialized, material-specific tools reduces cycle times and extends tool life significantly. Dedicated geometries feature optimized rake angles, specific edge preparations, and coatings tailored to exact material groups.
Workpiece Material and Tool Geometry Pairing Matrix
| Material Group | Recommended Flute Count | Edge Preparation | Optimal Coating |
|---|---|---|---|
| Aluminum & Non-Ferrous | 2 or 3 | Razor Sharp (Unhoned) | ZrN, TiB2, or Uncoated |
| Plastics (PEEK, Acrylic) | 1 or 2 | Razor Sharp (Unhoned) | Uncoated (Polished Flutes) |
| Carbon & Alloy Steels | 4 or 5 | Slight Hone | AlTiN or TiAlN |
| Titanium & Superalloys | 4 to 6 | Slight Hone | AlTiN (High Heat Resistance) |
Hard metals demand maximum tool rigidity. When machining 304 stainless steel or Inconel 718, you must use high flute counts (4+) to increase the core diameter of the tool. This prevents the tool from bending under heavy cutting pressures. You must also utilize advanced coatings like AlTiN or TiAlN. These coatings withstand extreme thermal loads and prevent chemical reactivity with the workpiece, which causes premature edge wear.
Edge preparation is equally important for hard metals. A slight hone on the cutting edge prevents micro-chipping when entering tough materials. While a razor-sharp edge seems ideal, it lacks the structural integrity to survive the impact of cutting titanium or hardened tool steels. The hone reinforces the edge, allowing it to shear the material without crumbling.
Softer materials require aggressive chip evacuation to prevent packing. When cutting 6061 aluminum or PEEK plastic, you must use low flute counts (2 or 3) to maximize the flute valley space. If chips cannot escape the cutting zone, they weld to the tool, causing immediate breakage.
You must use razor-sharp, unhoned cutting edges for these materials. A sharp edge shears the material cleanly, preventing smearing, tearing, or melting of plastics. Polished flutes and specific coatings like ZrN or TiB2 are highly recommended. These surface treatments provide extreme lubricity, preventing built-up edge (BUE). BUE occurs when workpiece material welds to the cutting edge, which quickly ruins surface finishes and alters the effective diameter of the tool.
Calculating Surface Feet per Minute (SFM) reveals the severe limitations of standard CNC machines when performing micromachining. The formula for RPM is (SFM x 3.82) / Diameter. A 0.010" end mill cutting aluminum at a conservative 400 SFM requires over 150,000 RPM to achieve proper cutting speeds. Standard 10,000 RPM spindles force operators to use sub-optimal feed rates to compensate.
Running a micro tool too slowly causes rubbing instead of cutting. The tool pushes against the material rather than shearing it. This drastically reduces tool life, generates excessive heat, and causes severe work hardening in materials like stainless steel. If your machine cannot reach the required RPM, you must utilize electric or air-driven spindle speeders to multiply the RPM at the tool.
TIR is the silent killer of micro tools. A runout of just 0.0005" on a 0.015" tool forces a single flute to take the entire chip load. This massive force imbalance guarantees immediate breakage. Evaluate your tool holding systems carefully. Standard ER collets are generally unacceptable for true micromachining.
Follow these steps to manage and verify runout on the shop floor:
Coolant application changes drastically at the micro scale. Traditional flood coolant presents a severe risk of thermal shock on micro-carbide tools. As the tool cuts, it heats up rapidly. If the flood coolant flow is interrupted by a fixture or deep pocket, the tool superheats. When the coolant hits the tool again, the rapid temperature change causes the carbide to crack and flake instantly.
High-pressure air blast or Minimum Quantity Lubrication (MQL) systems yield much better results. MQL delivers a precise aerosol mixture of air and oil directly to the cutting zone. This provides necessary lubricity without the risk of thermal shock. Regardless of the method, you must clear micro-chips from the cutting zone continuously. Recutting a hardened micro-chip instantly destroys the fragile cutting edge.
Entry strategies dictate tool survival. Never plunge straight down into the material along the Z-axis. The center of an end mill does not cut efficiently, and plunging places massive axial pressure on the fragile tool tip. Mandate ramping or helical interpolation for all tool entry moves. Use a shallow ramp angle, typically between 1 and 2 degrees, to ease the tool into the cut.
Implement strict feed-per-tooth (IPT) limits based on tool diameter percentages. A common baseline rule sets the maximum chip load at 1% of the tool diameter. For a 0.020" tool, the maximum chip load is 0.0002" per tooth. Exceeding this limit overloads the flutes and causes catastrophic failure. Always start at 0.5% of the diameter and scale up based on spindle load and surface finish feedback.
Deflection causes tapered walls, undersized slots, and out-of-tolerance features. Calculate safe stick-out lengths based on the specific machining operation. Keep the tool choked up in the holder as much as physically possible. Every thousandth of an inch of extra stick-out compromises rigidity.
Implement spring passes to account for tool push-off. A spring pass is a zero-stock removal pass that repeats the final finishing toolpath. It allows the tool to cut the microscopic amount of material left behind by deflection during the previous pass. This ensures high-tolerance features meet strict dimensional requirements without requiring manual rework.
A: Miniature tools have cutting diameters of 1/8" (3.175mm) or smaller. The primary difference lies in the cutting physics. At micro scales, chip thickness approaches the cutting edge radius, causing a plowing effect rather than clean shearing. This requires specialized geometries and extreme rigidity to prevent deflection and breakage.
A: Instant breakage usually stems from excessive Total Indicator Runout (TIR), improper entry methods, or chip packing. If runout exceeds acceptable limits, one flute takes the entire chip load. Plunging directly into material also snaps fragile tips. Always use helical interpolation to enter the cut and verify spindle concentricity.
A: Start with the manufacturer's recommended Surface Feet per Minute (SFM) for your specific material. Convert this to RPM. Since diameters are tiny, required RPMs are often extremely high. Calculate feed rate based on a strict feed-per-tooth (IPT) limit, typically around 1% of the tool's cutting diameter.
A: Yes, but with severe limitations. Standard CNC machines often lack the 40,000+ RPM spindles required for optimal surface speeds. More importantly, standard machines may have higher spindle runout. You must use high-precision tool holders and adjust your feed rates significantly to compensate for lower RPMs.
A: A 2-flute or 3-flute geometry is best for aluminum. Aluminum produces large, gummy chips that easily pack into the flutes. Lower flute counts provide larger flute valleys, maximizing chip evacuation space. This prevents built-up edge and stops the tool from snapping due to chip recutting.
A: TIR unevenly distributes the cutting force. If a 0.010" tool has 0.0005" of runout, the chip load becomes asymmetrical. One cutting edge does all the work while the other cuts nothing. This massive force imbalance deflects the micro tool and causes immediate, catastrophic failure.
