The compounding costs of micro tool breakage extend far beyond the price of the cutter itself. Scrapped high-tolerance parts, unplanned machine downtime, and the rapid depletion of expensive tooling inventory destroy shop floor profitability. Machining with micro end mills—typically defined as tools under 1/8" or 3mm in diameter—does not scale linearly from macro machining. The margin for error approaches zero. Minor variables in runout, chip load, or coolant application instantly result in catastrophic tool failure.
Operators cannot rely on reactive trial-and-error when working at this scale. You must adopt a deterministic, engineering-led approach to survive. Success requires isolating mechanical setup variables, optimizing CAM strategies, calculating precise feeds and speeds, and selecting the correct tooling architecture from the start.
Understanding tool failure requires defining the physical limitations of micro tooling. As tool diameter decreases, the cross-sectional area decreases by the fourth power of the diameter. A 0.010" end mill is not just slightly weaker than a 0.020" end mill; it is exponentially less rigid. This massive reduction in structural integrity means forces that a standard tool easily absorbs will instantly snap a micro tool. You have to treat these cutters like glass.
Minimum chip thickness is a non-negotiable physical boundary on the shop floor. If the feed per tooth falls below this threshold, the cutting edge fails to shear the material. Instead, the tool rubs against the workpiece. This rubbing generates immense friction, causing rapid work hardening of the material and extreme heat buildup at the cutting edge. The tool dulls prematurely, deflects, and snaps. You must maintain a feed rate high enough to force the cutting edge to bite into the material.
Exceeding the maximum chip load creates an entirely different failure mode. Micro tools possess extremely shallow flute valleys. When the feed rate pushes too much material into these tiny valleys, the tool cannot evacuate the chip volume fast enough. The chips pack tightly into the flutes, welding to the carbide. Once the flutes pack, the tool loses all cutting ability and breaks instantly under the feed pressure.
Runout destroys micro tools faster than any other variable. For standard machining, a runout of 0.0005" might pass inspection. In micro milling, that same 0.0005" runout on a 0.010" end mill is catastrophic. It effectively shifts 100% of the cutting force onto a single flute.
When one flute takes the entire chip load, it experiences forces double or triple its design limit. The tool either suffers immediate structural failure or its lifespan drops to minutes. Acceptable runout tolerances for micro tools must remain below 0.0001" (2.5 microns). Achieving this requires meticulous attention to the entire spindle and tool holder assembly.
Runout Impact on Micro Tool Life
| Measured Radial Runout | Load Distribution (2-Flute Tool) | Expected Tool Life Impact |
|---|---|---|
| Under 0.0001" | Evenly distributed across both flutes | 100% (Baseline) |
| 0.0002" to 0.0003" | 75% load on one flute, 25% on the other | Reduced by 40-50% |
| Over 0.0005" | 100% load on a single flute | Instant breakage or severe chipping |
Software parameters mean nothing if the physical machine environment is compromised. You must evaluate and correct mechanical setup variables before adjusting a single feed rate or spindle speed in your CAM software. A rigid setup is the foundation of micro machining.
Tool deflection is the enemy of micro machining. The standard rule of thumb for length-to-diameter (L:D) ratios dictates keeping the ratio as low as physically possible, ideally under 3:1 for micro tools. You must hold the shank as deep into the holder as the geometry allows. This maximizes stiffness and eliminates unnecessary extension that acts as a lever, amplifying cutting forces.
Tight clearance scenarios often tempt operators to use long-flute tools. When reaching deep into a cavity, transition to a necked-down (relieved shank) tool instead. A necked-down tool provides a short, rigid cutting flute length while reducing the shank diameter just enough to avoid rubbing against the cavity walls. This maintains core rigidity without sacrificing reach.
Recommended Length-to-Diameter (L:D) Ratios
| L:D Ratio | Rigidity Status | Required Parameter Adjustments |
|---|---|---|
| Under 3:1 | Optimal | Run at 100% calculated feeds and speeds. |
| 3:1 to 5:1 | Moderate | Reduce feed rate by 20-30%, monitor closely for chatter. |
| Over 5:1 | Poor | Mandates necked-down tooling; reduce feed by 50% and take lighter radial passes. |
Standard ER collets fail in true micro milling applications. ER systems rely on multiple moving parts—the collet, the nut, and the holder body. Each component introduces a tolerance variable. When stacked, these tolerances almost always exceed the 0.0001" runout limit required for micro tools. Dirt or chips trapped in the collet slots make the problem worse.
Shrink fit, hydraulic, and ultra-precision collet chucks offer vastly superior performance. Shrink fit holders provide 360-degree uniform clamping force directly on the tool shank, eliminating moving parts and driving runout down to near zero. While the initial investment in a shrink fit machine is higher, the return on investment is realized rapidly through extended tool life and eliminated scrap parts.
Follow these steps to verify tool holder accuracy before running a part:
The condition of your machine tool dictates the survival of your micro milling cutters. Spindle bearing wear or harmonic vibration that goes unnoticed during macro machining translates directly to the tip of a micro tool as violent chatter. You must verify spindle health regularly using dial indicators and vibration analysis.
Achieving proper surface footage requires high-speed spindles capable of 20,000 to 60,000+ RPM. If your machine maxes out at 10,000 RPM, you cannot generate enough surface speed for a 0.015" tool. This forces you to drop the feed rate to maintain a safe chip load, which often pushes the tool below the minimum chip thickness threshold, resulting in rubbing and breakage.
Balancing theoretical calculations with real-world material machinability requires discipline. Relying on generic data charts leads to broken tools. You must calculate parameters specifically for the micro environment.
Micro chip load calculations must account for chip thinning. When the radial depth of cut (Ae) is less than 50% of the tool diameter, the actual chip thickness produced is less than the programmed feed per tooth. If you do not increase your feed rate to compensate for this thinning effect, the tool will rub.
Applying macro-machining surface footage charts directly to micro tools is a guaranteed way to fail. The thermal dynamics at the micro scale behave differently. Heat does not dissipate into the chip as efficiently because the chip mass is incredibly small. You must often reduce surface footage slightly compared to macro tools while strictly maintaining the calculated chip load.
Operators frequently fall into a dangerous troubleshooting trap. When a tool breaks or chatters, the immediate instinct is to drop the spindle RPM. If you drop the RPM while maintaining the same feed rate, you instantly increase the chip load per tooth.
If you run at 30,000 RPM and 15 inches per minute, your chip load is set. If you drop the RPM to 15,000 but leave the feed at 15 IPM, you have just doubled the amount of material each flute must shear. For a micro tool, doubling the chip load guarantees a broken tool. Always adjust feed and speed proportionally.
You must choose between deep axial/light radial cuts (peel milling) and shallow axial/heavy radial cuts based on the tool geometry and material. Peel milling utilizes more of the flute length, distributing wear evenly, but requires extremely precise control over the radial stepover to prevent tool deflection.
Adjusting the stepover (line spacing) manages tool pressure. A heavy stepover risks flute packing. Baseline recommendations for Depth of Cut typically limit axial engagement to 10% to 25% of the tool diameter for slotting, and up to 100% for profiling with a very light radial stepover (under 10%).
Operators need a rapid-response heuristic to diagnose issues at the machine. Use the following matrix to adjust parameters safely.
Machining Troubleshooting Matrix
| Symptom observed at the machine | Primary Parameter Adjustment | Secondary Parameter Adjustment | Mechanical Rationale |
|---|---|---|---|
| Tool breaks instantly or snaps mid-cut | Cut down the feed rate | Reduce the Depth of Cut (DOC) | Tool is exceeding maximum structural chip load or flutes are packing. |
| Tool burns, discolors, or material melts | Cut down the spindle RPM | Proportionally reduce feed rate | Surface footage is too high, generating excessive friction and heat. |
| Audible chatter or poor surface finish | Cut down the spindle RPM | Reduce DOC while keeping feed steady | Harmonic vibration is destabilizing the cut; lowering RPM changes the frequency. |
Poor toolpath generation is a leading cause of micro tool failure. Even with perfect feeds, speeds, and runout, a bad toolpath will snap a cutter instantly.
Traditional offset toolpaths are fatal to micro tools. When a tool enters an inside corner using a standard offset path, the engagement angle spikes dramatically. The tool suddenly bites into far more material than it did on the straightaway, causing an immediate spike in tool pressure and deflection.
Dynamic milling toolpaths (trochoidal milling) prevent the tool from burying itself in corners. These strategies maintain a constant tool engagement angle throughout the entire cut. By controlling the exact volume of material removed at any given millisecond, the cutting force remains perfectly stable, preventing sudden breakages.
Micro end mills should rarely plunge straight down along the Z-axis. The center-cutting geometry of a micro tool is incredibly fragile and lacks the chip evacuation space required for vertical plunging. Plunging packs the flutes and snaps the tip.
Always use ramping or helical entry strategies. Optimal ramping angles typically range from 1° to 3°. A shallow helical entry reduces axial pressure on the tool tip and allows chips to evacuate upward along the flutes before the tool reaches full depth. Keep the helical radius between 40% and 50% of the hole diameter minus the tool diameter to ensure smooth entry.
When a tool travels along an internal arc, the actual feed rate at the cutting edge increases relative to the programmed centerline feed rate. If left unadjusted, this spikes the chip load. You must utilize CAM software features that automatically adjust and slow down feed rates on internal arcs to maintain a constant, safe chip load.
Managing the cutting zone environment prevents thermal shock and chip recutting. These two factors degrade tools rapidly if coolant strategies are misapplied.
Applying flood coolant to micro carbide tools cutting tough materials like tool steels or titanium introduces severe thermal shock risks. The cutting edge heats up instantly in the cut, and the flood coolant quenches it rapidly as it exits. This rapid temperature fluctuation causes micro-fractures in the carbide substrate, leading to premature edge failure.
High-pressure air blasts combined with Minimum Quantity Lubrication (MQL) provide a superior alternative. The air blast forcibly evacuates chips from the micro-cavity, while the MQL system delivers a microscopic mist of oil to provide lubricity without inducing thermal shock.
Micro chips are practically dust. They easily trap themselves in small cavities and deep pockets. If a micro end mill rotates into a previously cut, work-hardened chip, the tool will instantly shatter. Evacuation must be aggressive and continuous. Position air nozzles directly at the cutting zone. If air blast is insufficient, you must adjust your toolpath to allow more clearance for chip escape.
Specifying the correct tool geometry and material justifies the initial tooling costs by drastically reducing failure rates. A generic approach fails on the shop floor.
Using a one-size-fits-all approach guarantees high scrap rates. You must build an application-specific tool inventory. Stocking various specialized cutters prevents operators from forcing the wrong tool into a demanding application simply because it is the only one available in the crib.
Select flute counts based on the workpiece material. Two-flute designs offer maximum chip clearance, making them mandatory for gummy materials like aluminum, copper, and plastics. Four-flute or multi-flute designs possess a thicker core diameter, providing the strength required to shear harder ferrous metals like stainless steel and titanium.

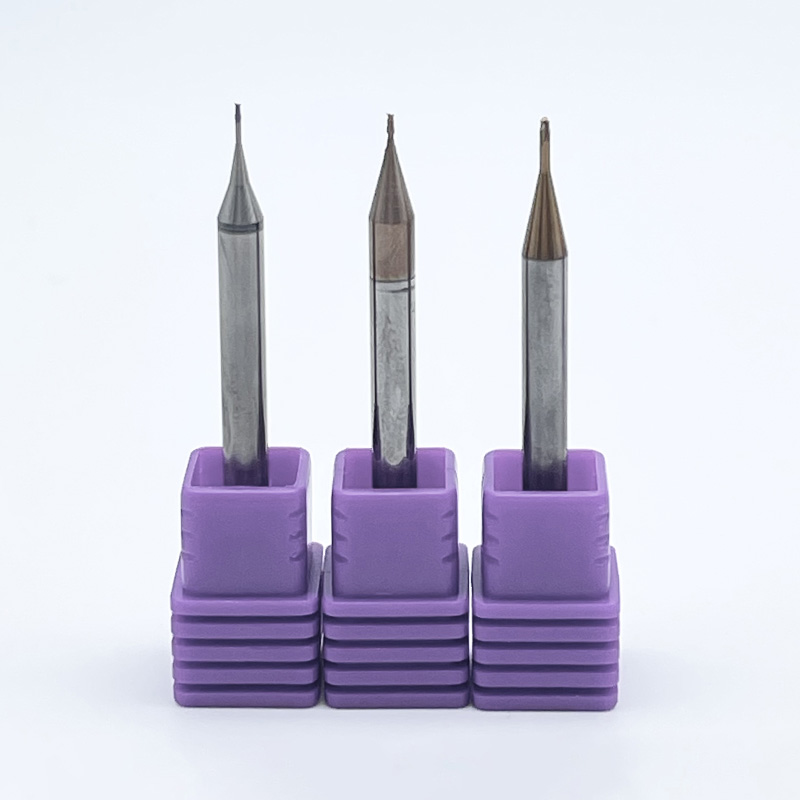

Utilize necked-down designs whenever you need deep cavity reach. The relieved shank prevents the non-cutting portion of the tool from rubbing against the walls, maintaining overall rigidity while allowing access to tight spaces.
Micro tools require sub-micron and ultra-fine grain carbide substrates. Standard carbide grains are too large to grind a truly sharp, durable micro cutting edge. Ultra-fine grains allow for razor-sharp edges that resist chipping under micro-machining pressures.
Evaluate the return on investment for specific coatings based on the workpiece. TiAlN and AlTiN coatings provide excellent heat resistance for dry machining ferrous metals. Diamond coatings are essential for highly abrasive materials like graphite or high-silicon aluminum, extending tool life significantly.
Do not evaluate micro tools based on initial purchase price. A $50 micro tool that breaks after two parts is infinitely more expensive than a $120 premium tool that machines fifty parts flawlessly. Justify premium tooling by calculating the reduction in scrap rates, the elimination of machine downtime for broken tool extraction, and the decrease in tool changeover frequency.
A: Radial runout must be kept below 0.0001 inches (2.5 microns). Any runout exceeding this threshold shifts the entire cutting force onto a single flute, causing rapid tool wear, poor surface finish, and immediate breakage.
A: Dropping spindle RPM without proportionally reducing your feed rate instantly increases the chip load per tooth. This forces the micro tool to shear more material than its structural integrity can handle, resulting in immediate catastrophic failure.
A: Generally, no. Flood coolant causes thermal shock in micro carbide tools cutting hard metals, leading to micro-fractures on the cutting edge. High-pressure air blasts combined with Minimum Quantity Lubrication (MQL) are highly recommended instead.
A: When your radial depth of cut (Ae) is less than 50% of the tool diameter, the actual chip thickness is less than programmed. You must use a chip thinning formula or CAM software calculator to increase your feed rate, preventing the tool from rubbing.
A: Use a necked-down (relieved shank) tool when you need to reach deep into a cavity but want to maintain maximum rigidity. It provides a short, strong cutting flute while the relieved shank prevents rubbing against the cavity walls.
A: Standard ER collets are usually insufficient due to stacked tolerances between the nut, collet, and holder body, which introduce excessive runout. Shrink fit, hydraulic, or ultra-precision collet systems are required for reliable micro machining.
