Views: 0 Author: Site Editor Publish Time: 2026-08-09 Origin: Site
Machining specialized components with standard catalog tools often creates compounding hidden costs. You compromise feed rates to prevent tool breakage. You endure excessive tool changes during long production runs. You risk scrapping expensive parts because a generic tool cannot hold tight tolerances. When standard tooling fails to meet specific reach requirements, complex profile tolerances, or aggressive cycle-time targets, production teams hit a severe engineering bottleneck. Overcoming this limitation requires a shift from off-the-shelf compromises to purpose-built solutions.
This guide provides a systematic framework for specifying custom carbide end mills. We move directly from application analysis and geometry selection to vendor evaluation and ROI justification. You will learn how to match tool architecture to your specific machine capabilities, workpiece material, and toolpath strategy to maximize metal removal rates and ensure process reliability.
Deciding to design and order custom tooling requires analyzing specific volume thresholds and production metrics. Standard catalog tools work well for general-purpose milling. However, high-mix, tight-tolerance aerospace or medical manufacturing often pushes these tools past their design limits. You reach a tipping point when the engineering and manufacturing costs of a custom tool fall below the accumulated costs of slow cycle times, frequent indexing, and scrapped parts.
Evaluate your current production metrics by looking at the actual machine time dedicated to single features. If a standard tool requires three separate passes to finish a complex profile, the machine time alone quickly drains profitability. Custom tooling becomes necessary when you need to eliminate secondary operations. High-volume production runs amplify these savings. Shaving just ten seconds off a cycle time across fifty thousand parts justifies the engineering investment required for custom specification. You must track the exact number of standard tools consumed per shift and compare that consumption rate against the projected lifespan of a single, optimized custom tool.

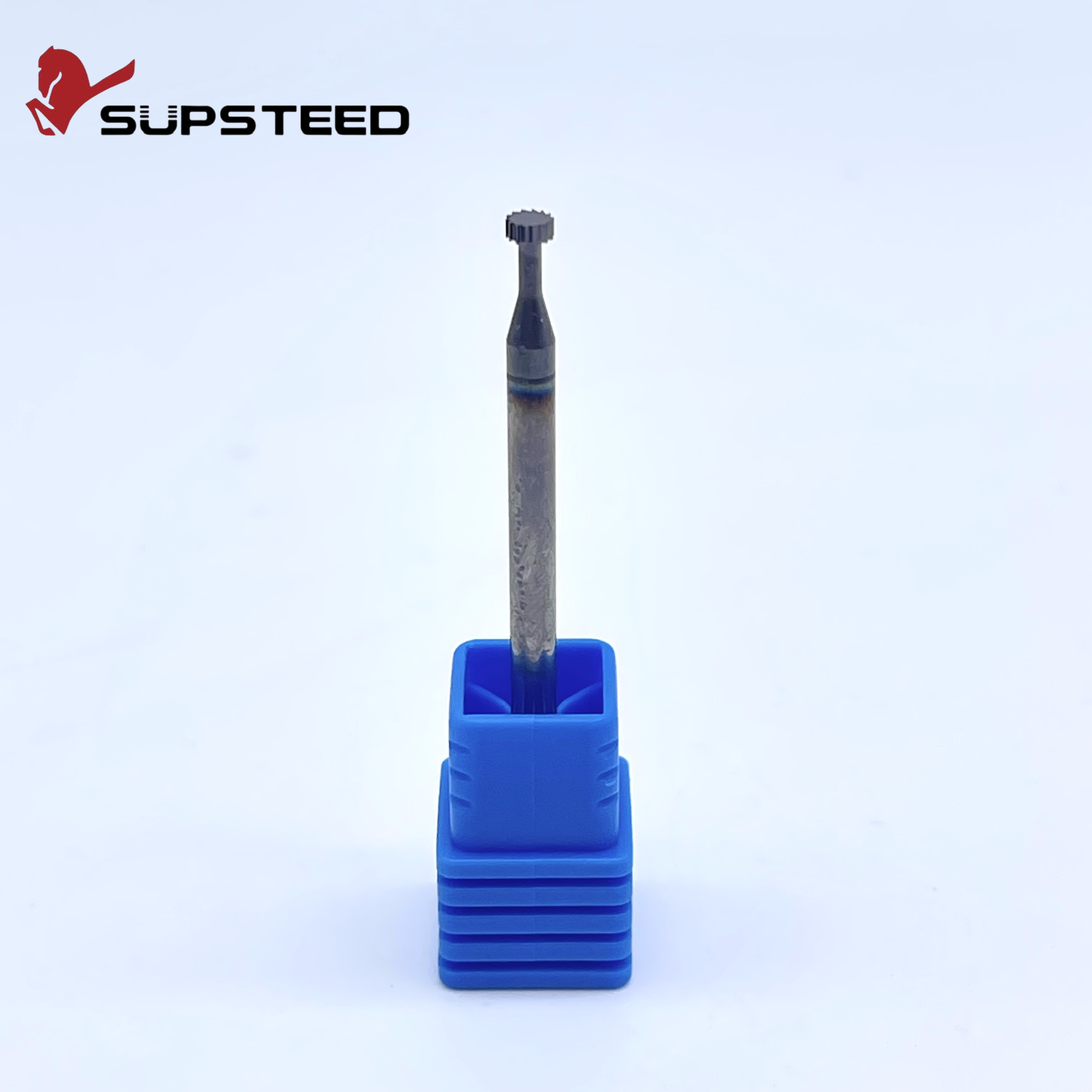

Specific machining scenarios demand custom intervention. Extreme reach-to-diameter ratios present an immediate trigger. When you need to machine deep cavities, standard end mills often lack the necessary neck relief or shank rigidity, leading to catastrophic tool failure. Proprietary thread milling applications also require custom thread forms that catalogs simply do not stock. Undercut requirements often force machinists into awkward setups unless they utilize a custom lollipop or spherical end mill designed for specific clearance angles.
Consolidating multiple standard tool operations into a single custom step-tool or form-tool drastically impacts overall cycle time. Instead of using a drill, a chamfer mill, and a counterbore in three separate tool changes, a custom step-drill performs all three actions in one plunge. This consolidation reduces tool changeover time, frees up valuable space in the machine's tool magazine, and eliminates blending mismatches between different cutting passes. When your CAM programmer spends hours trying to force a standard tool to cut a non-standard profile, you have hit an operational trigger that warrants a custom solution.

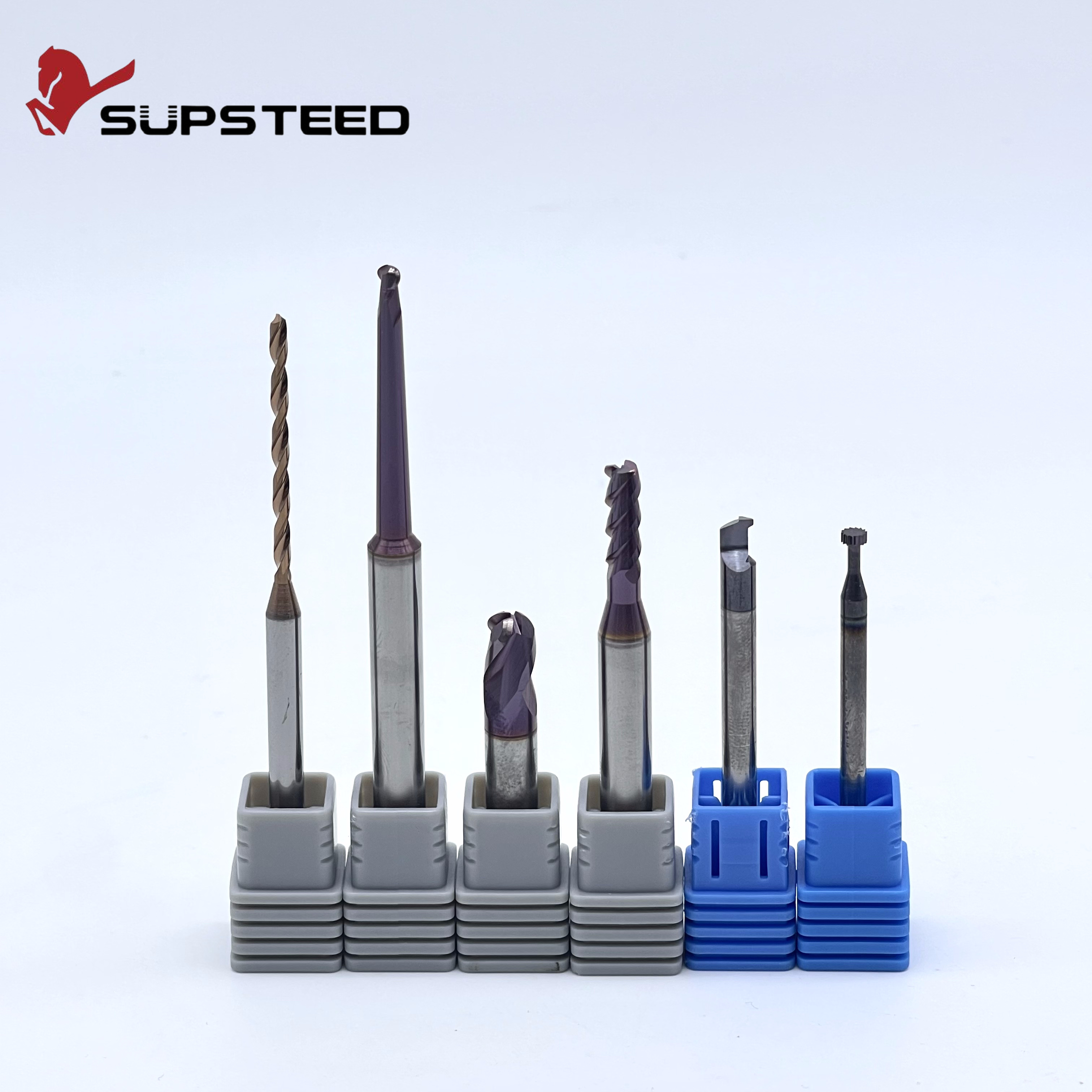

Every custom tool begins by establishing the foundational profile required for the target feature. You must decide whether the application demands a square end, ball nose, corner radius, chamfer, or a complex multi-stage form tool. A square end mill handles sharp 90-degree corners and flat bottoms, while a ball nose excels in 3D contouring and complex surfacing. Adding a corner radius strengthens the cutting edge, preventing premature chipping in heavy roughing applications.
The specific feature geometry dictates the transition points and blending requirements on the custom tool profile. If your part print calls for a specific fillet blending into a tapered wall, the custom tool must mirror this geometry perfectly. Engineers must calculate the exact tangent points where a radius meets a straight flute to ensure a seamless cutting action. Poorly designed transition points create stress concentrations on the tool and leave visible witness marks on the finished workpiece. You must provide the tooling vendor with exact DXF or STEP files of the final part profile to ensure the ground tool matches the required geometry without interference.
The physical dimensions of a tool mean nothing if the underlying material fails under load. Specifying carbide cutting tools requires understanding the relationship between tungsten carbide grain size and cobalt binder percentages. Grain sizes typically range from sub-micron (around 0.8 micrometers) to ultra-fine (around 0.4 micrometers). Finer grains allow for sharper cutting edges and higher wear resistance, making them ideal for finishing operations and abrasive materials.
You must balance hardness against toughness. Hardness provides wear resistance, which is crucial when machining abrasive materials like high-silicon aluminum or carbon fiber composites. Toughness provides shock resistance, which is necessary for interrupted cuts or less rigid setups. Increasing the cobalt binder percentage (moving from 10% to 12% or higher) increases toughness but reduces overall hardness. Tooling engineers adjust this ratio based on the specific failure modes you experience with standard tools. If your current tools chip at the cutting edge, you need a tougher substrate. If they wear down rapidly and lose their gauge diameter, you need a harder substrate.
Flute count directly impacts chip evacuation and surface finish. Specify lower flute counts (two or three) for heavy roughing in gummy materials like aluminum, where massive chip gullets are necessary to prevent packing. Specify higher flute counts (five to eight or more) for finishing passes in hard metals like titanium or tool steel, where chip volume is low but surface finish requirements are critical. More flutes allow for higher feed rates at the same chip load per tooth, drastically reducing cycle times during finishing operations.
The engineering trade-off between core diameter and chip gullet depth dictates tool rigidity. A larger core diameter increases the physical mass of the tool, significantly reducing deflection under heavy radial loads. However, a larger core leaves less room for deep chip gullets. If you specify a massive core for a tool intended to rough aluminum, the chips will pack into the shallow flutes, causing the tool to weld to the material and snap. You must match the core-to-flute ratio to the expected chip volume of your specific operation. Heavy roughing requires a core diameter around 50% to 60% of the total tool diameter, while finishing tools can utilize core diameters up to 70% or 80%.
Helix angles control how the cutting edge engages the workpiece. A standard 30-degree helix provides a good balance of cutting force and edge strength. High helix angles (45 degrees or more) shear material efficiently, pulling chips up and out of deep pockets, making them excellent for aluminum and stainless steel. Slow helix angles (15 to 20 degrees) direct cutting forces radially, which helps prevent thin-walled parts from lifting during machining.
Variable helix and variable pitch designs disrupt harmonics and eliminate chatter. By altering the spacing between flutes and the angle of the helix along the length of cut, the tool prevents the machine from settling into a resonant frequency. Edge preparation is equally vital. Target material shear strength dictates whether you need a sharp edge (for aluminum or plastics), a light hone (to strengthen the edge for steel), or a T-land (a heavy chamfer on the cutting edge for extreme roughing in cast iron). Applying a 0.001" to 0.002" hone to the cutting edge prevents micro-chipping when entering hard materials.
Material properties dictate every aspect of custom tool design. High-temperature alloys like Inconel 718 and Titanium Ti-6Al-4V generate immense heat at the cutting zone and tend to work-harden rapidly. Custom tools for these materials require highly positive rake angles to shear the material cleanly and ample relief angles to prevent the heel of the tool from rubbing and generating excess friction. You must specify eccentric relief rather than flat relief to provide maximum support behind the cutting edge while still clearing the cut.
Conversely, abrasive non-ferrous materials like high-silicon aluminum (A390) or fiberglass composites do not generate as much heat but rapidly degrade cutting edges. Tools designed for these materials require ultra-fine grain carbide substrates and extremely sharp cutting edges to slice through the abrasive particles. Material hardness directly influences the primary and secondary relief angles. Harder materials require smaller relief angles to keep more carbide mass directly behind the cutting edge for support. Soft, gummy materials require larger relief angles to prevent the material from springing back and rubbing against the tool.
A high-performance custom tool cannot compensate for a sloppy machine environment. Spindle condition, maximum available RPM, and toolholder type dictate the allowable tolerances for the custom tool shank. Shrink-fit toolholders and hydraulic chucks provide superior concentricity and gripping force compared to standard ER collets. If you use shrink-fit holders, specify h6 shank tolerances to ensure a perfect interface. A tool running in an HSK63A spindle with shrink-fit tooling can handle far more aggressive geometries than a tool running in an older CAT40 spindle with worn collets.
Securing the workpiece plays a critical role in tool specification. Poor fixturing or thin-walled parts demand custom tools with higher shear angles and lower cutting forces to prevent pushing the part out of tolerance. Specifying an aggressive, heavy-roughing custom tool for a setup with high spindle runout or poor rigidity will result in premature tool failure. The tool will experience uneven chip loads, leading to micro-chipping on the flutes that bear the brunt of the runout. You must measure your spindle runout before specifying a custom micro-tool, as runout exceeding 0.0002" will snap tools under 0.062" in diameter instantly.
Modern CAM strategies change how we specify tool geometry. High-Efficiency Milling (HEM) or trochoidal milling utilizes the entire length of cut (LOC) while taking very light radial step-overs. If you plan to use HEM, specify a custom tool with a long LOC, a thick core, and specialized radial relief to handle the continuous, light chip loads without rubbing. Traditional slotting requires shorter, stubbier tools to handle heavy radial engagement and evacuate chips vertically.
Planned Axial Depth of Cut (ADOC) and Radial Depth of Cut (RDOC) must align perfectly with the tool's specified cutting edge length. If you specify a tool with a 1-inch LOC but program an ADOC of 1.2 inches, the non-cutting shank will rub against the workpiece, causing catastrophic failure. Ensure the custom tool features a necked-down shank if the reach requirement exceeds the necessary cutting edge length. This necked region must be ground slightly undersize (typically 0.010" to 0.020" smaller than the cutting diameter) to prevent rubbing against the walls of deep pockets.
Coatings act as a thermal barrier and provide essential lubricity at the cutting zone. Physical Vapor Deposition (PVD) coatings offer smooth, thin layers that maintain sharp cutting edges. Chemical Vapor Deposition (CVD) coatings provide thicker, highly wear-resistant layers but can slightly round the cutting edge. Standard coatings like Titanium Aluminum Nitride (TiAlN) or Aluminum Titanium Nitride (AlTiN) perform well in general steel and stainless applications because they form a protective aluminum oxide layer when exposed to high cutting temperatures.
Specialized applications require specialized coatings. Machining carbon fiber composites demands Diamond or CVD diamond coatings to withstand extreme abrasion. Machining gummy aluminum requires Zirconium Nitride (ZrN) or Titanium Diboride (TiB2) coatings. These specialized options prevent built-up edge (BUE) by providing a highly lubricious surface that stops aluminum from welding to the carbide substrate. You must match the coating to the specific failure mode of the uncoated tool.
Custom End Mill Coatings and Applications
| Coating Type | Primary Characteristic | Best Suited Materials | Typical Machining Environment |
|---|---|---|---|
| AlTiN (Aluminum Titanium Nitride) | High thermal resistance (up to 900°C) | Steels, Stainless, Cast Iron, Titanium | Dry machining, high heat applications |
| ZrN (Zirconium Nitride) | High lubricity, prevents BUE | Aluminum, Brass, Copper, Non-Ferrous | Flood coolant or MQL |
| CVD Diamond | Extreme abrasion resistance | Carbon Fiber, Composites, Graphite | Dry machining with high-velocity vacuum |
| TiAlN (Titanium Aluminum Nitride) | Balanced wear and heat resistance | General purpose alloys, Tool Steels | Wet or dry machining |
Your chosen coolant strategy dictates the necessary oxidation temperature of the specified coating. Flood coolant provides excellent chip evacuation but can cause thermal shock in high-temperature alloys, leading to micro-cracking in the carbide. If you utilize dry machining with air blasts, you must specify a coating like AlTiN, which requires high heat to form its protective oxide layer. Running an AlTiN coated tool with heavy flood coolant prevents the coating from reaching its activation temperature, rendering it useless.
Minimum Quantity Lubrication (MQL) offers a middle ground, providing lubricity without massive temperature fluctuations. Highly lubricious coatings assist in clearing chips often and efficiently. This prevents recutting chips in deep pockets, a primary cause of premature tool wear and poor surface finish. The coating must match the thermal dynamics of your specific coolant approach. If you machine deep pockets where coolant cannot easily reach, you must rely entirely on the coating's lubricity and the tool's helix angle to evacuate chips.
Evaluating the return on investment for custom tooling requires looking beyond the initial purchase price. You must calculate the reduction in machine hours, scrap rates, and tool changeover downtime. A custom form tool might carry a significant upfront premium compared to three standard end mills. However, if that single custom tool reduces the cycle time by two minutes per part on a 10,000-part run, you save over 330 hours of machine time. You multiply those saved hours by your shop's hourly machine rate to find the true value of the custom tool.
Factor in the reduction of scrapped parts. Standard tools struggling to hold tolerances often result in parts failing quality control inspections. Custom tools, designed specifically for the required geometry and material, provide consistent, repeatable results. Calculate the cost of raw materials and previous machining time lost to scrap, and apply that saving to the ROI of the custom tool. When a single scrapped aerospace component costs thousands in raw material alone, a custom tool pays for itself on the first saved part.
Maximize your investment by specifying custom tools with regrinding in mind. Ensure sufficient carbide volume remains after initial wear to allow for multiple sharpening cycles. A well-designed custom tool can often be reground and recoated three to five times, drastically lowering the cost per cutting edge over the tool's lifecycle. You must communicate your intent to regrind the tool to the vendor during the design phase.
Work with your tooling vendor to establish a closed-loop lifecycle management program. When the custom tool wears out, you send it back for exact CNC regrinding to the original custom specifications. This requires designing the tool with slightly oversized flutes initially, allowing the grinder to remove worn material while maintaining the critical cutting diameters and profiles required for your part. You must track the performance of reground tools to ensure they deliver the same cycle times and surface finishes as the virgin tools.
Tool deflection poses the greatest risk in high-reach machining applications. End mills 0.125" (3mm) in diameter and smaller are particularly vulnerable. Deflection scales with the cube of the length-to-diameter (L:D) ratio. A tool extending four times its diameter will deflect significantly more than a tool extending only twice its diameter under the same cutting forces. Excessive deflection causes dimensional inaccuracies, chatter, and sudden tool breakage. When a tool deflects, the chip load per tooth becomes uneven, causing one flute to take a massive bite of material while the others rub.
Mitigate these risks during the design phase. Specify necked shanks where the cutting diameter is slightly larger than the relieved shank, providing maximum reach without sacrificing core rigidity. Utilize tapered reaches whenever the part geometry allows. Applying deflection calculation formulas prior to finalizing the CAD design ensures the proposed tool can withstand the programmed chip loads without bending beyond acceptable tolerances. You must calculate the exact cutting forces generated by your material and feed rate to predict deflection accurately.
Never drop a brand-new custom tool into a production run at maximum speeds and feeds. Implement a strict first-article testing protocol. Start with conservative cutting parameters, typically 20% to 30% lower than the calculated maximums. Run the tool through a scrap piece of the target material and closely analyze the chip formation. Chips should be uniform in color and shape, indicating efficient shearing rather than tearing or rubbing. If the chips turn dark blue or black in steel, you are generating too much heat and need to adjust your surface footage.
Inspect the cutting edge under magnification after the first pass. Look for signs of micro-chipping or built-up edge. If the edge looks pristine, incrementally scale up the feed rates and spindle speeds until you reach the target cycle time. Document the spindle load and listen for harmonic chatter. Adjust the CAM toolpath parameters if the tool exhibits any signs of instability before approving it for lights-out manufacturing. You must establish a baseline wear pattern during this testing phase to predict tool life accurately.
Custom tooling introduces supply chain risks. Typical industry lead times range from two to six weeks, depending on geometry complexity and coating requirements. You must factor this lead time into your production schedule and maintain adequate safety stock to prevent machine downtime. Selecting the right custom tool grinder mitigates many of these risks. You cannot afford to wait six weeks for a tool that arrives out of tolerance.
Establish strict criteria for vendor selection. Look for tooling manufacturers with in-house coating capabilities to eliminate the delays of sending tools to third-party coaters. Demand comprehensive inspection reporting, utilizing advanced optical measurement machines like Zoller or Walter, to guarantee the tool matches the approved CAD model. Prioritize vendors who offer direct engineering support and are willing to analyze your toolpaths and part prints before grinding the first piece. A vendor who simply grinds to your print without questioning the application will often deliver a tool that fails in the machine.
A: While some specialized grinders offer single-piece prototypes, typical MOQs range from 3 to 10 pieces to offset setup and programming costs.
A: Standard industry lead times usually range from 2 to 6 weeks depending on the complexity of the geometry and whether specialized coatings are required.
A: Yes, they can be reground and recoated, provided the tool is designed with sufficient margin and the wear has not compromised the core geometry.
A: Tool deflection is calculated using the cantilever beam formula. The key factor is the length-to-diameter (L:D) ratio. Deflection increases exponentially as the tool gets longer and thinner.
A: Engineers require the workpiece material, machine taper and spindle specifications, part geometry and reach constraints, required surface finish, target cutting depths, and current standard tool failure modes.
