Standard solid carbide tooling handles the bulk of everyday CNC machining. However, relying strictly on off-the-shelf catalogs for complex geometries or high-volume production runs leaves massive efficiency gains on the table. Machinists and production managers constantly fight the battle between upfront tooling expenses and long-term spindle uptime. Multiple tool changes, excessive cycle times, and rapid edge wear on difficult alloys inflate the true cost-per-part.
Attempting to save money upfront with standard tooling often results in hidden production losses. Tool rubbing, heavy reliance on flood coolant, and compromised feed rates ultimately destroy job profitability. Moving from standard catalogs to engineered custom tooling requires strict justification. We break down the technical and financial thresholds that dictate when investing in custom profiles transitions from an unnecessary expense to a competitive advantage on the shop floor.
Solid carbide dominates modern machine shops over high-speed steel or cobalt because it runs two to three times faster. Carbide maintains dimensional stability at much higher cutting temperatures. High-speed steel tools might forgive older, looser equipment, but carbide diffuses heat efficiently. This allows you to push feeds and speeds aggressively. Modern CNC machining relies on this thermal resistance to maintain high material removal rates. Even standard carbide eventually hits a performance ceiling when part complexity increases. Machining deep pockets, cutting aggressive draft angles, or holding tight true-position tolerances pushes standard geometries past their intended limits. Operators experience tool deflection, chatter, and poor surface finishes when forcing standard tools into specialized applications. You cannot expect a general-purpose tool to excel in a highly specific, demanding environment.
Standard geometries cover the widest possible range of general machining applications. This broad focus creates inherent limitations in reach-to-diameter ratios and flute lengths. Tool manufacturers optimize standard end mills for average radial and axial engagements. When machining complex stepped profiles, using multiple standard tools becomes highly inefficient. Operators waste valuable cycle time on tool changes, non-cutting rapid movements, and overlapping blending passes. Achieving a seamless surface finish across a stepped diameter often requires tedious programming adjustments. Standard end mills also lack the specific neck reliefs required to clear deep cavity walls without rubbing. You end up forcing programmers to use longer, less rigid tools. This introduces vibration, accelerates cutting edge failure, and causes flute wash-out during heavy roughing operations.

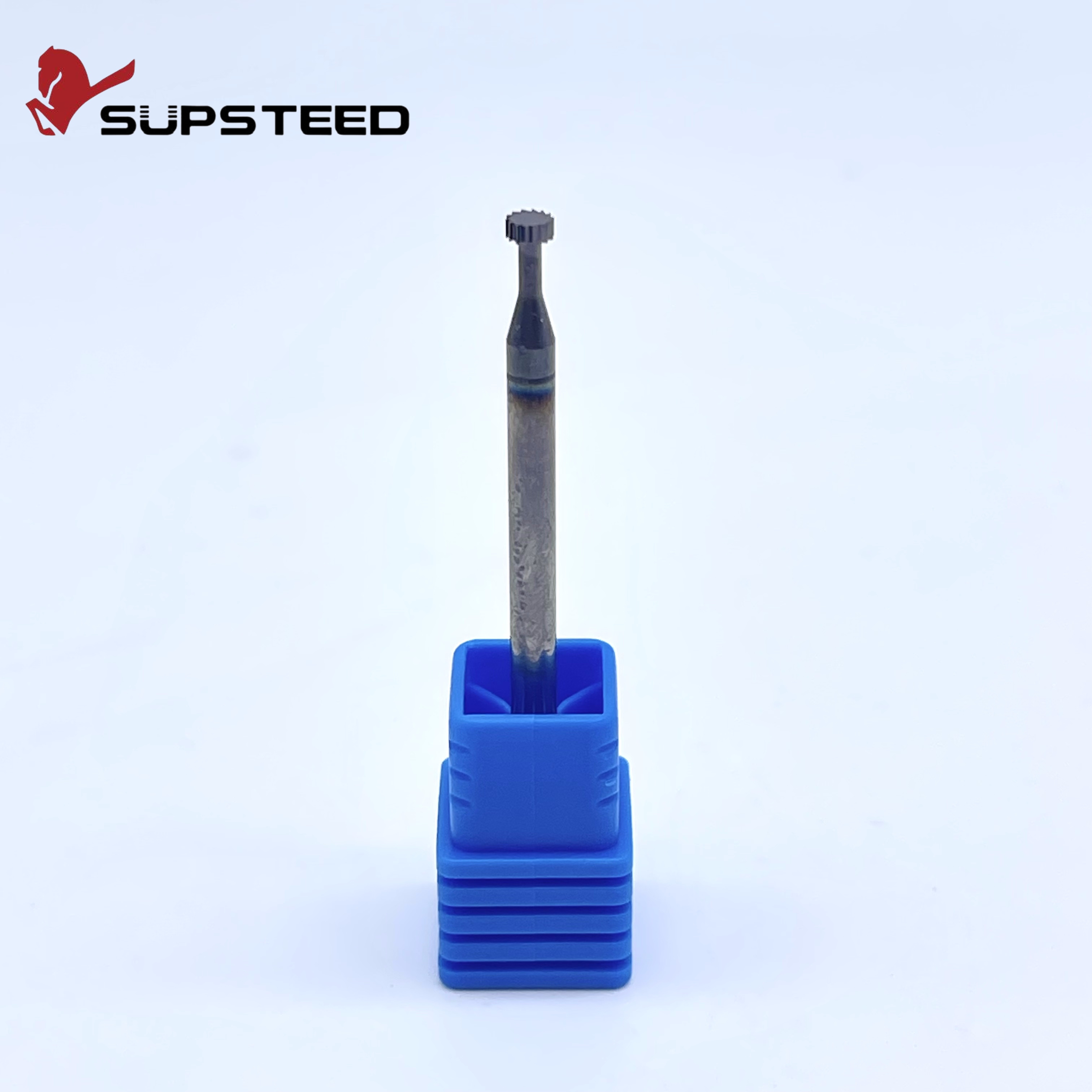

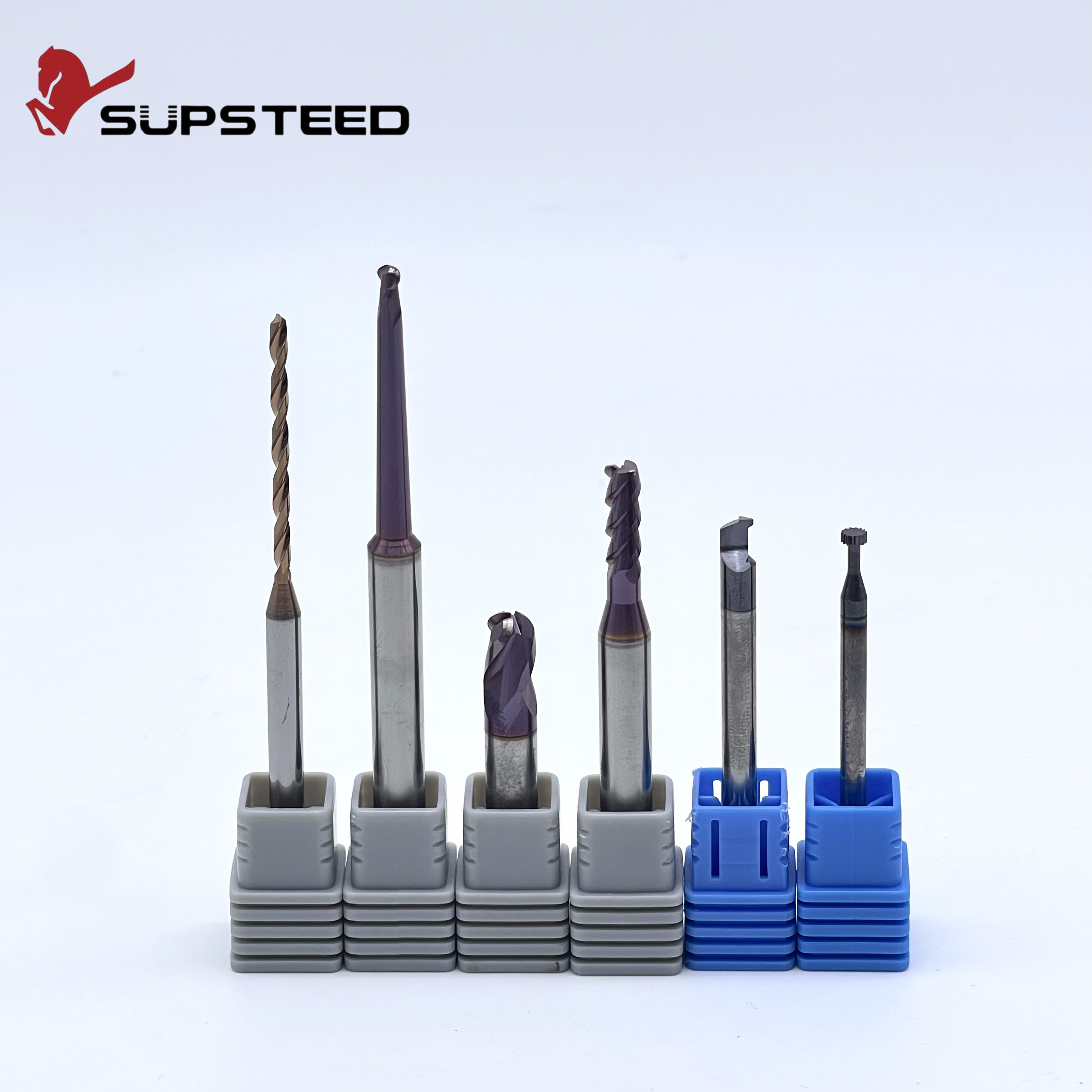

There is a distinct difference between a slightly modified tool and a fully engineered form tool. Slight modifications might involve adding a specific corner radius or grinding a custom neck relief onto a standard blank. These minor tweaks solve clearance issues but do not fundamentally change the machining strategy. In contrast, fully engineered custom carbide end mills are designed from the ground up for a single proprietary part. These tools consolidate multiple cutting diameters, complex chamfers, and specific radii into one continuous profile. Tool engineers calculate the exact shear angles and chip gullet capacities required for the specific operation. This ground-up design approach transforms a multi-tool operation into a single, highly efficient plunge or profiling pass. The tool geometry dictates the part geometry perfectly.
Customization extends far beyond physical geometry. Tool engineers tailor the carbide substrate to balance hardness and toughness for the specific application. Machining hardened 4140 steel requires a sub-micron grain structure for maximum wear resistance. Cutting gummy 6061-T6 aluminum requires a highly polished, micro-grain substrate to prevent built-up edge. Physical Vapor Deposition or Chemical Vapor Deposition coatings are then applied specifically to combat the wear mechanisms of your primary workpiece material. Titanium Aluminum Nitride coatings excel in high-heat applications by forming a protective aluminum oxide layer. Diamond coatings provide the extreme abrasion resistance necessary for machining carbon fiber composites. Matching the exact substrate, edge preparation, and coating to the real-world machining conditions drastically extends tool life and prevents micro-chipping.
The decision to move away from standard catalogs hinges heavily on production volume. Establishing the break-even point requires analyzing where the engineering and manufacturing costs of custom tools are eclipsed by cycle time reductions. In high-volume production runs, shaving just ten seconds off a cycle time compounds into massive labor and machine-hour savings. A shop running fifty thousand parts annually will recover the initial custom tooling investment within the first few weeks of production. High-volume contracts also justify the minimum order quantities required by custom tool grinders. When machine spindles run continuously, maximizing output per hour becomes the primary driver of profitability. Custom tooling guarantees that the machine spends more time cutting metal and less time executing tool changes.
Parts featuring complex internal cavities, proprietary thread forms, or multiple stepped diameters demand specialized approaches. These features often require three or more standard tools to complete. Consolidating these operations into a single tool path drastically reduces setup times. If a single tool can drill, chamfer, and counterbore simultaneously, operational efficiency skyrockets. Hydraulic manifold porting is a prime example of this consolidation. Machining SAE fluid ports traditionally requires a spot drill, a standard drill, a flat-bottom end mill, and a specialized chamfer tool. A custom step tool completes the entire port profile in a single interpolation pass. This eliminates three tool changes and guarantees perfect concentricity between the varying diameters. You eliminate the risk of blending errors entirely.
Standard geometries often struggle when cutting Inconel, 6Al-4V titanium, hardened tool steels, or highly abrasive composites. In these harsh environments, standard tools suffer from rubbing, rapid edge degradation, and poor chip evacuation. Work-hardening materials require sharp, positive cutting edges to shear the material cleanly before it hardens. Engineered custom end mills feature optimized rake angles, reinforced core diameters, and variable flute spacing designed specifically for these alloys. Custom geometries shear tough materials cleanly without generating excessive heat or inducing thermal shock. Specialized edge preparation, such as a controlled hone or a K-land chamfer, protects the cutting edge from micro-chipping during heavy roughing passes in titanium. You gain predictable tool life in unpredictable materials.
Using multiple standard end mills to machine a single feature inherently leads to stacked tolerances and blending mismatches. Every tool change introduces slight variations in spindle runout, tool holder seating, and thermal expansion. Custom single-pass tools eliminate these unpredictable variables. By machining the entire profile at once, concentricity is guaranteed by the tool itself rather than the machine's positioning accuracy. Medical device manufacturing relies heavily on this principle. Bone plates and surgical implants require flawless surface blending and exact dimensional relationships. A custom form tool machines the critical mating surfaces simultaneously, ensuring zero mismatch. This eliminates the need for manual polishing or secondary deburring operations, which often alter the final part dimensions and cause quality control rejections.
A custom tool design must account for actual shop floor realities. Engineers evaluate specific coolant delivery methods before finalizing a design. High-pressure through-spindle coolant requires different coolant hole geometries than low-pressure flood emulsion. Workholding rigidity and true spindle horsepower dictate the maximum aggressive geometries the tool can feature. Designing a massive, high-flute-count roughing tool is useless if the machine spindle stalls under the cutting load. The tool must match the dynamic stiffness of the machining center. Heavy cuts require high-mass machines with rigid box ways or heavy-duty linear guides. Applying an aggressive custom tool to a lightweight commodity machine will induce severe chatter and destroy the carbide cutting edges instantly. Spindle tapers, such as CAT40 versus HSK63A, also dictate how much radial load the tool can safely handle before pull-out occurs.
Shops must weigh the immediate benefit of faster material removal rates against the typical lead times required for custom tool manufacturing. Operational gains are substantial, but production schedules must accommodate the initial wait. Engineering, grinding, and coating a custom tool usually takes three to six weeks. Planning ahead ensures the custom tools arrive before the high-volume run begins. Production managers must factor this lead time into their project onboarding phase. Rushing a custom tool order often leads to skipped quality checks or suboptimal coating adhesion. Establishing a clear timeline with the tool grinder prevents machine downtime and ensures a smooth transition from prototyping to full-scale production. You must align your tooling procurement schedule with your raw material delivery dates.
Aggressive high-speed machining generates intense heat that can compromise tool rigidity. Custom-engineered core diameters and variable helix flute designs maintain rigidity and prevent deflection. This dimensional stability ensures the tool cuts accurately even when pushed to the upper limits of its recommended feeds and speeds. Parabolic flute shapes improve chip evacuation while maintaining a thick, rigid core. Variable pitch geometries disrupt the harmonic frequencies that cause chatter during heavy radial engagements. By controlling vibration and managing heat generation, custom end mills maintain their programmed toolpaths without wandering or bending. This stability is critical when machining thin-walled aerospace components where tool pressure easily distorts the workpiece. The tool must compensate for the thermal expansion of the spindle during long, continuous cutting cycles.
Evaluating the lifecycle of a custom tool is critical for long-term profitability. Designing custom end mills with a sufficient margin for two to three regrind and recoat cycles significantly lowers the amortized cost per part. A well-designed custom tool should not be a disposable asset. It must function as a maintainable component of the production process. Shops must establish a logistical loop for sending dull tools out for reconditioning while rotating fresh tools into the machine. Regrinding alters the outer diameter of the tool, requiring programmers to update their CAM software and machine offsets. Managing this tool life cycle effectively extracts the maximum financial value from the initial custom tooling investment. You treat the tool as a long-term asset rather than a consumable expense.
Operational Comparison: Standard vs. Engineered Tooling
| Criteria | Standard Solid Carbide | Engineered Form Tools |
|---|---|---|
| Feature Completion | Requires multiple tools and tool changes | Consolidates multiple features into one pass |
| Lead Time | Available overnight from catalogs | Requires 3 to 6 weeks for manufacturing |
| Setup Complexity | High (multiple offsets and blending passes) | Low (single tool offset and verified path) |
| Best Application | High-mix, low-volume job shop work | High-volume, dedicated production runs |
| Concentricity Control | Dependent on machine accuracy and runout | Guaranteed by the physical tool geometry |
The initial investment goes beyond the physical carbide material. Shops must account for CAD/CAM design time, tool grinding setup fees, and minimum order quantities. These upfront engineering and prototyping costs represent a significant barrier to entry for smaller job shops. Tool grinders must dress specific diamond grinding wheels and program complex multi-axis toolpaths just to produce the first prototype. However, amortizing these costs over a long production run quickly reveals the financial advantage. Once the initial engineering is complete, the per-unit cost of subsequent tool orders drops significantly. The return on investment becomes highly visible when a single custom tool replaces fifty standard end mills over the life of a contract. You pay for the engineering once, but you reap the cycle time benefits thousands of times.
Custom carbide diffuses heat and cuts efficiently only if the CNC machine provides the necessary support. The machine must possess the rigidity, spindle speed, and coolant delivery to handle aggressive toolpaths. Applying an expensive custom tool to a machine with excessive spindle runout or worn linear guides results in premature tool failure. The physical realities of the shop floor must align perfectly with the tool's capabilities. High-performance coatings require specific surface speeds to activate their thermal barriers. If a machine lacks the maximum RPM required to generate that surface speed, the coating fails to protect the carbide substrate. Evaluating machine health is a mandatory prerequisite before ordering custom tooling. You cannot fix a loose spindle by throwing expensive carbide at it.
Custom end mills allow shops to safely max out their CNC machine's capabilities. Pushing feeds and speeds to their absolute limits drastically increases profit margins on long-run jobs. Maximizing spindle uptime and minimizing non-cutting rapid movements transforms a standard machining center into a highly optimized production cell. Unattended machining and lights-out manufacturing rely heavily on predictable tool life. Custom tools provide the reliability needed to let machines run overnight without operator supervision. When a single tool reliably completes a complex feature thousands of times without chipping, shops can confidently bid on tighter-margin, high-volume contracts. The machine generates revenue continuously rather than sitting idle during frequent tool changes. You turn machine availability into direct profit.
The hidden savings of custom tooling often rival the direct cycle time reductions. Consolidating features into a single tool means fewer operator interventions and fewer tool offsets to manage. Single-tool feature completion inherently lowers scrap rates by eliminating the blending errors and tolerance stacking associated with multiple tool changes. Operators spend less time probing parts or measuring mid-process dimensions. Setup times plummet because the operator only needs to touch off one tool instead of four. This streamlined workflow reduces the cognitive load on machinists, minimizing the risk of catastrophic crashes caused by typing incorrect offset values into the machine control. You engineer the human error out of the machining process.
The most significant risk of relying on custom tooling is machine downtime. If a custom tool breaks and no backups are in stock, production stops entirely. Standard tools can be ordered overnight, but custom tools require weeks to manufacture. This supply chain vulnerability can cripple a high-volume production schedule if mismanaged.
Accurately simulating custom tool profiles in standard CAM software presents a major challenge. Incorrect tool definitions lead to undetected collisions or gouged parts during the first run. Programmers cannot rely on standard library shapes to represent complex multi-step form tools accurately.
There is a high risk of burning up expensive custom tools due to incorrect cutting parameters. Operators accustomed to standard catalog speeds might push a custom form tool too hard or run it too conservatively. Running a tool too slowly induces rubbing, which destroys the cutting edge just as quickly as running it too fast.
A: Minimum order quantities vary by manufacturer but typically range from three to ten pieces. Tool grinders require an MOQ to offset the initial setup time, programming, and wheel dressing required to produce a unique geometry. Ordering higher quantities significantly reduces the per-tool manufacturing cost.
A: Solid carbide offers superior heat resistance, rigidity, and wear characteristics compared to high-speed steel or cobalt. Custom tooling is designed to maximize material removal rates and consolidate operations. Carbide maintains its cutting edge at the high speeds and temperatures required to make aggressive toolpaths efficient and stable.
A: Yes. Most custom form tools and end mills are designed with enough margin to be reground and recoated two to three times. This process restores the cutting edge to factory conditions, extending the tool's lifecycle and drastically lowering the overall cost per part.
A: Engineering and manufacturing a custom end mill usually takes between three to six weeks. This timeframe includes CAD/CAM design, customer approval of the digital profile, grinding wheel preparation, CNC grinding, and the final application of specialized PVD or CVD coatings.
A: Absolutely. Custom carbide tools are brittle and intolerant of vibration. To prevent premature chipping or catastrophic tool failure, the CNC machine must have rigid workholding, minimal spindle runout, and sturdy linear guides. Older, loose machines will destroy expensive custom carbide quickly.
A: Custom end mills reduce cycle times primarily through feature consolidation. By combining multiple diameters, radii, and chamfers into one tool, shops eliminate the rapid movements, tool changes, and blending passes required when using several standard tools to machine the same complex profile.
A: Tool grinders require a detailed part print, 3D CAD model, workpiece material specifications, and machine capabilities including spindle speed, horsepower, and coolant type. Providing the current machining cycle time and specific pain points helps engineers optimize the custom geometry effectively.
