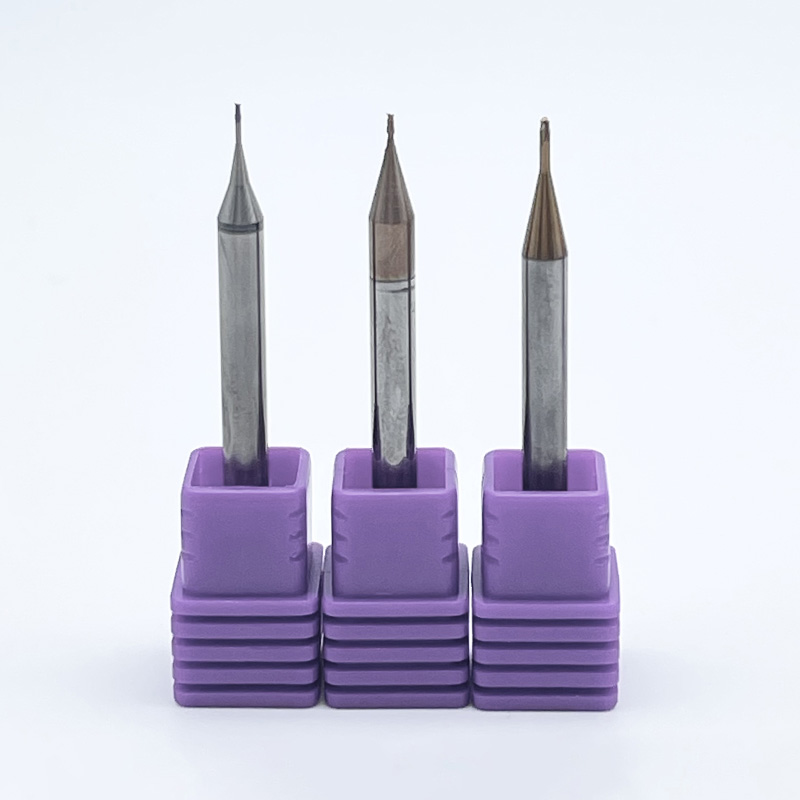

Tool failure in micro-milling operations carries a massive impact on production efficiency. A single broken tool ruins high-value components and causes hours of machine downtime. The physics of cutting change drastically at the micro-scale. Standard macro-machining formulas and standard-tolerance equipment lead to catastrophic failure when applied to tools under 1/8 inch (3mm) in diameter.
Extending tool life requires a systemic evaluation of the entire machining environment. You must move beyond basic feeds and speeds. Analyzing tool geometry, runout, toolholding, handling protocols, and CAM strategies is essential for success. Understanding the root causes of tool breakage allows operators to implement targeted solutions that stabilize the process and protect the workpiece.
Tool deflection follows the principles of the cantilever beam formula. Deflection increases with the cube of the tool's overhang length and inversely with the fourth power of its diameter. Because miniature end mills have exceptionally small diameters, even minimal cutting forces cause significant deflection. They lack the core rigidity found in larger macro tools. When radial runout is introduced into this system, the problem compounds exponentially.
Runout forces one flute to take a heavier cut than the others. In a micro tool, an extra ten-thousandth of an inch in chip load easily exceeds the structural integrity of the carbide. This uneven loading causes rapid fatigue, micro-fracturing along the cutting edge, and ultimately, catastrophic tool breakage. Eliminating runout is the single most effective method for stabilizing micro-milling operations. Machinists must measure runout dynamically at the spindle nose and at the tool tip to isolate the source of the concentricity error.
Micro machining operates on a fine line between rubbing and cutting. If the feed rate is too slow, the chip thickness falls below the radius of the cutting edge. The tool plows through the material rather than shearing it. This rubbing action generates immense friction, causing rapid heat buildup and work hardening of the workpiece material. Conversely, feeding too fast exceeds the tensile strength of the micro tool, snapping it instantly.
Chip evacuation presents another severe challenge, particularly in micro-slots. The flute valleys on micro tools are incredibly small, leaving little room for chips to escape. If chips remain in the cutting zone, the tool recuts them. Recutting hardened chips causes immediate spikes in cutting forces, which invariably leads to the tool snapping. Operators can identify improper chip load through several physical indicators:
Machining hard or abrasive materials like Titanium, Inconel, and hardened steels places extreme stress on micro-tool cutting edges. Titanium has low thermal conductivity, meaning the heat generated during cutting transfers directly into the tool rather than the chip. This thermal load degrades the carbide binder, leading to premature edge wear and failure. The cutting edge essentially breaks down at a microscopic level before catastrophic failure occurs.
Gummy materials like aluminum and copper present different challenges at the micro-scale. These materials tend to weld to the cutting edge, creating a built-up edge (BUE). BUE alters the tool's geometry, dulling the cutting action and increasing cutting forces. As the built-up material eventually breaks away, it often takes microscopic pieces of the carbide edge with it, leading to edge chipping and tool failure. Managing BUE requires highly polished flutes and specific coolant strategies.
Machine spindles generate heat during operation, causing microscopic thermal growth. In macro machining, thermal expansion of 0.001 inches might cause a minor tolerance deviation. In micro machining, that same expansion drastically alters the Z-axis depth of cut. An unintended increase in axial engagement overloads the tool instantly.
Miniature tools cannot absorb these sudden spikes in cutting forces. When thermal growth pushes the tool deeper into the workpiece than programmed, the chip load exceeds the tool's structural limits. Maintaining thermal stability within the machine tool environment prevents these unpredictable failures. Operators must implement strict spindle warm-up routines, often running the spindle at varying RPMs for 20 to 30 minutes before executing any micro-milling programs.
Selecting the correct flute count requires balancing chip clearance with tool rigidity. Two-flute designs provide maximum flute valley space, making them ideal for non-ferrous materials where chip packing is a primary concern. Four-flute to six-flute designs increase the tool's core diameter, offering greater rigidity and superior surface finishes in harder ferrous alloys where chip volume is lower.
Helix angles influence cutting dynamics. High helix angles provide better shearing action and lower radial cutting forces, effectively pulling chips up and out of the cut. Low helix angles offer a stronger cutting edge and reduce lifting forces on delicate workpieces. A thick core diameter combined with a tapered neck design maximizes rigidity while allowing the necessary reach for deep cavities. Manufacturers often apply a subtle 1-degree to 3-degree taper to the neck of micro tools to exponentially increase the tool's resistance to deflection.
Standard carbide grades lack the structural density required for micro tools. Sub-micron and ultra-fine grain carbide substrates are mandatory. Smaller carbide grains allow for a sharper cutting edge without sacrificing edge strength. Ultra-fine grain structures prevent the micro-fracturing that occurs when standard carbide is subjected to the high-frequency impacts of micro-milling.
The binder content, typically cobalt, must be carefully balanced. Too much binder reduces hardness, leading to rapid wear. Too little binder makes the tool excessively brittle. Premium micro tools utilize advanced sintering processes to achieve high hardness while retaining enough transverse rupture strength to withstand operational stresses. A typical micro tool substrate contains roughly 10% to 12% cobalt to maintain this exact balance.
Applying the correct coating extends tool life by reducing friction and providing a thermal barrier. TiAlN and AlTiN coatings excel in high-heat ferrous machining applications, oxidizing at high temperatures to form a protective layer. For aluminum and non-ferrous materials, ZrN coatings or uncoated polished flutes are preferred to prevent material adhesion and BUE.
Thick PVD or CVD coatings pose a significant risk to micro tools. A standard coating thickness can round off the microscopic cutting edge, effectively dulling the tool before it ever cuts. Ultra-thin coating technologies are necessary to preserve edge sharpness while still delivering the required thermal and lubricity benefits. Coating thickness on a micro tool should rarely exceed 1 to 2 microns.
| Coating Type | Optimal Material | Primary Characteristics |
|---|---|---|
| TiAlN / AlTiN | Hardened Steels, Titanium, Inconel | High thermal resistance, forms protective oxide layer, high hardness. |
| ZrN | Aluminum, Copper, Brass | High lubricity, prevents built-up edge (BUE), low friction coefficient. |
| Diamond (CVD) | Graphite, Composites, Ceramics | Extreme abrasion resistance, extended life in highly abrasive materials. |
| Uncoated (Polished) | Plastics, Soft Aluminum | Maximum edge sharpness, zero edge rounding, prevents material welding. |
Standard ER collets introduce too much runout for reliable micro machining. They rely on multiple sliding angles that compound concentricity errors. Shrink-fit chucks, hydraulic chucks, and high-precision micro-chuck systems provide superior concentricity by gripping the tool shank evenly across 360 degrees. This uniform clamping force minimizes radial deviation.
To achieve consistent tool life, the Total Indicator Reading (TIR) must be kept below 0.0001 inches (2.5 microns) at the tool tip. Upgrading toolholding is a foundational step. Without precision toolholding, all other optimizations regarding feeds, speeds, and tool geometry will fail to prevent premature breakage. The interface between the machine spindle and the toolholder must also be immaculately clean, as a single particle of dust can induce unacceptable runout.
Manual touch-off methods using paper or gauge blocks are highly destructive to micro tools. The physical contact easily chips the brittle carbide edge, causing microscopic damage that leads to immediate failure during the first cut. Non-contact laser tool setters or optical comparators are required to measure tool length and diameter safely.
Setup protocols must be strictly controlled. Operators must use torque wrenches when tightening collet nuts on high-precision mechanical chucks. Uneven clamping force induced by manual tightening distorts the collet, introducing runout. micro machining tools demand a clinical approach to setup. Operators should handle these tools with tweezers or specialized sleeves to prevent oils from the skin from affecting the tool shank's seating in the holder.
High-RPM spindles, typically ranging from 20,000 to 60,000+ RPM, are necessary to achieve the correct Surface Feet per Minute (SFM). Because the tool diameter is so small, standard 10,000 RPM spindles cannot generate enough peripheral speed. Operating below the optimal SFM forces operators to drop the feed rate to maintain chip load, which often leads to rubbing and heat accumulation.
Machine rigidity directly impacts tool survival. Vibration, axis backlash, and poor thermal stability translate into erratic cutting forces. Any mechanical instability in the machine tool will manifest as broken end mills. Heavy cast-iron or polymer-composite machine bases are preferred for micro-milling because they dampen the high-frequency vibrations that destroy small carbide tools.
Flood coolant introduces severe risks of thermal shock. In high-heat applications, the cutting edge reaches extreme temperatures. When flood coolant hits the tool intermittently, the rapid heating and cooling cycle causes micro-cracks in the carbide substrate. These cracks propagate quickly, resulting in edge failure.
Minimum Quantity Lubrication (MQL) and targeted air blasts offer superior alternatives. MQL delivers a fine mist of oil that provides necessary lubricity to prevent BUE without inducing thermal shock. High-pressure air blasts effectively evacuate chips from deep micro-slots, preventing the recutting of chips that commonly snaps miniature tools. The air blast must be precisely aimed at the cutting zone; a misaligned nozzle provides zero benefit.
Traditional offset toolpaths cause massive spikes in tool load when driving into corners. Dynamic milling and trochoidal toolpaths maintain a constant radial depth of cut (RDOC). By controlling the engagement angle, the CAM software ensures the cutting forces remain steady, preventing the sudden overloads that destroy micro tools.
These advanced toolpaths also allow operators to utilize the entire flute length. Distributing wear across the full length of the cutting edge prevents localized wear at the tool tip. This strategy significantly extends tool life and maximizes the material removal rate without exceeding the tool's physical limits. Keeping the RDOC between 5% and 10% of the tool diameter yields the best results for micro-milling hard alloys.
Plunging straight down into the workpiece is fatal for miniature end mills. The center web of the tool has zero surface speed and cannot cut effectively. Plunging forces the tool to push material out of the way, creating massive axial pressure that snaps the tool instantly.
Helical ramping provides a safe entry strategy. By entering the material at a shallow angle while interpolating a circle, the tool engages radially and axially simultaneously. The ramping angle must be kept extremely low to minimize axial forces and allow the flutes to evacuate the initial chips safely.
| Material Type | Maximum Ramping Angle | Entry Feed Rate Adjustment |
|---|---|---|
| Aluminum / Non-Ferrous | 2.0° to 3.0° | Reduce by 30% of standard feed |
| Mild Steels | 1.0° to 1.5° | Reduce by 40% of standard feed |
| Hardened Steels (>45 HRc) | 0.5° to 1.0° | Reduce by 50% of standard feed |
| Titanium / Inconel | 0.5° | Reduce by 60% of standard feed |
High-aspect-ratio micro-slots present severe chip evacuation challenges. When the slot depth exceeds three times the tool diameter, chips easily pack into the flutes. Implementing micro-pecking cycles breaks the chips into manageable sizes and allows the tool to clear the flute valleys before recutting occurs.
The retract moves during peck cycles must be rapid to minimize non-cutting time, but the re-entry must be controlled. Feeding back into the cut too aggressively can chip the bottom edges of the tool. Proper CAM programming ensures the tool re-engages the material smoothly after each peck, often stopping 0.001 inches above the previous cut depth before resuming the standard feed rate.
CNC controls must have advanced look-ahead capabilities. Without look-ahead, the machine decelerates as it approaches corners or complex geometries. This deceleration causes the feed rate to drop, reducing the chip thickness and initiating a rubbing action that generates excessive heat.
Dynamic feed rate optimization adjusts the feed rate based on the actual tool engagement. As the tool enters a heavier cut, the feed rate adjusts to maintain a consistent chip thickness. This prevents dwelling and ensures the tool is always shearing material efficiently. Operators should utilize continuous path modes (like G64) rather than exact stop modes to keep the tool moving fluidly through the material.
Selecting tools based solely on initial purchase price often leads to severe operational inefficiencies. A low-quality tool that breaks prematurely can result in the scrapping of highly complex components. The impact of scrapped parts and machine downtime far outweighs any savings realized during the tooling purchase.
Premium micro tools offer strict batch-to-batch consistency. The edge preparation, core diameter, and coating thickness are tightly controlled. Economy tools might vary by 0.0005 inches from one batch to the next, which is enough to destroy a micro-milling process. This consistency reduces the need for operators to constantly adjust offsets or rewrite programs when changing tools. Reliable, predictable tool life is the foundation of profitable micro-milling operations.
Regrinding miniature end mills is rarely viable for tools under 1/8 inch in diameter. The grinding wheels used in tool manufacturing cannot accurately recreate the complex micro-geometries, edge preparations, and specific core tapers on a used micro tool. Attempting to run reground micro tools introduces unpredictable variables into the machining process.
Implementing a strict tool-life management system is necessary. Tools should be replaced based on time-in-cut or distance machined rather than waiting for failure. Pushing a micro tool until it breaks guarantees workpiece damage and potential spindle damage. Scheduled replacements ensure the process remains stable and part quality remains high.
A: Runout should never exceed 10% of the tool's calculated chip load. For reliable micro-milling, the Total Indicator Reading (TIR) must be kept under 0.0001 inches (2.5 microns) at the tool tip. Anything higher causes uneven loading, forcing one flute to do all the work, which leads to immediate tool breakage.
A: Standard dial indicators apply physical pressure that damages delicate flutes or fails to register accurately on micro surfaces. You must use non-contact laser measurement systems or high-magnification optical presetters. These systems measure the tool dynamically at operating RPM, providing a true representation of runout without risking edge damage.
A: You start with the standard formula: Feed Rate = RPM × Number of Flutes × Chip Load. However, you must apply a chip thinning factor when your radial depth of cut is less than 50% of the tool diameter. Adjustments are also required based on material hardness and the tool's specific core geometry.
A: Immediate breakage usually stems from plunging straight into the material. The center web of an end mill has zero surface speed and cannot cut. Breakage can also result from excessive entry feed rates, a lack of helical ramping, or microscopic edge damage caused during manual touch-offs prior to machining.
A: Two-flute or three-flute tools are preferred for aluminum. They provide larger flute valleys, which maximize the available space for chip evacuation. This prevents gummy aluminum chips from packing into the flutes, welding to the carbide, and snapping the tool during operation.
A: Insufficient RPM prevents the tool from reaching the correct surface speed (SFM). To maintain the proper chip load at low RPMs, the feed rate must drop drastically. This causes the cutting edge to rub against the material rather than shear it, leading to rapid heat buildup and premature edge failure.
A: Standard ER collets generally introduce too much runout for reliable micro machining due to their multiple sliding angles and stack-up tolerances. While high-precision ER collets exist, shrink-fit chucks or high-precision hydraulic chucks provide the superior concentricity and rigidity required to protect fragile micro tools.
