Tool breakage in micro-machining carries compounding costs that extend far beyond replacing the cutter. When a micro tool snaps, machine shops face scrapped parts, unexpected spindle downtime, and compromised production schedules. The microscopic margin for error defines machining with tools under 1/8 inch or 3mm. Forces easily absorbed by larger tooling will instantly snap fragile micro tools due to exponential decreases in core strength.
Instead of reactive troubleshooting and blaming the tool, programmers and operators must shift focus to proactive process control. Stabilizing the machining process requires a strict evaluation of machine rigidity, tool geometry, runout tolerances, tool holding, and CAM strategies. Mastering these variables transforms unpredictable tool failure into a controlled, reliable manufacturing operation.
Understanding why micro tools fail begins with the material science of solid carbide. Carbide provides the extreme hardness and wear resistance required to shear metal at high surface speeds. This hardness comes at the direct expense of elasticity. While a high-speed steel (HSS) tool might slightly flex under lateral stress, solid carbide will simply snap. When working with small diameter end mills, this brittleness becomes the defining constraint of the entire machining operation. You cannot treat a 0.030-inch end mill like a scaled-down half-inch end mill. The physical dynamics change completely at the micro level.
Tool deflection is the absolute enemy of micro-machining. The physical laws governing deflection state that the bending of a cylindrical tool increases to the third power of its length. If you double the length of the tool sticking out of the holder, it becomes eight times more flexible. Establishing a strict baseline rule is mandatory on the shop floor: a length-to-diameter (L:D) ratio over 3:1 requires exponentially more conservative cutting parameters. Pushing a micro tool with a 5:1 or 8:1 L:D ratio using standard feed rates guarantees immediate breakage due to the massive lateral forces acting on a highly leveraged, brittle core.
To manage tool deflection effectively, operators must follow a strict setup protocol:
Maintaining an appropriate chip load on a micro tool presents a unique physical challenge. The calculated chip load is often smaller than the actual cutting edge radius of the tool itself. Every cutting tool has a microscopic edge hone. If the edge hone is 0.0002 inches, and you program a feed rate that yields a 0.0001-inch chip load, the tool stops cutting. Instead, it starts rubbing and plowing against the workpiece. This rubbing generates immense friction, work-hardens the material surface, and drastically increases the cutting forces required for the next flute to engage. The tool is effectively pushed away from the material until the pressure builds high enough to snap the carbide core.
Unlike larger indexable mills or resharpenable tooling, micro tools experience wear that is nearly impossible to correct or even see with the naked eye. As the cutting edges degrade, they wear unevenly. This uneven wear induces micro-chipping along the flute. Once a micro tool suffers even a microscopic chip, the cutting dynamics change instantly. The damaged flute stops shearing material efficiently, transferring the entire mechanical load to the remaining flutes. This imbalance creates severe harmonic vibrations. You will not hear the tool screaming like you would with a larger end mill; you will simply pull the holder out of the machine and find a missing tip.
Identifying the root cause of tool failure requires looking past the broken carbide and analyzing the entire mechanical system. Micro tools rarely break due to manufacturing defects. They break because the machining environment introduces forces the tool geometry cannot withstand.
Total indicated runout (TIR) is the most common cause of premature failure in micro-machining. Runout occurs when the tool does not rotate perfectly on its center axis. If a 0.020-inch end mill experiences just 0.0005 inches of runout, one flute takes a massive, disproportionate bite of material while the opposite flute cuts absolutely nothing. This uneven flute engagement creates a cyclical hammering effect. Furthermore, worn spindle bearings in older or smaller CNC machines introduce fatal micro-vibrations. These vibrations amplify the runout at the tool tip, shattering the carbide before the tool even completes its first pass.
Runout Impact on Micro Tool Chip Load
| Programmed Chip Load | Spindle Runout (TIR) | Actual Max Chip Load on One Flute | Tool Survival Probability |
|---|---|---|---|
| 0.0005" | 0.0001" | 0.0006" | High - Stable cutting process. |
| 0.0005" | 0.0003" | 0.0008" | Moderate - Accelerated edge wear. |
| 0.0005" | 0.0005" | 0.0010" (Double) | Low - High risk of micro-chipping. |
| 0.0005" | 0.0010" | 0.0015" (Triple) | Zero - Instantaneous tool breakage. |
Scaling down machining parameters from standard tooling to micro tooling is not a linear process. Failing to adjust surface footage and feed rates correctly results in mechanical overload. Operators often make the mistake of moving into the material too fast during initial engagement. The sudden spike in cutting force overwhelms the tool's core strength. Conversely, running the spindle too slowly while maintaining a high feed rate forces the flutes to take chips that are too thick. A 0.015-inch tool requires massive RPM to achieve proper surface feet per minute (SFM). If your machine maxes out at 10,000 RPM, your SFM will be severely handicapped, forcing you to drop your feed rate drastically to maintain a safe chip load.
Chip congestion in tight pockets or narrow slots acts as a death sentence for micro tools. Because the flutes are incredibly small, there is very little room for chips to evacuate. If chips remain in the cutting zone, the end mill is forced to recut them. Recutting a chip that has already been sheared and work-hardened acts as a catastrophic shock load on the fragile cutting edge. The tool binds in the slot, torque spikes, and the carbide fractures instantly. You must get the chips out of the cut zone the millisecond they are formed.
The stress of Z-axis entry is notoriously difficult for micro tools to handle. Direct plunging creates a zero-velocity zone at the exact center of the end mill. Because the center of the tool is not rotating fast enough to shear material, it effectively crushes its way into the workpiece. This crushing action requires massive downward pressure, which frequently shatters the tool tip. Any straight Z-axis plunge into solid material carries a high risk of catastrophic failure. You must program a helical ramp or pre-drill a clearance hole.
Harmonic vibrations generated by poorly secured workpieces transfer directly into the cutting tool. If the workpiece material flexes or vibrates during the cut, it creates chatter. Vise jaw lift or thin-wall vibration will destroy a micro tool in seconds. Because solid carbide lacks the ability to absorb vibration, these harmonics cause micro-fractures along the cutting edge. Ensuring rigid workholding with maximum surface contact is non-negotiable when programming paths for micro tools.
Machining deep cavities with tight clearances often causes the non-cutting shank of the tool to rub against the walls of the workpiece. This happens when the tool deflects slightly during the cut or when the programmed toolpath does not account for the exact shank diameter. Shank rubbing generates immense friction and lateral force, acting as a lever that snaps the tool at the collet face. You must utilize relieved-neck tools to guarantee clearance between the shank and the cavity wall.
Variations in the workpiece material act as sudden shock loads. Surface scale on hot-rolled steel, localized hard spots from previous work-hardening, or impurities in cast materials present severe obstacles. A micro tool programmed to cut soft aluminum will instantly shear its flutes if it encounters a hard inclusion. The tool geometry and feed rate are simply not optimized for the sudden spike in material hardness. You must face off scale with a larger, robust tool before sending a micro tool into the cut.
Selecting the correct tool geometry and coating is just as critical as managing the machine environment. Using a general-purpose tool for a specialized micro-machining task guarantees poor performance and high scrap rates. You need application-specific tooling.
The number of flutes directly dictates the tool's core diameter and chip clearance capabilities. A 2-flute design provides massive gullets, making it the superior choice for machining gummy materials like aluminum, brass, and plastics where chip evacuation is the primary hurdle. However, 2-flute tools have a thinner core, making them weaker. Conversely, 4-flute or multi-flute designs feature a much thicker core diameter, providing the strength necessary to machine steels, titanium, and exotic alloys. Advanced geometries, such as variable helix and unequal pitch designs, are highly recommended. These features break up harmful harmonics during the cut, mitigating chatter and extending tool life.
Bare carbide is rarely sufficient for demanding micro-machining applications. Coatings act as thermal barriers and provide lubricity to prevent built-up edge (BUE). BUE occurs when workpiece material welds itself to the cutting edge, effectively changing the tool geometry and causing immediate breakage.

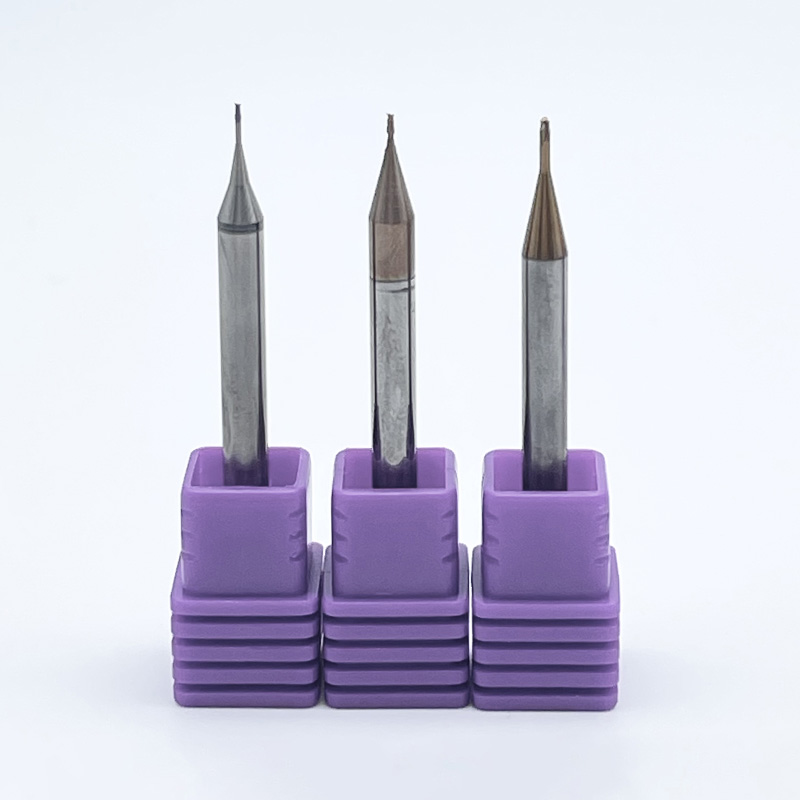

When deep cavity reach is required, operators must evaluate the trade-off between long-flute tools and relieved-neck tools. A long-flute tool has cutting edges along its entire extended length, which severely weakens the core and invites chatter. Relieved-neck tools feature a short cutting length followed by a reduced-diameter non-cutting neck. This design maximizes core rigidity near the spindle while allowing the necessary depth of cut. Utilizing relieved-neck carbide small diameter end mills prevents shank rubbing in tight clearances and provides a significantly more stable cutting process.
Tool Geometry and Coating Comparison
| Feature | Best Application | Primary Advantage | Risk Factor |
|---|---|---|---|
| 2-Flute Geometry | Aluminum, Plastics, Brass | Maximum chip evacuation in soft materials. | Weaker core; prone to deflection in hard metals. |
| 4-Flute Geometry | Steels, Titanium, Alloys | Strong core; handles higher lateral forces. | Small gullets; high risk of chip packing in soft metals. |
| Variable Helix | High-speed roughing | Eliminates chatter by disrupting harmonics. | Requires precise CAM programming to utilize fully. |
| AlTiN Coating | Hardened Steels, Dry Machining | Exceptional thermal barrier and wear resistance. | Not suitable for aluminum (causes chemical affinity/BUE). |
| Relieved-Neck Design | Deep cavities, tight pockets | Prevents shank rubbing while maintaining rigidity. | Limited depth of cut per pass compared to long-flutes. |
Even the highest quality micro tools will fail if the machining process is unstable. Implementing strict process mitigation strategies on the shop floor is the only way to guarantee consistent production. You must control the variables before the spindle turns on.
Moving away from standard ER collets is often the first necessary step in micro-machining. ER collets rely on multiple moving parts and compression slots, which naturally introduce runout. For tools under 1/8 inch, evaluate the implementation of shrink-fit, hydraulic, or high-precision mechanical milling chucks. Shrink-fit holders provide near-perfect concentricity and massive gripping force, achieving sub-micron runout. Additionally, mandate strict cleaning protocols for spindle tapers and tool holders. A single spec of dust or dried coolant between the holder and the spindle taper will induce enough runout to snap a micro tool instantly. Use a dedicated spindle taper wiper before every shift.
Software-side force management dictates tool survival. Traditional CAM strategies designed for half-inch end mills will destroy micro tooling. Programmers must adapt their approach entirely.
Trochoidal milling takes light, fast radial cuts, ensuring the tool never exceeds a specific engagement angle. This maintains a perfectly consistent chip load and prevents sudden torque spikes.
Thermal and evacuation management requires matching the coolant strategy to the material and the tool. Flood coolant is standard, but it presents severe risks in micro-machining. When a hot carbide tool is suddenly hit with cold coolant, it experiences thermal shock, causing micro-cracks in the coating and substrate. For many steel and alloy applications, a high-pressure compressed air blast is vastly superior. Air blast effectively clears chips out of deep pockets without inducing thermal shock. If machining aluminum, where lubricity is required to prevent BUE, use a Minimum Quantity Lubrication (MQL) system to clear chips and lubricate the cut simultaneously without flooding the zone.
Running a micro tool until it breaks guarantees scrapped parts and potential spindle damage. Implement strict risk mitigation by establishing baseline tool life limits. Run test cuts to determine exactly how many minutes a tool can stay in the cut before micro-chipping occurs. Once this baseline is established, mandate strict time-in-cut limits in the CAM software or machine control. Replace tools before they fail. Utilize spindle load monitoring if the CNC machine is sensitive enough to detect the minute load changes of micro tools, though time-based replacement remains the most reliable method for tooling under 1/8 inch.
Upgrading a machining process to support micro tooling requires balancing upfront investments against long-term production stability. You cannot cut corners on tooling and expect high-precision results.
High-precision tool holders, shrink-fit machines, and premium coated micro end mills represent a significant capital investment. Shop managers often hesitate to move away from cheap ER collets and uncoated tools. Analyzing the reduction in scrap rates, the elimination of machine downtime spent extracting broken tools, and the drastic drop in consumable tool consumption quickly justifies the investment. A stable process that consumes one premium tool per shift is infinitely more profitable than an unstable process that snaps five cheap tools per shift while ruining expensive workpieces.
Programmers constantly face the trade-off between aggressive cycle times and tool reliability. Lowering feed rates, taking shallower depths of cut (DOC), and utilizing trochoidal toolpaths often increases the theoretical cycle time of a specific operation. Reliable, slightly slower cycle times yield higher overall throughput. Aggressive parameters that cause unpredictable breakage force the machine to sit idle while the operator intervenes, ultimately destroying the daily production quota. Consistency always outperforms erratic speed in micro-machining.
A: For tools under 1/8 inch, total indicated runout (TIR) should never exceed 0.0002 inches. Anything beyond this threshold causes uneven flute engagement. This drastically increases the chip load on a single cutting edge, leading to rapid tool failure and poor surface finish.
A: Breakage upon entry usually stems from direct Z-axis plunging. The center of an end mill has zero cutting velocity, meaning it crushes rather than cuts material. You must use a helical ramp or pre-drill a starting hole to reduce stress on the tool tip.
A: Micro tools cannot absorb vibration. If a machine lacks rigidity or has worn spindle bearings, it transfers micro-vibrations directly to the tool. This causes chatter, micro-chipping of the carbide edges, and eventual snapping, even if your programmed feeds and speeds are perfectly calculated.
A: Yes. Solid carbide provides the extreme stiffness required to prevent deflection in micro sizes. While High-Speed Steel (HSS) is tougher and bends before breaking, it lacks the rigidity and wear resistance necessary to maintain precise tolerances and survive the lateral forces of micro-machining.
A: It depends entirely on the workpiece material. For aluminum, coolant provides necessary lubricity to prevent material welding to the tool. For hardened steels, high-pressure compressed air is superior. Air clears chips effectively without causing the thermal shock that cracks hot carbide tools.
A: Tool deflection increases to the third power of the tool's length. An L:D ratio greater than 3:1 significantly increases flexibility. Excessive reach causes the tool to bend, rub against the material, and snap under lateral pressure. Always use the shortest tool possible for the operation.
