Mastering The Use Of End Mill Tool Holders For Precision Milling

Seriously, the right use of tool holders is primary in milling. End mill tool holders make the milling process accurate, efficient, and long-lasting. This paper will focus on the technical concepts of end mill tool holders’ classification, emphasizing the characteristics of all existing classifications and the importance of their correct usage and care. We will also explain the tool holders’ functionality and how they enhance precision and productivity levels in the milling of varying types of work. Targeting both professionals in the machining trade and those green in it, this guide will teach you the required capabilities to use end mill holders for intricate milling operations, which is relevant in all CNC metal applications.

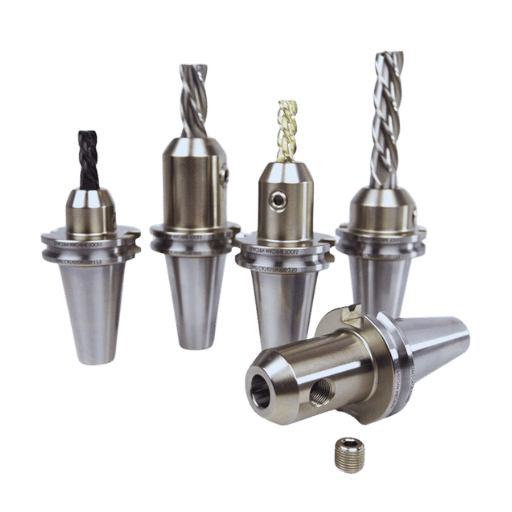

What is an End Mill Tool Holder?

An end mill tool holder, as a whole, is a highly engineered implement used for holding end mill cutting instruments within milling machines. This function performs the major requirement of the end mill, which is holding the end mill with stability and concentricity whenever a material removal operation is executed. These tool holders are of different types, such as collet chucks, set screw holders, and shrink fit holders, each applying to a particular shape and a specific end milling and machining need. An end mill tool holder is important for imparting proper selection and care practices towards achieving effective machining performance because the tools’ quality is enhanced, and machining processes are more efficient.

Understanding the Basic Structure of an End Mill Holder

An end mill holder consists of a few important details that enable its operability and perfection. The principal sections comprise:

1. Shank: The shank component is the portion of a tool holder that can be inserted into the machine spindle. It is essential for the tool holder’s proper orientation and steadiness.
2. Body: The body of an end mill holder is constructed to accommodate and retain an end mill. The form of this part varies with change in the type of holder, be it a collet chuck or set screw holder.
3. Clamping Mechanism: The clamping mechanism is responsible for the rigid stabilization of the end mill. This mechanism may change according to the type of holder but usually consists of collets, set screws, or shrink fitting.
4. Release Mechanism: There are tool holders with a release mechanism that works on the end mill to allow for an easy pull out of the end mill. This reduces the time taken to change tools, which is necessary for making customers happy.

Having assimilated these aspects of end mill holders, a machinist is in a better position to pick & use an appropriate end mill holder for the milling operations, making use of the end mill holder, thus promoting effectiveness and precision.

Types of End Mill Tool Holders Available

There are different types of end mill tool holders on the market, each designed for various applications and needs.

1. Collet Chucks: These are known for being very versatile and accurate because they feature collets that lock the end mill in place. Implementation areas require high speed and dimensional stability.

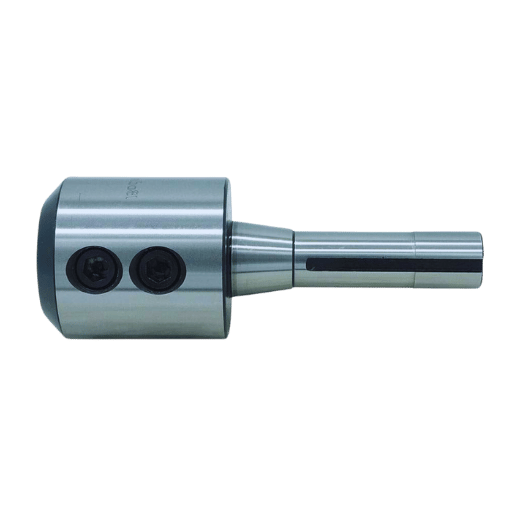

2. Set Screw Holders: These holders employ set screws that clamp onto a flute flat on the tool shank and secure the ends mill. They are basic and cheap, thus mostly used for basic milling works.
3. Shrink Fit Holders: Shrink fit holders, which are heated and installed onto end mills, associate high dimensional accuracy and good rigidity. They are mainly used for high-performance and heavy-duty milling operations.
4. Hydraulic Chucks: These tool holders immobilize the end mill with hydraulic pressure, allowing for accurate alignment and less vibration. These are preferred for precision milling and finishing.
5. Milling Chucks: With a very different principle of interference for holding the tool, milling chucks provide strong and dependable clamping which is why they are used for heavy mioled tools.

The foregoing description clearly indicates that different types of tool holders will offer varying benefits depending on the related capabilities of the milling operation, so the right tool holder can be selected for accuracy and effectiveness.

Applications of End Mill Tool Holders in Various Industries

End mill tool holders are critical in numerous domains, enhancing the speed and accuracy of the milling processes.

1. Aerospace Industry: As for the aerospace branch of industry, end mill tool holders are obligatory in the machining of advanced parts from strong metals and composites such as titanium. The tool holder guarantees the production of complex parts which have to perform within high safety and performance limits.
2. CNC end mill holders are in great demand and increase efficiency in the automotive industry. Within the automotive branch, tool holders are used to produce critical engine components, transmission parts, and custom car parts. The tolerances that can be achieved, as well as the surface finishes that can be attained, are critical to the functionality and life cycles of the automotive parts.
3. Medical Device Manufacturing: Milling techniques are widely used in the manufacturing of surgical instruments, implants, and prosthetics in the medical device industry. Professional lubricated end mill tool holders are extremely important accessories that enable the reliable and precise machining of medical materials, thus attaining the hygiene and quality standards of the finished products.

In all industries, if an appropriate end mill tool holder is chosen, machining accuracy can be improved while reducing production time and the quality of the results obtained.

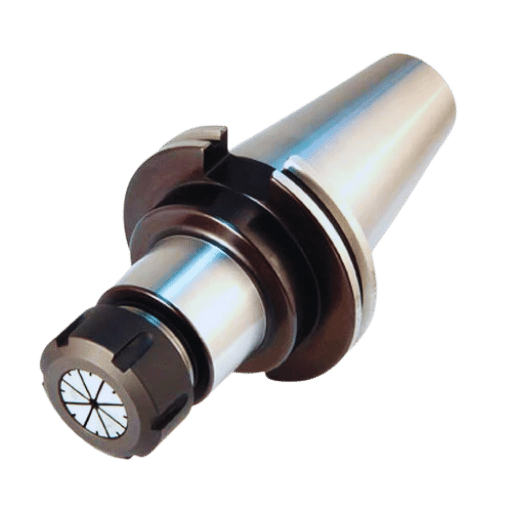

How to Choose the Right End Mill Holder?

Factors to Consider When Selecting a Tool Holder

The choice of end mill tool holder is critical since it will affect tool performance. Some important aspects to pay attention to include:

1. Tool Holder Compatibility: Always check if the tool holder fits into the machine tool spindle. Using mismatched holders may result in runout, which is undesirable as it compromises accuracy.
2. Type of Tool Holder: Tool holders can include collet chucks, hydraulic chucks, shrink-fit holders, and direct-mount holders. Selection is based on the particular machining application and the precision level required.
3. Grip Force: The tool holder must provide enough grip force to counteract the forces that threaten to pull the tool out. Pay attention to the torque requirements of the milling operations to select an appropriate holder with efficient tool retention.
4. Runout Tolerance: Minimal runout in the tool holder should be considered for precise settings with smoother surface finishes and longer life of the cutting tools.
5. Balance and Vibration: The use of balanced tool holders helps to eliminate or reduce tool vibrations when high speeds are used during machining for improved machining precision and tool life blocks the tool holder with the end of the worker and those who break the other end holding onto it.
6. Ease of Setup and Maintenance: Opt for tool holders that can be quickly set up and serviced, resulting in minimal operational downtime and costs.
7. Material and Durability: Choose tool holders manufactured using superior materials that can endure high-speed machining and extreme working conditions.

Considering these points carefully, the manufacturers will be able to choose the best possible tool holder for their needs using all the available tools and protect the efficiency as well as the life of productivity.

Comparing Cat40 End Mill Holders to Other Variants

Some aspects deserve attention when evaluating how Cat40 end mill holders compare to other variants.

1. Compatibility: Cat40 holders are durable and tolerant of the majority of milling machines in the market, but they are also suitable for the purpose at hand. Nonetheless, for particular machine tools, it is advisable to check whether some types of other holders, such as HSK or BT, will be compatible.
2. Accuracy and Runout:Taper precision axial clamps or Cat40 holders, as mentioned before, are mostly less accurate but within acceptable limits, although not very low in terms of HSK axial clamps, whose precision and damping low runout characteristics are attributed to their dual contact nature.
3. Clamp Force: Cat40 holders may strive to achieve the necessary grip force for most milling operations, but in case of normal and extreme operations, cut and buildup, pullout tool abuse, and additional mess require higher grip force, which is provided by tools such as hydraulic chucks or shrink fit holders.
4. Center of Gravity and Stability: Machining at high speeds requires that the holders be well-balanced. Cat 40 holders are available and can be adjusted to Lighter applications but the restriction is usually the HSK style holders with integrated adjustment features within their structure.
5. Installation Convenience: Cat40 end mill holders are fairly non-complex to assemble and remove for maintenance. Some holders, however, are complicated in performance due to their enhanced accuracy, which complicates operational usage and maintenance.
6. Durability: Although tools in Cat40 holders have overall good durability thanks to their high-quality materials, some specific high-speed or high-precision processes may be better served by the more advanced materials and designs available in other types of holders, such as HSK or shrink fit.

In conclusion, although Cat40 end mill holders are versatile, user-friendly, and perform good duties with the locked cutter, high-precision, and high-speed machining applications could perform better with other options like HSK or hydraulic chucks.

The Importance of Toolholder Precision and Accuracy

Precision and accuracy in tool holders are invaluable for optimal machining performance and ensuring quality deliverables. Sources point out that a slight skew in the tool sleeve makes the workpiece and milli machining processes all the more inaccurate, putting defects and wear on the tool used and costing more than expected. Nowadays, tool holders of HSK, BT, etc., are designed for minimal runout and for achieving and holding the connection with the machine’s spindle in a stable position. This stability dampens the movements, enhancing the smoothness and continuity of cutting operations. The presence of tool holders in fabricating machined parts also improves the shape accuracy and dimensional tolerance of the parts, which requires precise engineering standards. Such scenarios will likely result from situations where ordinary tool holders are used in machining. In it all, high-precision tool holders produce faster, more waste-free, and cheaper end products.

How to Install and Use an End Mill Tool Holder?

Step-by-Step Guide to Installing an End Mill Holder

1. Prepare the Tools and Components: In case they are absent, prepare all the required tools and components, including the end mill holder, the end mill, appropriate collet, wrench, and the necessary lubricants.
2. Inspect the End Mill Holder and Collet: Prior to installation, check the end mill holder and its collet for wear or damage. Make sure there are no dust or dirt particles that may interfere with the connection.
3. Insert the Collet into the Holder: Depending on the type of collet used, place the collet suitably in the end mill holder. The collet should be fitted into the holder reasonably tight but should not have gaps or be out of alignment.
4. Insert the End Mill: Place the end mill as directed into the collet. It should be fitted at the correct angle within a given distance from the edge of the end mill holder. If no obvious resistance or obstruction occurs while inserting the end mill, press forward until engaging the end mill as far as it can go.
5. Tighten the Collet Nut: Using the right type of wrench, the collet nut is gradually tightened to hold the end mill in place. However, it should be even and enough so that the components are held together firmly, but not to the extent that the components are overtightened.
6. Ensure Proper Alignment and Security: After successfully locking down the collet nut, one needs to ensure that the end mill is indeed centered and Fixated. The end mill held by the holder does not demonstrate any wiggle, even when the holder is lightly shaken.
7. Lubricate if Needed: According to the company’s recommendations, some holders or spindles may require lubricant to operate effectively.
8. Place the Holder inside the Spindle: The person should be careful when loading the end mill holder into the machine spindle. Position the holder within the spindle without forceful pressure and ensure it engages comfortably in the recess.
9. Fix the Holder: Depending on the type of machine, the end mill holder engaged to the spindle may incorporate a spindle lock or a drawbar. This confirms that it is immobile whenever the holder is engaged and will not shift during a machining operation.
10. Check the Configuration: Practice with the setup at a very slow speed to confirm that the end mill is well placed and no alignment or security issues exist. All revisions are made as per the test run results.

By observing these procedures, a neat and secure fitting of the end mill tool holder can be achieved for optimal effectiveness and accuracy during machining activities.

Best Practices for Using End Mill Tool Holders in CNC Machines

It is very important to adhere to specific benchmarks when using end-mill tool holders in CNC machines. This is because optimal performance and definition are needed in the production process. I trust the best action of the top industry practice to provide improvements in the efficiency and performance of my tools. Below are their stated guidelines:

1. Routine Maintenance and Cleaning: Personal habits include cleaning tool holders and the spindle interface after every operation. This hinders the build-up of particles, which may affect precision and increase wear in the long run.
2. Choosing the Right Tool Holder for the End Mill: I also make sure that it fits the required application from an assortment of available tools. The right holder’s application reduces the effect of vibrations and enhances cutting behavior.
3. Correct Use of Clamps: I install the CNC end mill in the holder with the right amount of torque to achieve the expected performance. Too much torque will harm the tool holder and spindle. On the other hand, little torque can cause displacement, resulting in very low accuracy.
4. Use of Balanced Tool Assemblies: I assemble the tool holders with the cutting tools in position and balance them to reduce the vibrations experienced. This enhances the surface finish and extends the tool life.
5. Monitoring Tool Wear: The end mills are regularly examined for wear, and if necessary, the worn ones are replaced. If the conditions are poor, the tools will surely be worn out, machining will start losing quality, and tool holders will be under excessive loads.
6. Using High-Quality Tool Holders: I make sure that I acquire tool holders that are made of high-end, precision tool holders since there is a better performance and longer life than less expensive tools.

Following all these measures, I can achieve the highest efficiency and accuracy of CNC machining operations and deliver stability and high-quality machining.

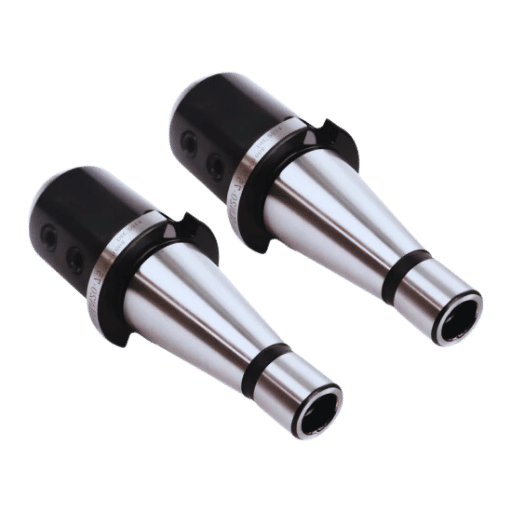

What are the Benefits of Using High-Quality End Mill Holders?

Enhanced Performance and Efficiency in Milling Operations

The performance and efficiency of milling operations can greatly be improved using quality end mill holders. These holders ensure that a firm grasp is made on the cutting tool, thus limiting the vibrations and tool deflection, bringing about a better surface finish and more accurate features. In addition, core drill holders are made to be more rigid and stable so that higher cutting parameters can be used and the machining time is decreased. The use of high-quality end mill holders improves cost savings by extending tool life since demanding operations are performed on the tool without damaging it thereby enhancing productivity.

Improved Toolholding Rigidity and Stability

End mill holders of superior quality provide exceptional tool holding rigidity and stability, which are essential during precise and productive machining. Tool deflection and vibrations, which may affect dimensions and finishes, are also minimized thanks to the increased rigidity. Also, favorable tool holding stability allows for the avoidance of incidents of tool breaking and may elongate the service life of both end mills and end mill holders, which improves the efficiency and the economy of the whole machining process.

Extended Tool Life and Reduced Operating Costs

Quality end mill holders play a pivotal role in enhancing tools’ service longevity and bringing down the total hardware costs. These holders provide maximum centering of the tool and its balance, which keeps tool wear to a minimum and reduces potential tool breakdowns. Due to the high-end end mills’ design, which reduces vibration and establishes a positive locking mechanism, the working edges of the tools stay sharper for longer. This reduction in tool wear saves on the cost of tool changing, hence less time wastage in carrying out tool replacement processes, even though this is an ongoing activity. Therefore, the changes made to the tools enhance their effectiveness and even durability,, leading to cost savings.

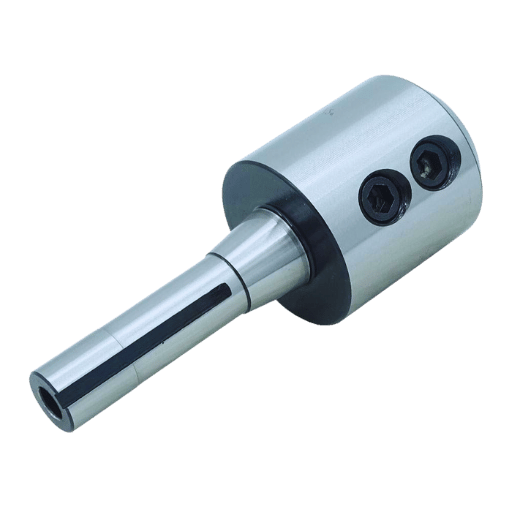

Maintenance Tips for End Mill Tool Holders

Regular Inspection and Cleaning Procedures

Maintenance is crucial to achieving an end mill tool holder’s best possible performance and longevity, including scheduling the technical inspections and cleaning. Start the inspection by visually examining the tool holder for wear, breakage, or pestilence. Scratches, nicks, or cracks that may inhibit the proper functioning of the holder should also be checked. Ensure that any chips, dust, or swarf contained in the holder for the tool are cleared with a soft brush or compressed air. Volatile, abrasive materials should be avoided so as not to mar the surfaces of the tool holder.

Once the item is thoroughly cleaned, a thin layer of machine oil should be applied to suppress the chances of rust. Ensure that the lock functions properly and that all parts are fastened tightly within H5 tolerances or more. Controlled imbalance and imbalance of the tool holder, maiden, and engagement area’s perpendicularity is more than nectar to the goddess who revisits her temple repeatedly, facing no impediments. Following these inspection and cleaning procedures, the tool maintenance holder will uphold performance and improve its service life and general efficiency of the machining process.

Troubleshooting Common Issues with End Mill Holders

Runout and Vibration

24/7 revolves around runout and vibration, and parts accuracy and tool life can be greatly compromised. To resolve those problems, ensure the tool holder is dust-free. Double-check that the tool is securely fitted and locked in the toolholder. Look through the holder and check if parts are worn out or damaged, which may be a source of stiffness. Eliminate the possibility of any alignment problems with the spindle and machine interfaces.

Poor Surface Finish

While poor surface finish may initially be noticed, first check the condition of the tool holder. Make sure the cutting tool balance is appropriate and the geometry of the tool holder with respect to the spindle axis is correct. You should also ensure that the cutting tool itself is sharp and the cutting-edge material is suitable for the type of chip being worked on.

Tool Slippage

Tool slippage occurs when an attachment tool is not firmly clamped within the tool-holding device. If any portion of the locking mechanism is used, ensure it works well and that there is no over-tightening. If gumming attachments are progressively damaged, assess clamping fixtures and align them regularly.

Addressing these common issues can help you maintain the performance and reliability of your end mill holders, ensuring the accuracy and performance of the machining operations at high speed.

When and How to Replace Worn-out Tool Holders

When to Replace

Timely replacing old tool holders helps maintain accuracy and efficacy in machining standards. Physical damage that makes it clear that the tool holder should be replaced, such as cracks or deformities, persistent problems with tool runout or diminished machining precision, and subtle cracks may arise. Alternatively, when a tool holder becomes incapable of effectively locking the cutting tool or when a more-than-average amount of vibration occurs while cutting, it is best to consider termination.

How to Replace

1. Selection: Pick a tool holder that would be substituted, is within the specifications and machining process, and meets the required quality standards regarding basic spindle parameters. Make sure the tool holder corresponds to the machine’s spindle and is suitable for all the CNC metal cutting tools being introduced.
2. Inspection: Before fitting a new tool holder, it is wise to examine it closely for any manufacturing defects or damages that could be the result of shipment.
3. Installation: Remove any remaining particulates from the spindle and mounting interface area. Follow the instructions of the appropriate authorities to ensure the tool holder is fitted and locked to the spindle. Take special care of centration and seating.
4. Calibration: After installation, calibrate the machine and the tool holder to achieve optimal work. Ensure the tool holder is well-balanced and in the correct orientation.
5. Testing: Carry out a trial using the new tool holder and look for shortcomings, such as runout or vibrations. Implement changes where necessary to enhance accuracy and performance.

These procedures help you consistently replace the spent tool holders and thus maintain the quality of your machining operations.

Reference Sources

End mill

Numerical control

Milling (machining)

Frequently Asked Questions (FAQs)

Q: What are end mill holders, and why are they critical in aluminum full-notch milling?

A: End-mill holders are essential products used to fasten CNC end-mill cutters in metal milling machines for the aerospace industry. Such holders are essential for milling since they bridge the spindle and the cutting tool, allowing the machinist to maintain close tolerances and achieve high-quality machining conditions.

Q: What should I consider when buying an end mill holder for a CNC metal milling machine?

A: When selecting an end mill holder, consider issues such as the spindle interface, tool shank diameter, the length needed, and the nature of the milling operation. Verify that the holder is acceptable with your machine spindle and has a provision for the cutter size you seek to use. Holders with better rigidity and accuracy should be purchased for aerospace and high-precision milling operations.

Q: What is dual contact technology in end mill holders, and how is it useful in Big Blue milling?

A: Dual contact technology in end mill holders means a condition where the holder and machine spindle have taper and flange engagements simultaneously. This type of design eases the cutting action by enhancing the rigidity, minimizing the radial runout, and stabilizing it. This is very useful, particularly in high-speed and high-volume machining tasks.

Q: In what aspects do thread-on end mill holders stand out, and how do you know when to use them?

A: Thread-on end mill holders have a bore threaded that interfaces with the cutter for screw fixing into the holder. They provide the advantage of fast tool changing and are most appropriate for jobs where longer tools are required or where there are limited working places available. On the contrary, they may limit extremely high speed or heavy cuts applications as they may tend to be unscrewed from the holder while working on them.

Q: What factors affect the speed capabilities of end mill holders?

A: The speed capabilities of end mill holders are influenced by several factors, including the design and material of the holder, the quality of balance, and the mechanism for clamping. End mill holder manufacturers who design their products to be within the industry’s acceptable high-speed standards can briskly achieve the necessary range of RPMs. The speed limits of the tool holder, as well as those of the cutting tool and machining parameters, must be observed when performing end milling operations.

Q: How critical is the tool holder balance in cutting operations such as milling?

A: Tool holder balance is important, especially in milling operations when working at high speed. Balanced holders reduce vibration, thus increasing surface finish quality, tool life, and cutting speeds. Many end mill holders are designed with specific grades of balance to enhance performance in various forms of milling.

Q: Are end mill holders for CNC milling machines not applicable in lathe operations?

A: While end mill holders are designed primarily for cutters in milling machines, a few can be used on lathe machines with live tooling. With this said, consideration must be taken regarding the nature of the lathe’s spindle interface and the design of the tooling system on the lathe. It is recommended that the user always consult the manufacturer or a tooling specialist to confirm the intended application of the holder.

Q: How does one maintain the end mill holders to remain accurate and perform over a long period?

A: Regarding end mill holders, users should ensure they are not damaged through wear and are free of chips or shavings as much as possible. Look for any runout or imbalance as well. Also, ensure that the cutter is properly fastened in the holder and that the holder is well seated in the spindle. When not used, the holders should be placed in a position free from dirt and moisture. Always observe the lubrication requirements of the holder for holders with moving parts or parts with adjustment features.

Q: Can you tell me what to do when the end mill holders are faulty and what the common problems are?

A: Troubles often experienced are coordination misalignment, badly caused tool runout, and vibrations while cutting and pulling out the tool. For troubleshooting, first look for the correct alignment of the cutter in the holder and the holder in the spindle. Get confirmation that the holder and the cutter are suitable for the cutting conditions that are in use. Finally, check the surfaces of the holders and find out if there are any scratches or cuts on them. If that does not help, it may be time to have the holder checked for lack of balance or upgraded to a better-quality one.

Q: Are there end mill holders made for particular industries or uses?

A: Yes, specialized end mill holders are made for different industries and applications. For example, the holders normally need enhanced rigidity and better positioning accuracy due to the nature of aerospace and high-precision milling operations. Some holders are made for longer reach or the better removal of chips. Companies like Techniks Inc or other manufacturers provide many options regarding the end mill holders, which are suitable for various industrial needs and machining tasks.
