Why do some CNC parts have rough surfaces and long machining cycles? Poor tool selection often causes chatter, excessive wear, and inefficient cutting. End Mills influence surface finish, cutting stability, and machining productivity. In this article, discover how tool geometry, coatings, and cutting parameters improve CNC machining performance.
End mills play an important role in CNC manufacturing. Their geometry, materials, and cutting conditions influence surface quality, dimensional accuracy, and productivity.
Cutting edge geometry determines how an end mill interacts with the workpiece. Sharp, suitable cutting edges help produce cleaner surfaces during machining.
Different materials require different cutting geometries. Aluminum benefits from sharp edges and effective chip evacuation. Hardened steel requires stronger cutting edges that resist heavy cutting forces.
Selecting suitable end mills helps manufacturers reduce surface defects and maintain stable machining performance.
Tool marks often result from unsuitable cutting parameters or unstable tool movement. Feed per tooth, cutting engagement, and tool geometry influence their appearance.
Surface roughness is commonly evaluated using Ra and Rz measurements. Ra represents average profile roughness, while Rz describes specified surface height characteristics.
Manufacturers should establish surface finish requirements before selecting cutting parameters. Consistent machining conditions help achieve repeatable results.
Chatter occurs when cutting forces create unstable vibration during machining. It produces irregular surface marks and accelerates cutting edge wear.
Tool overhang, workholding rigidity, and cutting parameters influence vibration behavior. Excessive tool length can increase deflection and reduce stability.
End mills featuring variable helix or variable pitch designs may help control vibration. However, machine rigidity and operating conditions remain essential.
Material removal rate influences how quickly CNC machines complete machining operations. Higher feed rates and cutting engagement can improve productivity under suitable conditions.
However, excessive cutting loads may cause chatter, deflection, and premature tool wear. These problems reduce finished quality and increase rework.
Manufacturers should balance material removal efficiency against surface requirements. Stable machining often delivers better productivity than aggressive cutting alone.
Flute geometry influences how chips form and leave the cutting area. Poor chip evacuation can cause recutting, surface damage, and excessive heat.
Fewer flutes generally provide additional chip space. Additional flutes may support higher feed rates when chip evacuation remains effective.
Tool selection should reflect workpiece material and cutting engagement. Suitable cooling or air assistance can further improve chip removal.
Tool deflection can cause dimensional errors and uneven machined surfaces. Smaller diameters and longer cutting lengths generally increase deflection risks.
Rigid toolholders and suitable cutting parameters help maintain dimensional consistency. Shorter tool overhang also improves stability.
Manufacturers should measure finished components against established tolerances. Regular inspections help identify positioning or deflection problems.
Cutting edges gradually wear during CNC machining. Excessive wear increases cutting forces and reduces surface quality.
Suitable carbide substrates and coatings help maintain cutting performance. Correct speeds, feeds, and cooling conditions also influence tool life.
Longer usable tool life reduces replacement frequency and production interruptions. Manufacturers should monitor cutting performance before visible quality declines.
Tip: Evaluate surface roughness, cutting stability, and tool wear together when comparing end mill performance.
End mill geometry influences cutting engagement, chip evacuation, and machining stability. Selecting appropriate designs helps manufacturers achieve the required finish efficiently.
Flute count determines the number of cutting edges available during machining. Two-flute tools generally provide more chip space than comparable multi-flute cutters.
Three-flute and four-flute designs balance chip removal and cutting stability differently. Multi-flute tools may support productive finishing under suitable conditions.
However, more flutes do not automatically create smoother surfaces. Manufacturers must consider tool engagement, material characteristics, and achievable feed rates.
Helix angle influences how cutting edges enter and leave the workpiece. Suitable designs can distribute cutting forces more smoothly.
Variable helix geometry may reduce vibration under specific machining conditions. It also influences chip flow and cutting stability.
However, aggressive helix angles may increase axial forces. Manufacturers should select geometry according to material properties and machine rigidity.
Square end mills are suitable for slots, flat-bottom features, and side milling. Their geometry supports different roughing and finishing operations.
Ball nose end mills are designed for curved surfaces and three-dimensional contours. They are commonly used in mold manufacturing and complex profiling.
Corner radius end mills provide reinforced cutting corners. This geometry can reduce corner chipping and improve stability during suitable machining operations.
The appropriate tool depends on component geometry and surface requirements.
Tool dimensions strongly influence cutting rigidity. Larger diameters generally provide greater bending stiffness under comparable conditions.
Long cutting lengths and excessive overhang increase deflection risks. These conditions may cause vibration and dimensional errors.
Manufacturers should select the shortest practical tool for each operation. Proper toolholding further improves stability and surface consistency.
Tool materials and coatings influence wear resistance, cutting stability, and usable tool life. Their performance depends on workpiece characteristics and operating conditions.
Solid carbide offers high hardness and rigidity for demanding machining applications. These characteristics support precision cutting when machine conditions are suitable.
Micro-grain carbide substrates can balance hardness and toughness. However, cutting edge design remains important for resistance to chipping.
Solid carbide end mills are widely used in steel, aluminum, and precision component machining. Manufacturers should select suitable grades according to material hardness.
Tool coatings help protect cutting edges against wear and thermal loading. Common coating families include TiAlN, AlTiN, and AlCrN-based systems.
Different coatings provide different performance characteristics. Their suitability depends on operating temperature, material adhesion, and cutting conditions.
Some carbide end mills use AlCrTiN coatings for improved wear resistance. However, coatings must be evaluated alongside geometry and substrate quality.
Aluminum and other non-ferrous materials can adhere to cutting edges. This may cause built-up edge formation and surface defects.
Polished flutes help reduce friction and improve chip movement. Suitable cutting geometries also support cleaner material removal.
Uncoated carbide tools are practical for many aluminum applications. Specialized coatings may provide additional benefits under specific conditions.
Workpiece hardness influences the required cutting edge strength and wear resistance. Harder materials generally demand suitable carbide grades and controlled machining parameters.
However, excessive brittleness can increase chipping risks. Toughness remains important during interrupted cutting and unstable engagement.

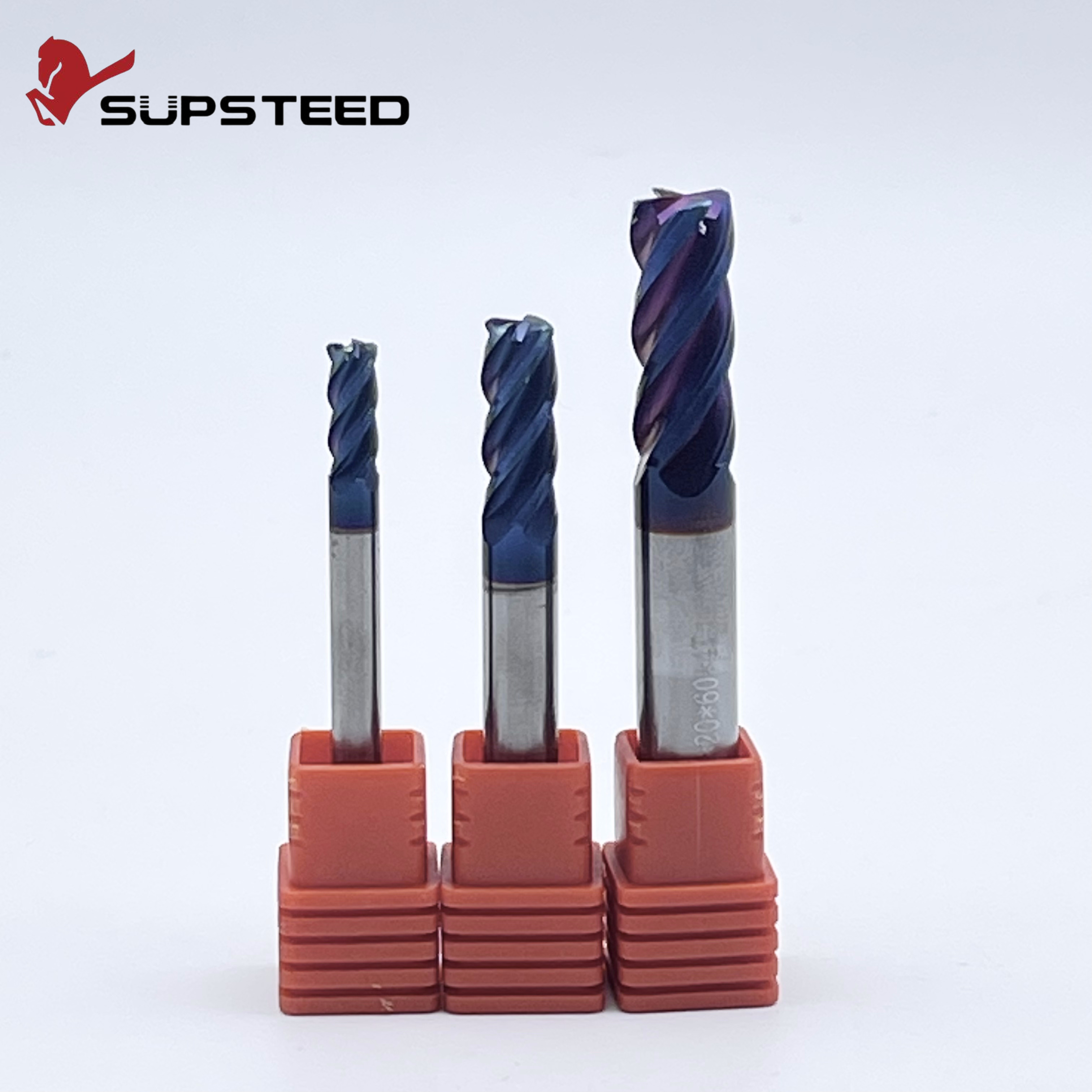

SUPSTEED PRECISION TOOLS offers HRC65 Corner Radius End Mills for demanding machining applications.
These tools feature ultra-fine grain carbide and an AlTiN-based coating. Their design supports suitable hardened steel and mold machining operations.
End Mill Type | Main Characteristics | Typical Applications |
|---|---|---|
Solid carbide end mill | High hardness and rigidity | Precision milling |
Coated carbide end mill | Improved wear resistance | Steel and difficult materials |
Polished end mill | Reduced material adhesion | Aluminum machining |
Ball nose end mill | Rounded cutting profile | 3D contour finishing |
Corner radius end mill | Reinforced cutting corners | Profiling and shoulder milling |
Tip: Select coatings according to carbide grade, cutting conditions, and workpiece material rather than coating hardness alone.
Different workpiece materials create different cutting challenges. Manufacturers should select end mills according to material properties and required results.
Aluminum machining requires effective chip evacuation and control of material adhesion. Built-up edges can damage finished surfaces and increase cutting forces.
Sharp cutting edges and polished flutes help maintain clean machining. Suitable cooling or lubrication can improve chip removal.
Manufacturers should avoid unsuitable feed rates that encourage rubbing. Stable workholding further supports smooth surface finishing.
Steel machining requires suitable cutting edge strength and wear resistance. Material hardness influences cutting speed and feed selection.
Stainless steel presents additional challenges involving heat and work hardening. Poor cutting conditions can accelerate wear and reduce surface quality.
Suitable carbide grades and coatings help manage these conditions. Manufacturers should maintain effective chip evacuation and stable engagement.
Mold manufacturing often requires controlled surface roughness and accurate contours. Ball nose tools are suitable for curved surfaces and complex geometries.
Toolpath spacing strongly influences visible scallop patterns. Smaller stepover distances generally reduce scallop height but increase machining time.
SUPSTEED PRECISION TOOLS offers Sus Machining Ball Nose End Mills for stainless steel and challenging materials.
Their precision-ground cutting edges and optimized flute geometry support contouring and finishing under suitable conditions.
Indexable milling cutters use replaceable inserts instead of one solid cutting body. Their construction supports productive shoulder milling and material removal.
The EAP300R square shoulder cutter represents this equipment category. Insert geometry and cutter rigidity influence its cutting performance.
However, indexable shoulder cutters differ structurally from solid carbide end mills. Their applications should be evaluated according to cutter diameter and machining requirements.
Machining efficiency depends on tool selection, cutting strategy, and process stability. Manufacturers should evaluate complete operations rather than individual cutting speeds.
Roughing prioritizes material removal and stable chip formation. Finishing focuses on dimensional accuracy and surface appearance.
Using separate tools can improve both operations. Roughing cutters handle greater engagement, while finishing tools maintain controlled material removal.
This approach also reduces unnecessary wear on precision finishing tools.
Toolpath design influences cutting forces and machining consistency. Sudden engagement changes can create vibration and surface defects.
Adaptive roughing strategies may help maintain consistent tool loading. Suitable finishing paths also improve surface appearance.
Climb milling is commonly preferred under appropriate machine conditions. However, workholding and machine rigidity must support the selected strategy.
Frequent tool changes increase machining interruptions and operating costs. Suitable cutting conditions help maintain predictable tool life.
Manufacturers should inspect cutting edges before serious wear develops. Replacement decisions should consider surface quality and dimensional stability.
Standardized tools can simplify recurring CNC operations. Consistent tooling also improves production planning.
Manufacturers need measurable indicators to evaluate cutting performance. Surface roughness alone cannot describe complete machining efficiency.
Cycle time, tool life, and rejected components provide additional information. Results should be compared under equivalent machining conditions.
Performance Indicator | Measurement Purpose |
|---|---|
Ra | Average surface roughness |
Rz | Surface profile height characteristics |
Cycle time | Time required per machining operation |
Tool life | Usable cutting duration |
Material removal rate | Volume removed per unit time |
Rejection rate | Percentage of unacceptable components |
Tool cost per part | Tooling expense per acceptable component |
Manufacturers can explore additional configurations through SUPSTEED PRECISION TOOLS' Milling Tools collection.
This product range includes end mills for different materials and machining applications.
Tip: Compare tool cost per acceptable component rather than focusing only on individual cutter prices.
Poor machining results often involve several interacting factors. Identifying their causes helps manufacturers correct problems without unnecessary adjustments.
Chatter creates repeated surface marks and unstable cutting forces. Excessive tool overhang or weak workholding may contribute to vibration.
Operators should inspect machine rigidity and tool assembly stability. Cutting speed and engagement may require adjustment.
Variable pitch or variable helix tools may help reduce chatter. However, they cannot compensate for severely unstable setups.
Worn cutting edges increase friction and cutting forces. They may also produce rough surfaces and dimensional variations.
Incorrect cutting speeds or unsuitable coatings can accelerate wear. Excessive heat further increases cutting edge damage.
Manufacturers should inspect wear patterns and evaluate operating conditions. Planned replacement helps reduce unexpected interruptions.
Trapped chips can damage machined surfaces through repeated cutting. Material adhesion may also create unstable cutting edges.
Suitable flute geometry supports effective chip evacuation. Cooling and lubrication should match material and machining requirements.
Reducing feed excessively may increase rubbing. Operators should maintain suitable chip formation instead of simply minimizing cutting loads.
Tool runout causes unequal cutting engagement between cutting edges. This can increase vibration, tool wear, and surface roughness.
Incorrect clamping or worn toolholders may contribute to runout. Spindle condition also influences machining stability.
Manufacturers should measure tool assembly runout before changing cutting parameters. Correcting mechanical problems often improves repeatability.
Tip: Inspect toolholder runout, cutting edge wear, and workholding rigidity before making major parameter changes.
Selecting suitable end mills requires evaluating workpiece properties and machining requirements. Equipment compatibility and operating costs also influence long-term performance.
Different milling operations require different tool geometries. Slotting, profiling, roughing, and finishing create distinct cutting conditions.
Flute count and helix design should support suitable chip evacuation. Cutting edge profiles should also match component geometry.
For difficult alloys, SUPSTEED PRECISION TOOLS offers Titanium Alloy Corner Radius End Mills.
These tools feature reinforced cutting corners and specialized geometry for titanium machining applications. Their design supports cutting stability under suitable operating conditions.
Tool substrates influence rigidity and resistance to cutting forces. Coatings help manage wear under appropriate machining conditions.
However, coated tools are not always the best choice. Some non-ferrous applications benefit from polished or uncoated cutting edges.
Buyers should evaluate workpiece materials and expected cutting temperatures. Manufacturer application data provides useful starting recommendations.
Machine rigidity influences achievable surface quality and cutting productivity. Tool selection should match available spindle power and speed.
Toolholder condition and runout also require attention. Excessive overhang can create instability even when the tool is suitable.
Manufacturers should validate tooling through controlled machining trials. These tests help establish practical speeds and feeds.
The lowest tool purchase price does not always provide the lowest manufacturing cost. Tool life and machining speed influence overall expenses.
Frequent replacements can increase downtime and operator workload. Inconsistent cutting performance may also raise rejection rates.
A practical selection process considers several factors.
Selection Factor | What to Check | Expected Benefit |
|---|---|---|
Workpiece material | Hardness and machinability | Suitable cutting geometry |
Milling operation | Roughing, finishing, profiling | Better application fit |
Flute count | Chip space and engagement | Improved cutting stability |
Tool coating | Heat and wear resistance | Consistent tool life |
Tool dimensions | Diameter, length, overhang | Reduced deflection |
Cutting parameters | Speed, feed, engagement | Balanced performance |
Machine condition | Rigidity and runout | Improved surface consistency |
Surface requirements | Ra, Rz, tolerances | Measurable quality control |
Tip: Request machining recommendations based on actual workpiece materials, cutting conditions, and target surface roughness.
End Mills directly affect surface finish, accuracy, tool life, and CNC efficiency. Suitable geometry, coatings, and cutting parameters improve stability and productivity. SUPSTEED PRECISION TOOLS offers specialized milling tools for demanding CNC operations. Its end mills support stable cutting, consistent results, and efficient production.
A: End Mills perform CNC milling, profiling, and finishing.
A: End Mills improve smoothness through suitable geometry and cutting parameters.
A: End Mills influence chip removal, cutting stability, and tool life.
A: Carbide tools offer rigidity and wear resistance under suitable conditions.
A: Prices depend on carbide grade, coating, size, and geometry.
A: Chatter, tool wear, incorrect feeds, or poor chip evacuation cause defects.
