Machining hardened steel (45–65+ HRc) pushes cutting tools to their absolute thermal and mechanical limits, where standard geometries and substrates fail catastrophically. Premature tool wear, micro-chipping, and poor surface finishes in hard milling operations drive up cost-per-part, increase machine downtime, and risk scrapping high-value components like molds, dies, and aerospace parts. Buyers are often overwhelmed by manufacturer-specific naming conventions, such as APX, HEX, or KenCut series. Selecting the right tooling requires moving beyond basic catalog marketing to evaluate micro-grain substrates, advanced edge preparations, and thermal-resistant coatings. This guide breaks down the engineering criteria for selecting end mills for hardened steel capable of reliable, repeatable hard milling, ensuring you match the exact tool geometry to your specific material and machine setup.
Cutting materials above 45 HRc requires a complete shift in machining strategy. Alloys such as A2, D2, and H13 tool steels undergo phase transformations during heat treatment. This results in a martensitic structure packed with hard carbide inclusions. When a cutting tool engages these materials, the primary failure modes are no longer gradual flank wear or cratering. The dominant threats become sudden thermal degradation of the cobalt binder and catastrophic edge chipping. Standard carbide tools lack the structural integrity to withstand the immense shear forces generated. They suffer immediate edge collapse upon entering the cut.
Successful hard milling relies entirely on managing the heat paradox. In traditional machining, coolants extract heat from the cutting zone. In hard milling, success depends on transferring heat directly into the chip rather than allowing it to soak into the tool or the workpiece. You must use precise combinations of surface footage, feed rates, and specialized coating interactions. If the tool absorbs the thermal load, the carbide substrate weakens. The cutting edge deforms. By optimizing the cutting parameters, the heat plasticizes the material just ahead of the shear zone. This reduces cutting forces and allows the chip to carry the thermal energy away as it evacuates.
Tool selection must align strictly with the capabilities of the machine tool. Heavy-duty, rigid Vertical Machining Centers (VMCs) equipped with high-torque spindles and robust linear guideways can effectively utilize 6- to 8-flute tools. These machines execute High-Efficiency Milling (HEM) strategies, maintaining high feed rates with light radial engagements. Conversely, lighter-duty CNC machines or manual knee mills lack the static and dynamic stiffness required for heavy radial cuts in hardened materials. These setups typically require 4-flute geometries and multiple lighter passes to prevent spindle stalling, mitigate harmonic chatter, and avoid catastrophic tool breakage.

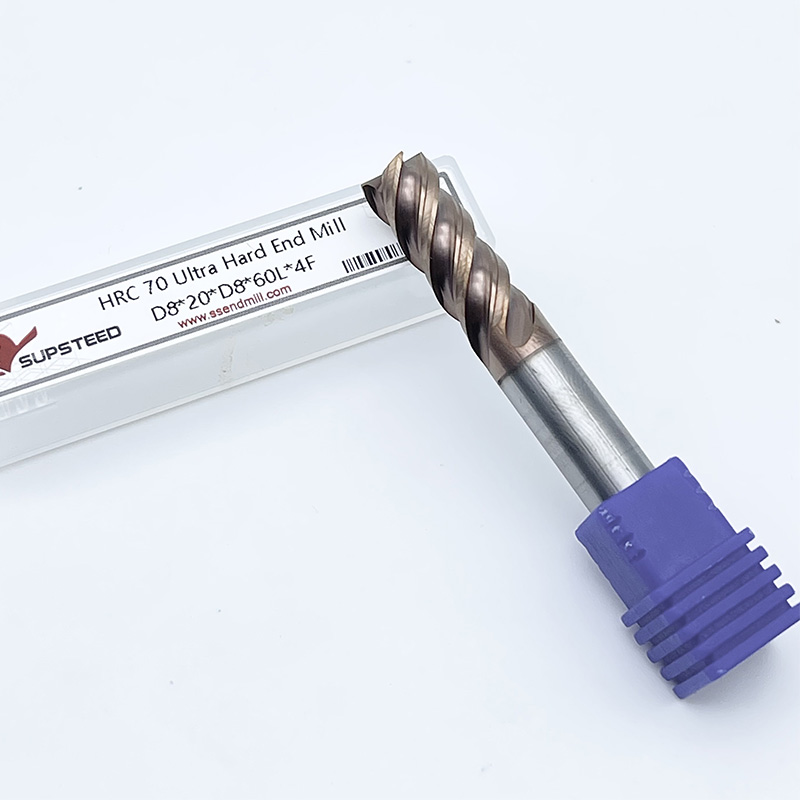

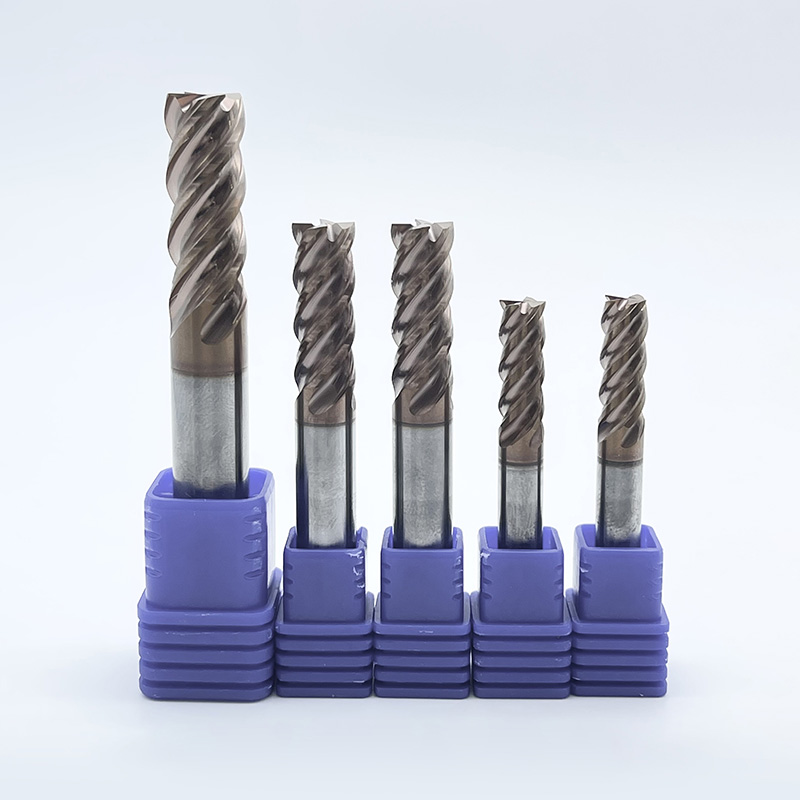

The foundation of any high-performance cutting tool is its substrate. For hard milling applications, ultra-fine or micro-grain solid carbide end mills for hardened steel are an absolute requirement. Standard carbide consists of larger tungsten carbide grains held together by a high percentage of cobalt binder. While this provides toughness for general-purpose machining, it lacks the hardness required to shear materials above 50 HRc. Micro-grain and nano-grain substrates utilize sub-micron tungsten carbide particles. This allows for a denser structure with less cobalt binder exposed to the cutting edge.
This dense microstructure directly impacts the tool's Transverse Rupture Strength (TRS). TRS measures the material's ability to resist bending forces before fracturing. Machining hardened alloys generates immense radial pressure that attempts to deflect the tool. A higher TRS prevents the catastrophic snapping that occurs when standard carbide tools are pushed beyond their mechanical limits. By balancing extreme hardness with sufficient shock resistance, micro-grain substrates maintain sharp cutting edges even under severe interrupted cuts.
Standard 3- or 4-flute end mills feature deep flute valleys to evacuate large, stringy chips common in aluminum or mild steel machining. Hard milling produces small, brittle, and highly fragmented chips. Large chip pockets are unnecessary and actively detrimental to tool rigidity. High-performance hard milling tools feature 5-, 6-, or even 8-flute designs. The increased flute count allows for a significantly thicker core web diameter.
A thicker core diameter exponentially increases the static stiffness of the end mill. Tool deflection is inversely proportional to the fourth power of the core diameter. Even a minor increase in web thickness drastically reduces bending under heavy radial loads. This rigidity is non-negotiable when holding tight tolerances on hardened mold cavities. Higher flute counts allow machinists to increase the overall table feed rate while maintaining a low feed-per-tooth. This combination is essential for achieving superior surface finishes, often eliminating the need for secondary grinding or EDM processes.
Hard roughing and hard finishing require entirely different geometric approaches. During roughing operations, the goal is maximum volumetric metal removal without fracturing the tool. Specialized roughing end mills for hardened steel often incorporate chipbreaker geometries or high-feed mill designs. High-feed geometries direct the cutting forces axially up into the machine spindle rather than radially against the tool shank. This minimizes deflection and allows for aggressive feed rates during heavy material removal.
Once the bulk material is removed, the operation transitions to hard finishing. Finishing tools utilize high-flute-count smooth-edge geometries or precision ball nose designs. These tools are engineered with specific relief angles to prevent rubbing and burnishing, which can cause work-hardening on the freshly cut surface. Ball nose end mills designed for 3D profiling on molds and dies focus on leaving a mirror-like finish, drastically reducing the hours required for manual benching and hand-polishing.
End Mill Geometry Comparison for Hardened Steel
| Feature | Hard Roughing End Mills | Hard Finishing End Mills |
|---|---|---|
| Flute Count | 4 to 6 Flutes | 6 to 8+ Flutes |
| Core Diameter | Thick (70% of tool diameter) | Maximum (80%+ of tool diameter) |
| Edge Preparation | Heavy T-Land or Chamfer | Light Micro-Hone |
| Primary Function | High volumetric metal removal | Surface finish and dimensional accuracy |
| Cutting Forces | Directed axially (High-Feed) | Light radial shearing |
Harmonic chatter is the enemy of hard milling. When a standard end mill with equal flute spacing engages the workpiece, the rhythmic striking of the cutting edges generates harmonic frequencies. In hardened steel, these vibrations cause the cutting edge to bounce in and out of the cut. This leads to rapid micro-chipping and poor surface finish. Variable pitch geometries solve this by utilizing unequal spacing between the flutes.
Combined with variable helix angles—where the twist of each flute changes slightly along the length of cut—these geometries actively disrupt harmonic resonance. As the tool rotates, the irregular timing of the cutting edge impacts prevents vibrations from amplifying. This harmonic dampening maps directly to chatter reduction. Machinists can push heavier cut depths and higher feed rates without compromising tool life or part quality.
In general machining, a razor-sharp cutting edge is desirable for shearing material cleanly. In hard milling, a razor-sharp edge is a severe liability. When a perfectly sharp carbide edge strikes a 60 HRc workpiece, the fragile tip of the cutting edge will instantly micro-chip. Once the edge is compromised, cutting forces spike, heat generation increases exponentially, and complete tool failure follows rapidly.
Manufacturers apply engineered edge preparations to combat this. Techniques such as micro-honing, edge radiusing, or applying a K-land intentionally dull the tool by a few microns. This preparation reinforces the cutting edge, providing a stronger geometric structure to absorb the initial shock of entering the cut. Proper edge prep ensures the tool wears predictably through gradual flank wear rather than unpredictable catastrophic chipping.
Uncoated carbide cannot survive the temperatures generated during hard milling. TiAlN and AlTiN coatings represent the industry standard for machining hardened ferrous alloys. These coatings are deposited onto the carbide substrate using Physical Vapor Deposition (PVD) processes. The critical difference between the two lies in the aluminum-to-titanium ratio. AlTiN contains a higher percentage of aluminum, making it superior for extreme heat applications.
The true value of AlTiN coatings is their dynamic oxidation process. When cutting temperatures exceed 800°C, the aluminum in the coating reacts with oxygen in the atmosphere to form a microscopic layer of aluminum oxide on the tool's surface. This ceramic layer acts as a highly effective thermal barrier. It reflects heat back into the chip and protects the carbide substrate from thermal degradation. Because this oxidation process requires high heat and atmospheric oxygen, these coatings perform exceptionally well in dry machining environments utilizing high-pressure air blasts. Introducing liquid coolant causes rapid thermal shock, shattering the coating and leading to premature tool failure.
As materials push past 60 HRc into the 65-70 HRc range, standard AlTiN coatings begin to reach their thermal limits. Next-generation nanocomposite coatings, such as nACo and TiSiN, are engineered specifically for extreme hardness. The addition of silicon creates a nanocrystalline structure embedded in an amorphous matrix. This significantly increases the coating's micro-hardness and pushes its oxidation resistance beyond 1100°C.
Tools featuring nanocomposite coatings carry a higher upfront cost. They must be evaluated based on the return on investment in continuous, unattended hard milling operations. The extended tool life prevents mid-cycle tool changes. This is vital when finishing complex 3D mold cavities where a tool change would leave a visible blend line on the part surface. For shops running lights-out manufacturing on high-value hardened components, silicon-doped coatings provide the necessary process reliability.
High-carbon, high-chromium tool steels like A2 and D2 are notoriously abrasive. Even in their annealed state, they contain hard carbide particles that wear cutting edges rapidly. Once hardened to 58-62 HRc, these materials require tools that prioritize edge strength and abrasion resistance. A 4- to 6-flute solid carbide end mill with a robust edge preparation is recommended. The edge hone prevents the hard inclusions in the steel from chipping the flute. Machinists frequently experience rapid edge degradation in A2. Utilizing an AlTiN-coated tool with a variable pitch geometry mitigates the abrasive wear and stabilizes the cutting forces.
H13 and P20 are the workhorses of the plastic injection molding and die-casting industries. Hardened typically between 45 and 55 HRc, these materials are milled to create complex 3D contours. The primary focus here is surface finish and dimensional accuracy. Ball nose and bull nose end mills with variable helix geometries are standard. The variable helix prevents chatter during long, continuous profiling passes. By optimizing the step-over and utilizing high-flute-count finishing tools, shops can achieve surface finishes that completely eliminate the need for manual benching, saving dozens of hours of labor per mold.
Machining hardened 52100 bearing steel or aged Inconel presents extreme challenges in heat generation and work-hardening. These materials do not shear easily. They tear and generate massive amounts of friction. The absolute necessity here is high-aluminum-content coatings to withstand the localized thermal zones. Rigid, high-flute-count finishing tools are required to maintain a low chip load. If the tool rubs instead of cutting, the material will work-harden instantly, destroying the end mill on the subsequent pass. Strict adherence to calculated feed rates and aggressive air blasts to clear chips are mandatory.
Traditional milling strategies often utilize a 50% radial step-over with a shallow axial depth of cut. In hardened steel, this approach concentrates all the heat and wear on the bottom millimeter of the end mill, leading to rapid failure. High-Efficiency Milling (HEM) completely reverses this logic. HEM utilizes deep axial cuts combined with very light radial engagements, typically 5% to 10% of the tool diameter.
This strategy leverages the concept of radial chip thinning. Because the radial engagement is so light, the actual chip thickness is significantly less than the programmed feed per tooth. This allows machinists to drastically increase the feed rate without exceeding the tool's mechanical limits. HEM distributes the cutting wear across the entire length of the flute, preventing localized heat buildup and extending tool life exponentially.
Hard milling requires precise tuning of speeds and feeds. Trial-and-error often results in broken tools. Establishing a diagnostic framework is essential for mitigating risks on the shop floor. Follow these steps when diagnosing premature tool failure:
One of the most common mistakes in hard milling is the application of flood coolant. When cutting materials above 50 HRc, the cutting edge easily exceeds 800°C. If liquid coolant strikes this superheated carbide, it causes an instantaneous drop in temperature. This rapid heating and cooling cycle induces extreme thermal fatigue, leading to micro-cracking perpendicular to the cutting edge. Within minutes, these cracks propagate, and the tool shatters.
To mitigate thermal shock, coated carbide tools must be run dry when hard milling. Instead of liquid coolant, utilize high-pressure air blasts directed precisely at the cutting zone. The air blast serves two critical functions. It provides the oxygen necessary for the AlTiN or TiSiN coating to form its protective oxide layer. It also forcefully evacuates the chips from the cutting zone, preventing recutting. Recutting hardened chips is a primary cause of unpredictable tool breakage.
Investing in premium, micro-grain end mills is entirely wasted if they are mounted in standard, worn-out ER collets. In hard milling, the chip loads are exceptionally small, often less than 0.001 inches per tooth. If the tool holder has 0.0005 inches of runout, one flute will take a massive chip while the opposite flute rubs the material. This uneven chip load causes rapid, localized wear and induces harmonic chatter.
To achieve the necessary precision, rigid tool holding is mandatory. Shrink-fit tool holders or high-precision hydraulic milling chucks are required to keep Total Indicator Runout (TIR) below 0.0002 inches at the tool tip. Shrink-fit holders provide 360-degree clamping force, maximizing rigidity and ensuring that every flute shares the cutting load equally. This single implementation step often doubles the effective life of the end mill.
A: For rigid setups on heavy-duty machines, 5 to 8 flutes are optimal. High flute counts increase the core diameter for maximum rigidity and allow for higher feed rates while maintaining low chip loads. For lighter, less rigid machines like knee mills, 4-flute options are safer to prevent spindle stalling and chatter.
A: No. Using liquid coolant on coated carbide during hard milling causes rapid thermal shock, leading to micro-cracking and catastrophic tool failure. Always use a high-pressure air blast to clear chips and allow the coating to oxidize properly.
A: AlTiN and TiAlN are the industry standards due to their ability to form a protective aluminum oxide layer at high temperatures. For extreme hardness above 60 HRc, nanocomposite coatings like TiSiN offer superior thermal stability and wear resistance.
A: Standard carbide lacks the transverse rupture strength and proper edge preparation required for hard milling. The high cobalt content and sharp edges will result in immediate micro-chipping and rapid failure when striking hardened materials.
A: Micro-chipping is primarily caused by excessive tool runout, harmonic chatter, thermal shock from liquid coolant, or using a tool with a razor-sharp edge instead of a honed edge preparation. Reducing feed per tooth and securing rigid tool holding usually resolves the issue.
