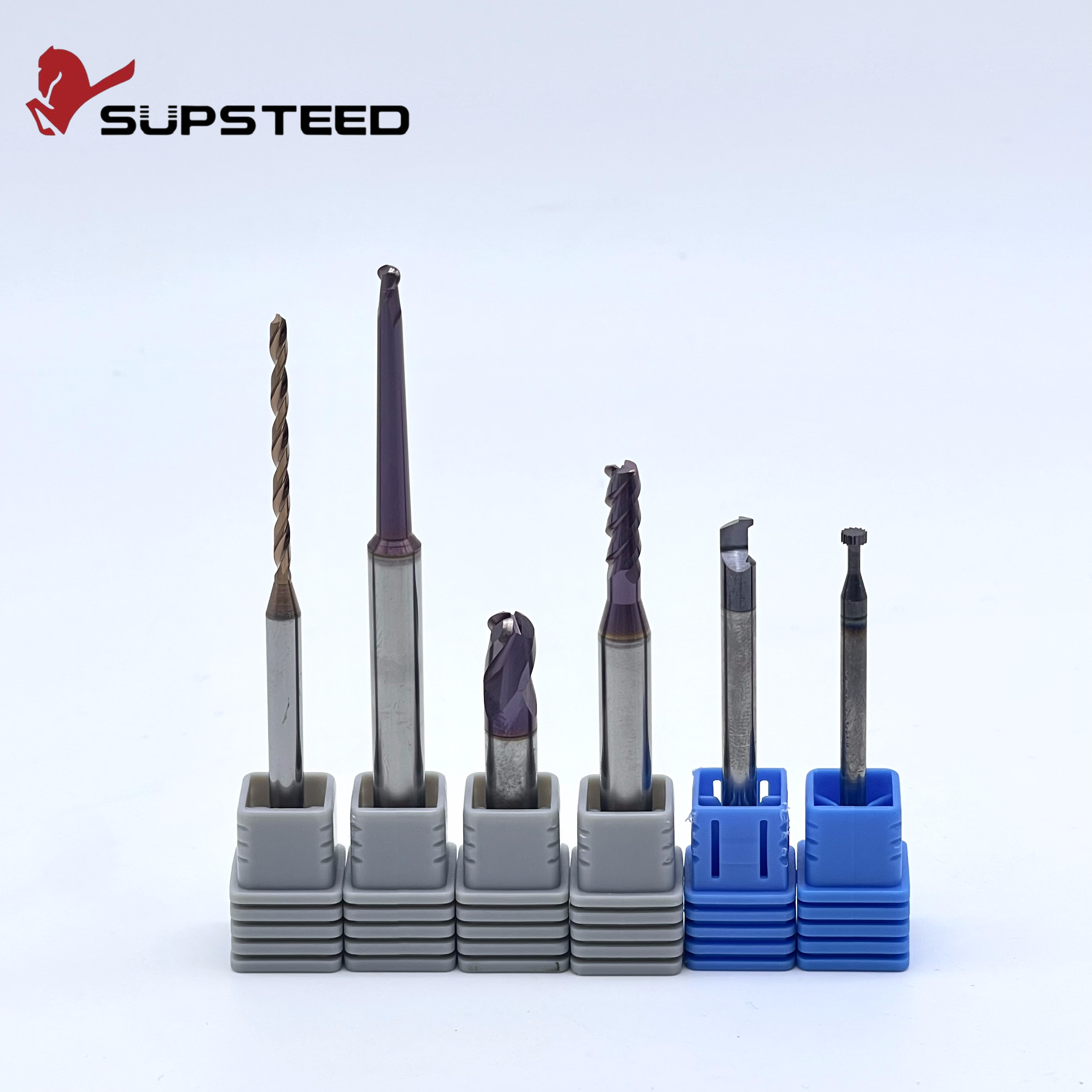

Standard catalog tooling hits a wall when you push aggressive cycle-time reduction goals or machine complex geometries in exotic materials. Relying on off-the-shelf cutters for specialized applications forces compromises in feed rates, spindle speeds, and surface finish. Ordering custom tooling introduces significant risk to your manufacturing process. Incomplete or inaccurate specifications provided to the tool grinder lead to costly scrap, premature tool failure, and extended production downtime. You cannot afford to guess when designing specialized cutting tools.
You need a systematic, engineering-led framework for gathering, documenting, and communicating exact specifications. The tool manufacturer relies entirely on the data you provide to engineer the correct substrate, geometry, and coating. This guide details the critical information required to successfully design, specify, and order custom end mills for your specific CNC machining applications.
Standard tooling becomes a liability when cycle times stagnate or scrap rates climb uncontrollably. You must define the operational thresholds where catalog tools fail. Custom solutions become an economic necessity when part complexity outpaces standard tool capabilities. You justify the switch when the limitations of off-the-shelf cutters directly bottleneck your spindle uptime and limit your machining strategies.
Deep-cavity machining frequently requires neck lengths or overall lengths that exceed standard catalog options. Pushing a standard tool past its intended length-to-diameter ratio causes severe deflection, flute wash, and chatter. You need custom dimensions to avoid tool holder collisions against the workpiece or fixturing, especially in complex 5-axis setups where the spindle housing gets dangerously close to the trunnion table. Relieved necks and tapered transitions allow deep reach while maintaining maximum core strength. A custom tool can feature a heavy core taper that provides massive rigidity while still clearing the draft angles of a deep mold cavity.

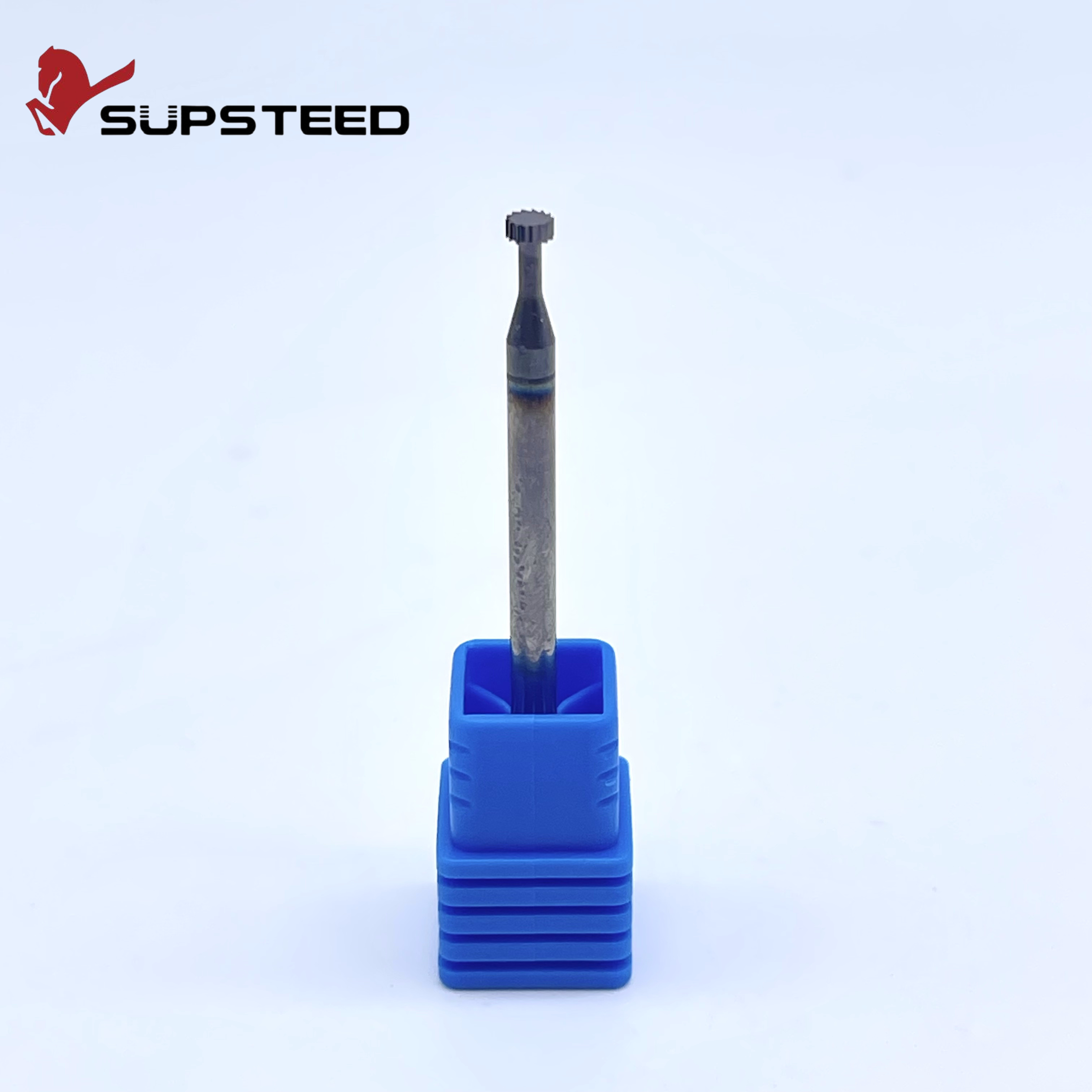

Specific part topologies rarely exist as off-the-shelf options. Proprietary thread forms, specific O-ring dovetails, and complex undercuts require specialized cutter profiles. Trying to interpolate these features with standard ball or bull-nose end mills takes excessive time and leaves poor surface finishes. A custom form tool generates the exact profile in a single pass. When you machine hydraulic manifolds or aerospace fluid ports, standard tools simply cannot produce the required multi-angle cavity profiles without stacking tolerances across multiple tool changes.
Combining multiple standard passes into a single custom profile tool slashes cycle times dramatically. Multi-step drills and custom form mills eliminate unnecessary tool changes and redundant rapid movements. You achieve massive return on investment when one custom cutter replaces a spot drill, a through-hole drill, and a chamfer mill in the carousel. This consolidation also reduces tolerance stack-up between different machining operations. Every time a machine changes a tool, you lose seconds. Over a high-volume production run, those seconds translate into days of lost spindle time.
Machining highly abrasive aerospace alloys demands specialized substrates. Inconel 718, Titanium Ti-6Al-4V, and Cobalt Chrome destroy standard carbide grades rapidly. You need specific carbide micro-structures and advanced coatings to combat rapid edge wear, notch wear, and severe work-hardening. Custom tooling allows you to match the exact cobalt binder percentage to the thermal dynamics of your specific material. A standard end mill might survive ten minutes in Hastelloy, whereas a custom-engineered substrate with the correct edge preparation can run for over an hour.
The foundation of any custom tool design begins with the workpiece. Tool grinders cannot engineer a successful cutter without knowing exactly what material it will cut. Vague descriptions lead to catastrophic tool failure. You must provide granular data about the material state and the exact machining strategy you intend to deploy.
Never just state you are cutting "steel" or "aluminum." Report the exact material grade to the manufacturer. Specify the condition of the material, whether it is cast, forged, billet, or 3D printed. You must provide the exact hardness in Rockwell C (HRC) or Brinell. Machining annealed 4140 steel requires a vastly different edge geometry, rake angle, and relief clearance than machining hardened D2 tool steel at 58 HRC. Cast materials often contain abrasive inclusions like silicon, which require highly wear-resistant substrates, whereas forged materials might exhibit severe internal stresses that cause the material to pinch the tool.
Specify your exact toolpath strategy in the CAM software. High-Efficiency Milling (HEM), traditional heavy roughing, plunging, profiling, and finishing place different stress loads on the cutter. HEM utilizes light radial step-overs and deep axial cuts, requiring specific chip gullet designs and variable helix geometries to evacuate long, thin chips. Traditional roughing requires massive core strength to survive heavy radial engagement. If you plan to plunge mill, the tool requires specialized end-gashing to allow center-cutting without packing chips under the tool face.
The tool manufacturer must know your exact coolant delivery method. Through-tool coolant, high-pressure flood, Minimum Quantity Lubrication (MQL), or dry machining directly influence the design. Dry machining with air blast requires specific coatings that thrive on high heat, like AlTiN, which forms a protective aluminum oxide layer at elevated temperatures. High-pressure flood coolant requires optimized flute gullets to prevent chip packing in deep pockets. If you request through-tool coolant, you must specify whether you need straight coolant holes or spiral coolant holes that follow the helix angle.
Geometry defines how the tool shears material and evacuates chips. You must provide exact dimensional data to ensure the cutter performs as intended. Guesswork in this phase guarantees poor machining results. Every angle, radius, and clearance must be engineered for the specific application.
Define exact cutting diameters for your application. Never accept nominal equivalents from a catalog. Assuming a .232-inch tool will perform identically to a true 6mm (.236-inch) tool leads to dimensional errors on the part. Specify the exact tolerance bands required for the part print. Tight tolerances cost more, so only apply them where absolutely necessary. If you are finishing a bearing bore, you might need a cutting diameter tolerance of +0.0000" / -0.0005". If you are roughing a pocket, standard commercial tolerances are perfectly acceptable.
Define complex geometries with exact dimensional callouts on a formal print. Multi-step profiles, custom radii, and specific chamfer angles deviate entirely from standard end mills. You must provide exact angles, transition radii, and step lengths. The tool grinder uses this data to dress the grinding wheels accurately. When designing a custom dovetail cutter, you must specify the exact included angle and the maximum allowable tip flat to ensure the tool clears the bottom of the groove without rubbing.
Balance material chip clearance against core strength when selecting flute count. Aluminum requires fewer flutes (typically 2 or 3) for massive chip evacuation to prevent galling. Titanium requires higher flute counts (5 to 9) to distribute wear, reduce chip load per tooth, and increase core stability. Define the exact Length of Cut (LOC) needed. Excessive LOC reduces rigidity and exponentially increases tool deflection during heavy cuts. A rule of thumb is to never specify an LOC longer than what is strictly required to reach the bottom of your deepest feature.
Specify relieved necks for deep cavity reach. Ensure the neck transition features a smooth radius to prevent stress risers. A sharp corner at the neck transition will cause the tool to snap under heavy radial loads. Define the Overall Length (OAL) based on your maximum Z-axis travel and tool holder depth. An unnecessarily long OAL introduces vibration, degrades surface finish, and destroys spindle bearings. If you need a 6-inch reach, but only a 0.5-inch LOC, the neck diameter must be carefully calculated to maximize rigidity without rubbing the cavity walls.
Select corner profiles to reduce stress concentrations on the cutting edge. Sharp corners chip easily in hard materials and create stress risers in the finished part. Specify a precise corner radius or chamfer to match the part topology perfectly. This strengthens the tool and often eliminates secondary finishing operations in the corners of pockets. Even a microscopic 0.005-inch corner radius drastically improves tool life in hardened steels compared to a dead-sharp corner.
Tailor the helix angle directly to the workpiece material. Standard 30-degree to 45-degree ranges work well for general purpose milling. Variable helix and variable pitch designs provide crucial harmonic dampening. These advanced geometries break up chatter frequencies when machining difficult alloys or thin-walled components. A high helix angle (above 45 degrees) produces a smoother shearing action and excellent surface finish in aluminum, but creates excessive upward axial pull that can lift poorly fixtured parts.
Helix Angle Selection Guide
| Material Type | Recommended Helix Angle | Primary Machining Benefit |
|---|---|---|
| Aluminum & Non-Ferrous | 45° to 55° | Aggressive shearing action, rapid chip evacuation, prevents built-up edge. |
| Carbon & Alloy Steels | 35° to 40° | Balances core strength with cutting efficiency for general roughing. |
| Titanium & Superalloys | 38° to 42° (Variable) | Suppresses harmonic chatter, distributes cutting forces evenly. |
| Hardened Steels (>50 HRC) | 25° to 35° | Maximizes cutting edge strength, reduces chipping in interrupted cuts. |
| Composites & Plastics | 15° to 30° (or Straight) | Prevents delamination and fraying of composite layers. |
Define right-hand versus left-hand cut and spiral directions clearly. Most standard milling uses right-hand cut with a right-hand spiral. Specialized routing, unique multi-spindle configurations, and specific chip evacuation needs dictate different parameters. A left-hand spiral pushes chips downward, which helps secure thin sheet material during routing and prevents delamination on the top surface of carbon fiber composites.
The physical composition of the tool determines its lifespan. Geometry dictates how it cuts, but the substrate and coating dictate how long it survives the cut. You must match these elements to the thermal and abrasive realities of your application. Using a generic carbide blank for a specialized application guarantees sub-optimal performance.
Choose carefully between micrograin and sub-micron carbide substrates. You must balance transverse rupture strength (TRS) against extreme wear resistance. High cobalt content (10% to 12%) increases toughness for interrupted cuts and heavy roughing. Low cobalt content (6% to 8%) increases hardness for abrasive materials like cast iron or high-silicon aluminum. The manufacturer will recommend the exact blend based on your material data, but you must provide accurate information regarding the severity of the interruptions in your cut.
Specify edge preparation to prevent micro-chipping during initial engagement. A razor-sharp edge often fails immediately in hard milling. Waterfall hones, T-lands, and radius hones strengthen the cutting edge before the coating process. This microscopic rounding stabilizes the edge and drastically extends tool life in severe interrupted cuts. A 0.0005-inch edge hone might seem insignificant, but it completely changes how the cutting edge absorbs impact forces when entering the material.
Match coatings to the workpiece material and the thermal dynamics of the cutting zone. TiAlN and AlTiN coatings excel in high-heat applications like dry machining steel, as they rely on the heat of the cut to form a protective oxide layer. Diamond coatings are mandatory for highly abrasive composites, graphite, and green ceramics. ZrN or TiB2 prevents built-up edge when machining gummy aluminum alloys. Applying the wrong coating can actually decrease tool life; for example, using an AlTiN coated tool in aluminum will cause severe chemical affinity and immediate material welding to the flutes.
Follow these steps to determine the correct coating for your custom tool:
A perfect tool design fails if the machine cannot drive it properly. You must communicate your machine's physical limitations to the tool designer. The cutter must match the environment it operates within. A tool designed for a rigid, 50-taper horizontal machining center will perform terribly in a lightweight, 30-taper vertical mill.
The tool designer must know the machine's maximum RPM, torque curve, and available horsepower. A massive custom form tool requires significant low-end torque. If your high-speed spindle lacks torque at lower RPMs, the tool will stall, potentially destroying the spindle and the workpiece. The designer can modify the geometry, such as increasing the rake angle or reducing the number of flutes, to reduce cutting pressure if horsepower is limited.
Define the shank style to ensure maximum rigidity. Specify strict h6 tolerances if you use shrink fit or hydraulic chucks. Require specific Weldon flats for side-lock holders to prevent tool pull-out during aggressive roughing. The shank interface is the critical connection point between the machine and the cutter. If you are using high-precision milling chucks, the shank must be perfectly cylindrical without any flats to ensure maximum gripping force and concentricity.
Machine age, spindle condition, and fixture stability directly impact tool design. Poor rigidity requires a larger core diameter to survive vibration. If your spindle has excessive Total Indicator Runout (TIR), a high-flute-count tool will chip prematurely because the chip load becomes uneven. One flute will take a massive bite while the opposite flute rubs. Communicate your setup stability honestly. If your fixturing is weak, the tool designer can incorporate a higher helix angle to direct cutting forces axially down into the table rather than radially against the clamps.
Custom tooling requires a different procurement strategy than ordering from a catalog. You must evaluate the upfront investment against long-term production gains. Proper planning prevents budget overruns and schedule delays. You are not just buying a piece of carbide; you are buying a specific machining capability.
Ordering custom tools involves unavoidable CNC grinding setup costs. The manufacturer must program the grinding paths, dress the wheels, and set up the inspection equipment. Single prototype runs carry different manufacturing dynamics than volume orders. Evaluate minimum order quantities against your total production run size. Ordering a batch of ten tools often drops the per-unit price significantly compared to ordering just two prototypes. Always ask the manufacturer where their price breaks occur.
Calculate whether the upfront investment is offset by cycle time reduction. Operation consolidation and increased tool life often justify the switch to custom tooling immediately. If a custom tool saves forty seconds per part on a ten-thousand-part run, the initial tooling investment pays for itself within the first week of production. You must track the exact number of parts produced per tool to accurately measure the return on investment. A custom tool that costs three times as much but lasts five times as long is a massive financial win.
Factor custom grinding lead times into your production scheduling. Typical turnarounds range from two to six weeks depending on complexity and coating requirements. Coating batches often add a full week to the process. Plan your inventory accordingly to avoid catastrophic machine downtime. Always keep backup custom tools in the crib before starting a critical production run. If you break your only custom tool on a Friday night, your machine sits idle until the manufacturer can grind a replacement.
Transitioning to custom tooling carries inherent risks. Miscommunication between the programmer and the tool grinder causes expensive mistakes. You must implement strict quality control measures before the tool ever touches the workpiece. A rigorous validation process protects your spindle and your raw material.
Avoid demanding unnecessarily tight tolerances on non-critical tool dimensions. Holding a tight tolerance on the overall length or shank diameter exponentially increases manufacturing time and complexity. This drives up costs without adding any performance value. Only apply tight tolerance bands to the critical cutting diameters and specific form profiles. If a dimension does not directly impact the final part geometry or the tool holding interface, leave it at a standard commercial tolerance.
Never rely on hand-drawn sketches or vague descriptions. Provide formal 2D prints and 3D CAD models to the tool grinder. STEP, IGES, or DXF files eliminate guesswork and interpretation errors. The manufacturer imports these exact models into their grinding simulation software to verify toolpath generation. If you only provide a 2D PDF, the grinder has to manually rebuild the 3D model, which introduces the risk of human error and delays the quoting process.
Request formal optical inspection reports from the manufacturer. Zoller or Walter measurement reports verify the custom carbide end mills match your submitted CAD data perfectly. You must review these inspection documents before the tools hit the spindle to prevent scrapping expensive workpiece material. Do not assume the tool is correct just because it looks right to the naked eye. A two-degree error on a custom draft angle will ruin an entire batch of parts.
Plan for tool end-of-life upfront. Discuss regrinding and recoating feasibility with the manufacturer during the initial design phase. A well-designed custom tool can often be reground three or four times. This drastically improves the return on investment over the lifecycle of the production run. Ensure the tool design includes enough flute depth and core thickness to accommodate future regrinding operations without compromising structural integrity.
Take these immediate steps to initiate your custom tooling order and secure your production timeline:
A: Lead times generally range from two to six weeks. This timeline depends heavily on geometry complexity, required coatings, and the manufacturer's current production capacity. Initial prototyping often takes longer than repeat volume orders due to engineering and setup requirements.
A: Yes. Many manufacturers can modify standard off-the-shelf end mills by grinding a specific corner radius, neck relief, or chamfer. This modification process is significantly faster and cheaper than grinding a completely new tool from a raw carbide blank.
A: Tool manufacturers strongly prefer 3D CAD models in STEP or IGES formats. Formal 2D prints in DXF or PDF formats detailing exact tolerances, critical dimensions, and specific angles are also required for final optical inspection and quality assurance.
A: Tool holding determines the required shank tolerance. Shrink fit and hydraulic chucks require strict h6 shank tolerances to function properly. Side-lock holders require specific Weldon flats ground into the shank to prevent tool pull-out during aggressive roughing operations.
A: Hardness dictates the required carbide substrate, edge preparation, and coating selection. Machining 30 HRC annealed steel requires a vastly different tool geometry, rake angle, and edge hone than machining 55 HRC hardened tool steel.
A: Not always. While coatings drastically improve tool life in steel, titanium, and high-temp alloys, machining plastics, brass, or certain aluminum alloys often benefits from uncoated, highly polished flutes to prevent material adhesion and built-up edge.
