In high-performance milling, the weakest point of any cutting tool is the sharp 90-degree corner. Premature tool wear, edge chipping in hard materials, and part failure due to stress concentrations drive up tooling costs and scrap rates. Machinists and engineers must balance the geometric requirements of a part print with the physical limitations of carbide tooling. When pushing machines to their limits, relying on standard sharp corners often results in unpredictable tool life. While square end mills are the traditional default, transitioning to corner radius end mills (often referred to as bull nose end mills) can exponentially increase tool life and material removal rates. This guide breaks down the physics, application criteria, and implementation risks of choosing between the two geometries, providing a clear roadmap for optimizing your roughing operations.
To understand why tool geometry dictates performance, we must look at what happens at the exact point of contact between carbide and raw material. The intersection of the flute and the bottom of the tool dictates how cutting forces and thermal loads are managed during the milling process.
A perfectly sharp 90-degree edge on a square end mill concentrates heat and mechanical stress into a microscopic point. When you drive that sharp corner into a block of 4140 steel, it takes the brunt of the initial impact. There is minimal carbide mass directly behind a sharp point to absorb shock or dissipate heat. The tip becomes highly susceptible to micro-chipping. Once the corner chips, you lose your cutting geometry. The damaged edge rubs rather than shears. This causes a rapid spike in heat, leading to catastrophic tool failure and ruined parts.

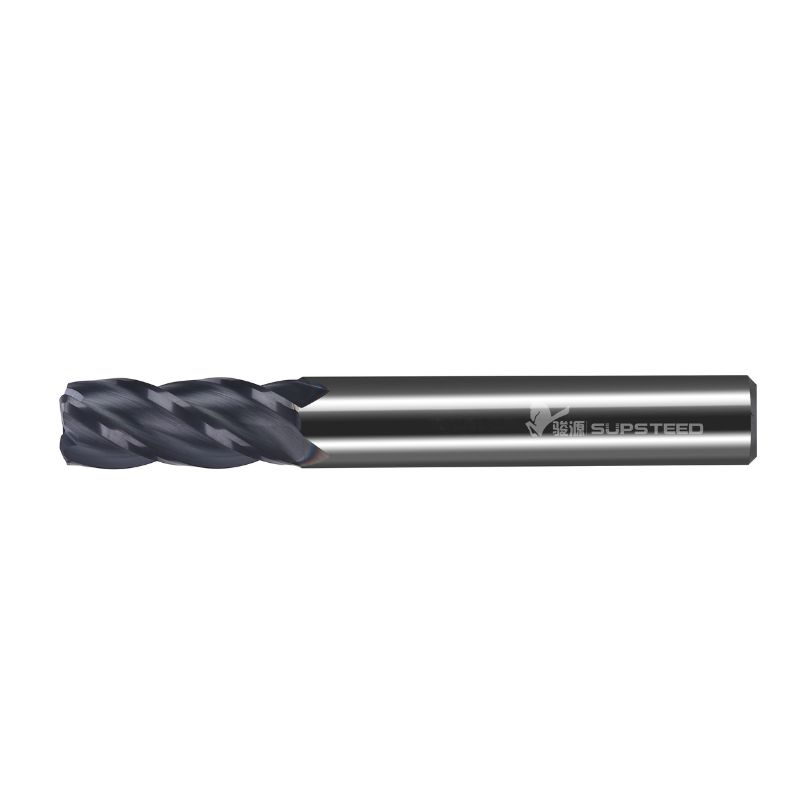

A corner radius fundamentally changes how the tool engages the workpiece. It transitions the cutting force across a curve. By removing the fragile 90-degree tip and replacing it with a defined radius, the tool gains significant mass at the corner. This geometry absorbs shock effectively during interrupted cuts, heavy chip loads, and aggressive entry into the material. The continuous curve distributes thermal and mechanical loads over a larger surface area. You prevent localized heat buildup and drastically reduce the likelihood of edge fracture, keeping the tool in the cut longer.
Machinists often debate between corner radius tools and corner chamfer tools for edge protection. Both geometries protect the fragile tip from chipping, but they function differently. A radius provides superior continuous stress distribution and leaves a smooth internal fillet on the part. A chamfer leaves a flat 45-degree angled transition. Chamfered end mills work well for specific edge-break requirements or when roughing cast iron. However, a radius offers better overall structural integrity for the tool. We universally prefer it for high-performance milling in tough alloys.
Tooling terminology can cause confusion on the shop floor. In the machining industry, corner radius end mills and bull nose end mills are functionally synonymous. Both refer to a standard end mill with a specific radius ground into the bottom corners. You must distinguish these clearly from corner rounding end mills. A corner rounding end mill is a specialized form tool featuring a concave radius. Machinists use corner rounding tools exclusively to cut external radii on the outside edges of a finished part. You do not use them for plunging, slotting, or pocketing.
Selecting a radiused tool over a square one is rarely a matter of preference. The material being cut, the required material removal rate, or the mechanical engineering requirements of the final part dictate the choice.
When cutting titanium (Ti-6Al-4V), Inconel 718, hardened tool steels (like D2 or H13), and other high-temperature alloys, tool life is your primary metric of success. These materials generate immense heat and exert massive shear forces on the cutting edge. If you run a standard square end mill in Inconel, the sharp corners will often flake off within the first few passes. The radiused edge of a bull nose tool prevents this catastrophic corner flaking. The added carbide mass at the corner withstands the abrasive nature of hardened alloys. The tool maintains its geometry longer, providing predictable wear patterns rather than sudden failure.
Material Behavior and Tool Wear Characteristics
| Material Type | Square End Mill Failure Mode | Corner Radius Advantage |
|---|---|---|
| Titanium (Ti-6Al-4V) | Rapid thermal cracking at the sharp tip due to poor heat conductivity of the material. | Distributes heat across the radius, preventing localized thermal shock and edge chipping. |
| Inconel 718 | Severe notch wear and immediate corner flaking from high shear strength. | Increased carbide mass resists abrasive wear and handles high cutting pressures. |
| Hardened Tool Steel (45+ HRC) | Micro-chipping leading to catastrophic edge failure and part gouging. | Absorbs heavy impact forces during entry; maintains edge integrity longer. |
| Aluminum (6061-T6) | Built-up edge (BUE) if coolant is insufficient, though sharp corners survive longer here. | Allows for extremely aggressive feed rates during high-speed roughing without snapping. |
High-Efficiency Milling (HEM) relies on taking light radial step-overs (Ae)—typically 5% to 15% of the tool diameter—combined with deep axial depths of cut (Ap) up to 2x or 3x the tool diameter at very high feed rates. This strategy maximizes the use of the flute length but puts tremendous pressure on the bottom corner of the tool. Corner radius geometry is intrinsically linked to aggressive material removal rates. The strengthened corner allows the tool to handle heavier chip loads and faster feed rates without deflecting or snapping. When hogging out large pockets or deep cavities, standardizing on radiused tools ensures the process remains stable even when pushing the spindle load to its limits. You can push a 0.030" radius tool much harder than a sharp corner tool before encountering chatter or tool breakage.
From a mechanical engineering perspective, sharp internal corners on machined parts are dangerous. They act as stress risers. They concentrate mechanical forces into a single point and exponentially increase the risk of fatigue failure under load. Aerospace and structural components almost always require internal radii for this exact reason.
This brings up a practical aspect of Design for Manufacturability (DFM). Engineers should design internal corner radii slightly larger than standard corner radius end mills. For example, specifying a 0.130" corner radius on a print allows the machinist to use a standard 0.125" (1/8") radius tool. This slight clearance allows the CNC machine to perform smooth circular interpolation in the corner. If the print calls for a 0.125" radius and the machinist uses a 0.125" tool, the tool will bury itself in a dead stop in the corner. This causes a massive spike in tool pressure, severe chatter, and likely tool breakage. Always leave room for the tool to roll through the corner.
In mold making and complex 3D surfacing, bull nose end mills offer distinct advantages during step-down operations. Ball nose end mills are the standard for finishing organic 3D shapes. However, they have a zero surface speed at the very tip. This dead center can cause tearing and poor surface finish on flat or shallow-angled surfaces. A corner radius tool provides a flat bottom for superior finish on shallow floors, while the radiused corner handles the transition up the walls. Compared to a square end mill, the bull nose leaves a much smaller cusp height during Z-level roughing. This reduces the amount of material the final ball nose finishing tool has to remove, extending the life of your finishing tools.
Despite the overwhelming structural advantages of a radiused edge, square end mills remain indispensable in any machine shop. Certain part geometries and specific machining operations absolutely require a true 90-degree corner.
Many prints dictate sharp internal corners. Usually, a mating part with a square profile needs to fit flush inside a pocket for clearance or assembly. In these scenarios, a corner radius tool cannot finish the job. The standard, highly efficient workflow is to rough the entire pocket using a robust corner radius tool to maximize material removal and tool life. Once the bulk of the material is gone, the machinist follows up with a smaller square end mill to pick out the remaining material in the corners. This ensures the final dimensions meet the strict 90-degree requirement without subjecting the square tool to heavy roughing loads.
Cutting force vectors play a massive role in tool selection. Square end mills direct cutting forces primarily in the tangential and axial directions during side milling. The force pushes parallel to the wall being cut. A large corner radius introduces significant radial forces. The curve of the radius effectively pushes the tool away from the workpiece. In rigid setups with thick material, this is negligible. But when machining thin-walled parts or using long-reach tooling, this radial push causes tool deflection. Deflection leads to severe chatter, poor surface finish, and dimensional inaccuracies where the wall becomes tapered rather than perfectly straight.
If you are cutting a wall that is 0.050" thick, a square end mill will induce less radial pressure and yield a straighter wall. When tool stick-out exceeds a 4:1 length-to-diameter ratio, the radial forces generated by a large corner radius become highly problematic. The tool acts like a lever, magnifying the radial push and causing severe chatter. In these extended-reach scenarios, you must either reduce the corner radius size or revert to a square end mill with a reduced feed rate to maintain dimensional accuracy.
When a part requires a perfectly flat floor that meets a perpendicular wall with absolutely no fillet, a square end mill is mandatory. Corner radius tools can easily face a flat surface. However, they will always leave a radiused scallop at the boundary wall where the floor meets the vertical edge. If a flush, perpendicular finish is required for a mating component to seat properly, you must take a final finishing pass with a square end mill to clear out that radiused boundary.
Transitioning a shop's roughing strategy from square to radiused tooling is highly beneficial. It requires careful adjustments in programming, machining parameters, and inventory management to avoid costly mistakes.
The most common risk when switching tools is dropping a corner radius tool into a CAM toolpath originally programmed for a square end mill. If the software assumes the tool has a sharp corner, it generates a toolpath that leaves uncut material (fillets) along the floor-to-wall intersections of the part. If a subsequent operation assumes that material is gone, the next tool will crash into the uncut stock.
To mitigate this, you must meticulously update your CAM tool library with the exact radius dimensions of the physical tools. Programmers must utilize rest machining toolpaths. Rest machining algorithms automatically detect the radiused material left behind by the bull nose tool. The software then generates targeted toolpaths for a smaller square tool to clear only the remaining stock. This optimizes cycle times and prevents unexpected tool engagement.
Calculating feeds and speeds requires a deep understanding of how the radius engages the material. A major risk is calculating feed rates based on the full tool diameter when the depth of cut (Ap) is actually shallower than the corner radius itself. When cutting primarily on the radius, the effective cutting diameter is smaller than the tool's actual diameter.
This introduces the concept of radial chip thinning. Because the cutting edge is curved, the actual chip thickness produced is less than the programmed feed per tooth. If you do not adjust for this, the tool takes a chip that is too thin. The cutting edge rubs against the material rather than shearing it. This rubbing generates extreme heat and rapidly work-hardens the material. Machinists must apply chip thinning formulas to adjust feed rates upward when the depth of cut is less than the corner radius. This ensures the tool maintains the proper chip thickness and cuts efficiently.
Radial Chip Thinning Compensation Guide
| Depth of Cut (Ap) vs. Corner Radius (r) | Effective Cutting Diameter | Feed Rate Adjustment Required |
|---|---|---|
| Ap is greater than r (Ap > r) | Equal to the full tool diameter. | None. Use standard calculated feed per tooth (IPT). |
| Ap is equal to r (Ap = r) | Slightly less than full diameter at the very bottom, but mostly full engagement. | Minimal to none. Monitor spindle load. |
| Ap is less than r (Ap < r) | Significantly smaller than the full tool diameter. | Increase feed rate. Apply radial chip thinning formula to prevent rubbing. |
| Ap is less than 50% of r | Cutting entirely on the lower curve of the radius. | Aggressive feed rate increase required. Tool is acting similarly to a ball nose end mill. |
Corner radius tools are generally slightly more expensive than standard square end mills due to the additional grinding operations required during manufacturing. Managing a tool crib can quickly become a nightmare if you try to stock every possible radius variation (e.g., 0.015", 0.030", 0.060", 0.090", 0.125") for every tool diameter.
To prevent a bloated and expensive tool inventory, shops must establish standard radii based on their most common print requirements. Standardizing on a 0.030" radius for all 1/2" roughing end mills achieves economies of scale. It simplifies the purchasing process and makes CAM programming far more predictable. You do not need five different radii for a single tool diameter unless you are doing highly specialized aerospace work.
To eliminate guesswork on the shop floor, follow this systematic framework when deciding which end mill geometry to pull from the crib.
A: A corner radius end mill has a radiused cutting tip designed for milling pockets, slots, and contours while protecting the tool's edge. A corner rounding end mill is a specific form tool featuring a concave radius. Machinists use corner rounding tools exclusively to round off sharp external edges on a previously finished part.
A: Yes, plunging is possible if the specific tool is manufactured with center-cutting geometry. However, direct plunging puts immense strain on the tool. Ramping or helical interpolation is highly recommended instead. These methods effectively evacuate chips and significantly reduce vertical tool pressure during entry.
A: The radiused geometry increases radial cutting forces compared to a square end mill. This curve pushes the tool away from the workpiece. If the tool is not properly supported, or if feeds and speeds are incorrect, this radial push can increase tool deflection and cause chatter on thin-walled parts.
A: A bull nose end mill is an industry-standard term for an end mill with a large corner radius. Geometrically, it sits between a traditional square end mill and a full ball nose end mill. It offers a flat bottom for facing alongside heavily protected corners for aggressive roughing.
A: Choose the largest radius permitted by the part print to maximize edge strength. This typically ranges from 0.010" to 0.125" depending on the tool diameter. Engineers should size internal part radii slightly larger than the tool radius to allow for smooth circular interpolation during machining.
A: Yes, they generally offer significantly longer tool life. The radius eliminates the fragile, sharp 90-degree point that is highly prone to micro-chipping and heat concentration. This allows the tool to absorb shock and distribute wear evenly across the cutting edge during heavy milling operations.
