Machining abrasive non-ferrous materials and advanced composites exposes a massive production bottleneck on the shop floor. Rapid tool wear directly causes unacceptable machine downtime and out-of-tolerance parts. Standard solid carbide tooling struggles heavily when cutting high-silicon aluminum, carbon fiber reinforced polymers (CFRP), or graphite. The hidden costs of frequent tool changes, machine idle time, and scrapped components quickly erode operational efficiency and profit margins.
Shifting to pcd end mills offers a strategic, high-performance alternative. This approach moves the focus away from initial procurement costs toward long-term cost-per-part reduction. You gain process stability and achieve superior surface finishes that frequently eliminate the need for secondary grinding or polishing operations. We will examine exactly how these tools perform, where you should deploy them, and how to optimize your machine setup to maximize their lifespan.

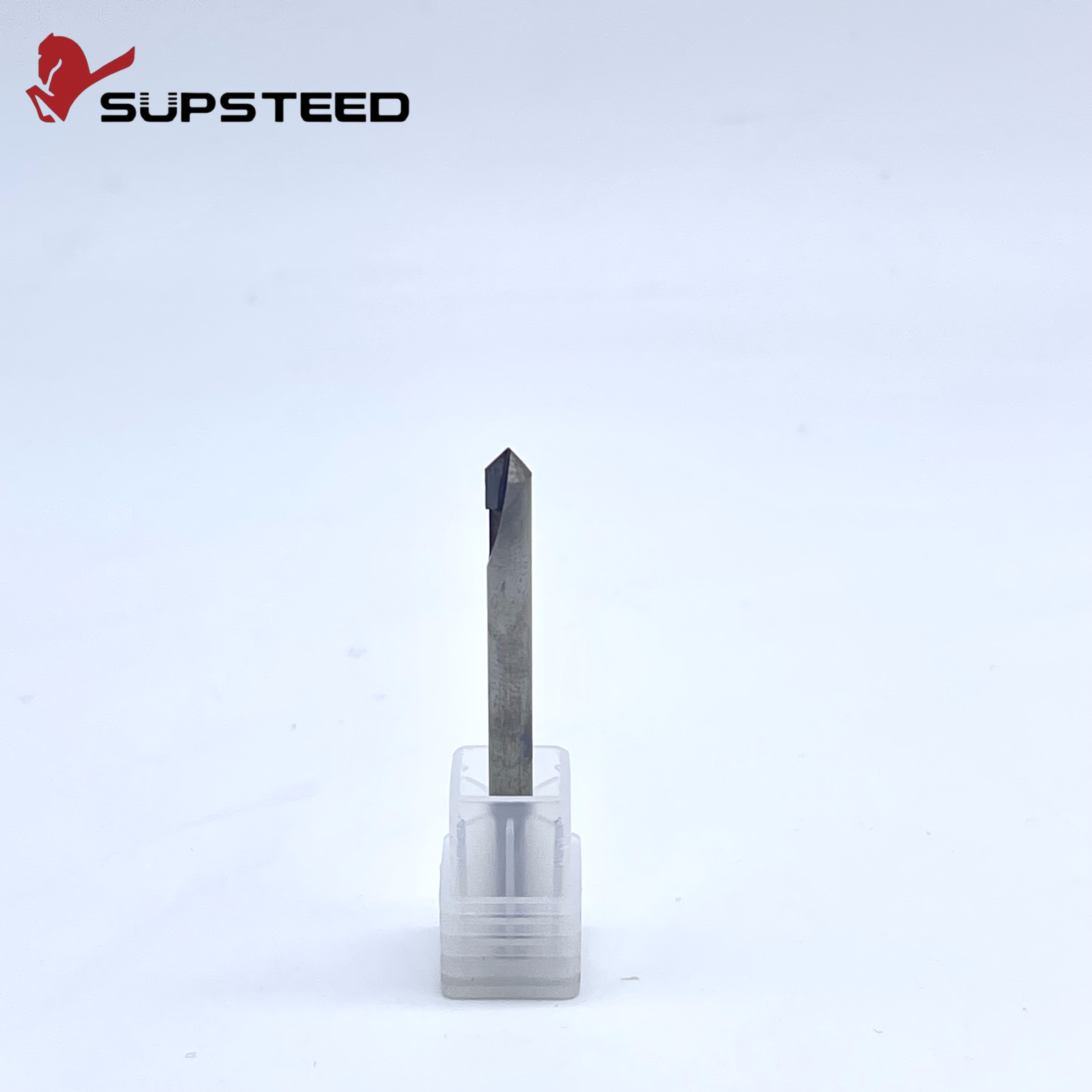

Polycrystalline Diamond (PCD) consists of synthetic diamond particles sintered together with a metallic binder. Cobalt is the most common binder used in this high-pressure, high-temperature manufacturing process. This creates an ultra-hard cutting layer that approaches natural diamond hardness. The metallic matrix provides a slight improvement in toughness compared to pure monocrystalline diamond. Manufacturers bond this diamond layer to a solid carbide substrate to create the actual cutting edges of the end mill.
Tool manufacturers build these cutters using several distinct construction methods to match specific shop floor applications. You need to select the right style for your specific operation to prevent premature tool failure and ensure optimal chip evacuation.
PCD Tool Construction Styles
| Construction Style | Design Characteristics | Primary Shop Floor Applications |
|---|---|---|
| Brazed-Edge PCD | Small diamond blanks brazed directly onto a carbide or steel tool body. | Standard aluminum profiling, facing, and general non-ferrous milling. |
| Full-Nib PCD | A solid cylinder of diamond sintered directly to the tip of the tool. | Heavy composite routing where continuous edge engagement is required. |
| Veined / Plated | Diamond integrated directly into the flutes following complex helical paths. | Specialized aerospace applications requiring high shear angles. |
To understand the value of diamond tooling, you must establish an evaluation baseline against standard solid carbide. Carbide is the industry standard for general machining, but it falls short in highly abrasive environments. The physical properties of diamond dictate a completely different approach to feeds, speeds, and tool handling.
Solid Carbide vs. PCD Tooling Comparison
| Performance Metric | Solid Carbide | Polycrystalline Diamond (PCD) |
|---|---|---|
| Hardness (HV) | 1,500 - 2,000 | 5,000 - 8,000 |
| Abrasion Resistance | Moderate to High | Extreme (10x to 50x greater) |
| Toughness (Impact Resistance) | High | Low (Highly Brittle) |
| Thermal Conductivity | Moderate | Exceptionally High |
| Friction Coefficient | 0.4 - 0.6 | 0.1 - 0.2 |
The cutting dynamics of diamond tools differ wildly from conventional carbide. Diamond has an exceptionally low coefficient of friction. Material simply cannot adhere to the cutting edge. This virtually eliminates built-up edge (BUE) when you machine gummy materials like cast aluminum. The tool holds a razor-sharp edge that shears material cleanly. This reduces cutting forces and minimizes part stress. Lower part stress is mandatory when you machine thin-walled aerospace components or delicate electronic housings that distort under heavy tool pressure.
You must manage a fundamental trade-off when applying these tools. You gain extreme hardness and unmatched wear resistance, but you accept high brittleness. The cutting edges are highly susceptible to impact damage. Dropping the tool on a concrete floor, running it in a worn spindle with excessive runout, or programming aggressive interrupted cuts will fracture the diamond edge instantly. Operators must treat these cutters like precision measuring instruments rather than standard roughing end mills.
Machining standard wrought aluminum alloys like 6061 and 7075 benefits greatly from diamond tooling. The low friction allows for high-speed material removal rates while keeping cutting loads low. Chips evacuate rapidly without welding to the flutes, ensuring continuous unattended production runs without sudden tool failures. You can push spindle speeds to the absolute maximum limit of your CNC machine.
The real advantage emerges when cutting high-silicon cast aluminum alloys such as A356, 319, or 390. These alloys contain silicon particles that act like sandpaper against cutting tools. Standard carbide degrades rapidly, losing its edge and pushing material rather than cutting it. This creates massive burrs and poor surface finishes. Diamond easily shears through these hard silicon particles. The tool maintains its geometry over thousands of parts, ensuring dimensional accuracy and eliminating the frequent offset adjustments required with carbide.
Carbon fiber reinforced polymers (CFRP) and glass fiber reinforced plastics (GFRP) present unique machining challenges. The fibers are highly abrasive, and the polymer matrix is prone to melting or delaminating under improper cutting conditions. Cutting these materials requires shearing the fibers cleanly without pulling them out of the resin. If the tool dulls even slightly, it will rip the fibers and ruin the expensive composite panel.
Specialized diamond geometries manage these composites perfectly. Compression routers feature up-cut and down-cut flutes that force the cutting pressure toward the center of the material. This geometry prevents top and bottom delamination during routing and trimming operations. The sharp diamond edge slices through the carbon fibers effortlessly, preventing fraying and leaving a clean, finished edge that requires no manual rework or sanding.
Manufacturing graphite electrodes for Electrical Discharge Machining (EDM) demands tight tolerances and sharp internal corners. Graphite is exceptionally abrasive and turns into a fine dust during machining, which rapidly wears down carbide tools. Diamond tools resist this abrasion, allowing shops to machine complex electrodes over long cycle times without measurable tool wear. This stability guarantees that the final electrode perfectly matches the CAD model, ensuring the subsequent EDM process is accurate.
These tools also excel in soft but highly abrasive materials. Specialized tooling foams, unfired ceramics, and green carbide require sharp edges to prevent material tearing. Diamond maintains edge integrity, ensuring clean cuts and precise dimensional control in materials that would otherwise crumble or chip under the pressure of a dull carbide tool.
A common tooling misconception suggests that because diamond is the hardest known material, it can cut hard metals. This is entirely false. You cannot machine steel, cast iron, titanium, or any ferrous alloy with these tools, regardless of the metal's hardness. Attempting to do so will destroy the tool in seconds.
The limitation is chemical, not mechanical. At the high temperatures generated during metal cutting, diamond reacts chemically with iron and titanium. A process called graphitization occurs, where the carbon atoms in the diamond revert into graphite. The cutting edge literally dissolves into the workpiece. For ferrous metals and titanium, you must use Cubic Boron Nitride (CBN) or specialized coated carbide tools instead.
Material Compatibility Guide
| Material Category | Specific Materials | Compatibility Status |
|---|---|---|
| Non-Ferrous Metals | Aluminum, Copper, Brass, Bronze, Magnesium | Highly Recommended |
| Advanced Composites | CFRP, GFRP, Kevlar, MMC (Metal Matrix Composites) | Highly Recommended |
| Abrasive Non-Metals | Graphite, Ceramics (Green), Tooling Board, Wood | Highly Recommended |
| Ferrous Metals | Carbon Steel, Stainless Steel, Cast Iron | Strictly Prohibited (Chemical Degradation) |
| Reactive Metals | Titanium, Superalloys (Inconel) | Strictly Prohibited (Chemical Degradation) |
Edge quality and dimensional accuracy define success in profiling operations. Aerospace composite panels and automotive aluminum components require smooth edges free of burrs or delamination. PCD milling tools operate at maximum spindle speeds, feeding rapidly along the part profile. The sharp edge cleanly shears the material, leaving a pristine finish. This capability reduces cycle times significantly while ensuring every part meets strict aerospace or automotive quality standards. Operators can program aggressive feed rates without worrying about tool deflection, provided the machine is rigid enough to handle the velocity.
Achieving specific surface roughness (Ra) values often requires secondary grinding operations. Diamond face mills and end mills can achieve Ra values comparable to grinding directly on the CNC machine. This is particularly valuable for fluid-sealing surfaces on engine blocks, transmission housings, and hydraulic valve bodies. The tool leaves a mirror-like finish, ensuring gaskets and O-rings seal perfectly. Eliminating the secondary grinding operation streamlines the production process, frees up floor space, and reduces overall manufacturing time.
Heavy material engagement presents challenges due to the brittleness of the diamond edge. Slotting and plunge milling require specific tool path strategies to avoid chipping. Direct vertical plunging forces the bottom of the tool into the material, often causing catastrophic failure. You must utilize ramping or helical interpolation tool paths. These strategies enter the material at a shallow angle, gradually increasing engagement and protecting the fragile cutting edges from sudden impact loads. When slotting, clearing chips immediately is required to prevent recutting, which will fracture the diamond inserts.
Evaluating the investment requires looking past the high initial purchase price. The justification relies on calculating the overall operational cost per part. You must factor in the tool life multiplier. If a diamond tool costs ten times more than carbide but lasts fifty times longer, the tooling cost per part drops significantly. Furthermore, you must account for the reduction in machine downtime. Fewer tool changes mean more hours spent cutting parts. Eliminating secondary finishing operations also removes labor and machine costs from the production equation.
To accurately calculate your return on investment, follow these steps on the shop floor:
Diamond tools thrive at high surface speeds. You can utilize the maximum spindle speeds and feed rates allowable by your machine tool. Translating these aggressive cutting parameters into throughput gains yields a massive reduction in cycle time. Faster material removal rates mean you produce more parts per shift. This increased capacity allows shops to take on more work without purchasing additional CNC machines or hiring extra operators for weekend shifts.
Dimensional consistency provides immense value in high-volume production. Carbide tools wear continuously, requiring operators to frequently measure parts and adjust tool offsets in the CNC control. Diamond tools exhibit near-zero wear over thousands of parts. This stability reduces the need for constant operator interventions and quality control checks. You set the tool once, and it produces in-tolerance parts consistently until the end of its life cycle. This predictability is essential for lights-out manufacturing environments.
The lifecycle of these tools extends beyond their initial use. Tool reconditioning offers significant cost savings. Worn or slightly chipped tools can be sent back to the manufacturer for relapping and resharpening. The logistics involve inspecting the remaining diamond layer thickness and grinding a new edge using specialized EDM or diamond grinding equipment. This process restores the tool to its original cutting geometry at a fraction of the cost of buying a new one. Depending on the initial diamond thickness, a tool can often be reconditioned two to four times before requiring complete replacement.
The primary adoption risk lies in the condition of the CNC machine. Older or less rigid machines will destroy diamond tools quickly. High spindle runout causes uneven chip loads, forcing one cutting edge to take the brunt of the force. This leads to immediate micro-chipping. Successful implementation requires strict runout metrics. Total indicator runout (TIR) at the tool tip should not exceed 0.005 mm (0.0002 inches). You must use high-quality tool holders, such as shrink-fit or hydraulic chucks, to guarantee concentricity and rigidity. Standard ER collets often introduce too much runout for successful diamond milling.
Managing cutting temperatures requires careful coolant application. Dry machining works well for composites and graphite, utilizing high-velocity dust collection systems to remove abrasive particles. For aluminum, Minimum Quantity Lubrication (MQL) provides excellent lubricity without flooding the work envelope. If using flood coolant, you must ensure a continuous, high-pressure flow. Intermittent coolant application causes thermal shock. The diamond edge heats up in the cut and rapidly cools when hit by a splash of coolant, leading to thermal cracking and insert failure.
The human element plays a major role in tool life. Operators accustomed to tossing carbide tools into a drawer will quickly ruin diamond edges. You must establish strict handling protocols in the tool crib. Tools must be stored in individual protective tubes to avoid metal-to-metal contact. Operator training must cover appropriate feeds and speeds, specifically focusing on reducing feed rates during part entry and exit to prevent impact damage. Proper handling ensures the tool survives long enough to deliver its expected return on investment.
Common PCD Machining Failures and Solutions
| Failure Mode | Root Cause | Shop Floor Solution |
|---|---|---|
| Micro-chipping on cutting edge | Excessive spindle runout or lack of machine rigidity. | Switch to shrink-fit holders; verify TIR is under 0.005mm. |
| Thermal cracking (crazing) | Intermittent coolant flow causing thermal shock. | Ensure continuous flood coolant or switch entirely to MQL/dry machining. |
| Catastrophic insert fracture | Aggressive vertical plunging or heavy interrupted cuts. | Program helical interpolation for entry; reduce feed rate on interrupted sections. |
| Rapid edge wear / dissolving | Machining ferrous metals or titanium. | Remove tool immediately; switch to CBN or coated carbide for these metals. |
Diamond end mills serve as highly specialized solutions rather than general-purpose cutting tools. They dominate in high-volume production and when machining highly abrasive non-ferrous metals and advanced composites. The initial investment pays off through massive increases in tool life, reduced cycle times, and the elimination of secondary finishing operations. Tooling buyers should audit their current production bottlenecks before transitioning. Review your solid carbide consumption rates on specific jobs. Analyze the scrap rates caused by poor surface finishes or dimensional drift. Evaluate your CNC machines to ensure they possess the necessary spindle speeds and rigidity to support brittle cutting materials.
To implement these tools successfully on your shop floor, follow these next steps:
A: No. Diamond chemically reacts with iron and titanium at high cutting temperatures through a process called graphitization. The diamond degrades into graphite, destroying the cutting edge almost instantly. For hard ferrous metals and titanium alloys, you must use Cubic Boron Nitride (CBN) or specialized coated solid carbide tools instead.
A: Tool life multipliers depend heavily on the material being machined. In standard aluminum alloys, expect 10x to 20x longer life. In highly abrasive materials like high-silicon cast aluminum, CFRP, or graphite, diamond tools routinely last 30x to 50x longer than premium solid carbide equivalents.
A: Yes. Worn tools can undergo a relapping process where a specialized grinding wheel restores the cutting edge. Depending on the thickness of the original diamond layer and the extent of the wear or chipping, a tool can typically be reconditioned two to four times, significantly reducing overall tooling costs.
A: Polycrystalline diamond begins to suffer thermal degradation at approximately 600°C to 700°C. Exceeding these temperatures causes the diamond structure to break down and lose its extreme hardness. Proper cutting parameters and appropriate coolant or MQL strategies keep the cutting zone well below this critical threshold.
A: A dedicated special machine is not required, but the CNC equipment must meet strict condition standards. You need high spindle RPM capabilities to achieve the necessary surface speeds. More importantly, the machine must possess extreme rigidity and minimal spindle runout (under 0.005 mm) to prevent micro-chipping the brittle diamond edges.
A: Interrupted cuts pose a high risk due to the inherent brittleness of diamond. Heavy interruptions cause impact damage and edge chipping. If an interrupted cut is unavoidable, you must use tools with specific edge preparations (like a heavy hone or T-land) and reduce feed rates significantly upon entry to protect the cutting edge.
