Views: 0 Author: Site Editor Publish Time: 2026-08-08 Origin: Site
Premature tool failure and unpredictable wear rates directly inflate cost-per-part and erode machining profit margins. Many machine shops treat solid carbide and high-speed steel (HSS) tooling as consumable commodities. They neglect the handling, operational, and post-machining protocols that prevent micro-chipping, built-up edge (BUE), and thermal cracking. When operators toss expensive carbide into a drawer or run dull edges until they snap, the financial drain extends far beyond the tool crib. Spindle bearings take a beating, surface finishes degrade, and scrap rates climb. Implementing a standardized end mills maintenance program shifts operations from reactive tool replacement to predictable, data-driven tool utilization. You stop guessing when a tool will fail and start managing its exact lifecycle. This requires strict adherence to runout mitigation, proper storage, and systematic wear inspection.
Evaluating tool performance requires hard data rather than subjective operator feel. Relying on sound or visual sparks often means the tool has already failed. You must track Time in Cut (TIC). This metric measures the exact minutes the flute engages material. Material Removal Rate (MRR) dictates how aggressively the tool performs over that time. Tracking linear inches machined provides a baseline for specific part programs. These metrics establish a reliable baseline. They allow you to pull tools just before catastrophic failure occurs. This preserves the substrate for future re-grinding. To build a reliable tracking system, shops should implement the following steps:
Poor tooling maintenance creates a compounding financial impact across the shop floor. Dull edges push material rather than shearing it. This increases cutting forces exponentially. High cutting forces deflect the tool and cause poor surface finishes. Scrapped parts represent lost material and wasted spindle time. Unbalanced or heavily worn tools vibrate violently. This vibration accelerates wear on expensive spindle bearings. Replacing a spindle cartridge costs thousands of dollars and halts production for days. Unplanned machine downtime to extract broken carbide from a workpiece destroys production schedules. The cost of a neglected end mill far exceeds its purchase price. When you factor in the labor required to rework parts and the machine time lost to tool breakage, the financial argument for strict maintenance becomes undeniable.
A formalized maintenance program requires measurable success criteria to justify the effort. You must set baseline metrics before changing shop floor habits. Target a 20% reduction in monthly tooling spend. Aim for a 15% increase in average tool life across your primary solid carbide inventory. Track the reduction in scrapped parts attributed to poor surface finish. Monitor the frequency of unplanned tool changes per shift. Achieving these metrics proves the operational value of strict handling and maintenance protocols. Operators need to see the data to understand why they can no longer throw carbide tools into a shared bin. When the shop floor understands the financial metrics, compliance with new handling procedures increases dramatically.
Selecting the correct geometry prevents premature edge failure before maintenance is even required. You must match flute count and helix angle to the workpiece material. Aluminum requires three flutes and high helix angles for rapid chip evacuation. Hardened steels demand four to six flutes with rigid core diameters. Incorrect geometry causes chip packing. Chip packing snaps solid carbide instantly. Segregating roughing and finishing tools protects your assets. Utilize dedicated roughing end mills featuring chip-breaker or corncob geometries. They handle heavy MRR and absorb the most abuse. This preserves the sharp edges of solid carbide finishing tools for final passes.
Substitute solid carbide with indexable tooling for aggressive roughing operations. Indexables reduce the volume of solid end mills requiring maintenance and re-grinding. When an indexable insert wears out, you simply rotate it to a fresh edge. This keeps the tool body in the machine and eliminates the need to reset tool height offsets. Reserving solid carbide exclusively for semi-finishing and finishing passes extends the life of your most expensive cutting tools.
Inadequate chip clearance leads directly to recutting. Recutting occurs when chips fail to evacuate the cutting zone. The tool crushes its own hardened chips against the workpiece. This instantly dulls cutting edges and causes catastrophic tool failure. You must balance MRR and wear. Aggressive roughing parameters accelerate the degradation of tool coatings like TiAlN or AlTiN. Pushing feed rates too high causes micro-chipping on the flute edges. Running speeds too low causes built-up edge as material welds to the carbide.
Optimization requires adjusting parameters based on real-time spindle load monitoring. Implement chip thinning techniques when taking light radial step-overs. Chip thinning allows you to increase feed rates without overloading the cutting edge. This transfers heat into the chip rather than the tool substrate. When the chip carries the heat away, the carbide remains stable, and the coating stays intact. Proper programming strategies directly reduce the physical wear on the tool.
Intermittent coolant application on hot carbide causes thermal shock. Thermal shock creates microscopic cracks perpendicular to the cutting edge. These cracks lead to rapid edge flaking. You must evaluate the correct cooling method based on the material. Machining aluminum requires high-pressure flood coolant to prevent chip welding. Machining hardened steels requires high-velocity air blast. Air blast clears chips while allowing the cutting zone to reach high temperatures.
High temperatures activate advanced PVD coatings like AlTiN. These coatings form a protective aluminum oxide layer when exposed to heat. Applying liquid coolant to an AlTiN coated tool cutting steel guarantees thermal cracking. The coolant rapidly drops the temperature of the carbide, causing it to contract violently. This contraction shatters the brittle coating and exposes the raw carbide substrate to immediate abrasive wear. Train operators to trust air blast on steel applications, even when they see sparks.
Proper tool holding forms the foundation of tool life. Collet chucks offer flexibility but introduce multiple tolerance stacking points. Milling chucks provide high gripping force for heavy roughing. Shrink-fit holders deliver superior concentricity and minimal runout. Runout destroys end mills. Just 0.0005" of runout forces one flute to do the majority of the cutting. This reduces tool life by up to 50%. You must measure runout with a dial indicator during setup. If runout exceeds acceptable limits, you must clean the collet, re-seat the tool, and measure again.
Heavy cuts risk end mills pulling out of the holder. The helix angle of the flutes acts like a screw, pulling the tool downward into the workpiece during heavy engagement. You must utilize mechanical locking systems like Weldon flats or Safe-Lock grooves to prevent this. Always ensure proper torque specs when tightening collet nuts. Over-tightening distorts the collet and introduces runout. Maintenance of tool holders is mandatory. Clean collets and spindle tapers daily. Dirt in the tool holder directly translates to runout, uneven flute wear, and reduced clamping force.
Routine end mill cleaning is critical for accurate wear assessment. Machining wood or aluminum leaves thick pitch and resin deposits. Machining gummy metals like stainless steel or titanium creates stubborn built-up edge (BUE). These deposits hide micro-fractures and alter the tool's geometry. Never use wire brushes on carbide edges. Mechanical scraping chips the brittle substrate. Advocate for appropriate chemical solvents. Specialized tooling solvents dissolve resin and coolant residue without degrading the carbide substrate or the PVD coating. Clean tools cut efficiently and allow for precise optical inspection.
When titanium or inconel welds to the cutting edge, it forms a mechanical and chemical bond. If you try to pry this material off with a scribe or a wire wheel, you will pull chunks of carbide out with it. Chemical dissolution is the only safe method for removing severe BUE. Set up a dedicated soaking station in the tool crib. Require operators to drop used tools into the solvent bath immediately after a job finishes. This prevents coolant residue from hardening into a concrete-like substance over the weekend.
Ultrasonic cleaning provides the most thorough residue removal for complex geometries. Ultrasonic cavitation creates microscopic bubbles that implode against the tool surface. This action removes microscopic debris from deep flutes and internal coolant-through holes. It cleans areas manual scrubbing cannot reach. You must assess whether your shop volume justifies this investment. High-volume production shops benefit immensely from industrial ultrasonic tanks. Smaller job shops may suffice with manual solvent stations and dedicated soaking protocols. Clean tools ensure accurate measurements during the re-grinding evaluation phase.
End Mill Cleaning Methods Comparison
| Cleaning Method | Primary Application | Risk to Tool Edge | Effectiveness on BUE |
|---|---|---|---|
| Manual Wire Brushing | Heavy chip removal (Not Recommended) | High (Causes micro-chipping) | Poor |
| Chemical Solvent Soak | Resin, pitch, and coolant residue | Low | Moderate |
| Ultrasonic Cavitation | Complex flutes, internal coolant holes | None | Excellent |
| Dry Ice Blasting | Stubborn titanium/inconel BUE | None | Excellent |
Operators must identify specific wear types to adjust machining parameters. Train your staff to use optical comparators or digital microscopes. They need to identify flank wear, crater wear, notch wear, and micro-chipping. Flank wear indicates normal abrasive degradation. Crater wear suggests excessive heat generation. Notch wear points to work-hardening of the material. Establish a maximum allowable wear land based on data. Pull the tool when the wear land reaches 0.005" to 0.008". Pulling the tool at this exact threshold ensures it remains a viable candidate for re-grinding.
Visual inspection also reveals machine-side issues. If you observe heavy wear on only one flute of a four-flute end mill, you have a severe runout problem. If you see crater wear forming rapidly, your surface footage is too high. Using a digital microscope allows you to capture images of the wear patterns and attach them to the job traveler. This historical data helps programmers adjust speeds and feeds for future runs, continuously optimizing the machining process.

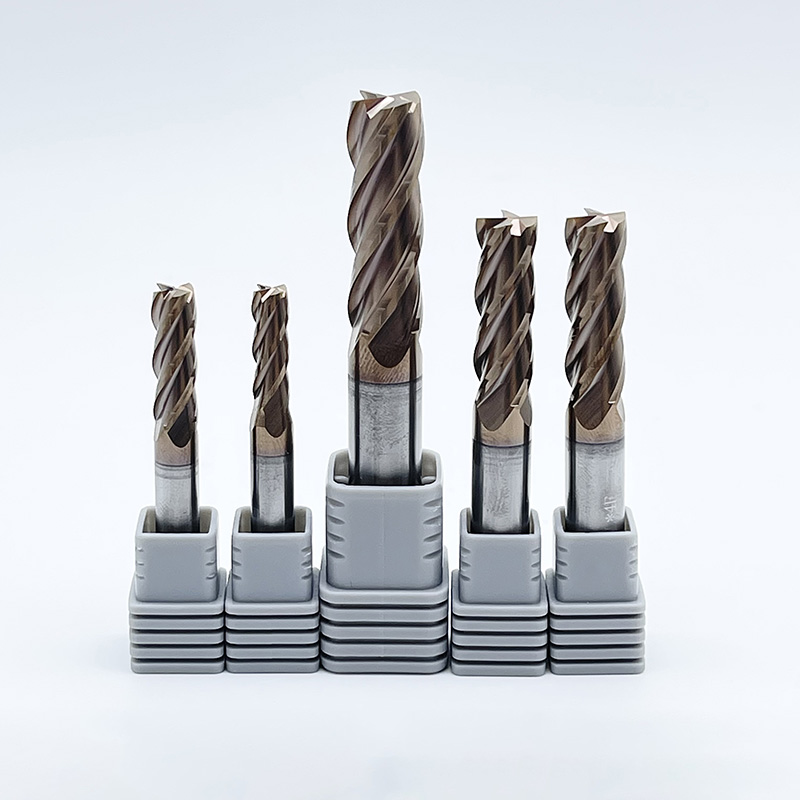

Solid carbide is exceptionally hard but highly brittle. It is highly susceptible to impact damage. Loose storage in metal drawers guarantees micro-fractures. When carbide tools clink together, the cutting edges shatter microscopically. These invisible fractures cause immediate failure during the next machining cycle. You must implement strict storage solutions to isolate every single tool in your inventory.
Humidity and poor environmental controls cause rapid corrosion. Rust degrades high-speed steel (HSS) tools and expensive tool holder shanks. Rust on a tool holder taper destroys spindle concentricity. Mitigate rust through climate control and proper packaging. Use vapor corrosion inhibitor (VCI) paper or VCI plastic bags for long-term storage. Handling protocols matter significantly. Oils and acids from human hands degrade delicate tool coatings over time. Require operators to use clean shop towels or nitrile gloves during setup and tool changes. Wiping down tool holder tapers with a light rust-preventative oil before storage extends the life of your tool holding investments.
Lifecycle cascading maximizes the return on every tool purchased. A finishing end mill requires pristine edges to achieve tight tolerances. Once those edges degrade slightly, the tool is no longer suitable for finishing. However, it still possesses significant cutting capability. Move this degraded finishing end mill to semi-finishing operations. Once it wears further, downgrade it again to rest-roughing operations. This operational logic extracts maximum value from the carbide.
You must implement tracking systems to manage this cascade. Use tool management software or physical color-coded tagging systems. This prevents operators from accidentally grabbing a downgraded rougher for a critical finishing pass. A simple system involves dipping the shank of downgraded tools in colored layout fluid. Blue indicates semi-finishing, and red indicates roughing only. This visual management system eliminates confusion on the shop floor and ensures tools are used in the correct application.
Reconditioning restores tool life but requires strict economic evaluation. Establish a clear cost-benefit framework. Re-grinding is typically only viable for tools 1/2" in diameter and larger. The cost to sharpen a 1/4" end mill often exceeds the price of a new one. Scrapping small tools is usually the correct financial decision. Understand the implementation risks of recoating. Re-grinding removes material, which alters the tool's outer diameter (OD). A 0.500" end mill may return from sharpening at 0.485".
CAM software and machine tool offsets must be updated immediately to reflect the new geometry. Failure to update offsets guarantees dimensional inaccuracies on the workpiece. You must use cutter compensation (G41/G42) at the machine control to adjust for the new diameter. Coating adhesion presents another risk. Poor recoating quality occurs if the tool is not subjected to rigorous cleaning and stripping prior to the PVD or CVD process. Flaking coatings ruin part finishes instantly. Partner with a reputable grinding facility that guarantees their stripping and coating processes.
Effective tooling maintenance is not a secondary housekeeping task. It is a primary driver of machining profitability and process reliability. Shops should prioritize investments in high-quality tool holding and ultrasonic cleaning systems before spending heavily on advanced tool coatings. A premium coating provides zero value if the tool suffers from runout or edge damage during storage.
A: Cleaning should occur immediately after a production run finishes or before returning the tool to storage. For gummy materials like aluminum or titanium, clean the tool during scheduled inserts or shift changes to prevent severe built-up edge from hardening.
A: Citrus-based industrial degreasers or specialized tooling solvents are the safest. They dissolve resin and coolant residue without attacking the carbide binder or degrading PVD coatings. Avoid harsh acids or abrasive mechanical scraping.
A: A chipped end mill can be fixed through re-grinding if the chip is shallow. The grinding facility must cut past the deepest part of the fracture. If the chip extends deep into the core diameter, the tool must be scrapped.
A: Runout causes uneven chip loads. If a four-flute end mill has runout, one or two flutes take the entire cutting force. This leads to rapid micro-chipping, poor surface finish, and can reduce overall tool life by up to 50%.
A: Prevent pullout by using mechanical locking tool holders. Holders with Weldon flats and set screws, or advanced systems like Safe-Lock grooves, physically prevent the tool from spiraling downward. Also, ensure collets are clean and torqued to exact specifications.
A: It generally becomes cost-effective to resharpen solid carbide end mills at 1/2" (12mm) in diameter and larger. The labor and coating costs for smaller diameters usually exceed the purchase price of a brand-new replacement tool.
