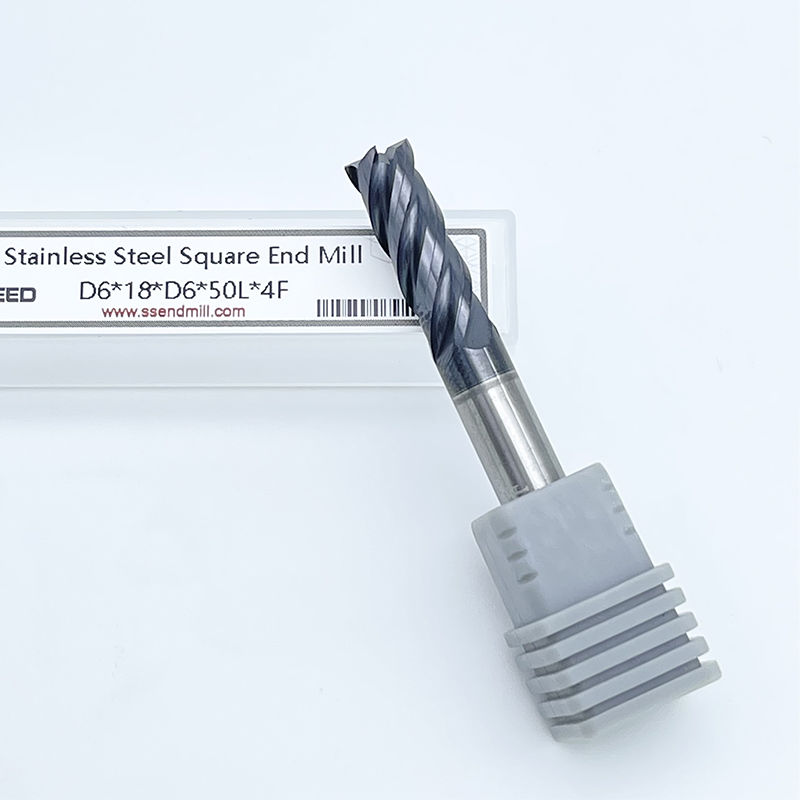

Tool chatter destroys machined parts and wrecks machine spindles. Pushing aggressive feeds on tough materials like titanium, Inconel, or hardened steel quickly exposes the structural limits of standard tooling. Harmonic resonance builds up rapidly. Cutting edges fail without warning. Surface finishes degrade beyond acceptable tolerances. You need a fundamentally different engineering approach to survive these demanding applications. Transitioning to high performance end mills solves these machining issues. These advanced tools leverage specific micro-geometries, variable flute designs, and specialized coatings. They optimize reach ratios to stabilize the cutting process under extreme loads. We will explore how harmonic disruption eliminates vibration and how structural rigidity enhancements prevent tool deflection. This guide breaks down the precise mechanics behind thermal management and extended tool life in rigorous CNC milling environments.
Defining success in CNC milling requires strict baseline criteria. Predictable tool life matters more than occasional peak performance. You need tools that hold tight dimensional tolerances across entire production runs without constant operator intervention. Surface finish must consistently meet strict Ra and Rz requirements right off the machine, eliminating secondary polishing operations. Material removal rates must hit maximum machine capabilities without compromising spindle stability. Achieving these metrics requires a deep understanding of cutting physics and how tools interact with different alloys under heavy loads.
Chatter ruins machining operations and destroys hardware. The physics behind chatter rely on harmonic resonance. Consistent flute impacts create rhythmic vibrations during the cut. These vibrations often match the natural frequency of the tool and spindle assembly. When frequencies align, the system enters a state of resonance. The tool begins to bounce against the workpiece rather than shearing the material cleanly.
This bouncing creates a wavy surface on the material. The next cutting edge hits this wavy surface, and the variation in chip thickness amplifies the vibration further. This feedback loop is called regenerative chatter. It builds upon itself exponentially within milliseconds. Unchecked vibration destroys spindle bearings prematurely, leading to massive repair bills. It leaves terrible chatter marks on the workpiece surface, often resulting in scrapped parts. It forces operators to slow down feed rates drastically, killing shop floor productivity.
To understand the severity, consider the spindle bearings. A CNC spindle running at 12,000 RPM experiencing severe regenerative chatter is subjecting its ceramic or steel bearings to thousands of micro-impacts per second. This causes brinelling—microscopic dents in the bearing races. Once brinelling occurs, the spindle will never run true again, and runout will plague every subsequent job until the spindle is rebuilt.
Excessive cutting resistance generates extreme heat at the shear zone. Friction between the tool and the workpiece breaks down the cutting edge rapidly. Edge chipping happens quickly when thermal shock occurs. For example, if you run flood coolant on a carbide tool cutting H13 tool steel, the cutting edge heats up to over 800 degrees Celsius in the cut, then instantly cools when it exits the material and hits the coolant stream. This rapid expansion and contraction causes micro-fractures in the carbide. These fractures propagate until the edge fails completely.
Built-up edge (BUE) presents another massive failure point, particularly in gummy materials like 6061 aluminum or 304 stainless steel. Heat and pressure weld workpiece material directly to the cutting flute. This changes the tool geometry instantly, dulling the cutting action and spiking spindle load. The welded material eventually breaks off, and it usually takes a piece of the carbide edge with it. Thermal cracking destroys the carbide substrate from the inside out. Managing heat generation remains the primary defense against rapid tool wear.
Common tool failure modes include:
Standard tools have strict operational limits. General purpose end mills feature symmetrical flute spacing. They use standard helix angles and uniform core sizes. They work perfectly fine for aluminum or mild steel in job shop environments where cycle time is not the primary concern. Low-stress applications tolerate them well. However, they fail miserably under high-feed, heavy-roughing toolpaths required in modern manufacturing.
Standard geometries create uniform impacts. Four flutes spaced exactly 90 degrees apart strike the material rhythmically. This rhythm invites harmonic resonance. General purpose tools also feature smaller core diameters to maximize flute volume. This reduces structural rigidity. The tool bends under heavy radial loads. This bending causes dimensional inaccuracies, pushing the tool away from the programmed path and leaving excess stock on the walls.
When a standard tool deflects, the cutting edge engages the material at an unintended angle. This alters the clearance and rake angles dynamically during the cut. The tool begins to rub rather than shear, generating massive amounts of heat. This heat transfers directly into the workpiece, causing thermal distortion in thin-walled parts, and into the tool, accelerating edge breakdown.
High performance means application-specific engineering. The universal tooling approach fails in modern dynamic machining. Engineers design high-end tools for specific ISO material groups. ISO P covers carbon and alloy steels. ISO M covers difficult stainless steels. ISO K covers abrasive cast iron. ISO N covers gummy non-ferrous metals. ISO S covers heat-resistant superalloys like Inconel. ISO H covers hardened materials.
Each material group requires optimized shearing action. A tool designed for titanium will fail in aluminum. Titanium requires sharp edges, high heat resistance, and specific relief angles to prevent work hardening. Aluminum requires massive flute valleys for rapid chip evacuation and high positive rake angles to shear the gummy material cleanly. High performance tools match the exact physics of the target material, utilizing specific edge preps (honing or chamfering) to strengthen the cutting edge based on the material's hardness.
Large diameter roughing often utilizes indexable carbide tools. Indexable tools use replaceable carbide inserts on a steel body. They remove massive amounts of material efficiently on large 50-taper machines. However, solid carbide maintains superior precision. Solid tools offer unmatched rigidity in smaller diameters (under one inch). Surface finish capabilities remain significantly higher with solid carbide because all cutting edges are ground concentrically from a single blank.
Complex dynamic milling toolpaths require solid carbide. These toolpaths involve rapid directional changes and varying radial engagements. Solid carbide handles these dynamic forces without the micro-deflections found in indexable insert pockets. Indexable alternatives simply cannot match this dynamic stability under one inch in diameter. The insert pockets inherently introduce microscopic movement under heavy loads, which translates to vibration and poor surface finishes on the final part.
Tool Geometry Comparison Table
| Feature | Standard Tooling | High Performance Tooling |
|---|---|---|
| Flute Spacing | Symmetrical (Equal 90° spacing) | Variable Pitch (Unequal spacing) |
| Helix Angle | Constant (e.g., 30 degrees) | Variable Helix (Changing angles along flute) |
| Core Diameter | Standard (Maximizes chip room) | Thickened (Maximizes rigidity) |
| Material Focus | Broad application (Mild steel, aluminum) | ISO Specific (P, M, K, N, S, H) |
| Edge Preparation | Standard sharp edge | Engineered hones and T-lands |
| Vibration Control | Minimal | High (Harmonic disruption) |

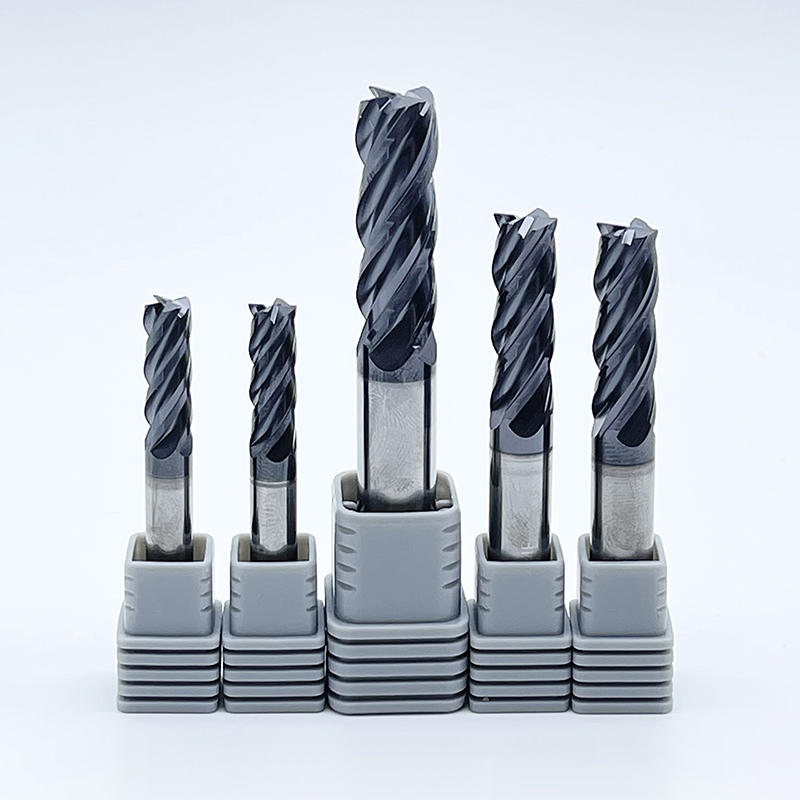

Eliminating chatter requires altering the physical geometry of the cutting tool. Engineers manipulate specific variables to disrupt harmonics. They reinforce weak points to prevent deflection. They modify cutting edges to withstand extreme forces. These geometric changes are often microscopic but yield massive differences in performance on the shop floor.
Variable pitch means unequal spacing between cutting edges. Instead of four flutes at exactly 90 degrees, they might sit at 88, 92, 89, and 91 degrees. Variable helix changes the flute angle along the cutting length. One flute might twist at 35 degrees while the next twists at 38 degrees. This complex grinding process requires advanced 5-axis CNC tool grinders.
Altering this timing disrupts harmonic frequencies entirely. The cutting edge enters the material at irregular intervals. The rhythmic impact disappears. The vibration never gets a chance to synchronize with the machine's natural frequency. This prevents regenerative chatter completely. It allows for significantly higher spindle speeds and feed rates. When you run a variable geometry tool, the sound of the cut changes from a high-pitched squeal to a deep, aggressive hum, indicating stable machining.
Core diameter dictates overall tool rigidity. The core is the solid center of the tool inside the flutes. A thicker core reduces deflection dramatically. Tool bending ruins dimensional stability during heavy radial engagement. It causes the tool to cut a tapered wall instead of a straight one, forcing you to take multiple spring passes to hit your tolerance.
High performance tools utilize thickened cores, often pushing the core diameter to 65% or 70% of the tool's outer diameter. They sacrifice some chip evacuation space to gain massive structural strength. This strength handles higher side loads. It prevents the tool from snapping during aggressive roughing passes. The optimized flute depth ensures chips still evacuate smoothly despite the larger core, often utilizing specialized parabolic flute shapes to roll the chip tightly and eject it efficiently.
Deep cavity machining magnifies tool deflection. The further the cutting edge extends from the spindle, the weaker the setup becomes. Deflection increases to the third power of the tool's length. If you double the stick-out, the tool deflects eight times as much. Micro-machining faces similar leverage challenges. Long-reach, stub-flute configurations solve this specific problem.
These tools use short cutting lengths on long, reinforced shanks. The shank diameter remains as large as possible until right before the cutting flutes. This maximizes rigidity across the entire reach. It prevents chatter in extended-reach applications. You only expose the exact amount of flute necessary for the specific depth of cut. If you only need to cut 0.250" deep at the bottom of a 2" pocket, using a tool with 2" of flute length is a massive mistake. A stub flute tool with 0.375" of flute on a relieved neck will perform flawlessly.
Micro-geometries provide critical dampening effects. A small circular margin stabilizes the tool against the cut wall. This margin rubs slightly against the material. This rubbing acts like a shock absorber. It dampens vibration before it travels up the tool shank. It also burnishes the wall slightly, improving the final surface finish.
Eccentric relief strengthens the cutting edge behind the primary cutting angle. Instead of a flat primary clearance angle, eccentric relief uses a curved drop-off. It leaves more carbide supporting the very tip of the flute. This prevents micro-chipping in hard materials like 4140 pre-hard or D2 tool steel. It reduces friction directly behind the cutting edge. Less friction means less heat generation during prolonged cuts, keeping the carbide substrate stable.
Roughing end mill profiles look like corncobs. They feature serrated cutting edges. These serrations break chips into tiny, manageable pieces. Standard flutes create long, continuous chips that tangle around the tool, block coolant lines, and scratch the workpiece. Serrated profiles eliminate this tangling issue entirely.
Smaller chips evacuate much faster. This lowers overall cutting resistance. The tool requires less horsepower to push through the material, allowing smaller machines to take massive cuts. Vibration drops significantly during heavy material removal. The serrations also distribute cutting forces unevenly along the Z-axis, further disrupting harmonic resonance. Modern fine-pitch roughers can even leave a surface finish acceptable for many non-critical applications, eliminating the need for a separate finishing tool.
Geometry alone cannot survive modern machining environments. The physical material of the tool must withstand extreme abuse. Carbide substrates and advanced coatings work together to protect the cutting edge from thermal and mechanical breakdown.
Carbide manufacturing involves a strict trade-off. Hardness provides excellent wear resistance. Toughness provides essential shock resistance. You cannot maximize both simultaneously. You must balance them within the carbide grain structure using cobalt as the binder.
Sub-micron grain carbide delivers high edge strength. The smaller tungsten carbide grains pack tightly together. The cobalt binder holds them securely. This structure handles high-performance applications perfectly. It resists the microscopic flaking that ruins standard carbide tools. Engineers select different binder percentages based on the target material's hardness. A tool designed for hardened steel will use a very low cobalt percentage to maximize hardness, while a tool for interrupted cuts in stainless steel will use more cobalt to absorb the impacts.
Physical Vapor Deposition (PVD) coatings protect the carbide substrate. Aluminum Titanium Nitride (AlTiN) dominates high-heat alloy machining. When AlTiN gets hot, it forms a microscopic layer of aluminum oxide. This oxide layer acts as a thermal barrier. It reflects heat into the chip and away from the tool. AlTiN actually performs better when run dry in steel, as the heat activates the coating.
Titanium Diboride (TiB2) prevents built-up edge in non-ferrous materials. Aluminum is notoriously gummy. It sticks to standard carbide easily, filling the flutes and snapping the tool. TiB2 provides an incredibly slick surface. Zirconium Nitride (ZrN) offers similar lubricity benefits. These coatings reduce friction drastically. They resist oxidation at extreme temperatures. They extend tool life exponentially by preventing the workpiece material from chemically bonding to the tungsten carbide.
Common High Performance Coatings
| Coating Type | Primary Application | Key Benefit |
|---|---|---|
| AlTiN (Aluminum Titanium Nitride) | Steels, Cast Iron, Superalloys | High heat resistance, forms protective oxide layer |
| TiB2 (Titanium Diboride) | Aluminum, Non-Ferrous | Extreme lubricity, prevents built-up edge (BUE) |
| ZrN (Zirconium Nitride) | Brass, Copper, Aluminum | Reduces friction, excellent wear resistance |
| Diamond (CVD) | Graphite, Composites, Carbon Fiber | Maximum hardness, prevents abrasive wear |
Buying premium tools does not guarantee success. Improper implementation destroys high-performance geometry instantly. You must control the entire machining environment to realize the benefits. A weak link in the setup will negate the engineering of the tool.
Toolpath optimization matters immensely. Traditional offset toolpaths bury the tool in inside corners. This spikes cutting forces, causes massive deflection, and snaps tools. Dynamic milling maximizes tool potential. It maintains a constant radial engagement angle throughout the entire cut, ensuring the tool never experiences a sudden spike in load.
Trochoidal milling uses circular motions to clear slots. Peel milling takes light, fast passes along outside profiles. Both strategies reduce heat buildup. Radial chip thinning is a critical concept here. When you take a light radial step-over (less than 50% of the tool diameter), the actual chip thickness decreases. You must increase the feed rate to maintain the proper chip load. Failing to increase the feed rate causes the tool to rub instead of cut, work-hardening the material and destroying the cutting edge in seconds.
Chip evacuation prevents catastrophic failure. High performance geometries generate chips at an astonishing rate. You must evacuate them immediately from the cutting zone. Deep pockets trap chips easily. The tool then recuts these trapped chips.
Recutting chips destroys cutting edges instantly. It causes sudden edge failure. Micro-chipping and induced chatter follow immediately. Use high-pressure air blast for dry machining in steel. Through-tool coolant works exceptionally well for deep hole clearing and titanium milling. Flood coolant often fails to penetrate the vapor barrier created by high-speed milling. Directed, high-pressure systems remain mandatory to blast chips out of the pocket before the tool comes back around.
Total Indicator Runout (TIR) ruins high-performance benefits. Runout means the tool spins off-center. Even 0.001 inches of runout causes uneven chip loads. One flute does all the cutting while the others do nothing. The working flute dulls rapidly and fails, taking the rest of the tool with it.
Measure TIR on every setup using a precision dial indicator. Adjust spindle speeds carefully to find the stable milling zone. Every machine has specific RPM bands where resonance disappears. Use a tachometer and listen to the cut. Avoid harmonic resonance bands at all costs. Sometimes increasing the RPM slightly eliminates the chatter completely by pushing the frequency out of the machine's natural resonance zone.
High performance tools exert massive forces. Standard tools exert far less pressure before failing. Rigid workholding is absolutely non-negotiable. Vises must grip the material securely using serrated jaws or dovetail fixtures for heavy roughing. Fixtures must prevent any part vibration, supporting thin walls and overhanging features.
Use high-quality tool holders. Shrink fit holders provide excellent runout control and massive gripping force. Hydraulic chucks dampen vibration naturally through their internal fluid bladders. Precision milling chucks work well for heavy roughing. Standard ER collets often lack the gripping force required for dynamic milling and can allow the tool to pull out of the holder. Overall machine condition dictates success. Loose gibs, worn ball screws, or degraded linear guides introduce external vibrations that ruin the cut regardless of the tool's quality.
Critical Setup Procedures:
A: Variable pitch refers to unequal spacing between the cutting edges around the tool's circumference. Variable helix means the twist angle of the flutes changes along the length of the tool. Both features disrupt the rhythmic impact of the cutting edges. This disruption prevents harmonic resonance and eliminates regenerative chatter during heavy machining operations.
A: General purpose tools use symmetrical flute spacing and standard core diameters. Symmetrical flutes create consistent, rhythmic impacts that induce harmonic resonance. Their smaller core diameters lack the structural rigidity required to withstand the massive cutting forces generated by titanium. The tool bends slightly, causing vibration, poor surface finish, and rapid edge failure.
A: The core diameter represents the solid center of the tool beneath the flutes. A larger, thicker core significantly increases the tool's structural rigidity. This added strength resists bending forces during heavy radial engagement. Reducing deflection ensures dimensional accuracy, prevents tapered walls, and stops vibration before it escalates into destructive chatter.
A: Deep cavity machining requires extended tool reach, which magnifies leverage and deflection. Stub flute configurations feature a very short cutting length on a long, thick shank. By maximizing the solid shank diameter and minimizing the weakened flute section, the tool maintains high rigidity. This prevents the severe chatter normally associated with long-reach applications.
A: High performance tools generate chips rapidly. If chips remain in the cutting zone, the tool recuts them. Recutting hardened, work-hardened chips causes severe micro-chipping on the cutting edge. This sudden edge degradation leads to immediate tool failure. Proper evacuation using high-pressure air or coolant is mandatory to protect the carbide edge.
A: Roughing end mills feature serrated or corncob profiles along the cutting edge. These serrations break the material into tiny, manageable chips rather than long, continuous strings. Smaller chips evacuate faster and require less horsepower to shear. This significantly lowers overall cutting resistance, reduces heat generation, and minimizes vibration during heavy material removal.
