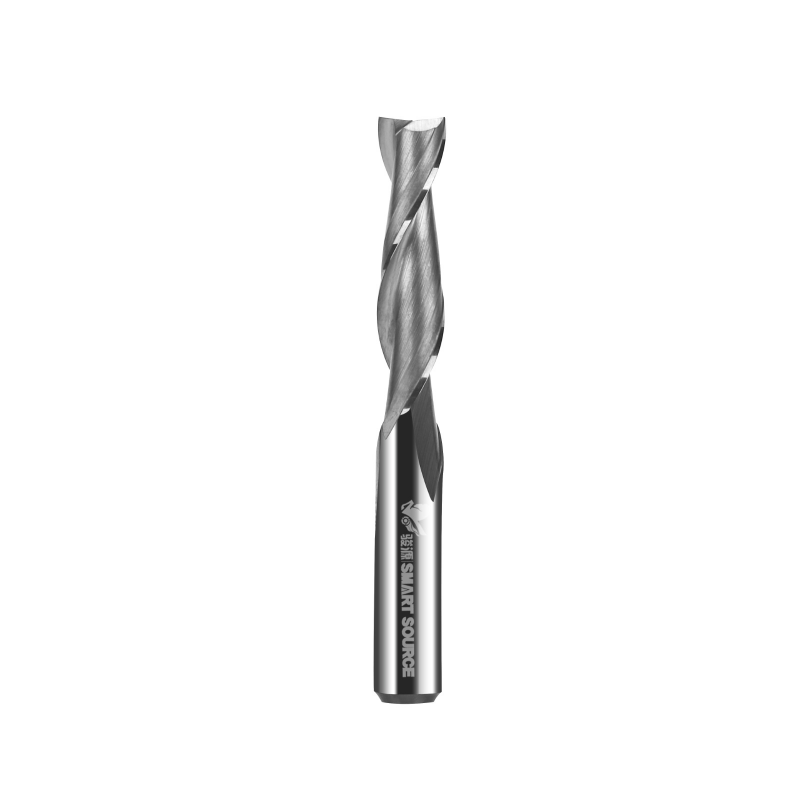

Direct Z-axis entry pushes milling tools to their absolute mechanical limits. Forcing a flat-bottomed tool into solid stock carries a high risk of tool breakage, spindle bearing damage, and scrapped parts if you use the wrong geometry. Machinists and manufacturing engineers constantly face this issue on the shop floor. You need to know if your existing tooling inventory can handle vertical entry or if you must buy specialized geometries to prevent catastrophic failure and optimize cycle times. We will break down the mechanical realities of plunge cutting, establish the strict geometrical requirements for direct Z-axis entry, and provide an evaluation framework for selecting the correct tools. You will learn exactly how to manage chip evacuation, reduce heat generation, and avoid the dreaded tool wobble that ruins part tolerances.
Defining a successful plunge cut requires looking beyond simply forcing a tool into the material. A stable Z-axis entry must achieve adequate chip evacuation without packing the flutes. You need zero tool deflection upon initial contact, ensuring the resulting hole or pocket entry point remains dimensionally accurate. Finally, a successful plunge prevents the welding of material to the cutting edge. This welding is a common failure mode when high friction meets poor chip clearance. If an operation fails any of these criteria, you must adjust the plunging strategy or the tool geometry.
We measure success on the shop floor through specific indicators. You want to see a steady spindle load meter, hear a consistent cutting sound rather than a high-pitched squeal, and observe chips evacuating cleanly from the hole. When operators ask if can end mills plunge, the answer depends entirely on meeting these strict mechanical conditions. Ignoring them leads to broken carbide and scrapped parts.
Standard milling tools are engineered primarily for side-cutting. Their geometry absorbs radial cutting forces, shearing material away from the side of the tool. When you transition to a direct Z-axis entry, you introduce massive axial thrust loads. End mills lack the specialized chisel edge and web thinning found on twist drills. Consequently, pushing a flat-bottomed tool directly downward forces the bottom cutting edges to scrape and push material rather than cleanly shearing it.
This scraping action drastically increases spindle load and friction. The center of the tool experiences zero surface footage, meaning it cannot cut effectively. Instead, it extrudes the metal outward until the outer edges can shear it away. This physical reality dictates why plunge feed rates must be significantly lower than radial feed rates. You are fighting the tool's natural design.
The mechanical resistance encountered during a plunge changes entirely based on the starting condition of the stock. Plunging into solid material presents the highest risk. The tool faces maximum resistance, and chips have no lateral escape route. They must travel vertically up the flutes against gravity and coolant pressure. This creates a high-pressure zone at the bottom of the cut.
Conversely, expanding a pre-drilled hole or plunging along an open pocket edge provides immediate relief. The existing void allows chips to fall away radially, significantly reducing the axial thrust required. This mitigates the risk of chip recutting. Whenever possible, machinists prefer to drop the tool into an existing void to bypass the harsh physics of a solid material plunge.
Shop-floor observations frequently highlight tool deflection, commonly referred to as walking or wobbling, during the initial surface contact of a plunge. Because an end mill has a flat face rather than a pointed tip, it does not naturally center itself. The moment the outer edge of the tool contacts the material, radial forces push the tool off its axis.
Machine rigidity, spindle runout, and tool stick-out directly impact plunge stability. A tool with excessive stick-out acts as a lever, amplifying the wobble and resulting in an oversized, bell-mouthed entry hole. You must keep the tool as short as possible in the holder to fight this deflection. Rigid setups and high-quality tool holders are mandatory for accurate Z-axis entries.
Tooling manufacturers categorize end mills by their end-face geometry, dividing them strictly into center-cutting and non-center-cutting profiles. This distinction is the single most critical factor when determining your entry strategy. Attempting to cross these operational boundaries guarantees immediate mechanical failure. You cannot force a non-center cutting tool to plunge, regardless of your feed rate or spindle speed.
We separate these tools in the crib for a reason. Mixing them up leads to catastrophic crashes. Operators must verify the end-face geometry before loading any tool into the magazine for a plunging operation. This simple check saves thousands of dollars in broken tooling and damaged spindles.
A center cutting end mill is specifically ground so that one or more of its cutting edges extend completely across the center of the tool axis. This continuous edge allows the tool to cut material at the very center of its rotation, acting similarly to a drill bit. You can visually identify this capability by inspecting the end face of the tool.
If the cutting edges meet at the exact center without any gap or recess, the tool is capable of direct Z-axis plunging. The geometry ensures that no solid core of material is left behind as the tool descends. This is the only type of flat-bottomed tool you should ever use for a blind plunge into solid stock.
Non-center cutting tools feature a distinct center relief hole or clearance void on their end face. The cutting edges stop short of the tool's central axis. If you attempt a direct plunge with this geometry, the tool will cut a ring into the material, leaving a solid, uncut core in the center.
As the tool feeds downward, this solid core bottoms out against the unsharpened relief void. The resulting mechanical crash crushes the tool center, shatters the carbide, and transfers massive axial shock directly into the spindle bearings. These tools are excellent for peripheral milling and profiling, but they have absolutely no place in Z-axis entry operations.
Machinists often attempt to use large indexable mills for roughing operations, assuming their size equates to plunging capability. However, many indexable mills lack center-cutting capability entirely. The inserts are positioned around the periphery of the tool body, leaving a large dead zone in the center. These tools are strictly unsuitable for direct plunging.
To utilize them for deep cavity roughing, you must either provide a pre-drilled pilot hole larger than the tool's dead zone or rely on aggressive ramping and helical entry strategies. Forcing an indexable mill into solid stock without center-cutting inserts will instantly destroy the tool body and likely stall the machine spindle.
The number of flutes on your tool dictates the available gullet space, which directly governs how effectively chips can escape during a blind plunge. You must match the flute count to the material and the depth of the plunge to avoid packing the tool.
Tool Geometry Comparison for Z-Axis Entry
| Flute Count | Chip Clearance | Core Strength | Best Application for Plunging |
|---|---|---|---|
| 2-Flute | Excellent | Low | Aluminum, Plastics, Deep blind plunges |
| 3-Flute | Good | Medium | Non-ferrous, Mild steels, Balanced entry |
| 4-Flute+ | Poor | High | Avoid direct plunging; use helical entry |
The substrate and coating of the tool determine its survival under the harsh conditions of Z-axis entry. Solid carbide handles axial shock loads and high temperatures far better than High-Speed Steel (HSS). Carbide maintains its cutting edge under extreme friction, which is unavoidable at the center of a plunging end mill.
Coatings play a massive role in preventing built-up edge (BUE). When plunging aluminum, a low-friction coating like Titanium Diboride (TiB2) or Diamond-Like Carbon (DLC) prevents the soft metal from welding to the tool center. For ferrous materials, Aluminum Titanium Nitride (AlTiN) provides the necessary thermal barrier to withstand the localized heat generated at the bottom of the cut. Uncoated tools will quickly gall and fail in these applications.
When operations require frequent or deep vertical entries, standard flat end mills are often replaced by specialized tooling. Flat-bottom drills combine the self-centering point geometry of a drill with the flat-bottom finish of an end mill. This bridges the gap between hole-making and milling, providing a stable entry without the wobble of a standard end mill.
High-feed mills and indexable plunge mills are engineered specifically for Z-axis roughing. They feature insert geometries that direct cutting forces axially up the spindle. This allows for massive material removal rates without the deflection associated with radial roughing. If your shop does heavy cavity roughing, investing in dedicated plunge tooling will drastically reduce cycle times compared to using standard solid carbide.
The primary mechanism of failure during a plunge is chip packing. Because chips have no radial escape path in a blind hole, they accumulate at the bottom of the cut. The tool then recuts these hardened chips, leading to immediate flute packing and tool breakage. This happens in a fraction of a second, often before the operator can hit the feed hold button.
The most effective mitigation strategy is implementing a micro-peck plunging cycle. Similar to peck drilling, retracting the tool slightly breaks the chip and allows coolant to flush the evacuation path. This is especially critical when using flat end mills in deep pockets. A peck depth of 0.050 to 0.100 inches is usually sufficient to clear the zone and keep the tool cutting freely.
The center point of a standard flat end mill has a surface speed of exactly zero. As a result, the dead center of the tool does not shear material; it rubs and pushes it. This friction generates extreme localized heat, leading to rapid work hardening of the workpiece and thermal degradation of the cutting edge. You will often see the center of the tool turn blue or black from the heat.
To mitigate this, machinists must adjust feeds and speeds specifically for plunging. Feed rates should typically be reduced by 50% or more compared to radial slotting parameters. Additionally, utilizing through-spindle coolant or high-pressure air blasts is mandatory to clear the heat zone. Flood coolant often fails to reach the bottom of a deep plunge, making air blasts a superior choice for clearing chips and heat.
Plunge Feed Rate Adjustments by Material
| Material Type | Radial Feed Rate Base | Plunge Feed Rate Multiplier | Coolant Strategy |
|---|---|---|---|
| Aluminum (6061) | 100% | 50% - 60% | High-pressure flood or air |
| Mild Steel (1018) | 100% | 40% - 50% | Flood coolant |
| Alloy Steel (4140) | 100% | 30% - 40% | Air blast (if coated) |
| Titanium (Ti-6Al-4V) | 100% | 20% - 30% | High-pressure flood |
Because end mills lack the chisel edge and thick web design of a twist drill, they naturally wander upon entry. The initial contact forces push the tool off-center, resulting in an oversized or angled hole. This deflection ruins the dimensional accuracy of the feature before the roughing cycle even begins.
To mitigate deflection, always use the shortest possible tool stick-out to maximize rigidity. If dimensional accuracy of the entry location is critical, pre-drilling a pilot hole with a dedicated spot drill or twist drill is the most reliable method. This ensures the end mill tracks perfectly straight. Alternatively, dropping the plunge feed rate for the first 0.100 inches of the cut can help the tool establish a stable pocket before ramping up to the full plunge feed.
Figuring out can you plunge with an end mill efficiently in a given setup requires evaluating the trade-offs between cycle time and tool life. Forcing a direct plunge is fast in terms of machine motion, but it severely degrades tool life and increases the risk of catastrophic failure. You are trading a few seconds of cycle time for a high probability of breaking a costly carbide tool.
Alternative toolpath strategies take slightly longer to execute but protect the tooling and the spindle. Modern CAM software makes it incredibly easy to program these alternatives. In almost all production environments, the cost of replacing broken tools and scrapping parts far outweighs the minor cycle time penalty of using a safer entry method.
Ramping involves entering the material at a shallow angle, simultaneously moving in the X/Y axes while descending in the Z-axis. This strategy distributes tool wear across the side flutes and the bottom edge, rather than concentrating all force on the tool tip. It also creates an immediate radial escape path for chips, completely eliminating the packing issues associated with blind plunges.
The primary limitation of ramping is spatial. It requires a slot length long enough to accommodate the ramp angle without violating the part boundaries. For most solid carbide tools, a ramp angle of 1 to 3 degrees is recommended. If the pocket is too small to allow this linear motion, you must look to helical interpolation or a direct plunge.
Modern CAM programmers overwhelmingly prefer helical entry for pocketing operations. By driving the tool in a downward spiral, helical interpolation maintains a constant chip load, excellent chip evacuation, and minimal axial thrust. The tool is constantly moving into fresh material, preventing the heat buildup that destroys the center of a plunging end mill.
The trade-off is cycle time, as the spiral motion takes longer than a straight vertical drop. However, the drastic improvement in tool life and process reliability makes helical entry the standard for modern CNC machining.
Despite the risks, there are specific scenarios where direct plunging remains the most efficient or only viable option. In highly restricted clearances where ramping or helical motions violate part geometry, a direct plunge is necessary. You simply do not have the physical space to move the tool in X and Y while descending.
Furthermore, on older, less rigid machines, specific Z-axis roughing strategies are utilized because they direct cutting forces into the spindle axis. This eliminates the chatter that would occur during heavy radial cuts. If your machine has worn linear guides but a robust spindle, plunging might be the only way to remove material aggressively without shaking the machine apart.
Plunge milling is a distinct roughing technique that relies on a series of overlapping Z-axis plunges to remove large volumes of material. Instead of feeding the tool laterally across the part, the machine steps over radially and plunges vertically, retracts, steps over again, and repeats. This method is frequently used for excavating deep pockets, machining high-wall aerospace components, or roughing out complex 3D mold cavities.
This strategy turns the milling machine into a high-speed drill press. It leverages the Z-axis motor and the spindle bearings, which are typically the strongest components on the machine. By overlapping the plunges, you create a scalloped edge that is later cleaned up by a semi-finishing radial pass.
Unlike standard plunging which traps heat at the bottom of a blind hole, dedicated plunge milling along an open edge removes material quickly without generating excessive heat in the part. The axial cutting action shears the material efficiently. Because the cut is typically open on one side, the heat is transferred directly into the chip.
These hot chips are then evacuated from the work zone immediately, leaving the workpiece relatively cool. This is a massive advantage when machining heat-resistant superalloys (HRSA) like Inconel or titanium, where heat buildup causes rapid work hardening and destroys subsequent finishing tools.
The primary advantage of plunge milling lies in force vectoring. Radial milling pushes the tool sideways, stressing the machine's linear guides and causing chatter on lighter-duty equipment. Plunge milling directs the cutting forces axially, straight up into the spindle. This is the most rigid axis of any CNC machine.
This virtually eliminates lateral deflection and chatter, allowing older or less rigid machines to achieve massive material removal rates. If you have a CAT40 machine struggling to push a large face mill radially, switching to a plunge milling strategy allows you to utilize the full horsepower of the spindle without stalling or chattering.
Standard center cutting end mills are rarely used for high-volume plunge roughing. Instead, machinists bypass them in favor of dedicated flat-bottom tooling or indexable plunge mills. These specialized tools feature insert geometries designed specifically to absorb heavy axial loads and curl the chips for optimal evacuation.
They often utilize a slightly concave bottom profile to prevent dragging and rubbing on the retraction stroke. The inserts are thick and robust, capable of taking heavy chip loads without fracturing. When setting up a plunge roughing operation, always select tooling explicitly designed for axial feed to maximize your metal removal rate and protect your spindle.
A: While possible if the tool is center-cutting, it is highly discouraged for direct plunges into solid material. Four-flute tools have minimal gullet space, making them extremely prone to chip packing, recutting, and catastrophic failure during blind vertical entry. Use them only with helical entry or pre-drilled holes.
A: Inspect the flat end face of the tool. If one or more of the cutting edges extend completely to the exact center of the tool without any gap, recess, or relief hole, it is a center-cutting end mill capable of direct plunging.
A: Drilling uses a pointed tool with a chisel edge designed exclusively to create round holes via axial motion. Plunge milling uses overlapping vertical drops with a flat-bottomed tool to rough out large pockets or profiles, directing forces into the spindle to maximize material removal on less rigid machines.
A: End mills lack the self-centering point of a drill. When the flat bottom contacts the material, uneven radial forces push the tool off its axis. This deflection is amplified by excessive tool stick-out, spindle runout, or attempting to plunge at feed rates that are too high.
A: Yes, implementing a micro-peck cycle is highly recommended when plunging into solid material. Pecking breaks the chips and allows coolant to flush the flutes, preventing chip packing and reducing the extreme heat generated at the tool center.
A: Plunge feed rates should generally be reduced by 50% to 70% compared to your standard radial slotting feed rates. The exact multiplier depends on the material and tool geometry, so always consult the specific tooling manufacturer's recommendations for Z-axis entry.
