High-performance machining operations frequently bleed profit margins not at the spindle, but in the tool crib due to neglected post-operation tool care. Treating solid carbide and high-speed steel (HSS) end mills as purely consumable items leads to premature disposal. Poor handling—specifically inadequate cleaning, haphazard storage, and ignored regrinding cycles—causes micro-chipping, corrosion, and degraded cutting edges before the tool's theoretical life is exhausted.
Implementing a standardized end mills maintenance protocol transforms tooling from a sunk cost into a managed asset. This guide details the technical requirements for cleaning, storing, and evaluating end mills for regrinding to maximize tool life and operational ROI.
Machining facilities often miscalculate tooling expenses by only looking at the initial purchase invoice. The true cost of premature tool failure includes machine downtime, scrapped parts, and workflow interruptions. When an operator pulls a dull or micro-chipped tool from a drawer, the resulting poor surface finish requires secondary operations. These hidden costs multiply rapidly across multiple shifts. Maintaining cutting tools properly prevents these cascading failures. A structured maintenance program ensures every tool reaches its maximum volumetric metal removal threshold before disposal.
Consider a shop running aerospace components out of 6061 aluminum or 4140 steel. A single 3/4-inch high-performance variable helix end mill represents a significant upfront investment. If that tool gets tossed into a bin and chips a flute, you lose hours of potential machining time. You also absorb the labor cost of the machinist hunting for a replacement, resetting the tool offset, and verifying the first article inspection again. Proper maintenance protocols eliminate these unnecessary production stops.
Post-operation maintenance relies entirely on what happens inside the machine envelope. You cannot maintain a tool that has suffered catastrophic failure. Optimizing cutting speeds, maintaining proper chip loads, and ensuring adequate coolant delivery prevent thermal shock and severe edge degradation. Tool holding also plays a massive role. Excessive runout causes uneven flute wear. One flute takes the brunt of the cutting force, wearing down faster than the others. This uneven wear complicates future sharpening efforts and reduces the tool's salvageable diameter. Preventative care starts the moment the spindle turns on.
Operators must monitor spindle load meters and listen for chatter. Chatter indicates harmonic instability, which micro-fractures the carbide substrate long before visible wear appears. Using hydraulic or shrink-fit tool holders minimizes runout to acceptable tolerances, usually under 0.0001 inches. This precision ensures all flutes wear evenly, leaving a uniform geometry that a grinding service can easily restore.
A successful tool management program requires measurable outcomes. You should look for specific indicators that your maintenance protocols are working. Target a measurable extension in tool life, often tracked by an increase in parts produced per tool. Aim for a distinct reduction in monthly tooling spend. Track handling-induced tool failures and drive that number to zero. Operators should no longer find chipped flutes caused by tools rattling against each other in a drawer. These metrics validate the time invested in cleaning and storage procedures.
Modern machining requires shifting the paradigm from "use and discard" to "inspect, maintain, and repurpose." An end mill's life does not end when it loses its initial factory edge. By implementing a lifecycle approach, you treat tools as assets that undergo multiple phases of utility. A high-performance rougher might transition to a semi-finishing role after its first regrind. Later, it might be repurposed for less demanding setups or softer materials. This lifecycle management extracts maximum value from the carbide substrate.
Machining materials like aluminum, titanium, and low-carbon steel often results in material welding to the cutting edge. This built-up edge (BUE) ruins surface finishes and alters tool geometry. Mechanical and chemical methods exist to remove this material without damaging the substrate or the physical vapor deposition (PVD) coating. Operators should use soft brass brushes or compressed air immediately after the tool leaves the machine. Specialized solvents help dissolve stubborn aluminum deposits.
You must mitigate risks during the mechanical cleaning phase. Never use hardened steel wire brushes on carbide edges. Tungsten carbide possesses extreme hardness but lacks toughness. Scraping a steel brush across a sharp flute induces micro-fractures. These microscopic cracks propagate rapidly during the next machining cycle, leading to catastrophic edge failure. Always prioritize chemical dissolution or soft mechanical abrasion over aggressive scraping.
Follow this standardized cleaning sequence for heavily soiled tools:
Leaving water-soluble coolants on tools creates severe long-term problems. In high-speed steel (HSS) tools, residual moisture causes rapid oxidation and rust. For solid carbide tools, the problem is chemical. Certain coolant formulations, especially those left to stagnate, can leach the cobalt binder out of the carbide matrix. Cobalt leaching leaves the tungsten carbide grains unsupported, resulting in a brittle, crumbling cutting edge.
Coolant pH levels naturally drift over time as tramp oil and bacteria contaminate the sump. When the pH drops and the coolant becomes acidic, the cobalt leaching process accelerates. Tools left sitting on a workbench covered in degraded coolant will suffer microscopic structural damage within days.
Ultrasonic cleaning offers an excellent solution for deep flute cleaning, especially for micro-tools or complex geometries. The cavitation bubbles reach into tight valleys that brushes miss. However, operators must control the frequency and duration. Improperly set ultrasonic cleaners can induce micro-cavitation damage on sharp cutting edges. Limit exposure times to under three minutes and use appropriate cleaning solutions designed specifically for cutting tools.
Cleaning means nothing without proper inspection. Mandate a final wipe-down using a non-abrasive soft cloth or microfiber towel. This ensures no micro-debris obscures the optical evaluation. Even a tiny speck of dried coolant can look like edge wear under magnification. The tool must be completely dry and clean before the operator assesses its condition.
Optical inspection is a mandatory step in the maintenance workflow. Operators should use a jeweler's loupe (10x to 30x magnification), a lighted magnifying glass, or an optical comparator. Naked-eye inspections miss early-stage wear. During the inspection, identify specific wear patterns. Look for flank wear along the primary relief. Check the rake face for crater wear. Scan the entire cutting edge for micro-chipping. Inspect the tool body for thermal cracking, which indicates excessive heat generation during the previous cut.
Common End Mill Wear Patterns and Causes
| Wear Type | Visual Indicator | Primary Cause |
|---|---|---|
| Flank Wear | Uniform abrasion on the clearance face | Normal abrasive wear from cutting action |
| Crater Wear | Depression on the rake face behind the edge | Chemical affinity between tool and workpiece at high heat |
| Built-Up Edge (BUE) | Workpiece material welded to the cutting edge | Cutting speed too low or inadequate coolant lubricity |
| Micro-Chipping | Small fractures along the cutting edge | Excessive feed rate, chatter, or handling damage |
| Thermal Cracking | Cracks perpendicular to the cutting edge | Interrupted cutting or inconsistent coolant application |
High-hardness tools are highly susceptible to impact damage. Tungsten carbide has a high modulus of elasticity and extreme compressive strength, but its transverse rupture strength is relatively low compared to steel. When operators toss carbide tools loosely into a metal drawer, the flutes strike each other. This flute-to-flute contact instantly chips the microscopic cutting edge. A tool that performed perfectly in the machine can be ruined in seconds by careless storage.

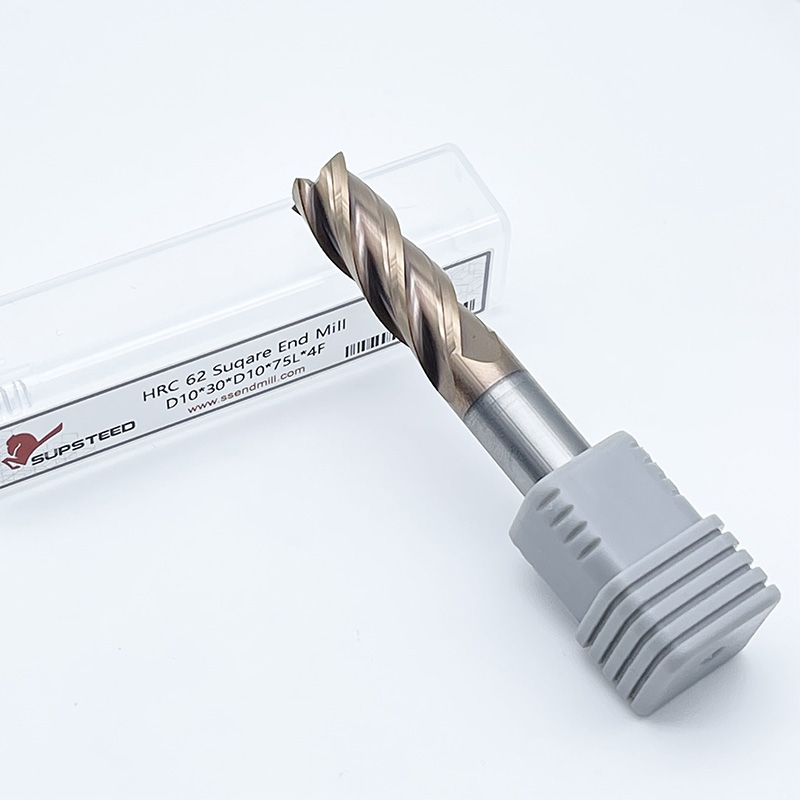

The cutting edge of a finishing end mill often tapers down to a radius of just a few microns. At that microscopic level, the carbide is incredibly fragile. A drop of just a few inches onto a hard surface will shatter the edge. Storage systems must account for this physical reality by enforcing strict separation.
Protecting cutting edges requires physical isolation. Several storage formats offer varying levels of protection and accessibility based on shop requirements.
Physical isolation only solves half the storage problem. Environmental control is equally essential. Tool cribs must maintain a consistently cool, dry atmosphere. Temperature fluctuations cause thermal expansion and contraction, which can draw moisture into storage containers. Micro-condensation forms on the tools, leading to rust on HSS and potential binder degradation on carbide.
Mitigate humidity by installing dehumidifiers in the tool crib. Keep storage cabinets away from open bay doors or areas with high temperature swings. For long-term storage, especially for HSS tools, use vapor corrosion inhibitor (VCI) paper. VCI materials release molecules that form a protective layer on the metal surface, preventing oxidation. Alternatively, place silica gel desiccants inside storage drawers to absorb ambient moisture.
Not every dull tool deserves a second life. Establishing a strict decision matrix ensures you only invest in regrinding when it makes financial sense. The primary factors are tool diameter, initial cost, and the extent of the wear. Micro-tools under 1/8 inch rarely justify the labor and machine time required for sharpening. Conversely, 1/2 inch and larger high-performance roughers yield massive returns on investment when reground.
Assess the severity of chipping carefully. If a tool has a massive chip missing from the corner radius, the grinder must remove a significant amount of the tool's length to establish a new cutting edge. If the damage extends too far up the flute, the tool is economically unsalvageable. Runout during the initial machining operation also dictates regrind viability. Uneven wear forces the grinding service to remove material based on the most worn flute, drastically reducing the final diameter.
End Mill Regrind Decision Matrix
| Tool Diameter | Wear Condition | Initial Cost | Action Recommendation |
|---|---|---|---|
| Under 1/8" (3mm) | Normal flank wear | Low | Replace |
| 1/4" to 3/8" (6-10mm) | Minor micro-chipping | Medium | Evaluate based on batch size |
| 1/2" (12mm) and above | Normal flank wear | High | Regrind |
| Any diameter | Severe flute breakage | Variable | Scrap / Recycle carbide |
| Complex geometries (e.g., variable helix) | Moderate wear | Very High | Regrind with OEM or certified partner |
Executing proper end mill sharpening requires advanced CNC tool grinding equipment. It is not a manual process. The grinder must restore the exact end-face geometry, including the primary and secondary relief angles. If the tool features a variable helix or unequal index, the CNC software must probe the tool to map the existing geometry before grinding begins.
Maintaining exact concentricity and runout tolerances during sharpening is non-negotiable. If the regrind introduces runout, the tool will fail prematurely in its next application. The grinding wheel must dress the flutes evenly, ensuring the cutting edges share the chip load equally. High-quality grinding services use fine-grit diamond wheels and heavy oil coolants to prevent thermal damage to the carbide during the sharpening process.
Using sharpened tools requires operational adjustments on the shop floor. The most obvious reality is a reduced tool diameter. If a 0.500-inch tool is reground, it might return at 0.485 inches. You cannot simply drop this tool into the machine and run the original program. The machinist must update the tool offsets in the CNC control.
Furthermore, CAM software adjustments are mandatory. Programmers must account for the new diameter to maintain part tolerances, especially when interpolating holes or finishing tight pockets. Cutter radius compensation (G41/G42) handles some of this, but complex 3D surfacing paths often require a complete toolpath recalculation. Operators must also adjust feeds and speeds slightly, as the core diameter and flute depth may have changed, altering the tool's chip evacuation characteristics.
Grinding removes the protective PVD coating from the flutes and the end face. Bare carbide lacks the heat resistance and lubricity of coated tools. You must evaluate the necessity and cost-benefit of re-coating reground tools. For machining aluminum or plastics, an uncoated polished flute often performs exceptionally well. However, for cutting steel, stainless steel, or titanium, restoring the coating (such as TiAlN or AlTiN) is mandatory.
Re-coating adds cost and lead time to the regrinding process. The tool must undergo edge preparation (honing) before entering the coating chamber to ensure coating adhesion. Calculate whether the cost of grinding plus coating remains lower than the price of a new tool. For large diameter tools, the math almost always favors re-coating.
The best maintenance protocols fail if operators ignore them. Getting machinists to follow strict post-use cleaning and storage SOPs requires cultural change on the shop floor. Operators often view cleaning tools as a low-value administrative task that keeps them away from making chips. Mitigate this by making the process frictionless. Place cleaning stations, solvents, and optical loupes directly adjacent to the CNC machines. Do not make operators walk across the shop to clean a tool. Integrate tool inspection into the standard setup and teardown checklists.
Choosing the right third-party tool grinding service determines the success of your regrind program. Do not select a vendor based solely on price. Evaluate their inspection capabilities. Ask if they use optical CNC measuring machines to verify geometries before and after grinding. Inquire about their CNC grinding technology and whether they can handle complex variable-pitch geometries. Turnaround time is also a major factor; a vendor that takes six weeks to return tools forces you to carry excessive backup inventory. Finally, verify their coating partnerships to ensure they apply high-quality, application-specific PVD coatings.
Managing a mix of new and reground tools creates inventory headaches. You must track how many times a specific end mill has been serviced and its current exact diameter. Implementing tool management software solves this problem. Advanced systems use RFID chips embedded in the tool holders or laser-etched QR codes on the tool shanks. This allows the tool crib manager to scan the tool, instantly retrieve its history, and route it to the correct storage bin or regrind batch. Accurate tracking prevents operators from accidentally using an undersized reground tool in a precision finishing operation.
A: A standard carbide end mill can typically be reground 2 to 3 times, depending on the initial diameter and the severity of wear. Tools with massive chipping or those run to catastrophic failure cannot be salvaged. Each regrind reduces the diameter, eventually making the tool too small for its intended application.
A: Ultrasonic cleaning is safe and highly effective if used correctly. Leaving carbide tools in an ultrasonic bath for extended periods or using improper frequencies induces micro-cavitation damage on sharp cutting edges. Always use short cycles and cutting-tool-specific cleaning solutions.
A: Use a soft brass brush or compressed air immediately after machining. For stubborn aluminum or titanium deposits, use specialized chemical solvents that dissolve the welded material. Never use hardened steel wire brushes, as they cause micro-fractures in the brittle carbide cutting edge.
A: Sharpening becomes highly cost-effective for end mills 1/2 inch (12mm) in diameter and larger. For tools between 1/4 inch and 3/8 inch, viability depends on the initial cost and batch size. Micro-tools under 1/8 inch rarely justify the labor and machine time required for sharpening.
A: Yes, if reground by a certified CNC tool grinding service that restores the original factory geometry and applies the correct PVD coating. Because the diameter is slightly reduced, operators must adjust CAM software offsets and tweak feeds and speeds to match the new tool dynamics.
A: Because a sharpened end mill has a slightly smaller diameter, you may need to increase the spindle speed (RPM) slightly to maintain the same surface footage (SFM). The feed rate must be recalculated based on the new diameter to maintain the proper chip load per tooth.
