Translating metric CAD models to inch-based toolpaths introduces programming friction, increases cycle times, and risks dimensional inaccuracies. Machinists and shop managers face a constant battle deciding whether to standardize their tool cribs on metric or imperial systems. Running a fragmented inventory inflates tooling costs, complicates holder compatibility, and increases setup errors on the shop floor. Evaluating the operational impact of metric versus inch end mills requires analyzing your primary client base, CAM software defaults, machine tool ecosystems, part dimensions, and local supply chain realities. Choosing the right measurement system streamlines programming, reduces tool deflection, and maximizes material removal rates. The decision directly impacts how efficiently your shop turns raw stock into finished parts. You need a definitive strategy to manage toolholder interfaces and prevent costly scrap.
Defining the success criteria for tooling standardization starts at the spindle. The primary goals are minimizing tool changes, maximizing material removal rates, and reducing inventory bloat. Every time an operator stops a machine to swap a tool or hunt for a specific fractional size, spindle utilization drops. When a shop stocks redundant sizes across two measurement systems, capital gets tied up in unused carbide sitting in vending machines. Standardizing on a single sizing system streamlines the workflow from the CAM programmer's desk directly to the machine enclosure. A unified tool library allows programmers to pull proven feeds and speeds without second-guessing whether the shop floor actually has the exact diameter in stock.

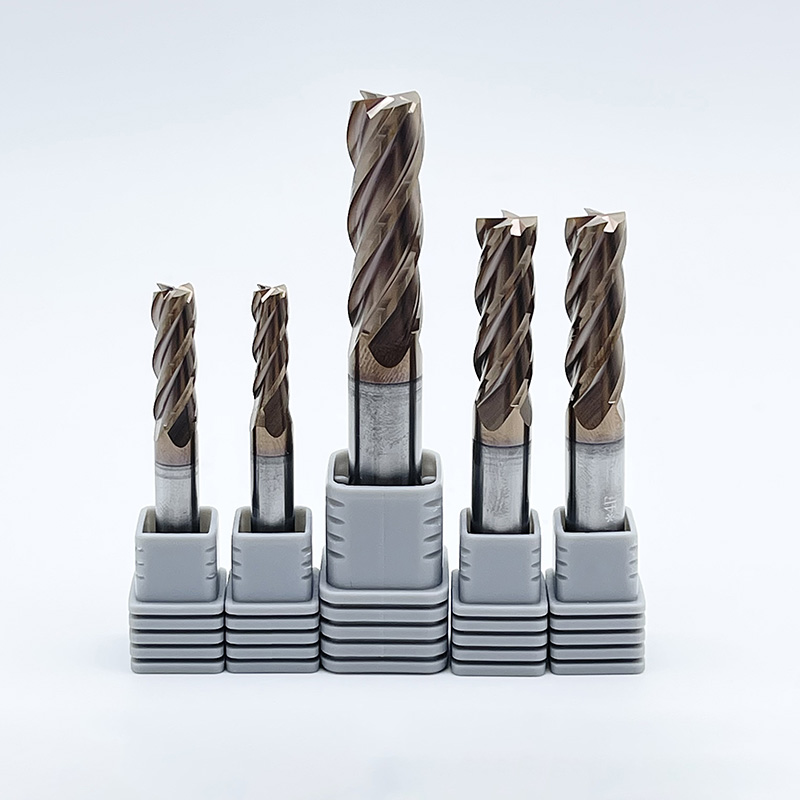

Solid carbide remains the industry standard over High-Speed Steel (HSS) for both metric and inch systems. Carbide offers three to five times longer tool life and provides the extreme rigidity required for modern high-speed machining and dynamic milling toolpaths. HSS flexes under heavy chip loads, causing dimensional inaccuracies and poor surface finishes. Solid carbide resists heat and deflection, allowing machinists to push feed rates higher while maintaining tight tolerances. The measurement system does not change the physics of the carbide substrate. A premium micro-grain carbide tool performs exceptionally well whether it measures 12mm or 1/2 inch. The performance bottleneck usually lies in the toolholder interface or the programming strategy, not the unit of measurement.
ISO (metric) and ANSI (inch) standards dictate cutting diameters, shank tolerances, overall lengths, and point angles. Metric shanks typically follow h6 tolerance classes, ensuring a precise fit in high-performance holders like shrink-fit or hydraulic chucks. ANSI standards define fractional sizes with their own specific tolerance bands. Mixing these standards creates severe mechanical issues. A tool that fits loosely in a holder will suffer from runout. Even 0.0005 inches of runout can cut tool life in half by forcing one flute to take a heavier chip load than the others.
Standard Shank Tolerance Comparison
| Measurement System | Standard Specification | Typical Shank Tolerance | Primary Application |
|---|---|---|---|
| Metric | ISO | h6 (+0.000 / -0.011 mm for 12mm) | Global manufacturing, Automotive, Medical |
| Inch | ANSI | +0.0000 / -0.0005 inches | US Job Shops, Legacy Aerospace |
| Metric Micro | DIN | h4 (+0.000 / -0.004 mm) | Swiss Turning, Watchmaking |
Rounding errors present hidden risks during CAM programming. When CAM software converts fractional inches to metric equivalents during post-processing, mathematical discrepancies occur. A 1/4 inch end mill is exactly 6.35mm. If a programmer applies a 1/4 inch tool to a metric pocket with a 6mm corner radius, the tool will gouge the part or trigger a CAM collision error. The software will demand a smaller tool to clear the geometry. This forces the use of a 3/16 inch or 4mm tool. Dropping to a smaller diameter reduces the core web thickness of the tool, decreases rigidity, and forces the programmer to lower the feed rate, ultimately increasing cycle time.
ISO-certified supply chains mandate strict traceability. International manufacturing sectors like medical device production and automotive assembly rely heavily on metric prints. Standardizing your shop on metric carbide end mills ensures exact-radius matching. It eliminates the need to translate dimensions on the shop floor. When a medical print calls for a 4mm pocket, using a native 4mm tool guarantees compliance with the original engineering intent. You avoid the risk of an operator misreading a converted decimal dimension on a setup sheet.

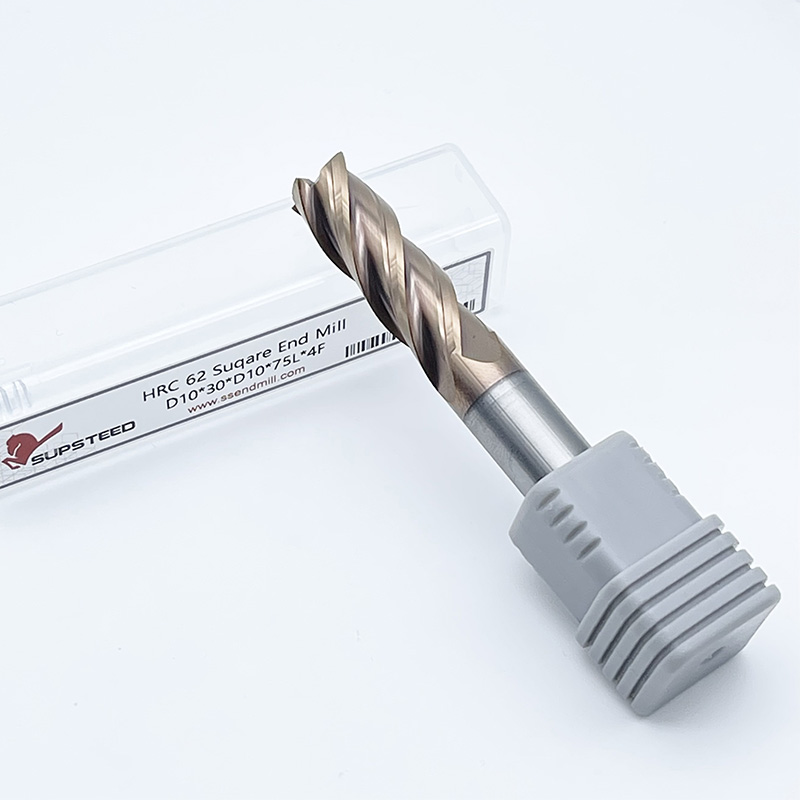

Using exact metric radii allows you to machine native metric pockets and 3D surfaces efficiently. Square and ball nose metric profiles match the CAD model perfectly. You do not need complex step-overs or multi-pass finishing routines to achieve the correct geometry. A 10mm ball nose end mill creates a perfect 5mm radius fillet in a single pass. Attempting the same feature with a 3/8 inch ball nose requires 3D surfacing toolpaths that consume valuable machine time, generate massive G-code files, and often leave visible witness marks that require manual polishing.
Stocking a comprehensive 1mm to 15mm selection covers the vast majority of international part features. This range provides a tool for almost every standard metric slot, pocket, or hole. Whole-number metric sizes simplify mental math for operators at the control panel. A 12mm tool cutting a 24mm slot requires exactly two passes. This clarity reduces setup errors, speeds up first-article inspections, and makes on-machine probing routines much more intuitive for the setup machinist.
Procuring specialized metric tools in the US market presents logistical challenges. Standard metric roughers are easy to find. Specific metric corner radius finishers, specialized coatings for titanium, or high-flute-count dynamics often face sourcing delays from domestic suppliers. A US shop might wait three days for a 12mm end mill with a 0.5mm corner radius. Meanwhile, a 1/2 inch tool with a 0.030 inch radius is available for next-day delivery from multiple local vendors. Shop managers must build buffer inventory for critical metric finishing tools to prevent machine downtime.
You must pair metric shanks with exact metric ER collets, milling chucks, or shrink-fit tool holders. This achieves optimal Total Indicator Runout (TIR). ER collets have a collapse range, but relying on that range degrades gripping force. Clamping a 12mm shank in a 1/2 inch collet creates uneven contact inside the holder. This uneven grip introduces runout, increases vibration, and ultimately snaps the carbide tool. True metric holding systems are non-negotiable for metric shanks. If you commit to metric tooling, you must commit to purchasing the corresponding metric toolholders.
Fractional inch tooling remains deeply entrenched in US job shops. Defense contracting and legacy aerospace prints rely almost entirely on the imperial system. Decades of engineering data, proven feeds and speeds, and established tool libraries revolve around inch measurements. For shops heavily invested in this sector, switching away from inch tooling disrupts established workflows and requires massive reprogramming efforts. Many older CNC machines also have macro programs and probing cycles hardcoded in inches, making a full metric transition a massive administrative burden.
Sourcing highly specific inch-based geometries is incredibly easy in North America. Variable helix designs, specific coatings for exotic alloys, and standard fractional sizes are universally stocked. Vendors offer next-day or even same-day delivery for these profiles. This rapid availability keeps spindles turning when a tool breaks unexpectedly during a night shift. It allows US shops to run leaner tool cribs without risking production downtime. You can order a 5/8 inch variable pitch end mill at 4 PM and have it cutting chips by 9 AM the next morning.
Using inch end mills on metric prints creates severe inefficiencies. A common issue is clearing metric corner radii. If a CAD model specifies a 10mm internal radius, a 3/4 inch tool will technically fit because its radius is 9.525mm. It leaves almost no room for tool path interpolation, causing chatter in the corners as the tool engages too much material at once. To machine it smoothly, a programmer must drop down to a 5/8 inch tool. This smaller diameter reduces flute engagement, lowers the material removal rate, and increases the overall cycle time for the entire pocketing operation.
Common Metric vs Inch Substitution Risks
| Intended Metric Feature | Substituted Inch Tool | Operational Risk |
|---|---|---|
| 6mm Corner Radius | 1/4" End Mill (6.35mm) | Gouge error; tool physically cannot fit the corner. |
| 10mm Slot Width | 3/8" End Mill (9.525mm) | Requires two passes instead of one, doubling cycle time. |
| 12mm Shank Holder | 1/2" Collet (12.7mm) | Uneven clamping force, high runout, tool pullout risk. |
Audit your shop's incoming work to justify tooling investments. Review the last 100 jobs that crossed your desk. Calculate the percentage of metric versus imperial prints. If 70% of your work originates in metric CAD environments, standardizing on metric tooling makes financial sense. Forcing inch tools into metric workflows wastes programming time. Align your tool crib with the dominant measurement system of your highest-margin clients. Do not let a few legacy jobs dictate the tooling strategy for your most profitable production runs.
The typical size of your workpieces influences the availability and selection of optimal flute lengths and diameters. Micro-machining medical parts requires tiny tools. The metric system excels here, offering precise increments like 0.5mm, 1mm, and 1.5mm. Large aerospace bulkheads demand massive material removal. In these cases, large fractional inch roughers are readily available and highly rigid. Match your sizing system to the scale of your physical work envelope. A shop running Swiss lathes will naturally lean metric, while a shop running large gantry mills will likely lean imperial.
Analyzing your current inventory of carbide end mill sizes helps identify redundancies. You do not need to stock both a 6mm and a 1/4 inch end mill for general roughing. They are nearly identical in size. If 1/4 inch tools are already heavily stocked and acceptable for the tolerance, eliminate the 6mm tools from your purchasing system. Consolidation frees up cash flow and reduces the physical footprint of your tool crib. It also simplifies the purchasing process for your procurement team.
New shops or machinists should avoid inventory bloat by starting with a core set of versatile sizes. Choose your dominant measurement system first based on your target industry. A solid metric starter kit includes 3mm, 4mm, 6mm, 8mm, 10mm, and 12mm square end mills. An inch starter kit should focus on 1/8", 1/4", 3/8", and 1/2" sizes. Master feeds and speeds with these core diameters before expanding into specialty profiles, ball noses, or bull-nose geometries. Learn how these core sizes react to different materials before buying expensive specialty cutters.
Cutting performance, deflection, and tool life are dictated by the carbide substrate, flute count, and geometry. They are not dictated by the measurement system. A 4-flute 12mm end mill and a 4-flute 1/2 inch end mill with identical coatings will perform similarly in the same material. The critical factor is the tool holder interface. Provided the holder is perfectly matched to the shank, both systems deliver exceptional rigidity and surface finish. Focus your budget on high-quality carbide and precision holders rather than worrying about which measurement system cuts better.
Many modern shops successfully build a hybrid tool crib. They stock standard inch sizes for heavy roughing because they are cheap and locally available. They then stock specific metric end mills for finishing native metric features. This approach leverages the best of both supply chains. You get the aggressive material removal of a 3/4 inch rougher, followed by the precision of a 10mm finisher to hit tight metric tolerances on a pocket wall. This requires excellent communication between the programming department and the shop floor.
Running a hybrid system requires strict protocols to prevent catastrophic operator setup errors. Physical tool segregation is mandatory. Store metric tools in blue bins and inch tools in red bins. Enforce clear laser marking requirements on all tool shanks. CAM tool library naming conventions must be rigid.
If an operator loads a 1/2 inch end mill into a 12mm toolpath, the tool will overcut the part by 0.7mm, scrapping the workpiece instantly.
The financial trade-off of a hybrid system involves maintaining dual tool holder inventories. You must buy both metric and inch shrink-fit holders or high-precision collets. This doubles your initial tooling investment. The flexibility gained in job bidding often offsets this cost. A hybrid shop can confidently bid on a German automotive metric print on Monday and a US defense inch print on Tuesday without worrying about tooling limitations. You expand your addressable market by having the physical capability to machine any print exactly as engineered.
A: No. While an ER collet has a collapse range, using a 1/2 inch collet for a 12mm shank creates uneven clamping force. This mismatch introduces runout, increases vibration, and leads to premature tool failure or breakage. Always use exact-match metric collets for metric shanks.
A: The US manufacturing supply chain is historically built around fractional inch sizes. While standard metric roughers are widely stocked, specialized metric geometries often require importing or custom grinding, leading to longer lead times.
A: CAM software can mathematically convert the toolpath, but it cannot change the physical tool geometry. If you program a 1/4 inch tool for a 6mm metric pocket radius, the software will either generate a gouge error or leave uncut material in the corners.
A: The most common metric sizes range from 1mm to 15mm. Core sizes heavily utilized in global manufacturing include 3mm, 4mm, 6mm, 8mm, 10mm, and 12mm. These cover the vast majority of standard slots, holes, and pocket features.
A: A new shop should start with a lean core set to avoid inventory bloat. For metric, stock 4mm, 6mm, 8mm, 10mm, and 12mm. For inch, stock 1/8", 1/4", 3/8", and 1/2". Expand into specialty sizes only as specific jobs require them.
A: No. Cutting performance, tool life, and rigidity are determined by the carbide substrate, flute geometry, and coating. The measurement system itself does not impact how the tool cuts metal, provided it is held securely in a proper tool holder.
