Drilling a 0.1 mm hole is quite literally like piercing a strand of human hair. At this microscopic scale, the physical rules governing machining shift dramatically. The margin for error shrinks to absolute zero. Even a microscopic fraction of runout can cause instant tool breakage. Meanwhile, unseen burrs and snapped drills hidden deep within a workpiece inevitably lead to costly scrapped parts. Premium materials are wasted, and severe production bottlenecks quickly follow.
Navigating these microscopic hazards requires a fundamental shift in how engineers approach the machining ecosystem. In this guide, we will explore the precise strategies required to manage ultra-small applications. Combining optimal machine setups with high-performance tooling transforms a fragile process into a reliable, repeatable operation.
Runout is the primary failure mode: Even 0.002 mm of spindle runout can cause a 0.1 mm tool to snap instantly. Implementing high-precision tool holders and maintaining rigid machine setups are non-negotiable.
Material selection is critical: Tungsten carbide provides the superior rigidity, thermal stability, and wear resistance required for ultra-small hole making. It significantly outperforms traditional High-Speed Steel.
Chip evacuation prevents catastrophic breakage: Utilizing specialized peck drilling cycles and selecting optimal flute geometries prevents microscopic chips from packing into the flutes.
Edge sharpness dictates burr control: Achieving burr-free holes relies entirely on ultra-sharp cutting edges, optimized surface cutting speeds, and friction-reducing tool coatings.

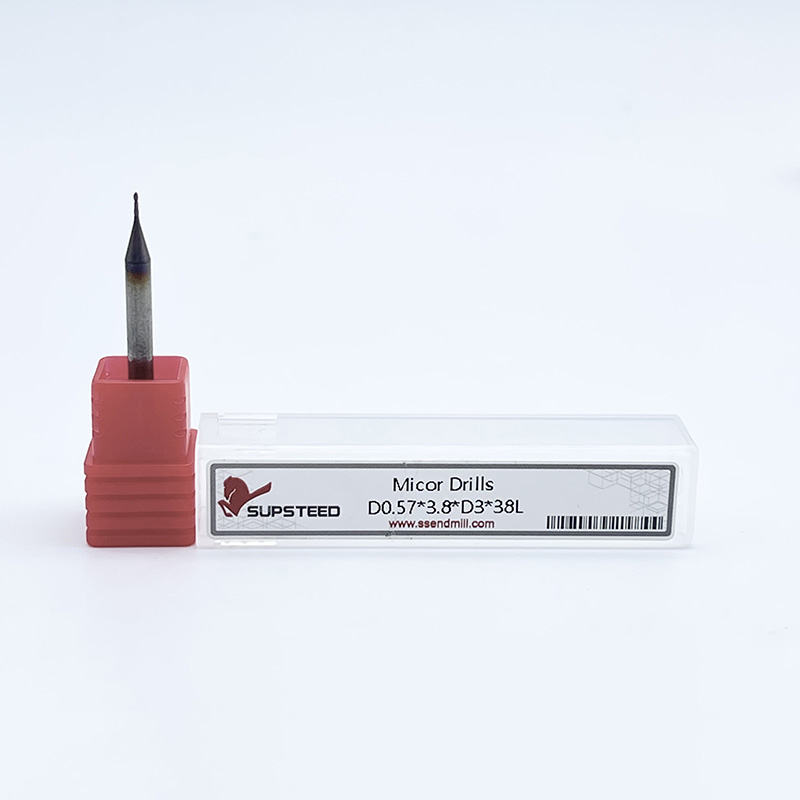

Before addressing the complex machining environment, it is essential to understand the physical characteristics of instruments designed for ultra-precision work. At a diameter of 100 microns, the structural integrity of the cutter itself becomes the absolute limiting factor. Every geometric feature must be engineered to survive environments that would effortlessly destroy standard tooling.
In macro-machining, High-Speed Steel and cobalt alloys remain common. However, at the 0.1 mm scale, these materials simply lack the mechanical stiffness required to withstand lateral cutting forces without bending. Consequently, solid micro carbide drills have become the undisputed industry standard for these delicate applications.
Solid micro-grain carbide provides immense stiffness, high heat resistance, and the unique ability to maintain an ultra-sharp cutting edge at microscopic diameters. When a tool is only a fraction of a millimeter wide, any microscopic deflection leads to immediate failure. Carbide possesses an exceptionally high Youngs Modulus, a vital measure of stiffness, which actively prevents this fatal deflection.
The geometry of a 0.1 mm tool differs significantly from its larger counterparts. Engineers must constantly balance two competing physical factors. We need robust core strength from the web thickness, and we need adequate space for chip evacuation in the flute volume.
In standard drills, the web thickness might account for twenty to thirty percent of the total diameter. In contrast, tools designed for the micro-scale often feature a web thickness increased to forty percent or more. This bolstered core provides the necessary column strength to prevent the shaft from buckling under axial loads. To compensate for the reduced flute space, the point angle is typically optimized between 118 and 130 degrees. This geometry centers the drill instantly and reduces initial thrust forces. Furthermore, the flute surfaces are highly polished to ensure that microscopic chips slide out smoothly without welding to the tool body.
Spindle runout is the most notorious enemy of microscopic hole making. A standard manufacturing environment might happily tolerate 0.01 mm of runout. Applying that exact same tolerance to a 0.1 mm tool results in a massive ten percent radial deviation. This induces intense lateral forces that the delicate web simply cannot survive.
Runout originates from several hidden sources within the machining ecosystem. The most common culprits include worn spindle bearings, where even microscopic wear translates to measurable radial deviation at the tool tip. Substandard tool holders are another massive issue. Standard ER collets often exhibit a runout of 0.005 mm to 0.01 mm right out of the box, which is entirely unacceptable for micro-scale operations.
In addition, contamination plays a huge role. A single speck of dust, a flake of dried coolant, or a microscopic metal chip trapped between the tool shank and the collet can induce critical off-center wobble. Improper installation also contributes to failure. Uneven torque applied to the tool holder nut can distort the collet, physically pushing the tool off its true axis.
For a 0.1 mm application, achieving success in precision drilling requires Total Indicator Reading to be kept strictly under two microns. Measuring runout at this scale demands specialized equipment. Standard dial indicators exert physical pressure that will bend the fragile shaft. This renders the measurement wildly inaccurate and can potentially crush the cutting edge.
Instead, non-contact laser measurement systems are required. These advanced systems analyze the shadow of the rotating tool to calculate deviation down to the nanometer level. To actively minimize runout, manufacturers must abandon standard collets in favor of high-precision alternatives like shrink-fit tool holders or hydraulic chucks. Shrink-fit systems use thermal expansion to grip the tool shank evenly across its entire circumference. They frequently achieve a runout of less than three microns. Specifically, all mating surfaces must be ultrasonically cleaned before installation.
Even with absolute zero runout, micro drills will snap instantly if the cutting parameters are miscalculated. The physics of shearing metal at 100 microns require a fundamental shift in how engineers calculate speeds, feeds, and chip management strategies.
Because the tool circumference is so small, achieving the correct surface cutting speed requires incredibly high spindle speeds. Cutting aerospace-grade aluminum typically requires a cutting speed of at least 30 to 50 meters per minute. For a 0.1 mm tool, achieving 30 meters per minute requires approximately 95,490 RPM.
If the machine spindle maxes out at a standard 10,000 RPM, the actual cutting speed drops to a mere 3.1 meters per minute. At this sluggish speed, the edge rubs against the material rather than shearing it cleanly. This friction causes severe work hardening, massive localized heat generation, and eventual fracture. Conversely, the feed rate must be strictly controlled. Feeding too aggressively causes the shaft to buckle under the axial load. Feeding too slowly causes the tool to rub, dulling the microscopic cutting edge prematurely. Feed rates for these applications are typically dialed into the ultra-fine range of 0.001 to 0.005 mm per revolution.
The majority of small diameter tools break not from actual cutting forces, but from chip packing. When chips cannot easily evacuate the flute, they compress into a solid mass. The tool effectively becomes a solid rod wedged tightly in a hole, and the rotational torque of the spindle snaps it in milliseconds.
To prevent this catastrophic packing, engineers employ a strict peck drilling cycle. Instead of plunging the hole in one continuous motion, the tool advances a tiny distance, then fully retracts out of the hole to clear the debris. For a 0.1 mm tool, the peck depth is usually extremely shallow. It is often just half to one times the tool diameter per peck. Full retraction is absolutely critical. Partial retractions are insufficient because the microscopic chips will remain trapped in the cavity.
In macro-machining, burrs can be easily removed with manual deburring tools, wire brushes, or tumbling media. In the micro-machining realm, a burr on a 0.1 mm hole is often impossible to remove mechanically without permanently altering the hole dimensions or scratching the workpiece. Therefore, the hole must be machined flawlessly burr-free from the very first pass.
Burrs form primarily due to material plasticity. As the drill enters the surface, it pushes a small amount of metal upward, creating an entry burr. As the drill approaches the bottom of the workpiece, the remaining floor material loses structural support. Instead of cleanly shearing the final few microns, the drill pushes the thin material outward, causing a stubborn exit burr.
This plastic deformation is magnified when using tools with insufficient sharpness. A dull cutting edge creates a larger radius at the tip, which acts like a plow dragging through the material. To combat this, engineers will often program the CNC to reduce the feed rate by fifty percent just before the drill breaches the bottom of the part. This minimizes the thrust force and reduces exit burr formation.
Burr prevention relies entirely on the pristine sharpness of the cutting edge. While solid carbide allows for incredibly sharp edge preparation, this delicate sharpness must be protected from abrasive wear. Advanced Physical Vapor Deposition coatings are utilized to maintain edge integrity and drastically reduce friction.
Coatings like Titanium Aluminum Nitride or Diamond-Like Carbon provide a slick, low-friction barrier. This prevents Built-Up Edge, a highly destructive phenomenon where microscopic workpiece material welds itself directly to the cutting tool. High-quality coatings ensure the material shears cleanly, yielding a pristine micro hole.
As the push for miniaturization accelerates across the medical device manufacturing and aerospace sectors, the tolerance for machining errors is practically vanishing. Recent industry analyses highlight a massive shift toward integrating smart spindle monitoring systems and ultra-precise thermal compensation directly into CNC controllers. The demand for minimally invasive surgical instruments, micro-fluidic channels, and advanced semiconductor components requires machining exotic alloys at the sub-millimeter level. This evolution makes the synergy between cutting tool geometry and the machine environment more critical than ever before. Facilities are moving away from trial-and-error setups, adopting deterministic micro-manufacturing processes driven by real-time data and ultra-precise tooling.
Achieving success with ultra-small hole making requires far more than just a high-quality cutting implement. The entire machining environment must be optimized to support the delicate nature of the operation. External variables that are typically negligible in conventional machining suddenly become primary causes of failure.
In the realm of micro-manufacturing, machine rigidity is the foundational element that dictates tool survival. A 0.1 mm drill possesses an exceptionally low moment of inertia. Consequently, even microscopic vibrations can induce lateral forces that exceed the transverse rupture strength of the tool.
Standard CNC machining centers often lack the dynamic stiffness required for this level of precision. High-performance micro-machining centers typically utilize polymer concrete or epoxy granite bases rather than traditional cast iron. These advanced materials offer superior vibration-damping characteristics, absorbing harmonic frequencies generated by the spindle. Furthermore, environmental isolation is critical. Vibrations transmitted through the shop floor can propagate into the machine frame and induce fatal side-loading on the tool. Facilities performing critical micro-hole operations often mount their equipment on isolated seismic pads to completely decouple the machine from ambient floor vibrations.
Traditional flood coolant systems are often detrimental when utilizing fragile cutting instruments. The kinetic energy of a high-pressure coolant stream hitting a 0.1 mm drill can generate enough physical force to deflect or snap the tool before it even touches the metal. Additionally, the surface tension of standard water-soluble coolants can prevent the fluid from penetrating the microscopic flutes, leading to localized heat build-up.
To mitigate these risks, engineers deploy specialized lubrication strategies. Minimum Quantity Lubrication has emerged as an industry-standard solution. These systems deliver a precise, atomized mist of high-lubricity oil directly to the cutting zone using compressed air. The compressed air effectively evacuates microscopic chips from the hole, while the atomized oil droplets reduce friction at the cutting edge without exerting damaging kinetic force.
Validating the dimensional accuracy and surface finish of a 0.1 mm hole presents a unique set of metrological challenges. Traditional contact measurement techniques are entirely unsuited for this scale, necessitating the adoption of advanced non-destructive testing.
In conventional machining, operators rely on pin gauges to verify hole diameters. However, at a diameter of 0.1 mm, a physical pin gauge is essentially a fragile wire. Attempting to insert a contact gauge into a micro-hole often results in the gauge bending. Worse, it can scrape the internal walls of the hole and introduce microscopic burrs.
Therefore, optical and non-contact measurement systems are mandatory. High-resolution optical comparators and automated vision systems equipped with telecentric lenses are standard for verifying hole diameter and circularity. For inspecting the internal geometry and depth of blind micro-holes, engineers frequently utilize confocal laser scanning microscopes or white light interferometry. These map the internal topography with sub-micron resolution without ever touching the part.
Tracking tool wear is critical for maintaining strict dimensional tolerances. A 0.1 mm tool has an extremely limited volume of wear material. Even a few microns of edge rounding can significantly increase cutting forces, leading to hole taper, poor surface finish, or sudden breakage.
To maintain tolerances, manufacturers must implement predictive tool life management. Rather than waiting for a tool to fail or a part to fall out of tolerance, engineers establish a strict tool life limit based on empirical data. For example, automatically swapping the tool after exactly 500 holes. Advanced CNC controllers also utilize highly sensitive spindle load monitoring to detect minute increases in torque associated with wear, pausing the cycle before catastrophic failure occurs.
The reliability of a micro-machining process is inextricably linked to the quality and consistency of the cutting tools employed. Procurement managers and manufacturing engineers must exercise rigorous due diligence when selecting a tooling partner. Inconsistencies that are acceptable in standard tooling will cause immediate process failure at the microscopic scale.
When evaluating suppliers for miniature cutting tools, abstract promises are not enough. You need concrete specifications. First and foremost is batch-to-batch geometric consistency. The web thickness of a 0.1 mm drill is often less than 0.03 mm. If a grinding process has a tolerance variance of even 0.005 mm, the resulting tools will exhibit drastically different structural integrity, making it impossible to standardize CNC feeds and speeds.
Feature | Standard High-Speed Steel | Premium Micro-Grain Solid Carbide |
|---|---|---|
Core Rigidity | Low. Highly prone to bending under axial load. | Extremely High. Actively resists deflection. |
Thermal Stability | Moderate. Loses temper at high speeds. | Excellent. Withstands extreme high-RPM heat. |
Edge Sharpness | Difficult to maintain at the micro-scale. | Razor-sharp retention for burr-free cutting. |
Burr Control | Poor to Moderate. Often requires post-processing. | Flawless. Produces clean entry and exit holes. |
Tool Life | Short and unpredictable. | Highly predictable, enabling automated tool changes. |
Engineers should verify the edge preparation and coating technologies. Premium tools feature specialized post-grinding edge honing to remove microscopic grinding striations. This actively prevents premature edge chipping. Technical support is another vital consideration. A reputable supplier will provide validated starting parameters for cutting speeds and specific peck drilling cycle recommendations tailored to your workpiece material.
Successfully drilling 0.1 mm holes is a highly delicate balancing act. It requires absolute environmental control. You must manage spindle runout with extreme care and optimize chip evacuation to prevent sudden tool breakage. Furthermore, maintaining ultra-sharp cutting edges is the only proven method to eliminate microscopic burrs effectively.
Cutting corners on tool quality or machine setup will ultimately cost much more in scrapped parts, broken tools, and lost production time. By adhering to strict machining principles, manufacturers can turn the daunting task of micro-drilling into a highly controlled operation. If you are struggling with tool breakage, poor surface finish, or inconsistent tool life in your micro-machining applications, upgrading your tooling is the first critical step. Explore the high-performance micro drilling solutions at SS Endmill to find the exact geometry, coating, and micro-grain carbide specifications required for your most demanding projects.
Solid micro-grain tungsten carbide is universally recognized as the optimal material for ultra-small drilling applications. Unlike High-Speed Steel, which lacks the necessary rigidity, micro-grain carbide possesses an exceptionally high stiffness. This prevents tool deflection when lateral forces are applied during the cutting process. Furthermore, the micro-grain structure allows the tool manufacturer to grind an incredibly sharp and stable cutting edge that resists wear and thermal deformation.
To achieve the correct surface cutting speed required for efficient material shearing, a 0.1 mm tool must be rotated at exceedingly high speeds. Depending on the machinability of the workpiece material, spindle speeds typically range from 60,000 to over 100,000 RPM. If the spindle speed is too low, the tool will rub against the material rather than cutting it, leading to rapid work hardening, excessive friction, and inevitable tool breakage.
Preventing breakage requires a holistic approach to the machining environment. First, spindle runout must be maintained at near-zero levels, ideally below 0.002 mm, using high-precision shrink-fit or hydraulic tool holders. Second, the machine setup must be highly rigid and isolated from external vibrations. Third, engineers must implement precise peck drilling cycles to ensure microscopic chips are fully evacuated. Finally, feed rates must be strictly controlled to prevent buckling the fragile tool shaft.
In micro-machining, the industry standard dictates that Total Indicator Runout should never exceed ten percent of the tool diameter. Therefore, for a 0.1 mm drill, the absolute maximum acceptable runout is 0.01 mm. However, for optimal tool life, dimensional accuracy, and consistent process reliability, cutting tool engineers highly recommend maintaining runout below 0.002 mm. Excessive runout acts as a multiplier for chip load on a single cutting edge, rapidly accelerating wear and causing instantaneous tool failure.
Programming a peck cycle at this scale requires full retraction out of the hole. The peck depth should be extremely shallow, typically half to one times the tool diameter per pass. You must avoid partial retractions or standard chip-breaking cycles. Microscopic chips will not break and clear on their own. The tool must completely exit the bore to allow high-pressure air or mist to flush the debris away before the next plunge.
Standard high-pressure flood coolant can physically snap a 0.1 mm drill due to kinetic force. Additionally, regular liquid coolants have high surface tension, preventing them from entering the microscopic flutes. This causes massive heat buildup. The preferred method is Minimum Quantity Lubrication. It uses compressed air mixed with atomized cutting oil. This blows chips out of the hole while providing excellent lubricity without the damaging physical impact of a fluid stream.
