Radial engagement has a direct effect on milling tool load. It determines how much of the cutter diameter is engaged with the workpiece during cutting. When radial engagement increases, the cutter usually contacts more material, cutting force rises, chip evacuation becomes harder and the tool receives higher side load. When radial engagement decreases, the cutting force may become lower, but the actual chip thickness can become too thin if feed per tooth is not adjusted.

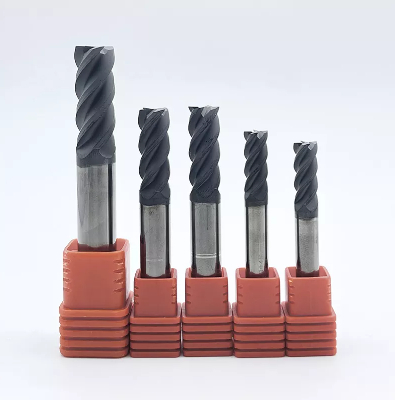

When radial engagement changes, choosing stable Milling Tools becomes important because tool diameter, flute design, carbide grade and coating all affect cutting load and tool life.
This topic matters because radial engagement is not only a CAM setting. It affects chip formation, heat, tool deflection, chatter, surface finish and milling tool wear. A tool that performs well at 20% radial engagement may not behave the same way in full slotting. A finishing pass with very low radial stock may also fail if the tool rubs instead of cutting.
This article explains how radial engagement affects milling tool load and how buyers can match tool selection with real cutting conditions.
Radial engagement affects milling tool load by changing cutter contact width, chip thickness, cutting force and heat distribution.
Key points include:
Radial engagement is the width of cut across the cutter diameter.
It is often called radial depth of cut, stepover or ae in milling.
Higher radial engagement usually increases cutting force.
Full slotting creates the highest radial load and chip evacuation pressure.
Lower radial engagement can reduce side load.
Very low radial engagement may create radial chip thinning.
Chip thinning may require feed per tooth adjustment.
High engagement increases tool deflection and chatter risk.
Low engagement is useful in dynamic milling but still needs correct chip load.
Tool geometry, flute design, coating, carbide grade and chip evacuation all affect how milling tools handle engagement changes.
A good milling process does not simply use the smallest radial engagement. It matches radial engagement, axial depth of cut, feed per tooth, tool diameter, material and machine rigidity.
Radial Engagement → Cutter Contact Width → Chip Thickness → Cutting Force → Heat / Deflection / Tool Wear
Radial engagement is the width of cut measured across the cutter radius or diameter. In machining discussions, it may also be called radial depth of cut, stepover or ae in milling. It describes how much of the milling cutter is engaged with the workpiece from the side.
For example, if a cutter is fully buried in a slot, radial engagement is close to 100% of the tool diameter. If the cutter is removing a narrow side pass, radial engagement may be 10%, 20% or 30% of the tool diameter.
| Machining Condition | Radial Engagement Meaning |
|---|---|
| Full slotting | Tool is engaged across 100% of diameter |
| Half-width cut | Around 50% diameter engagement |
| Side milling | Partial radial engagement |
| Dynamic milling | Low radial engagement with deeper axial cut |
| Finishing pass | Usually low radial stock removal |
Radial engagement is closely related to stepover in milling. A larger stepover increases the cutter contact width. A smaller stepover reduces radial load, but it also changes chip thickness. This is why radial engagement should always be reviewed together with feed per tooth and axial depth of cut.
Milling tools cut through repeated flute engagement. Each cutting edge enters the workpiece, removes material and exits the cut. Radial engagement changes how long each flute stays in contact with the material and how much material it removes during each rotation.
Radial engagement affects:
cutting force;
chip thickness;
chip evacuation;
tool deflection;
tool vibration;
heat generation;
spindle load;
tool wear;
surface finish;
material removal rate;
machining stability.
A wider engagement usually means more contact between cutter and material. This increases milling tool load and makes the setup more sensitive to machine rigidity, holder accuracy and chip removal. A narrower engagement reduces radial cutting force, but if chip thickness becomes too low, the tool may rub and generate heat instead of cutting efficiently.
The correct radial engagement depends on the tool, material, machine, holder and toolpath strategy.
Chip thickness is one of the most important links between radial engagement and tool load. Feed per tooth is the programmed feed amount for each cutting edge, but the actual chip thickness depends on cutter engagement.
When radial engagement is moderate or high, the cutting edge usually forms a thicker chip. When radial engagement is very low, the cutting edge may not reach the programmed chip thickness. This is called radial chip thinning.
Radial chip thinning means the actual chip is thinner than expected. If the operator does not adjust feed per tooth, the tool may start rubbing instead of cutting. Rubbing can create heat, coating wear, poor surface finish and shorter tool life.
This is why low engagement machining is not automatically safe. It reduces radial force, but it requires correct feed strategy.
Important points include:
higher engagement increases cutter contact width;
lower engagement reduces radial load;
low engagement may reduce actual chip thickness;
feed per tooth may need adjustment;
rubbing can occur if the chip is too thin;
tool life depends on proper chip formation.
A stable process should create a real chip, not only scrape the surface.
High radial engagement means more of the cutter diameter is engaged with the workpiece. This condition is common in full slotting, heavy side milling and wide stepover roughing.
When engagement is high, milling tool load increases because the cutter removes more material across a wider contact area. More cutting edges may be engaged for a longer period, and chip evacuation becomes more difficult.
High radial engagement can cause:
higher cutting force;
higher spindle load;
more heat generation;
stronger side pressure;
higher tool deflection;
greater chatter risk;
chip packing;
faster edge wear;
higher risk of edge chipping;
lower process stability.
Full slotting is especially demanding because chips have less space to escape. If chips are trapped in the slot, they can be recut by the tool. This increases heat and edge damage.
High radial engagement is not wrong by itself. It can be effective when the machine, tool holder, workpiece clamping, tool geometry and chip evacuation are suitable. However, it demands more from the complete machining system.
For heavy roughing or wider radial engagement, Roughing End Mills can help improve chip evacuation and reduce cutting resistance when matched with suitable machine rigidity and parameters.
Low radial engagement is common in dynamic milling, adaptive clearing, side milling and finishing passes. It often reduces cutting force and tool deflection. However, it can also reduce actual chip thickness.
This is the key point: low radial engagement does not always mean the tool is cutting correctly.
If the feed per tooth remains too low, the tool may not form a proper chip. Instead, the edge may rub against the material. Rubbing creates heat and can damage the coating or cutting edge.
Low radial engagement may bring several advantages:
lower radial cutting force;
lower tool deflection;
better machining stability;
more room for chip evacuation;
possibility of deeper axial depth of cut;
useful dynamic milling strategies.
But it may also create risks:
radial chip thinning;
rubbing if feed is too light;
heat buildup;
poor cutting efficiency;
weak chip formation;
coating wear;
unstable finishing quality.
The solution is not simply to increase feed aggressively. The feed adjustment should match tool diameter, material, flute count, engagement ratio, machine rigidity and tool manufacturer recommendations.
Radial engagement changes how force and heat are distributed through the milling tool. Higher engagement creates more contact and higher cutting force. Lower engagement creates less force but may create rubbing if chip thickness is too low.
Heat can increase under both conditions. With high radial engagement, heat increases because more material is removed and chip evacuation becomes harder. With very low engagement, heat may increase because the tool rubs instead of shearing material cleanly.
Tool deflection is also affected. A high side load pushes the tool away from the programmed path. This can cause dimensional error, poor wall finish and uneven wear. Smaller diameter tools, long reach tools and less rigid setups are more sensitive to this problem.
Milling tool wear may appear as:
flank wear;
corner wear;
edge chipping;
coating damage;
heat discoloration;
poor surface finish;
chatter marks;
unstable tool life.
The best process balances radial engagement with chip thickness, cutting force, chip evacuation and tool strength.
| Radial Engagement | Typical Condition | Tool Load Effect |
|---|---|---|
| 100% D | Slotting | Highest radial load and chip evacuation pressure |
| Around 50% D | Half-width side milling | High chip thickness and stable load if setup is rigid |
| 20–40% D | General side milling | Balanced load and toolpath flexibility |
| 10–20% D | Dynamic milling / adaptive clearing | Lower radial force but chip thinning must be considered |
| Very low finishing stock | Finishing pass | Low force but rubbing may occur if feed is too light |
This table shows why radial engagement must be considered together with toolpath and feed strategy. A smaller engagement is not always better, and a larger engagement is not always wrong. The correct value depends on the process goal.
Different milling operations use radial engagement in different ways.
In slotting, the cutter may be fully engaged. This creates high side load and strong chip evacuation pressure. Slotting usually requires suitable flute design, stable holder clamping, proper coolant or air blast and conservative cutting parameters.
In roughing, radial engagement may be selected according to material removal rate and machine capability. A wide engagement removes more material but increases load. A lower engagement with deeper axial cut can improve stability in some dynamic milling strategies.
In finishing, radial engagement is usually small. The goal is not high material removal but surface quality and dimensional control. However, finishing passes can fail if the radial stock is too small and the tool rubs instead of cutting.
Typical strategy differences include:
slotting needs chip evacuation and load control;
roughing needs a balance between material removal rate and stability;
side milling needs stable engagement and wall accuracy;
dynamic milling needs chip thinning correction;
finishing needs minimum chip thickness and surface consistency.
The same carbide end mill may need different parameters in each case.
Feed per tooth milling should not be set without considering radial engagement. When engagement is reduced, actual chip thickness may become lower than expected. To maintain proper chip formation, feed per tooth may need to be adjusted.
However, this adjustment should be done carefully. If feed is increased without checking tool strength, material hardness, machine rigidity and chip evacuation, the process may become unstable.
Buyers and machinists should review:
tool diameter;
flute count;
workpiece material;
radial depth of cut;
axial depth of cut;
spindle speed;
feed per tooth;
chip evacuation;
coolant or air blast;
tool holder stability;
desired surface finish.
The practical goal is to maintain a cutting action that forms chips efficiently without overloading the edge.
Tool geometry has a strong influence on how milling tools handle radial engagement. The same radial depth of cut may create different results depending on flute design, helix angle, core strength, coating and edge geometry.
Useful tool features may include:
suitable flute count;
strong tool core;
optimized helix angle;
variable pitch design;
chipbreaker or roughing geometry;
coating matched to material;
edge strength for hard materials;
sharp geometry for finishing;
good chip evacuation space;
tool diameter matched to engagement strategy.
For high engagement roughing, chip evacuation and cutting resistance become important. For low engagement dynamic milling, flute strength, coating and feed strategy matter. For finishing, edge quality and runout control are important.
For special materials, unusual engagement ratios or application-specific toolpath requirements, Custom Carbide End Mills can be reviewed according to radial depth of cut, chip load, tool diameter and machining goal.
| Engagement Problem | Practical Response |
|---|---|
| Full slotting causes chatter | Reduce radial engagement or use optimized roughing path |
| Chips pack in the slot | Improve chip evacuation and coolant/air blast |
| Tool deflects in side milling | Reduce radial depth or use stronger tool geometry |
| Low engagement causes rubbing | Adjust feed per tooth for chip thinning |
| Heat rises during roughing | Reduce engagement, improve chip evacuation or choose suitable rougher |
| Finish pass leaves marks | Check minimum chip thickness, runout and feed |
| Small tool breaks early | Reduce engagement and review chip load carefully |
| Hard material overloads edge | Use suitable carbide grade, coating and edge geometry |
This table can help buyers identify whether the problem is caused by tool selection, cutting parameters, chip evacuation or machine stability.
Before selecting milling tools for a specific radial engagement strategy, buyers should provide process details. Without this information, tool recommendations may be too general.
Useful details include:
workpiece material;
material hardness;
tool diameter;
flute number;
radial depth of cut;
axial depth of cut;
slotting, side milling, roughing or finishing;
dynamic milling or conventional toolpath;
feed per tooth;
spindle speed;
coolant or air blast condition;
machine rigidity;
holder type;
tool overhang;
required surface finish;
current tool life;
current tool wear problem.
This information helps the supplier understand whether the tool needs better chip evacuation, stronger edge geometry, lower cutting resistance, improved coating, custom diameter or a different flute design.
SUPSTEED supports carbide milling tool selection for roughing, finishing, hard milling, side milling, slotting, micro machining and custom machining applications. When customers face chatter, heat buildup, fast wear, edge chipping or poor surface finish after changing stepover, the issue may be related to radial engagement and chip load.
SUPSTEED can help review:
workpiece material;
tool diameter;
flute count;
radial depth of cut;
axial depth of cut;
feed per tooth;
spindle speed;
toolpath type;
machine rigidity;
tool holder;
current wear pattern;
surface finish requirement;
material removal target;
tool life target.
For slotting, roughing, side milling, dynamic milling or finishing, SUPSTEED can help match carbide milling tools with radial engagement, chip load, flute design, coating and material conditions.
Radial engagement affects milling tool load by changing cutter contact width, chip thickness, cutting force, heat generation, chip evacuation pressure, tool deflection and tool wear. High radial engagement increases load and vibration risk, while low radial engagement reduces average chip thickness and may require feed adjustment to avoid rubbing from radial chip thinning.
The best milling process does not rely on one fixed engagement value. It matches radial depth of cut with axial depth of cut, feed per tooth, material, machine rigidity, toolpath type and milling tool geometry. A suitable carbide tool should support the required engagement strategy without causing excessive heat, chatter, edge chipping or poor finish.
Send SUPSTEED your workpiece material, tool diameter, flute number, radial depth of cut, axial depth of cut, feed per tooth, spindle speed, toolpath type and current tool problem to discuss a suitable milling tool solution.
Radial engagement is the width of cut across the cutter diameter. It is also called radial depth of cut, stepover or ae in milling.
Higher radial engagement usually increases cutting force, tool load, heat, deflection and chip evacuation pressure. Lower engagement reduces side load but may cause chip thinning.
No. Low radial engagement can reduce force, but it may also create radial chip thinning. If feed per tooth is too low, the tool may rub instead of cutting.
Radial chip thinning occurs when low radial engagement makes the actual chip thickness thinner than the programmed feed per tooth would suggest.
Full slotting engages the cutter across 100% of its diameter. This creates high radial load, strong chip evacuation pressure and higher heat.
Feed per tooth may need to be adjusted to maintain proper chip thickness, but the adjustment should match tool diameter, material, machine rigidity and toolpath strategy.
High engagement can increase heat and edge load. Very low engagement can cause rubbing. Both conditions can increase milling tool wear if not controlled.
Strong core design, suitable flute geometry, chip evacuation space, coating, roughing geometry and proper carbide grade can help manage high engagement loads.
Buyers should provide material, tool diameter, flute number, radial depth of cut, axial depth of cut, feed per tooth, spindle speed, toolpath type and current tool problem.
Yes. SUPSTEED can review material, radial engagement, chip load, toolpath type, tool geometry and wear symptoms to recommend suitable carbide milling tools.
